Shangyin 100% original linear guide block mgn12c spot

Supplier: North Intelligence (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr Sheldon Xu
Price: $9.50 / 1 - 9 pieces
$9.45 / 10 - 99999 pieces
$4.10 / >=100000 pieces
Min. Order: 1 piece

Click here to contact

Product details

length:	0-1500mm	Mechanical test report:	if
application:	automated system	port:	Shanghai/Tianjin/Qingdao/Shenzhen
Packaging Details:	1. Original color box packaging 2. Commercial packaging (pieces): 1pc/polybag+color box+carton+plywood tray/plastic tray 3. Commercial packaging (rail): 1pc/polybag+carton+plywood tray/plastic tray4 .According to your requests	Weight (kg):	0.034
MOQ:	1	Marketing Type:	normal product
Health status:	new	Warranty:	1.5 years
color:	silver	product name:	Shangyin 100% original linear guide block mgn12c spot
Performance:	High precision and low noise	Package preview:
Origin:	Taiwan, China	Material:	stainless steel, stainless steel rail
Model:	mgn12c	model:	mgn12c
Supply capacity:	1000 pieces per week	Core components:	Linear Guides
Video shipment inspection:	if	brand:	Shangyin
in stock:	adequate supply	Core component warranty:	1 year
brand:	Shangyin	Applicable industries:	Manufacturing plants, machine repair shops, retail shops, print shops, energy and mining, CNC
payment terms:	L/C, Western Union, T/T, MoneyGram, Alibaba Trade

Product Description

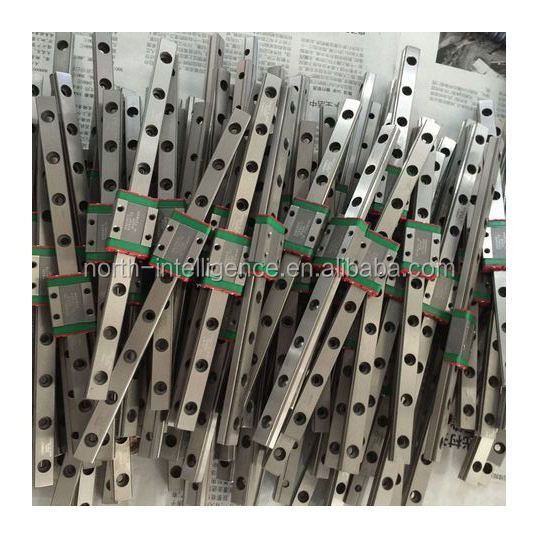

Shangyin 100% original linear guide block mgn12 spot

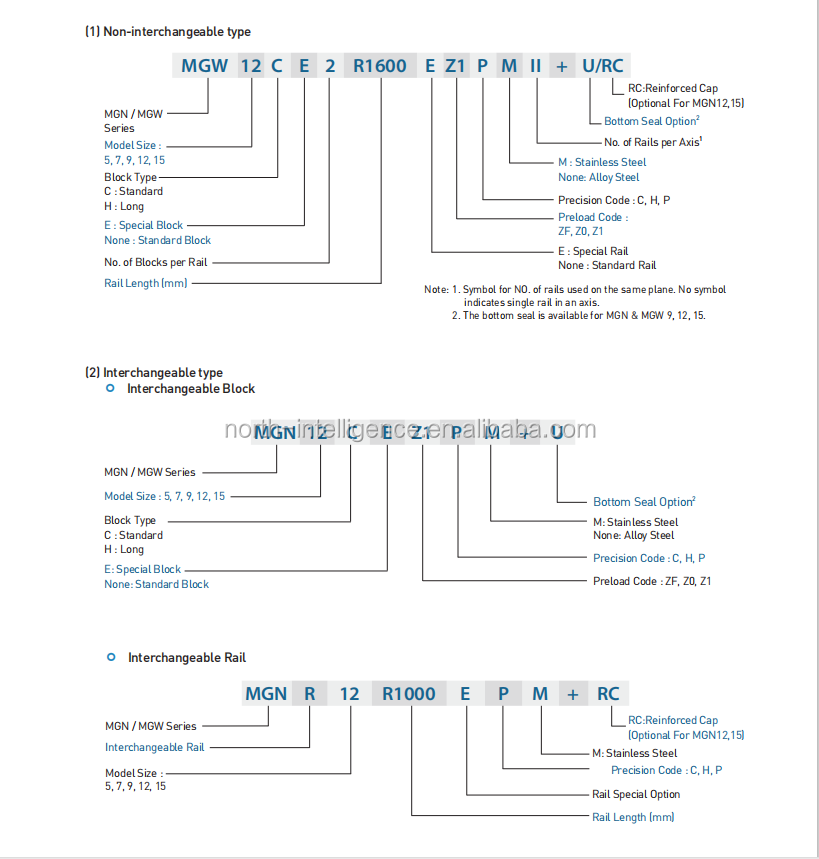

MGN, MGW series linear guides are divided into non-interchangeable type and interchangeable type. Both types are the same size. The interchangeable type is more convenient because the guide rail can be replaced. But its accuracy is not as good as the non-interchangeable type. Due to tight dimensional control, interchangeable linear guides are a wise choice for customers when the axis does not require a mating guide. The model number contains information such as size, type, accuracy class, preload class, etc.

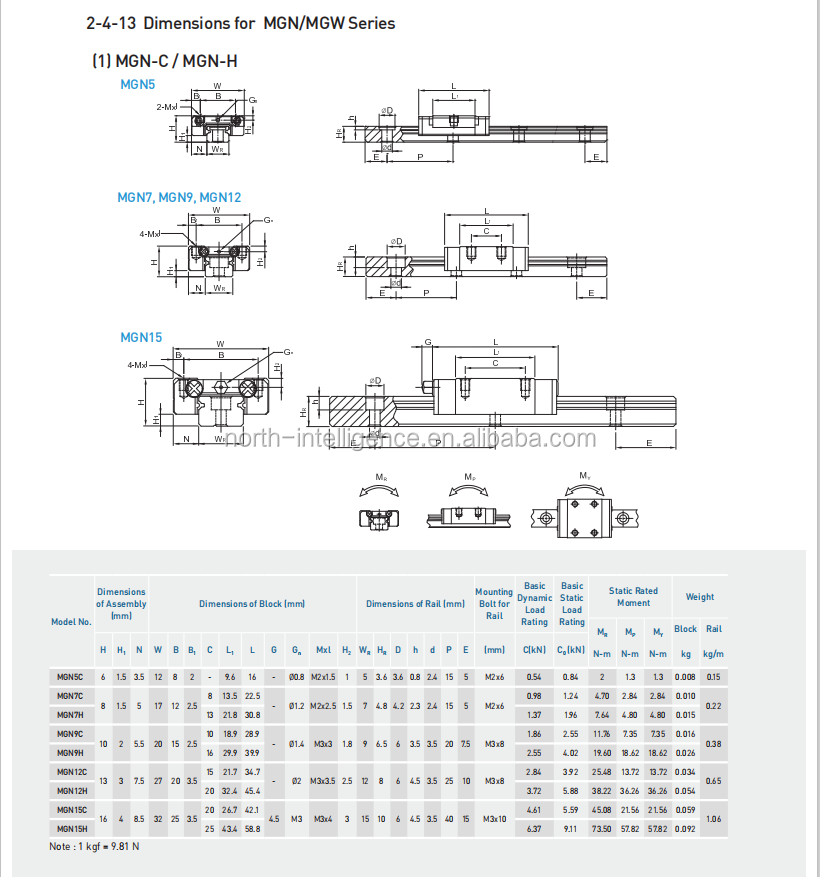

Specification

product name	Shangyin 100% original linear guide block mgn12 spot
Spot model	HGH(W)15/20/25/30/35/40/45; MGN(W)3/5/7/9/12/15/20; EGH(W)15/20/25/30/35/ 40/45
sample	can provide
Advantage	High speed, high precision, competitive price, large stock, fast delivery
brand	Shangyin
delivery time	3-7 days
Shipping schedule	By express; by air; by sea
pack	Carton packaging/wooden box packaging/pallets according to customer requirements
application	Full CNC machine tools; Transportation equipment; Measuring instruments; Printers; Artificial intelligence & robots; Automation equipment; Semiconductors equipment; woodworking machinery; medical equipment; office automation equipment, etc.

application

The MGN/MGW series can be used in many fields such as semiconductor equipment, PCB assembly equipment, medical equipment, robots, measurement equipment, office automation equipment, and other micro sliding machines.

model

factory

North Intelligent (Tianjin) Technology Co., Ltd.

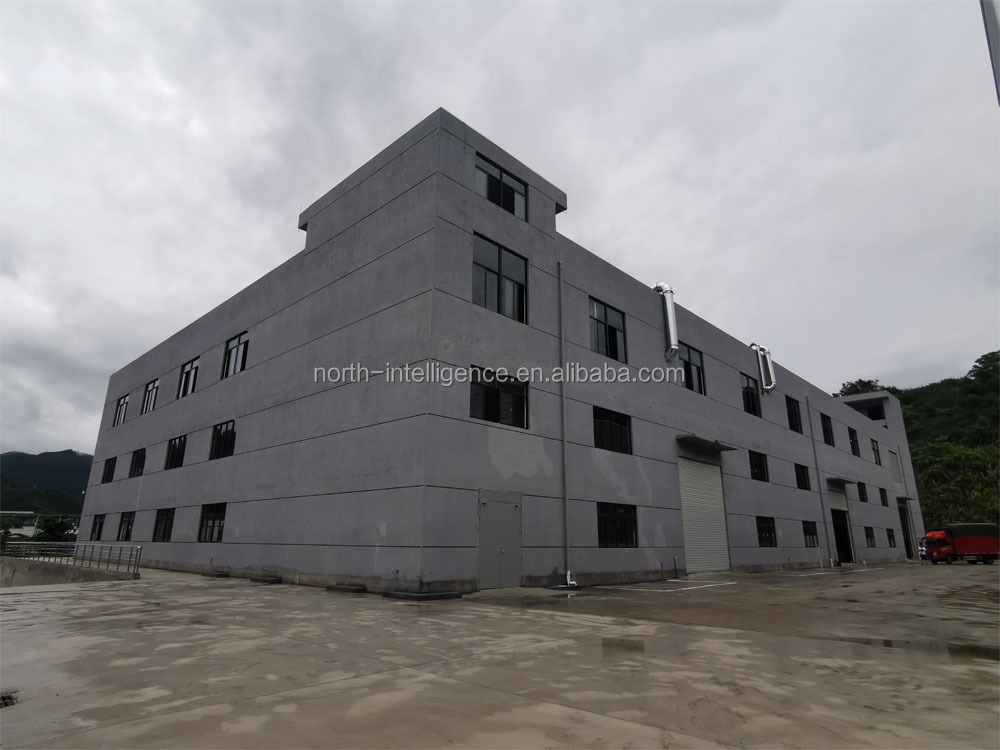

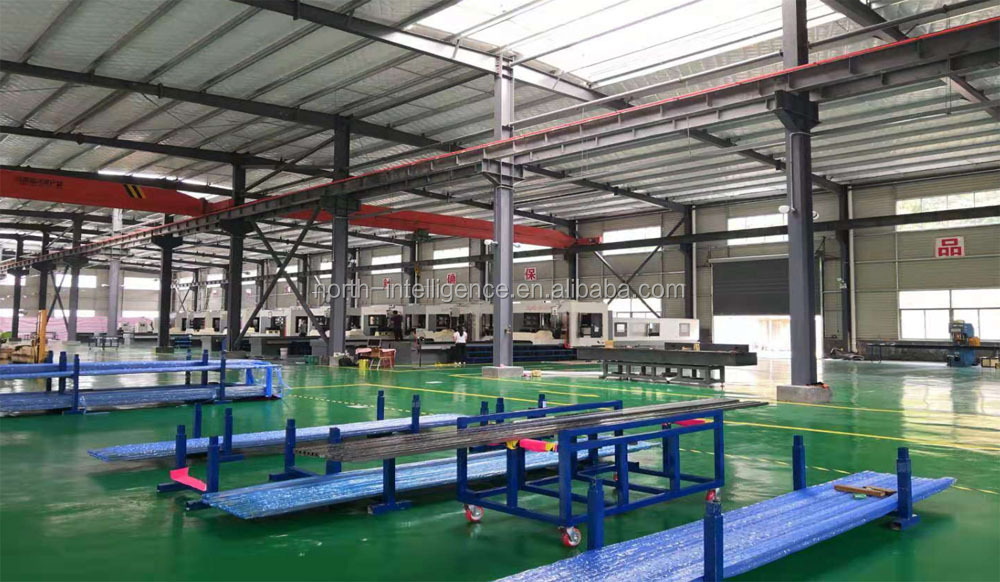

North Intelligent (Tianjin) Technology Co., Ltd. is located in Xiqing District, Tianjin. It is a comprehensive enterprise integrating R&D, production and trade, and a professional supplier of linear transmission products. Acting as an agent of Taiwan HIWIN, PMI, TBI linear guides and ball screws, we have established good cooperative relations with many automation product manufacturers at home and abroad.

The company's main products are linear guides, ball screws, screw brackets, nut seats, couplings, linear optical axes, linear bearings, SBR guides, dual-axis guides, linear modules, XY linear positioning platforms and other linear transmission products. Products are widely used in CNC machine tools, medical equipment, aviation, robots, mechanical arms and other fields that require precise linear transmission and positioning.

Based on the principle of "progressive, pragmatic, rigorous and united", we continue to innovate, take technology as the core, regard quality as life, and regard customers as God to provide you with the best quality service.

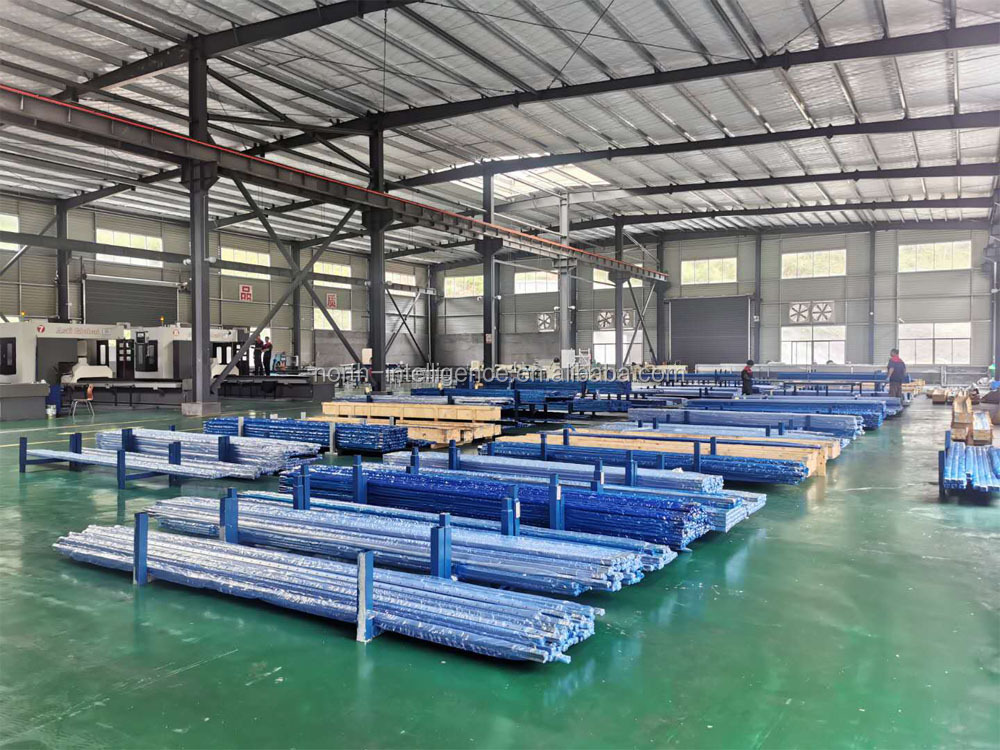

Warehouse packaging
