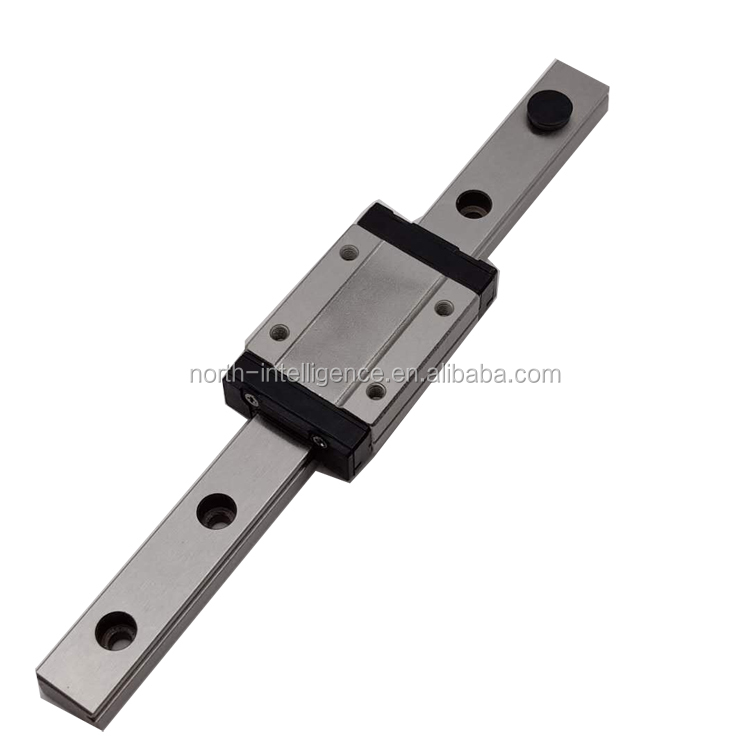

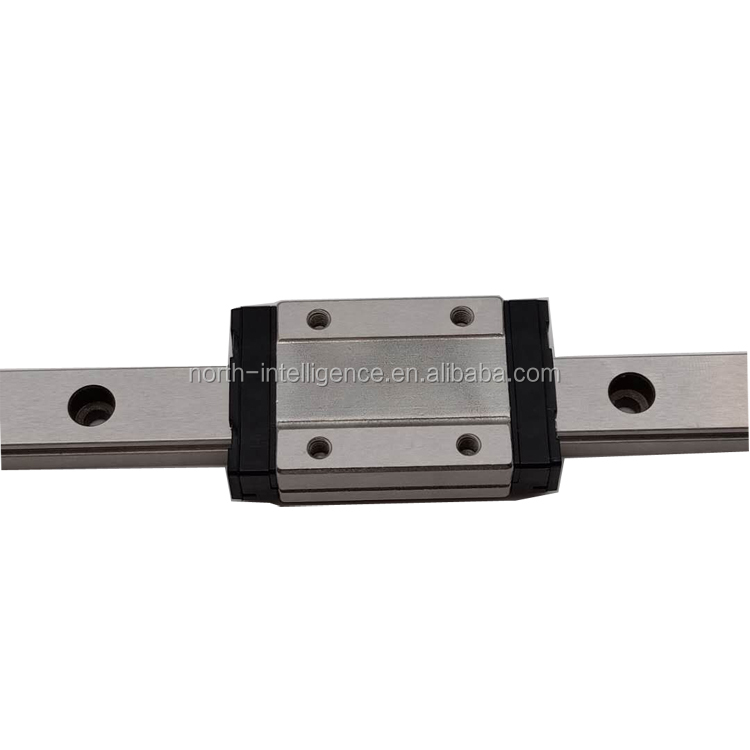

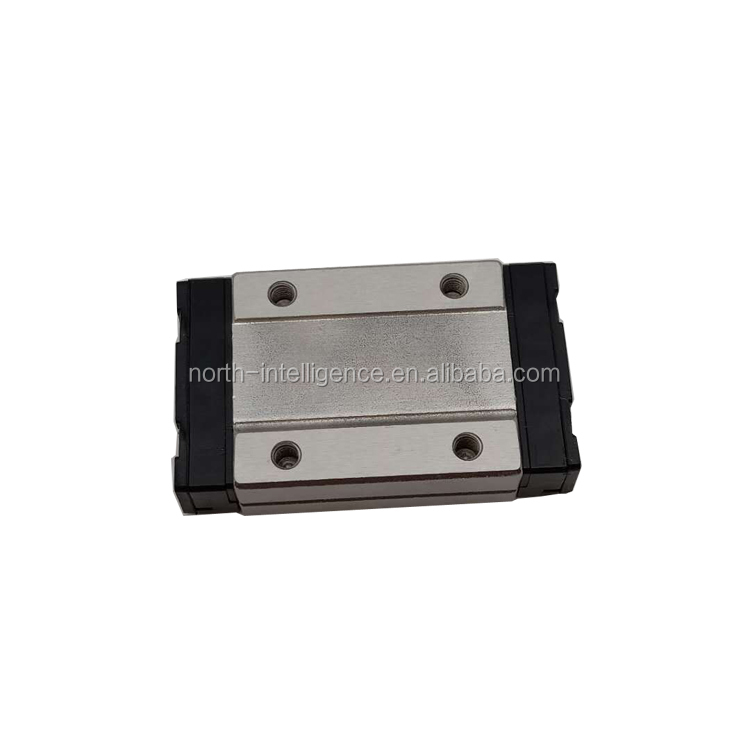

Miniature 12mm linear guide rail mgn12 mgn12c mgn12h domestic

Supplier: North Intelligence (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr Sheldon Xu
Price: $3.30 / 1 - 9 pieces
$3.15 / 10 - 99 pieces
$3.03 / 100 - 999 pieces
$2.90 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Mechanical test report:	if	type:	Linear Guides
Marketing Type:	normal product	Local service location:	India, Thailand, Malaysia, Argentina, Chile
Applicable industries:	Manufacturing plants, machinery repair shops, retail stores	Supply capacity:	1000 pieces per week
Video shipment inspection:	if	Core components:	Linear Guides
in stock:	rich	Health status:	new
Showroom location:	India, Thailand, Argentina, Chile, Malaysia	product name:	Miniature 12mm linear guide rail mgn12 mgn12c mgn12h domestic
Packaging Details:	1. Original color box packaging 2. Commercial packaging (pieces): 1pc/polybag+color box+carton+plywood tray/plastic tray 3. Commercial packaging (rail): 1pc/polybag+carton+plywood tray/plastic tray4 .According to your requests	Origin:	Tianjing, China
Warranty:	1.5 years, 1.5 years	After warranty service:	Video technical support, online support
Core component warranty:	1 year	application:	Mechanical repair shop, print shop, cnc
payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal	color:	silver
Performance:	High precision and low noise	Model:	mgn12h
brand:	Feng	Material:	stainless steel, stainless steel, stainless steel
port:	Shanghai/Tianjin/Qingdao/Shenzhen	Package preview:
model:	mgn12h	brand:	Feng

Product Description

Miniature 12mm linear guide rail mgn12 mgn12c mgn12h domestic overview

The MG series is a miniature linear guide with a compact size and a gothic arched contact design that provides high rigidity and rigidity against moment loads in all directions. The MG range also offers corrosion protection and all materials are made of special grade stainless steel to suit a variety of working environments. The MG series is available in narrow block type (MGN) and wide block type (MGW).

MGN, MGW series linear guides are divided into non-interchangeable type and interchangeable type, the size is the same, and the interchangeable type guide rail can be replaced, which is more convenient to use; however, the accuracy is lower than that of the non-interchangeable type. Interchangeable linear guides have strict size and quality control, and will be a more suitable choice for customers when matching guide rails are not required. The model number contains information such as size, type, accuracy, preload, etc.

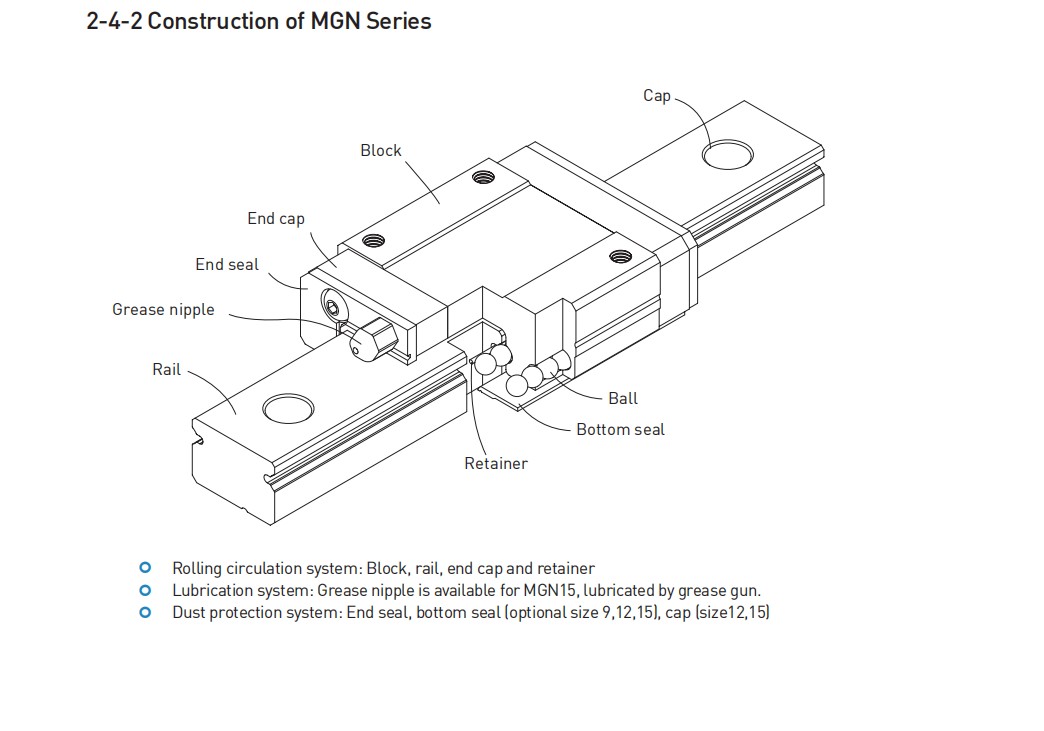

Features of MGN series
1. Small size and light weight, suitable for micro devices.
2. All materials of sliders and guides, including balls and ball cages, are made of special grade stainless steel to prevent corrosion.
3. Gothic arch contact design, can withstand loads from all directions, with high rigidity and high precision.
4. The steel ball is fixed by a micro-fixer, even if the block is taken out from the guide rail installation, the steel ball will not fall off.
5. Some accuracy classes are interchangeable with types.

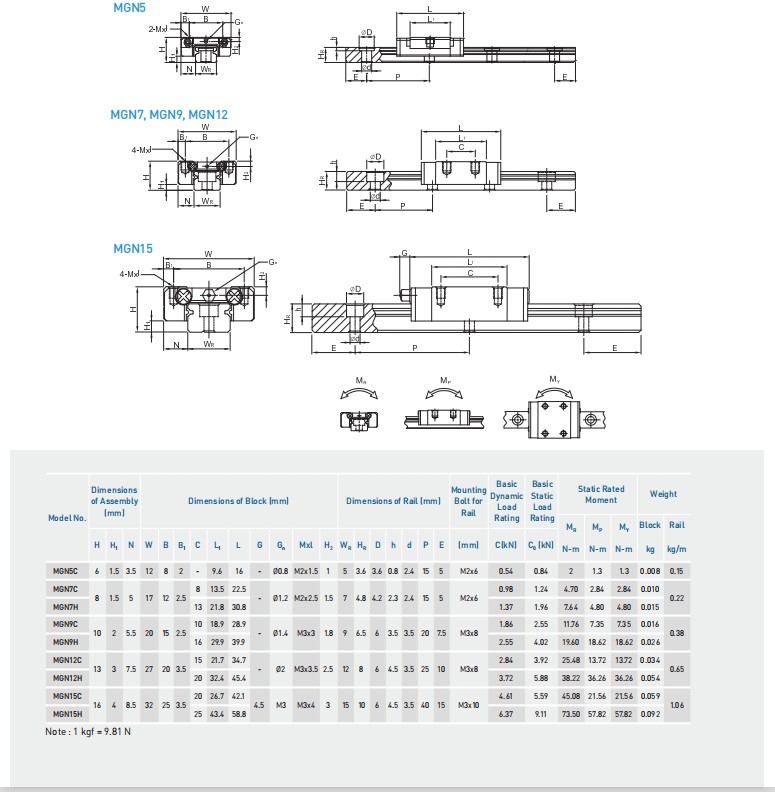

data sheet

product name	Miniature 12mm linear guide rail mgn12 mgn12c mgn12h domestic
brand	north
Material	Stainless steel
accuracy	C,H,P
birthplace	Tianjing, China
type	Linear Guides
application	Automation equipment, conveying system, automatic door rail, welding equipment, cutting equipment, coating equipment, etc.
