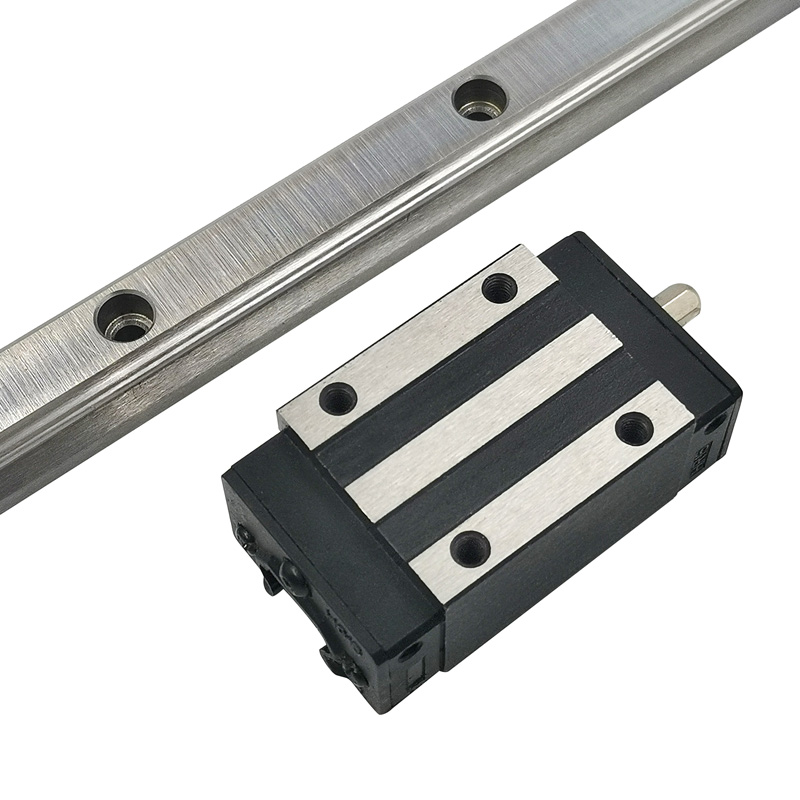

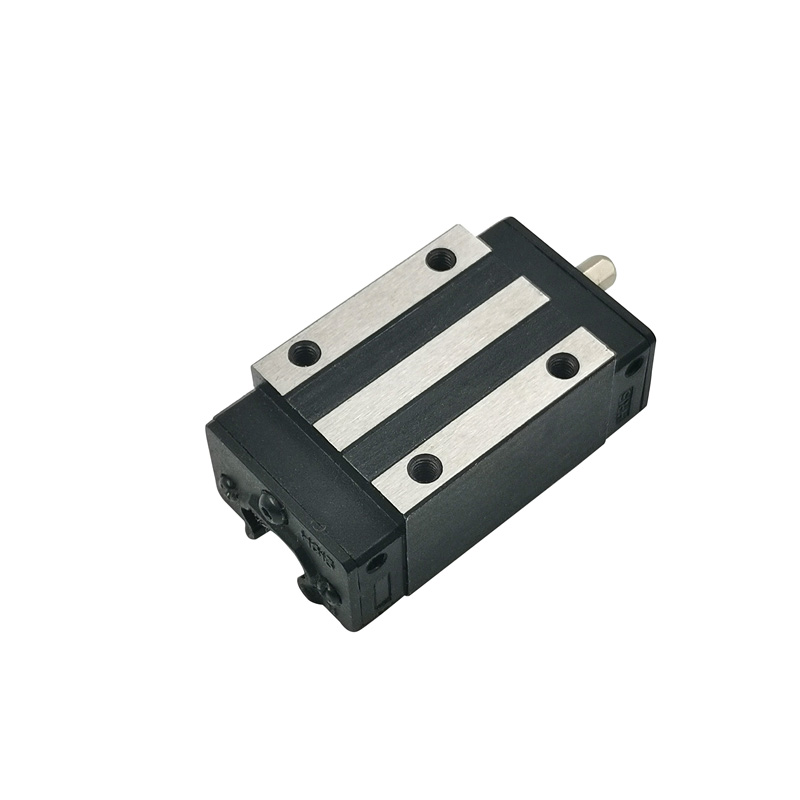

hiwin is equivalent to hg20 20mm linear guide block hgh20ca

Supplier: North Intelligence (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr Sheldon Xu
Price: $7.40 / 1 - 99 pieces
$5.20 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Core components:	Linear Guides	Core component warranty:	1 year
size:	20	Origin:	Tianjing, China
Health status:	new	Material:	Bearing steel
port:	Shanghai/Tianjin/Qingdao/Shenzhen	Block type:	Sugar Ray
brand:	north	Model:	HGH20CA
Package preview:		Warranty:	1.5 years
Marketing Type:	normal product	Packaging Details:	1. Separate PVC waterproof bag 2. Cardboard box 3. Wooden box according to your requirements.
series:	HG series	model:	HGH20CA
Precision options:	Normal (C), High (H)	payment terms:	L/C, Western Union, T/T, PayPal, MasterCard, Credit Card
brand:	north	Supply capacity:	1000 pieces per week
Mechanical test report:	if	Applicable industries:	Manufacturing plants, machinery repair shops, retail shops, printing shops
Video shipment inspection:	if	Weight (kg):	0.3
Preload options:	Light (Z0), Medium (ZA)	Block installation:	install from top
product name:	20mm linear guide hgh20ca	Load type:	lifting load

Features

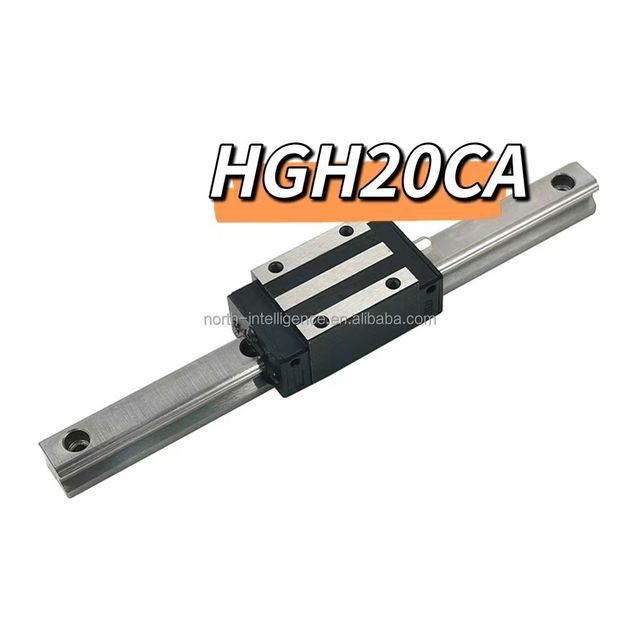

HGH20CA linear guide block diagram

self-alignment capability

According to the design, the contact point of the arc groove is 45 degrees. The HG series can absorb most of the mounting errors due to surface irregularities, and provide smooth linear motion through elastic deformation of rolling elements and movement of contact points. Easy installation for self-alignment capability, high precision and smooth operation.

Interchangeability

Due to precise dimensional control, the dimensional tolerances of the HG series can be kept within a reasonable range, which means that any block and any rail in a particular series can be used together while maintaining dimensional tolerances. And added a retainer to prevent the ball from falling out when the block is removed from the rail.

High rigidity in four directions

Due to the four-row design, the HG series linear guides have the same load rating in radial, reverse radial and transverse directions
direction. In addition, the radiused grooves provide a wide contact width between the balls and the grooved raceways, allowing for larger allowable loads and higher stiffness.

Product selection instructions

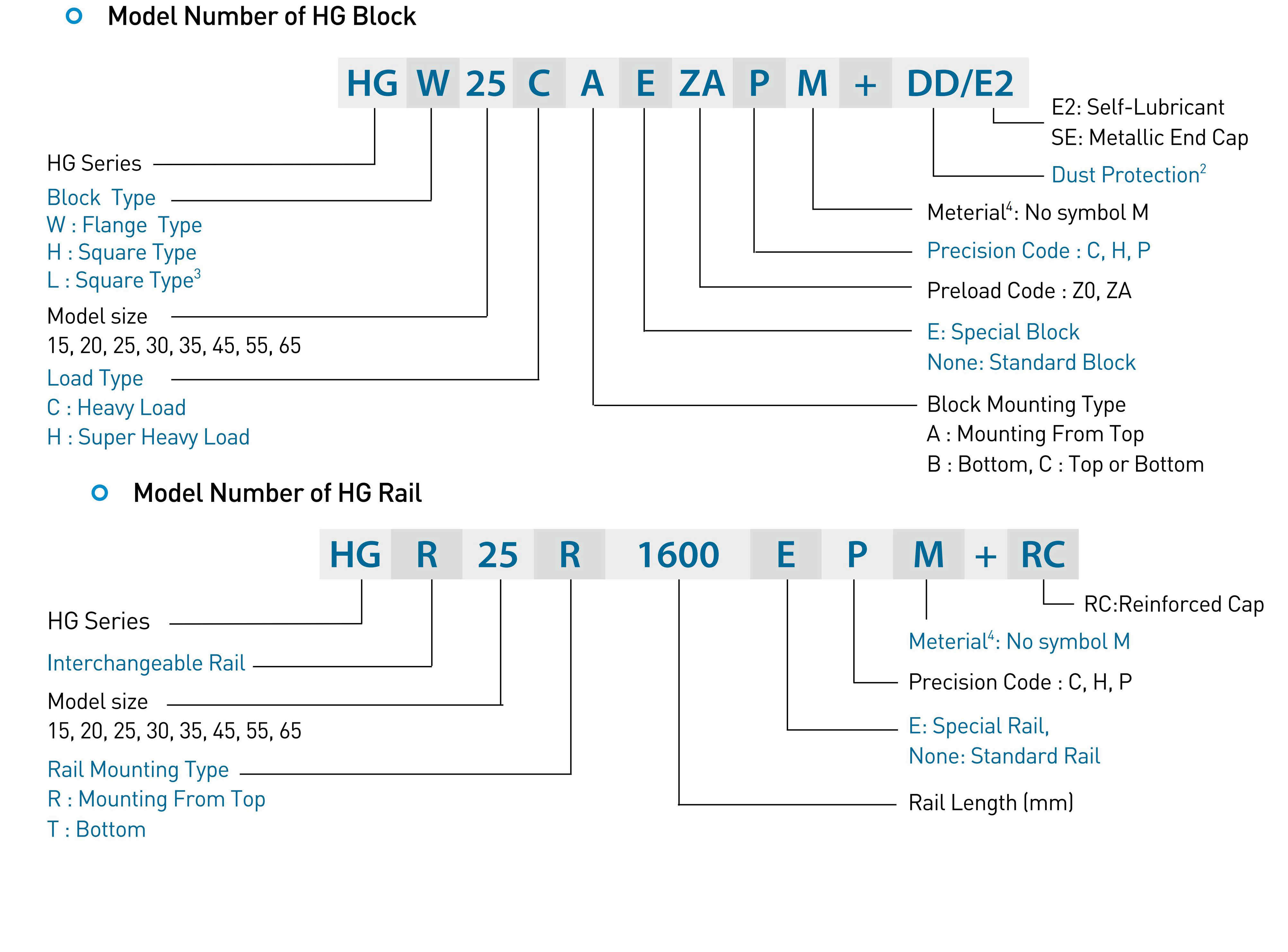

HG Series Linear Guide Model Guide

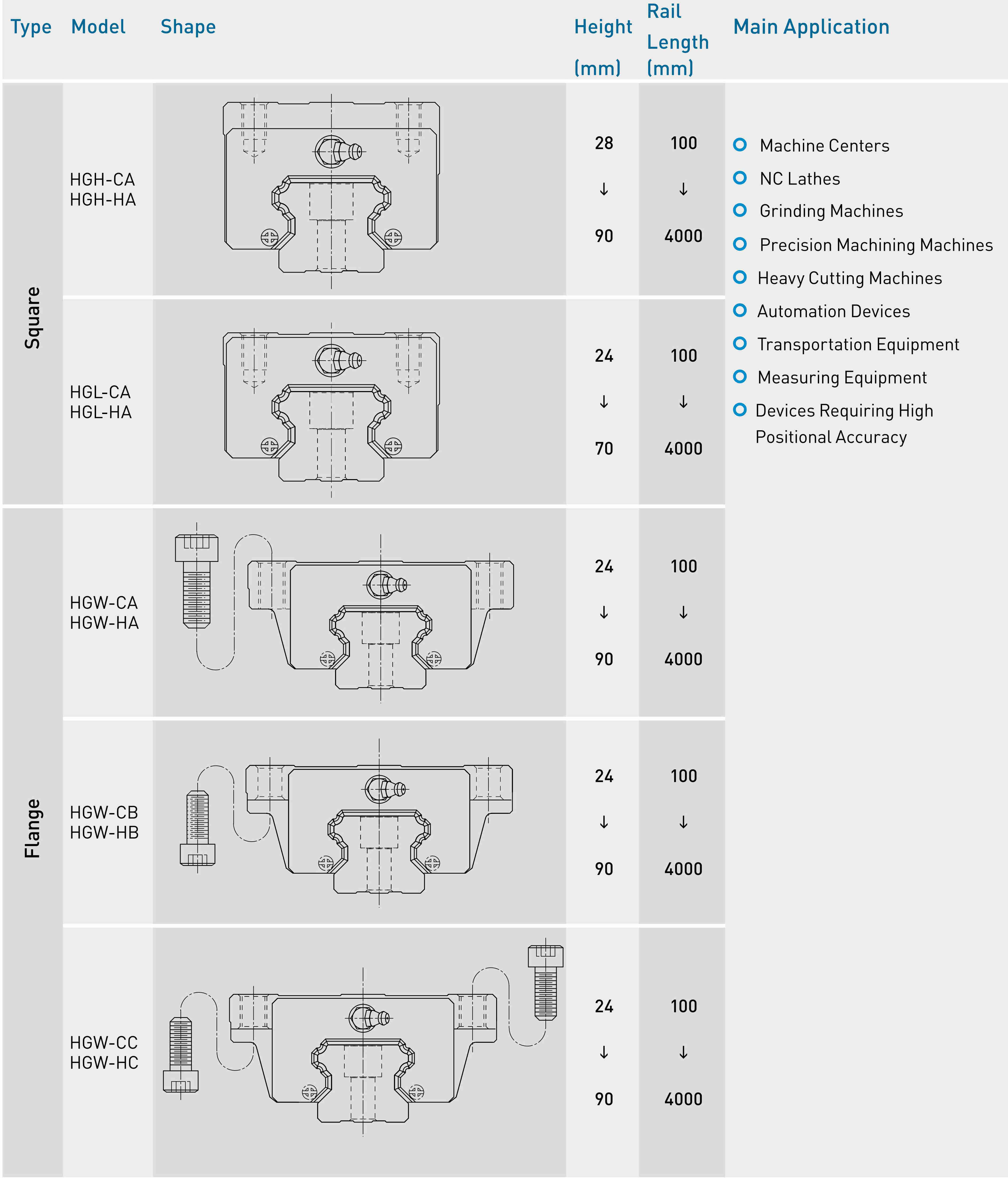

1. Linear guide block type

There are two types of linear guideway blocks: flanged and square. The flanged version has a lower assembly height and a wider mounting surface for heavy moment load applications.

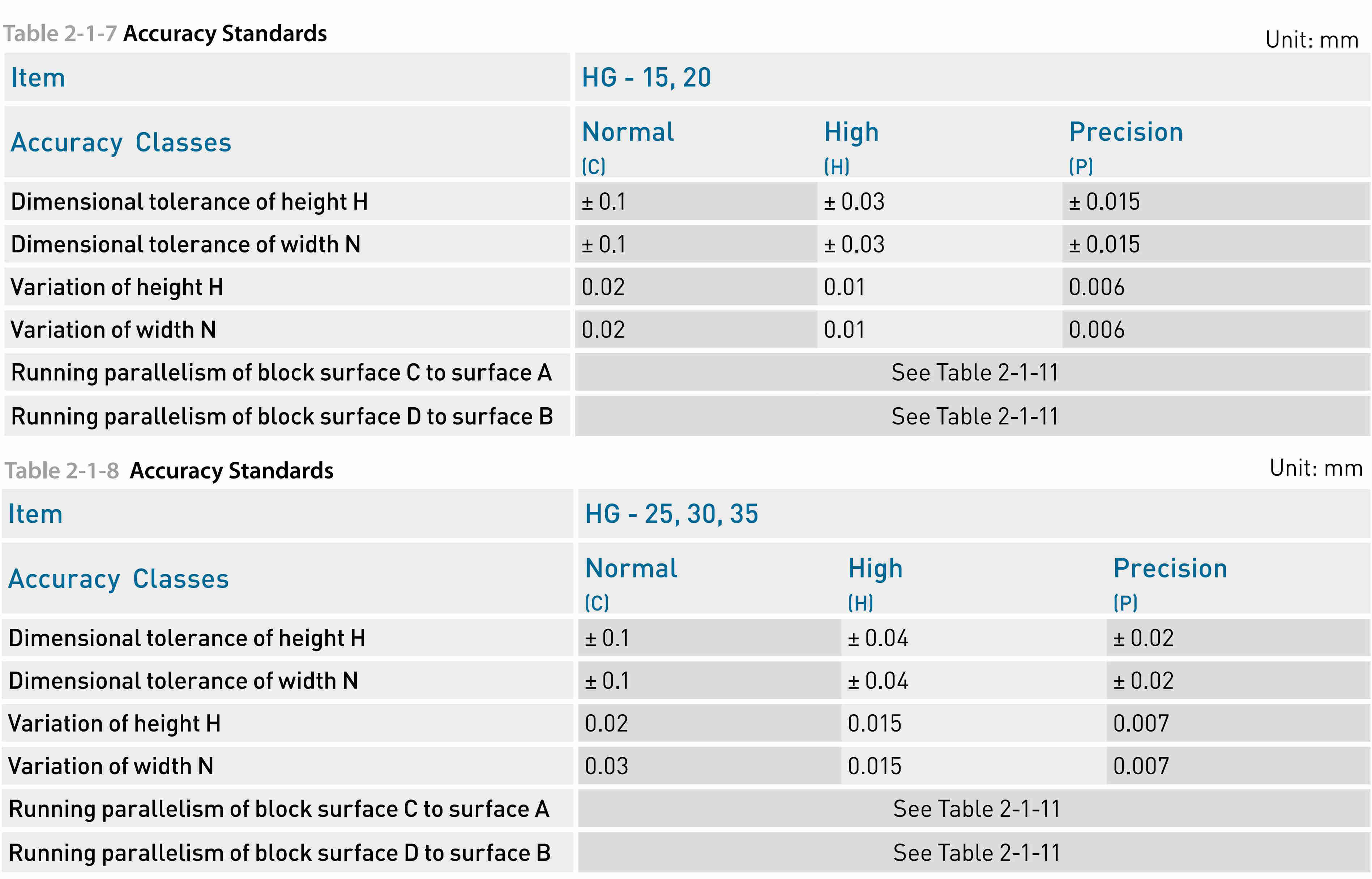

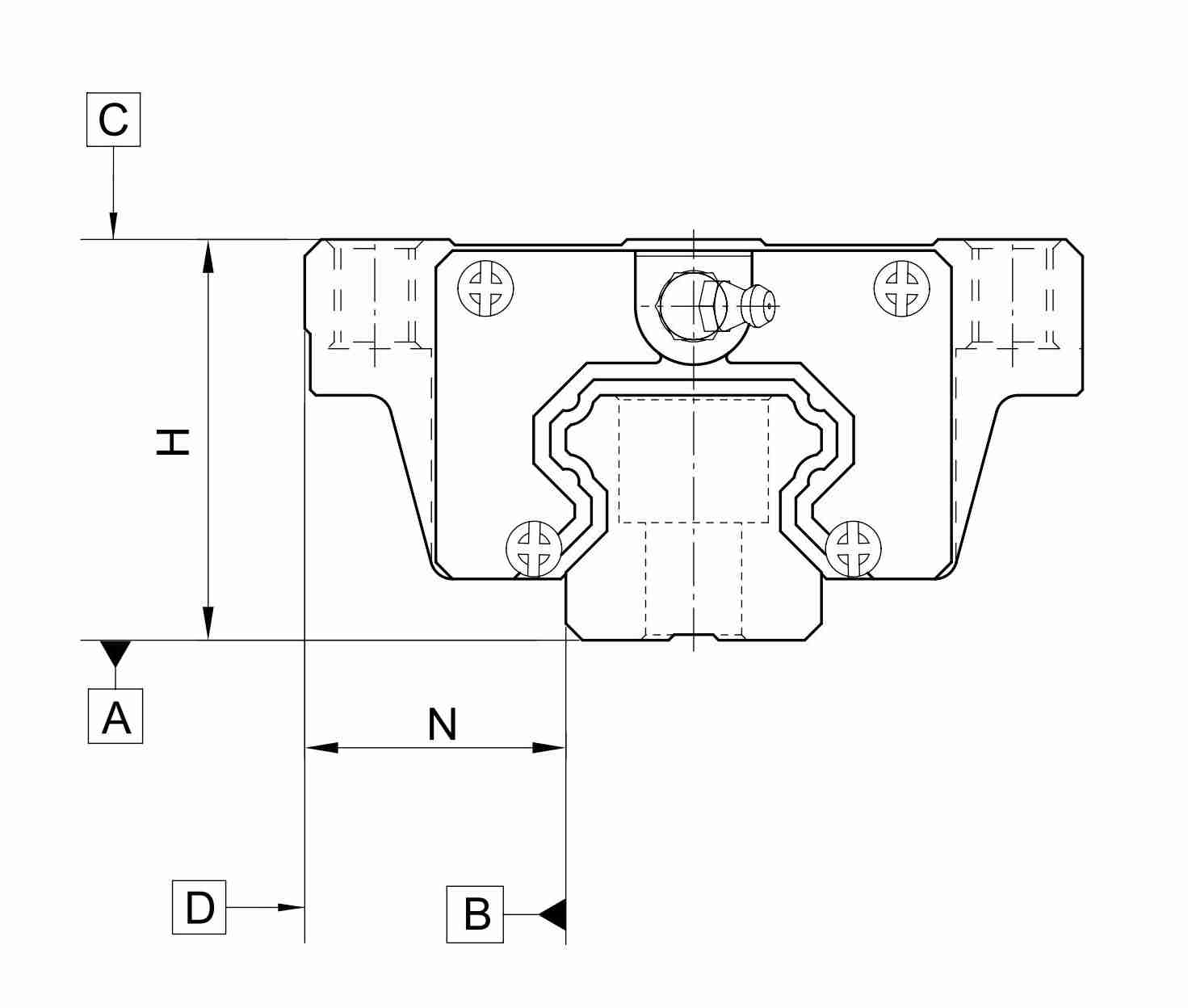

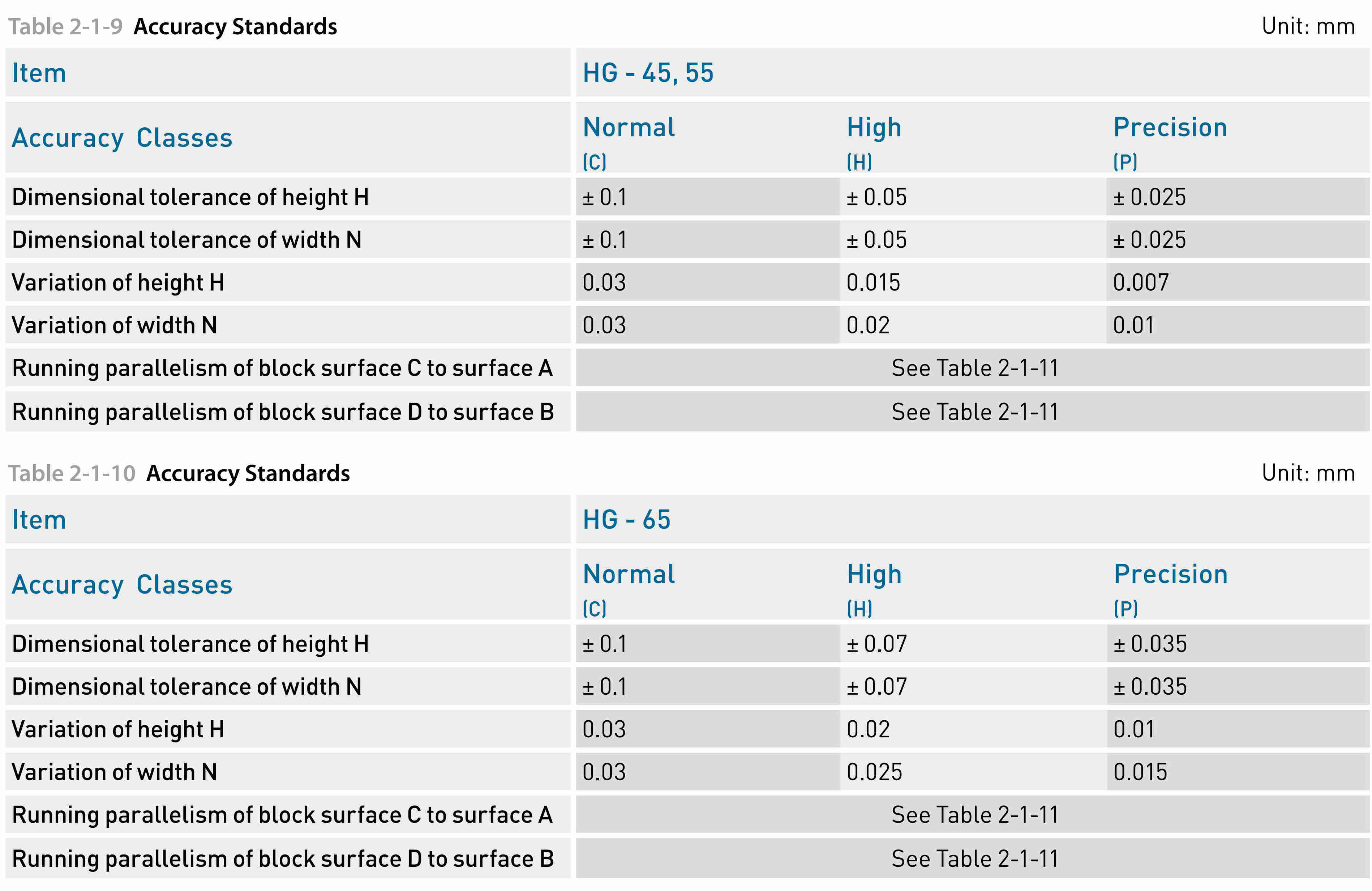

2. Linear guide rail accuracy grade

The precision of ou HG series linear guides is divided into three grades: common (C), advanced (H) and precision (P). Please refer to the accuracy selection class of the application equipment.

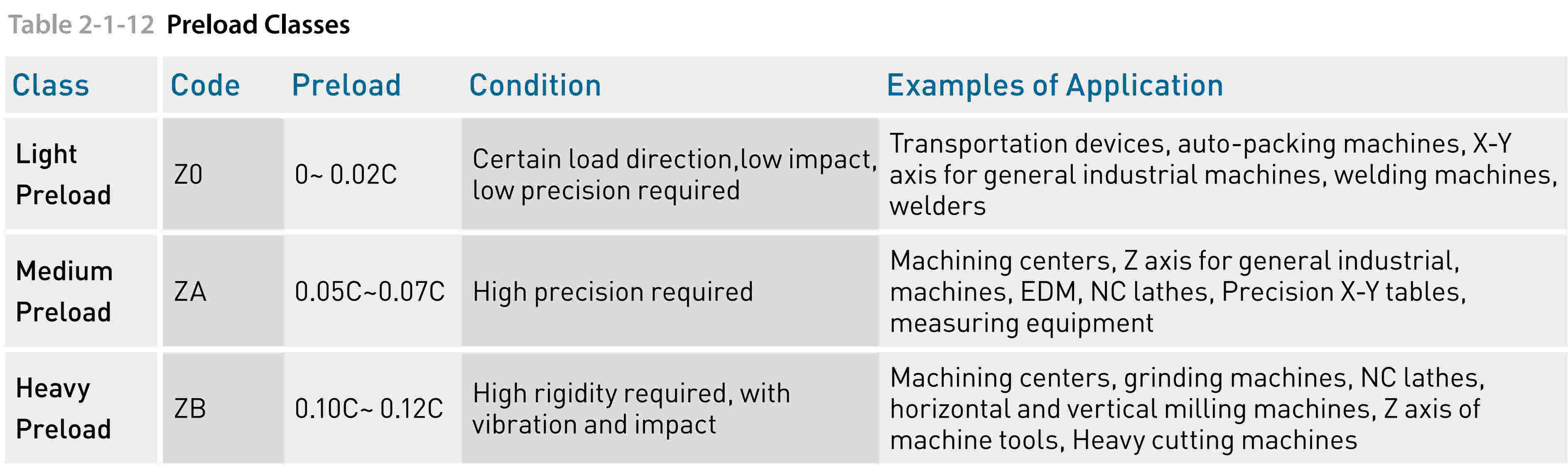

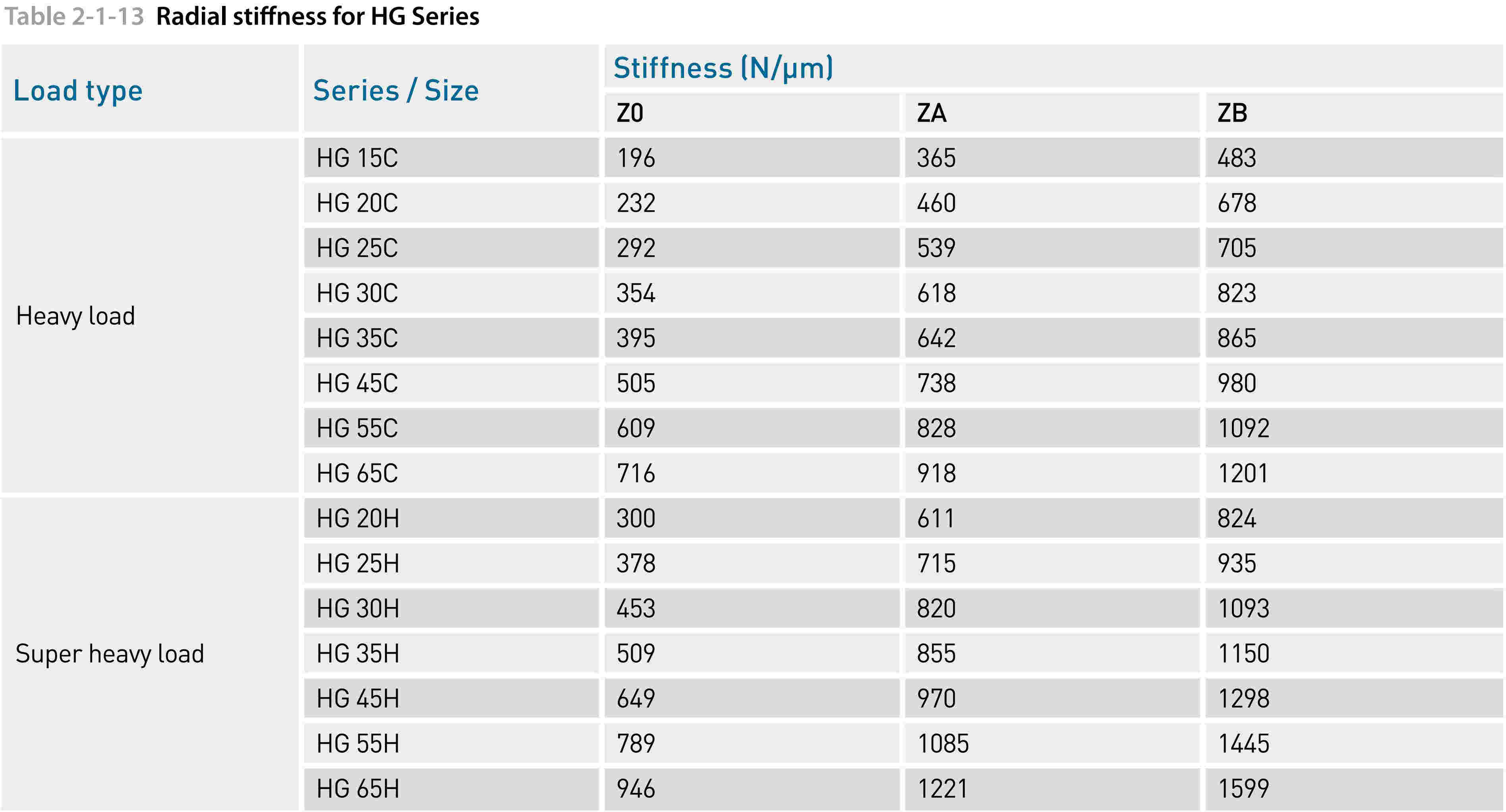

3. Pretightening force of linear guide block

Preload can be applied to each rail. Use oversized balls. Typically, linear motion guides have negative clearance between the grooves and balls to increase stiffness and maintain high precision. The graph shows that multiplying the load by the preload doubles the stiffness and halves the deflection. For models below HG20, it is recommended that the preload is not greater than ZA, so as not to affect the life of the guide rail due to excessive preload.

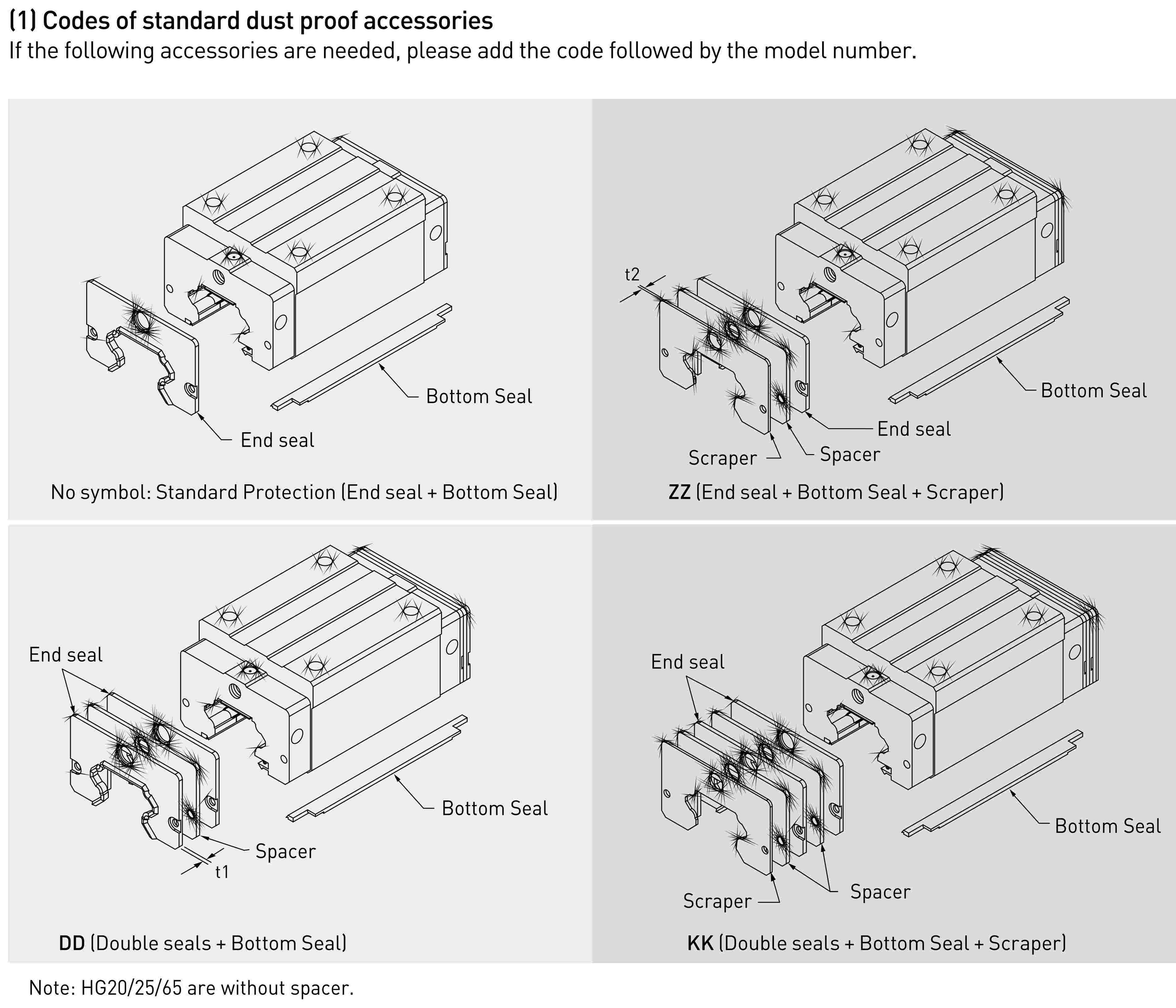

4. Dustproof accessories
