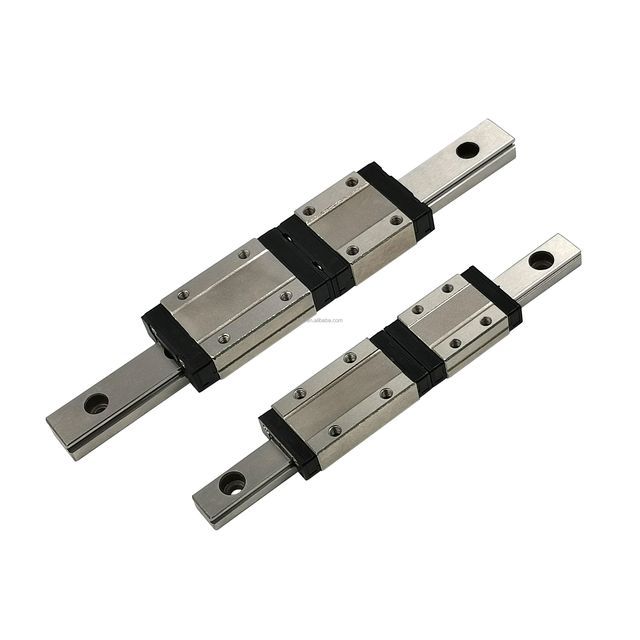

Replace silver mgn12c mgn12h mgn12 12mm linear guide block spot
- 5.26 1 - 499 pieces
- 4.85 500 - 999 pieces
- 3.97 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Health status: | new | application: | 3D printers, CNC machine tools |
| Core components: | mgn12 | payment terms: | L/C, Western Union, T/T, linear guide mgn12h |
| Warranty: | 1.5 years | product name: | Replace hiwin mgn12c mgn12h mgn12 12mm linear guide block |
| Video shipment inspection: | if | Performance: | Smooth linear guide |
| accuracy: | C,H,P | feature: | smooth motion |
| Origin: | Zhejiang, China | Supply capacity: | 5000 pieces mgn12 per week |
| Material: | GCr15/stainless steel | port: | Shenzhen, Shanghai, Tianjin |
| Core component warranty: | 1 year | type: | mgn12 |
| model: | mgn12 mgn12c mgn12h | Mechanical test report: | if |
| Marketing Type: | 2019 Hot Products | brand: | Feng |
| in stock: | rich | color: | silver and black |
| structure: | linear motion | Weight (kg): | 0.034 |
| Applicable industries: | Mechanical repair shop, print shop, cnc | Packaging Details: | mgn12 packaging 1. Original color box packaging 2. Commercial packaging (block): 1pc/polybag+color box+carton+plywood tray/plastic tray 3. Commercial packaging (rail): 1pc/polybag+carton+plywood tray/plastic Tray 4. According to your request |
Product Description
The MG series is a miniature linear guide with a compact size and a gothic arched contact design that provides high rigidity and rigidity against moment loads in all directions. The MG range also offers corrosion protection and all materials are made of special grade stainless steel to suit a variety of working environments. The MG series is available in narrow block type (MGN) and wide block type (MGW).
product name | 12mm linear guide rail mgn12 mgn12c mgn12h |
type | Linear Guides |
accuracy | C,H,P |
Apply | 3D printer, engraving machine |
Material | Stainless steel |
structure | linear motion |
color | green and red |
feature | smooth motion |
Performance | Smooth linear guide |
stock | rich |
Features of linear guides.
1. The widened design increases the ability to bear moment.
2. Gothic arched contact design with high rigidity characteristics in all directions.
3. The steel ball is fixed by a micro-fixer, even if the block is taken out from the rail installation, the steel ball will not fall off.
4. All metal parts are made of stainless steel to prevent corrosion

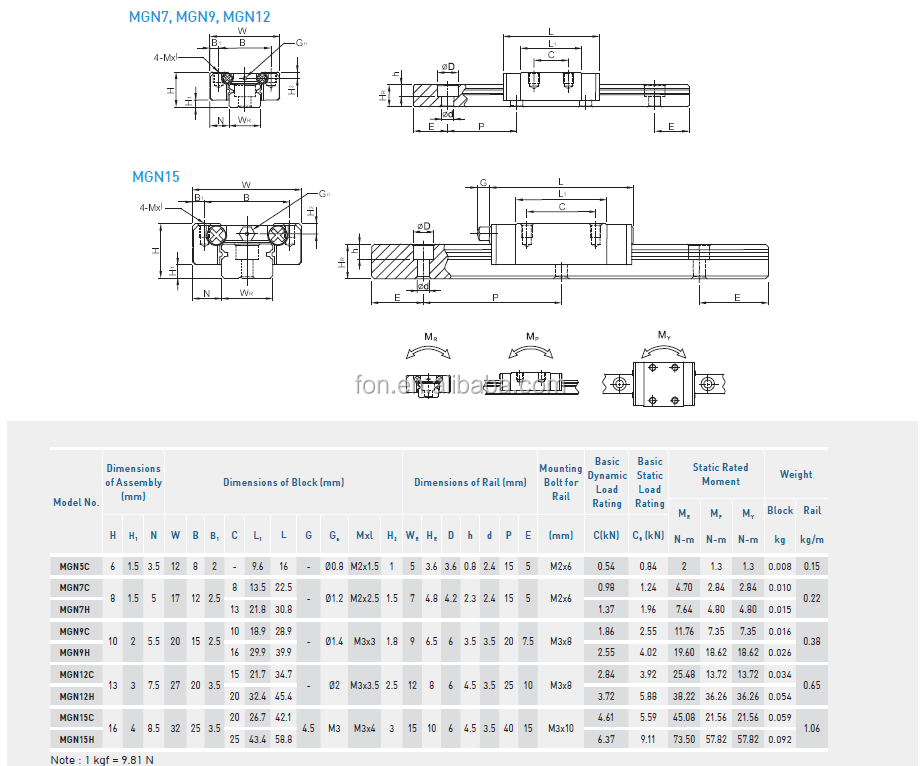

data sheet
our company
Our advantage
