HGH HGW HGR 15/20/25/30/35/45/55/65 MGN MGW 5/7/9/12/15 cnc linear guide

Supplier: Asia FON (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Marada Guo
Price: $4.26 / 1 - 499 pieces
$3.46 / 500 - 999 pieces
$2.88 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	FON	Weight (kg):	0.15
type:	Linear guide block	Video external inspection:	if
Marketing Type:	normal product	product name:	HGH HGW HGR 15/20/25/30/35/45/55 CNC Linear Guide
port:	Shenzhen, Shanghai, Tianjin	Health status:	new
Supply capacity:	2000 sets per week	stock:	rich
Core Components Warranty:	1 year	feature:	smooth motion
Performance:	Smooth Linear Guide	color:	black and silver
Applicable industries:	Manufacturing plants, mechanical repair shops, printing plants, industrial robots	Core components:	Linear guide block

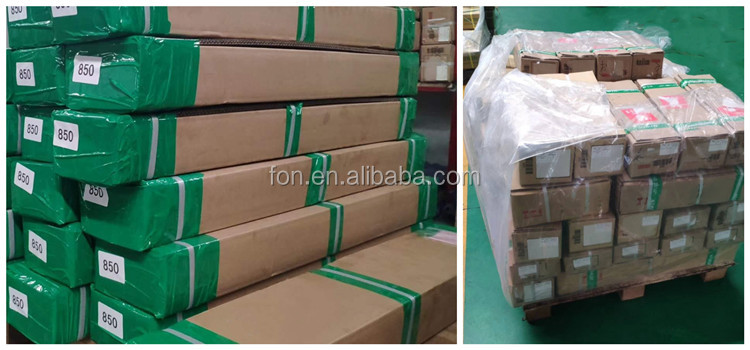

place of origin; place of origin:	Zhejiang, China	Packaging Details:	Linear guide packing 1. Original color box packing 2. Commercial packing (block): 1pc/polybag+color box+carton+plywood tray/plastic tray 3.Commercial packing (rail): 1pc/polybag+carton+plywood Tray/Plastic Tray 4. According to your requirement
model:	HGH HGW HGR 15/20/25/30/35/45/55/65	application:	Printers, engraving machines
Warranty:	1.5 years	payment terms:	L/C,Western Union,T/T
accuracy:	C,H,P	After Warranty Service:	Video technical support
Material:	GCr15	Mechanical test report:	Not available
structure:	Linear motion

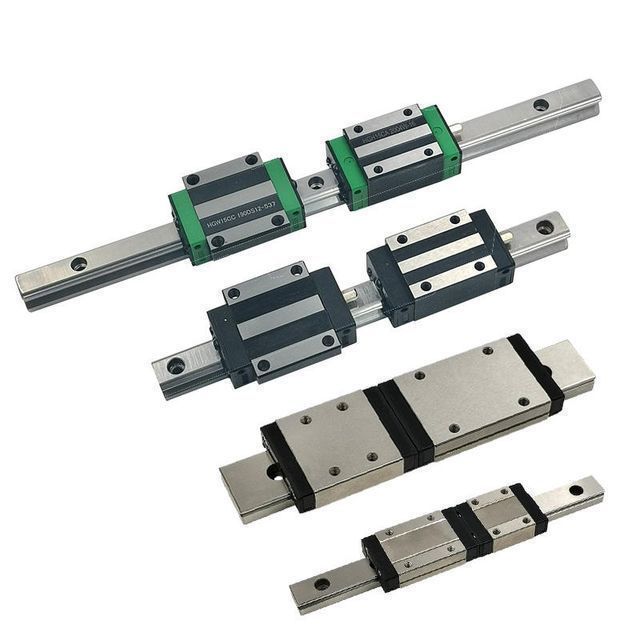

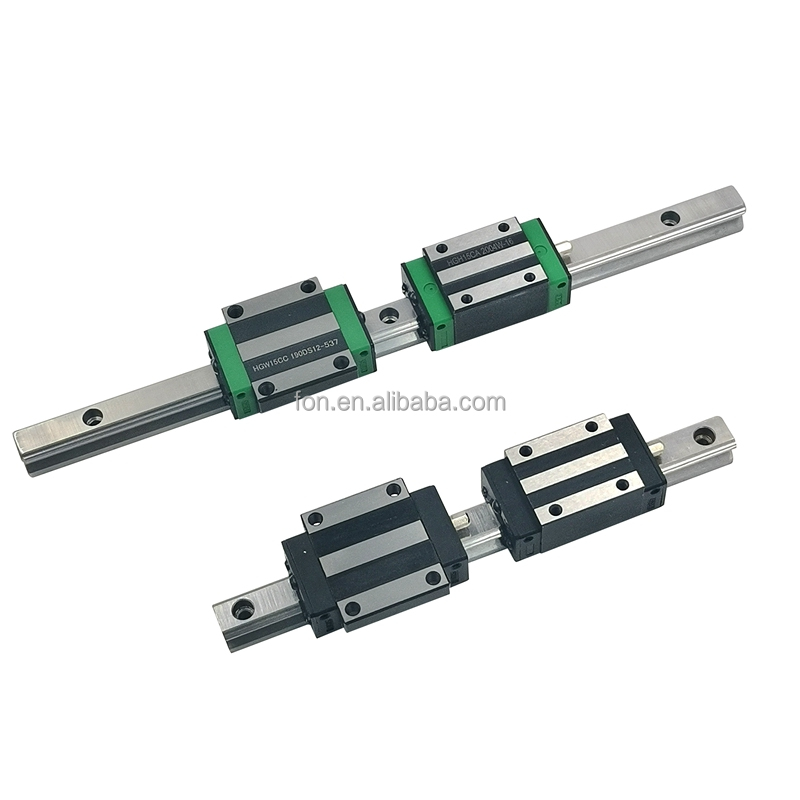

HGH HGW HGR 15/20/25/30/35/45/55/65 MGN MGW 5/7/9/12/15 cnc linear guide

Product Description

What is the information on linear guides?

product name	HGH HGW HGR 15/20/25/30/35/45/55/65 MGN MGW 5/7/9/12/15 cnc linear guide
Card	FON linear guide
Precision/Accuracy	C, H, P

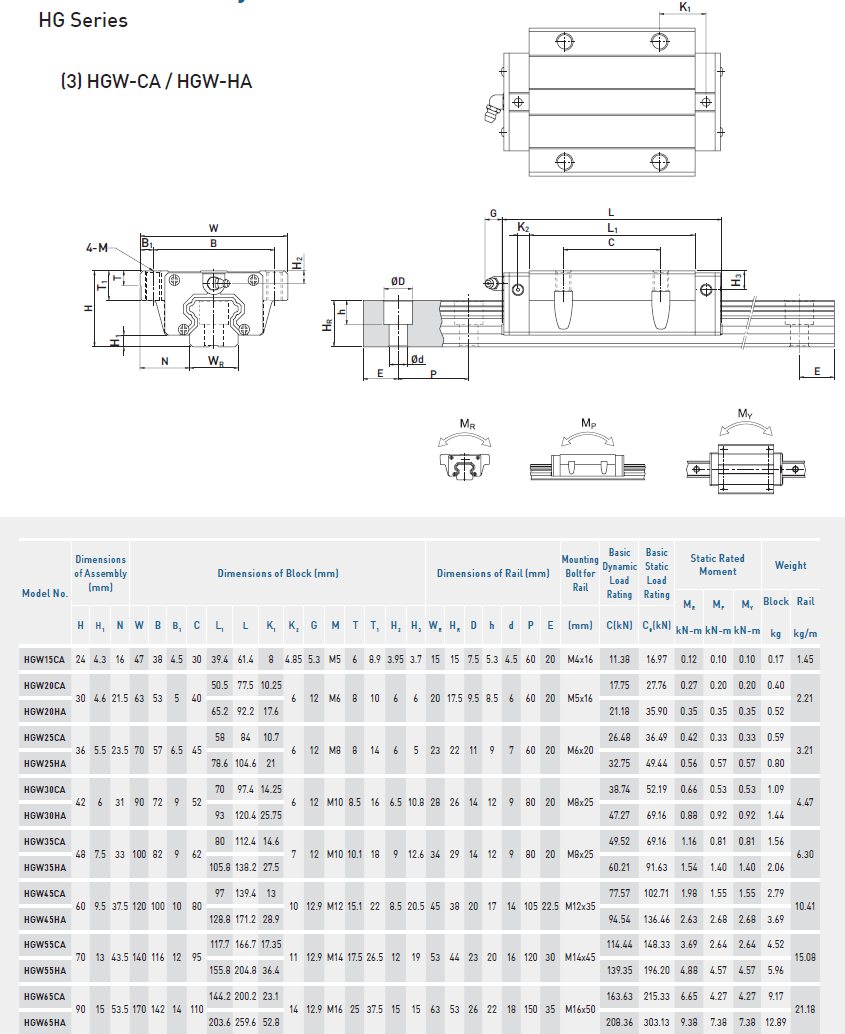

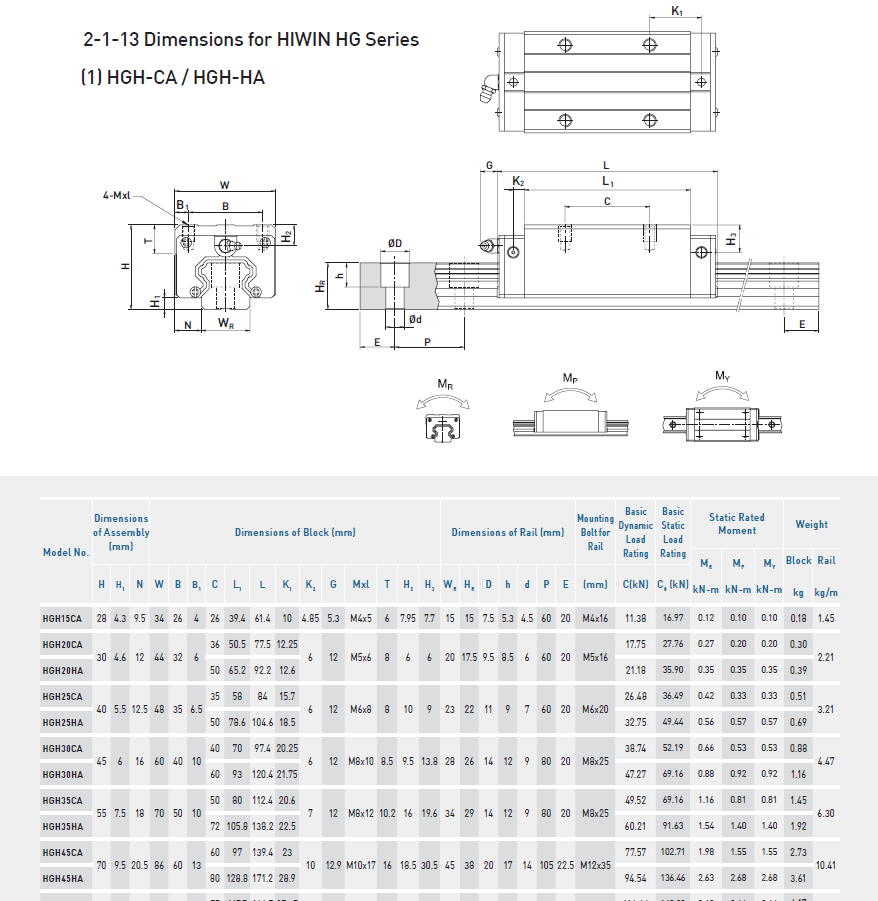

HG series linear guides are designed with arc grooves and structure, and their bearing capacity and rigidity are higher than other similar products
optimization. It has the same load ratings in radial, reverse radial, and lateral directions, and features self-alignment to absorb installation errors. Therefore, Shangyin HG series linear guides can achieve long life, high speed, high precision and smooth linear motion.

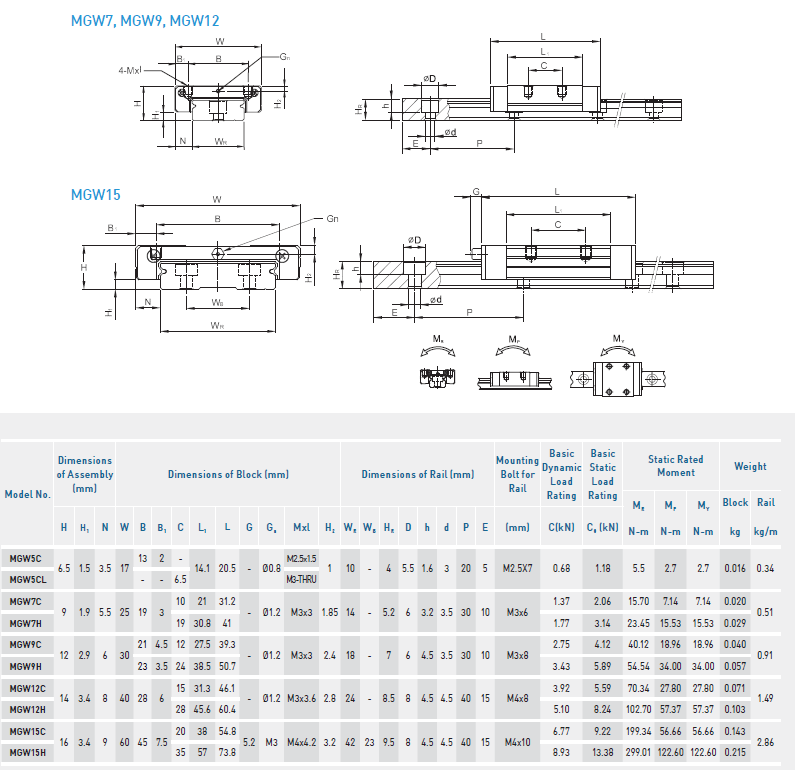

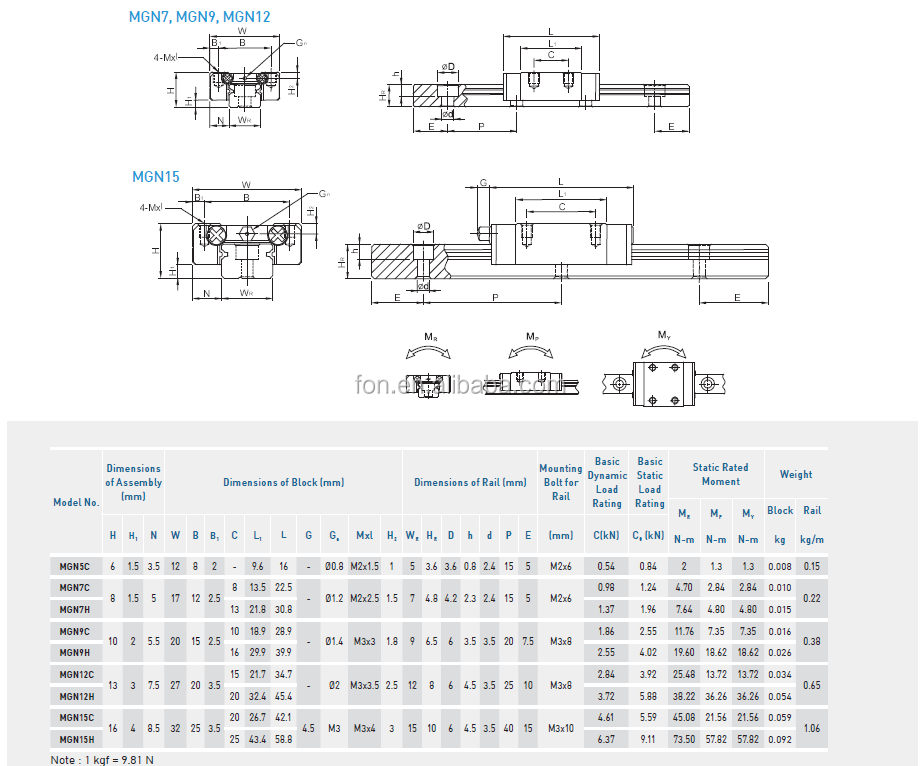

The MG series is a miniature linear guide with compact dimensions and a gothic arched contact design that provides high stiffness and stiffness to resist moment loads in all directions. The MG series also offers corrosion protection and all materials are made of special grades of stainless steel to suit every working environment. The MG series is available in narrow block (MGN) and wide (MGW).

What are the characteristicsLinear Guides?

(1) Self-aligning ability According to the design, the contact point of the arc groove is at a 45 degree angle. HG series linear guides can absorb most of the installation errors caused by surface irregularities, and provide smooth linear motion through the elastic deformation of the rolling elements and the movement of the contact points. Easy to install for self-alignment capability, high accuracy and smooth operation.

(2) Interchangeability
Due to precise dimensional control, the dimensional tolerances of HG series linear guides can be kept within a reasonable range, which means that any block in a specific series can be used with any guideway while maintaining dimensional tolerances. And a retainer was added to prevent the balls from falling out when removing the block from the track.

(3) High rigidity in four directions
Due to the four-row design, the HG series linear guides have the same load ratings in radial, reverse radial and lateral directions. In addition, the arc groove makes the contact width between the ball and groove raceway wide, allowing a large allowable load and high rigidity

What is the data sheet for linear guides?
