Final drive duo cone floating seal group metal mechanical face seal

Supplier: Asia FON (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Marada Guo
Price: $3379.00 / 20 - 29 pieces
$3359.60 / 30 - 49 pieces
$3339.00 / >=50 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Model Number:	Do series;	Material of seal:	NBR,HNBR,Silicone;
OEM service:	Yes;	Package Preview:	;
Supply Ability:	1000 Piece/Pieces per Week;	Color:	Black;
Place of Origin:	Tianjin China;	Product name:	Final drive duo cone floating seal group metal mechanical face seal;
Hardness:	62-69HRC;	Life-time:	5000hours;
Outside range:	35 to 1422mm;	Brand Name:	Fuyote;
Payment Terms:	L/C,Western Union,T/T,Paypal;	Size:	30 to 1105;
Application:	construction equipment;	Material of seal ring:	15CrMo,15Cr3Mo;
Packaging Detail:	Individual Paper box or According to custoer request;	Inner side range:	22 to 1372mm;
Port:	Tianjin,Shanghai,Shenzhen;

Product Description

Introduction

Heavy duty static and dynamic sealing technology is concerned with providing sealing solutions for machinery applications in which conventional seal lack the required durability.
The drive mechanisms for tracked vehicles and construction machinery,or the power transmission equipment for conveyor systems,sand conditioning plant,concrete and cement mixers,mining machinery and similar heavy plant are subjected to extreme abrasive stresses in the environments in which they work.
Failures can severely disrupt operations,and repairs are very costly.
Our metallic mechanical face seals have served well in such arduous conditions for years.
Robust and efficient,they guarantee customers high serviceability,durability and maximum productivity of their equipment.

Product name	Final drive duo cone floating seal metal mechanical face seal
Metal seal ring Material	15CrMo,15Cr3Mo
O-ring Material	NBR,HNBR,Silicone
Metal Hardness	62-69HRC
Inside diameter range	22 to 1372mm

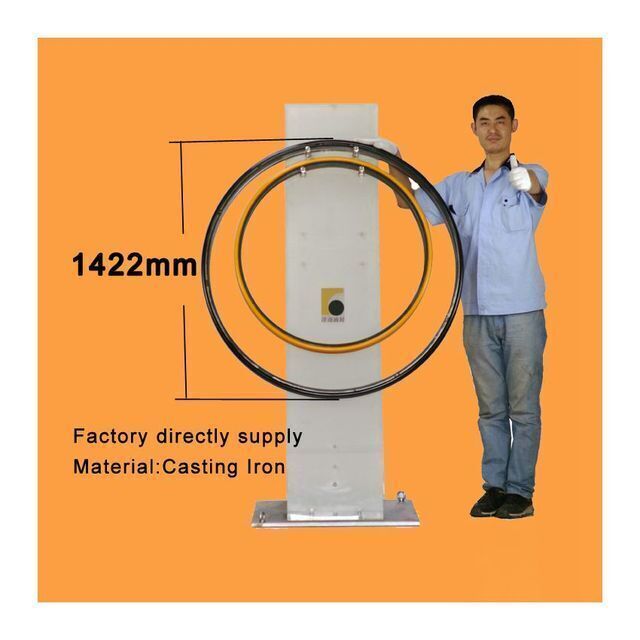

Outside diameter range	35 to 1422mm
Life-span	5000hours
Customize	Yes
OEM servica	Yes
Package	1.Individual Paper box+Carton 2.According to customer request
Payment terms	Trade Assurance(Credit card,T/T)Paypal,L/C

Parameters

On tracked vehicles it is vital to provide effective protection against abrasive media such as dust,sand ,mud,stones or earth for the bearings of the thread,support and guide rollers and for wheel or axle hubs.
Peripheral speeds of up to 10 m/sec can be effectively handled.
The frictional heat generated at the contact faces between the static and dynamic components of the seal must be dissipated by ensuring adequate lubricant action.
The seal faces must be continuously lubricated in order to prevent pick up or galling.
Corrosion during stationery periods must be avoided.

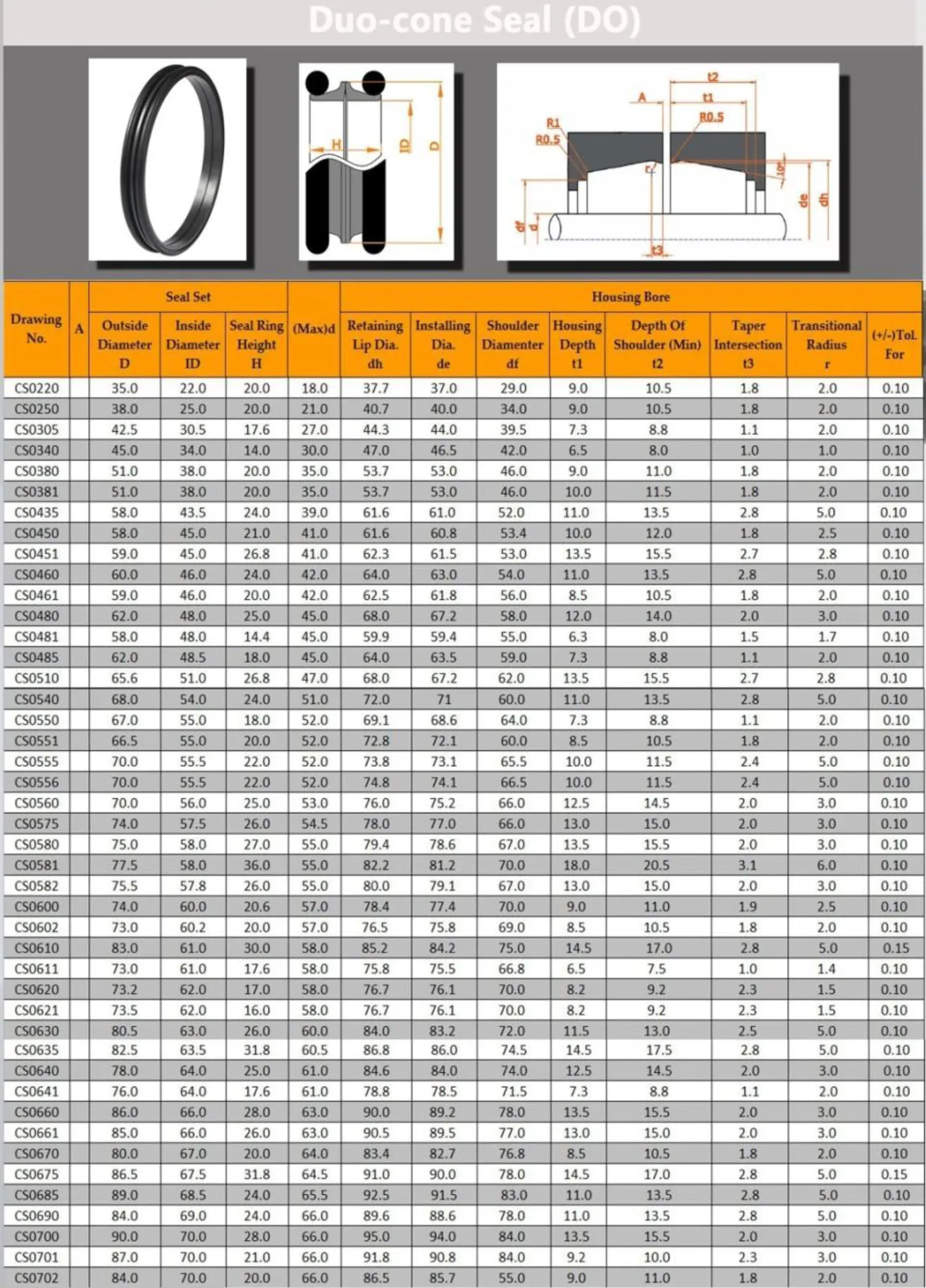

Housings must be machined to recommended sizes and surface finished to ensure good static sealing
Cleanliness must be ensured during assembly
Seal can withstand up to 3bar

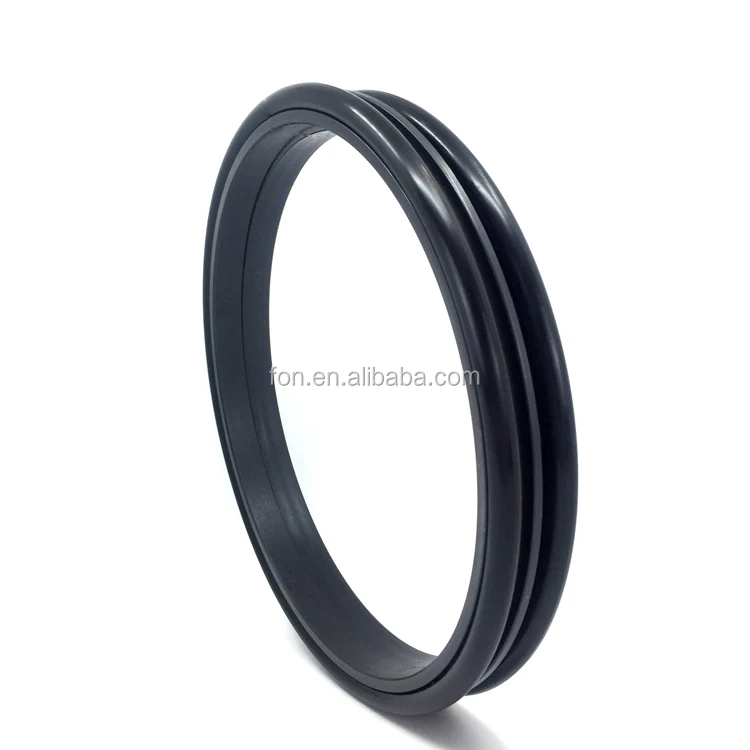

Products show
