cnc mechanical parts 20mm hgr20 linear guide 3000mm

Supplier: North Intelligence (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr Sheldon Xu
Price: $43.30 / 1 - 9 pieces
$43.00 / 10 - 49 pieces
$42.50 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

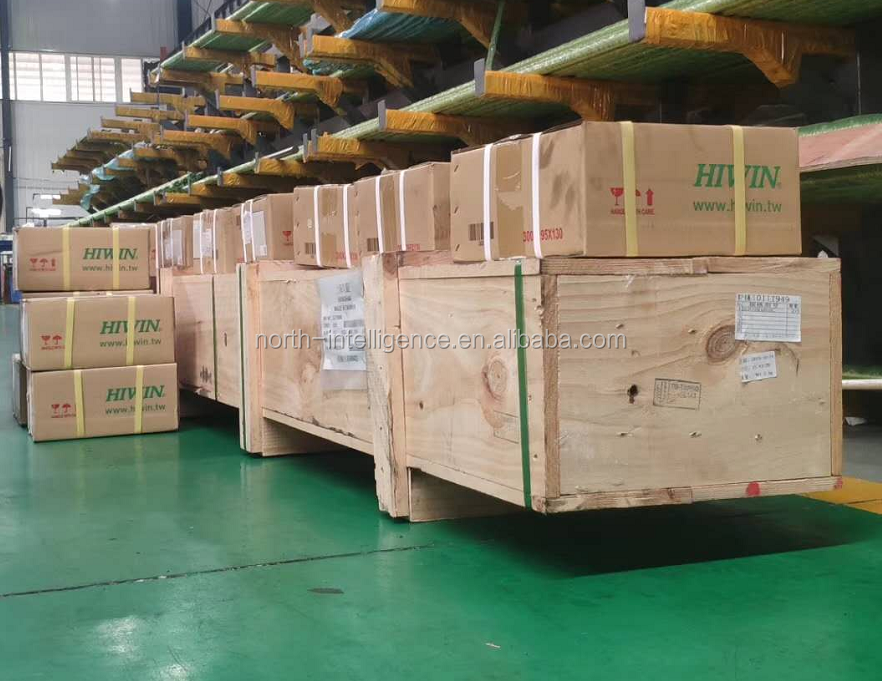

stock:	well stocked	Packaging Details:	1. Original color box packing 2. Commercial packing (block): 1pc/polybag+color box+carton+plywood tray/plastic tray 3.Commercial packing (track): 1pc/polybag+carton+plywood tray/plastic Tray 4. According to your request
brand:	OEM	Packaging Preview:
application:	automatic system	Minimum order quantity:	1
Card:	OEM	Video external inspection:	if
Supply capacity:	1000 pieces per week	place of origin; place of origin:	Tianjing, China
Health status:	new	Applicable industries:	Manufacturing, Mechanical Repair, Retail, Printing, Energy & Mining, CNC
Mechanical test report:	if	Marketing Type:	normal product
Weight (kg):	6.63	Material:	CGR15 steel, bearing steel
Core Components Warranty:	1 year	Model:	HGR
port:	Shanghai/Tianjin/Qingdao/Shenzhen	payment terms:	L/C,Western Union,T/T,MoneyGram,Alibaba Trade
length:	3000mm	model:	HGR20
product name:	cnc mechanical parts 20mm hgr20 linear guide 3000mm	Warranty:	1 year, 1.5 years
Core components:	Linear Guides	color:	green red

Product Description

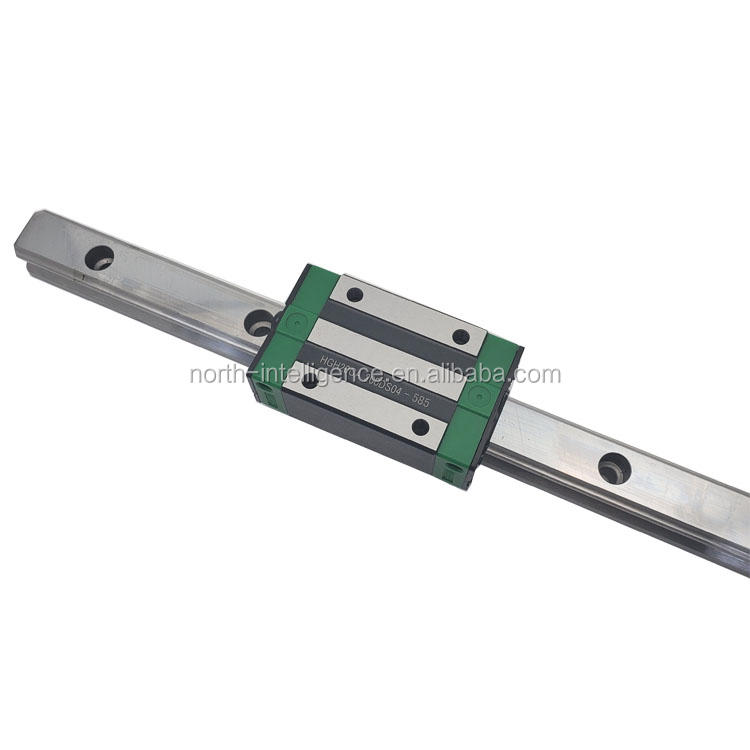

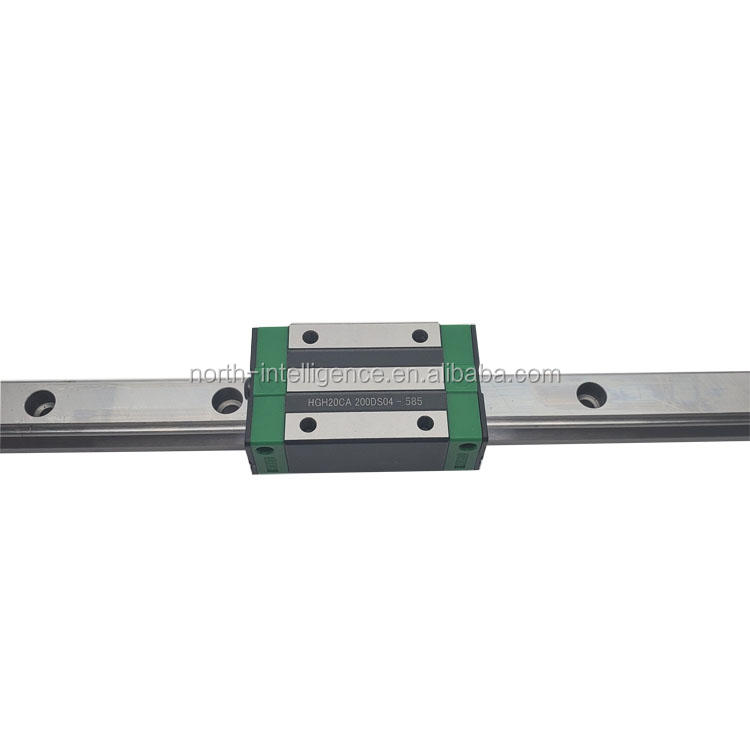

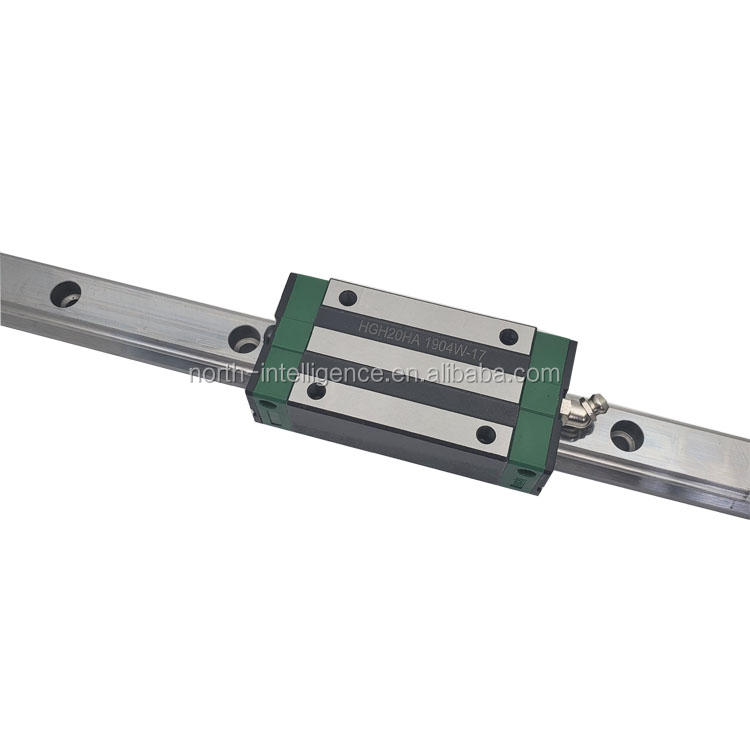

cnc mechanical parts 20mm hgr20 linear guide 3000mm

HG series linear guides are designed with circular arc grooves and structure optimization, and their bearing capacity and rigidity are higher than other similar products. It has the same load ratings in radial, reverse radial, and lateral directions, and features self-alignment to absorb installation errors. Therefore, HG series linear guides can achieve long life, high speed, high precision and smooth linear motion.

Specification

product name	cnc mechanical parts 20mm hgr20 linear guide 3000mm
model	HGR20

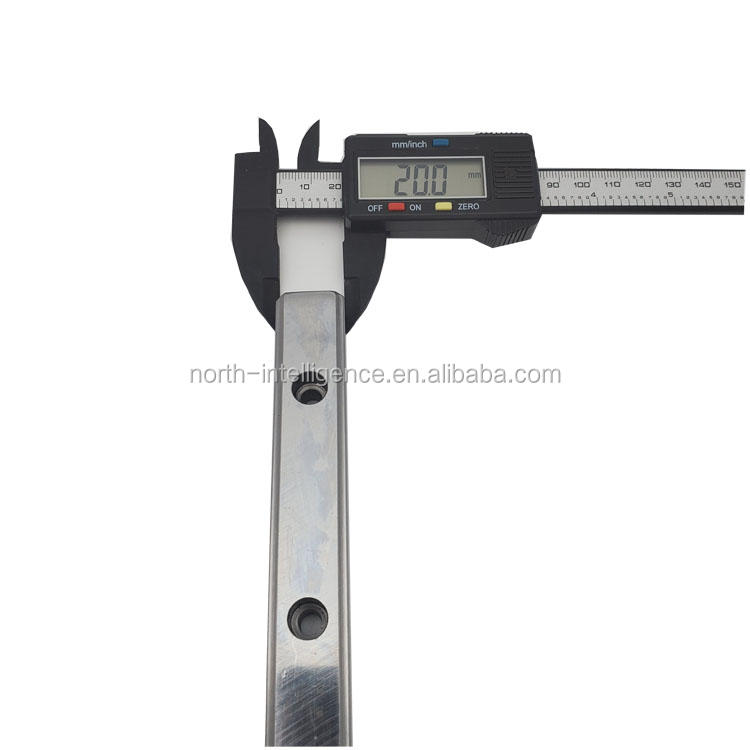

Rail width	20 mm

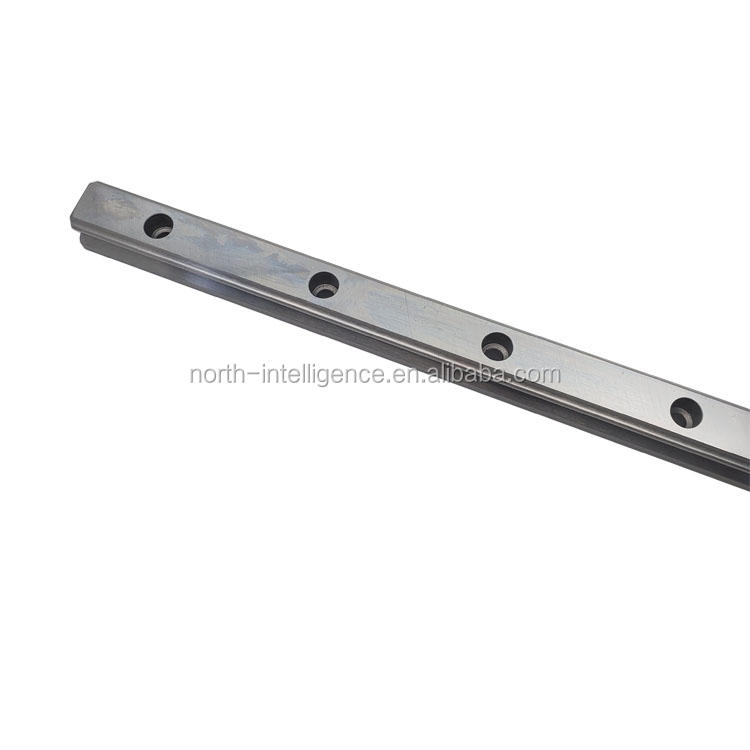

Rail length	3000mm

Features

(1) Self-alignment capability

By design, the contact point of the arc slot is at a 45 degree angle. The HG series absorbs most installation errors caused by uneven surfaces and provides smooth linear motion through elastic deformation of rolling elements and movement of contact points. Easy to install for self-alignment capability, high accuracy and smooth operation.

(2) Interchangeability

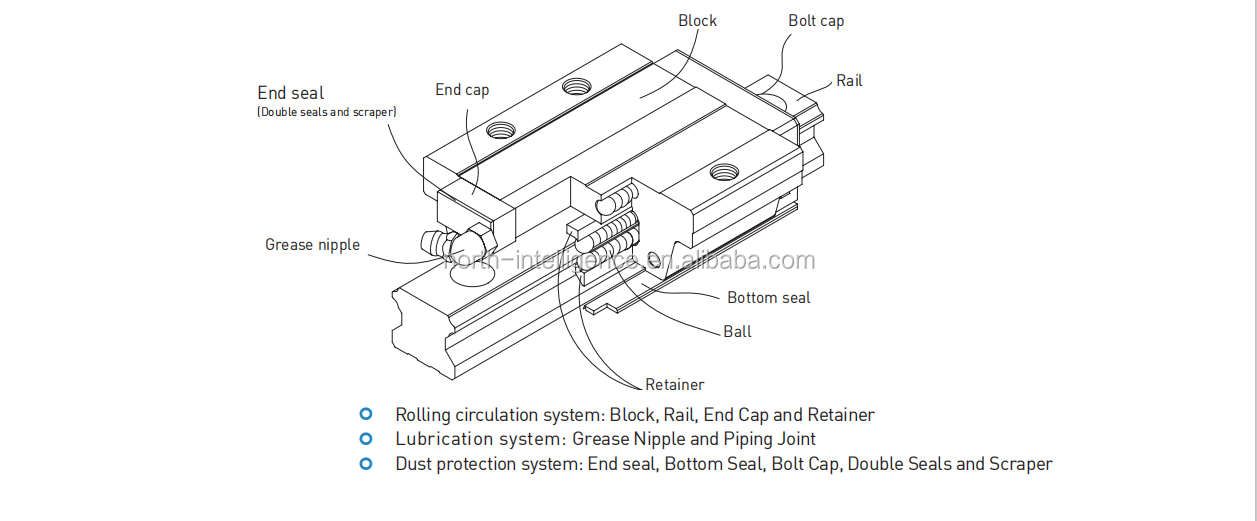

Due to precise dimensional control, the dimensional tolerances of the HG series can be kept within a reasonable range, which means that any block and any rail of a specific series can be used together while maintaining the dimensional tolerance. And a retainer was added to prevent the balls from falling out when removing the block from the track.

(3) High rigidity in four directions

Due to the four-row design, the HG series linear guides have the same load ratings in radial, reverse radial and lateral directions
direction. In addition, the arc groove makes the contact width between the ball and groove raceway wide, allowing a large allowable load and high rigidity.

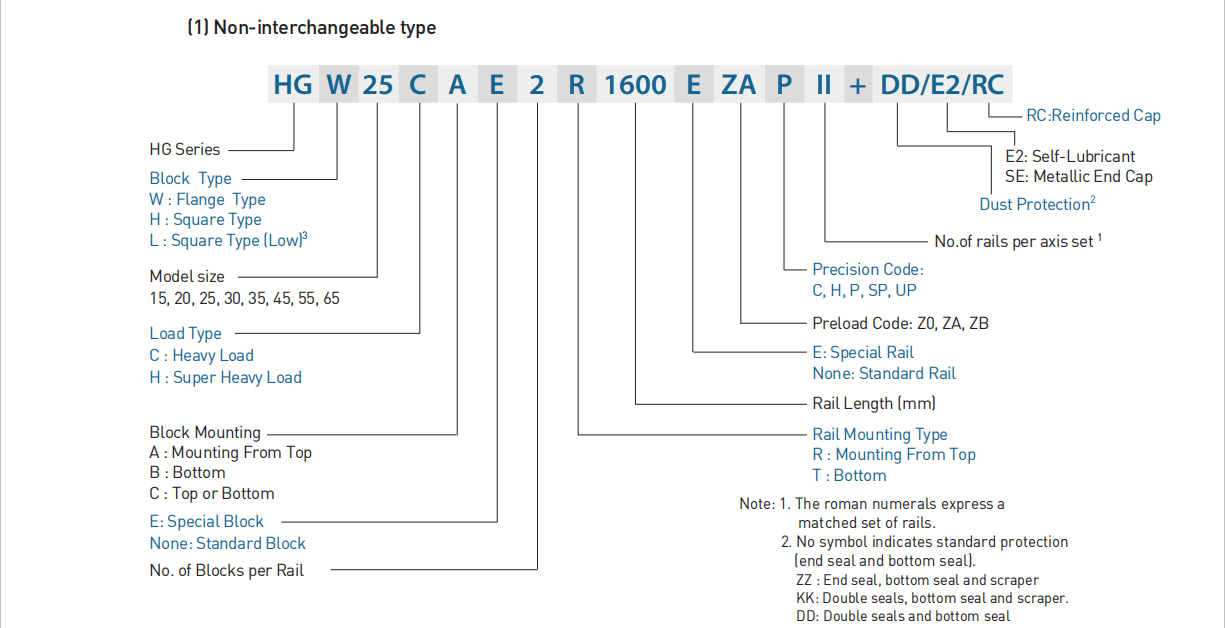

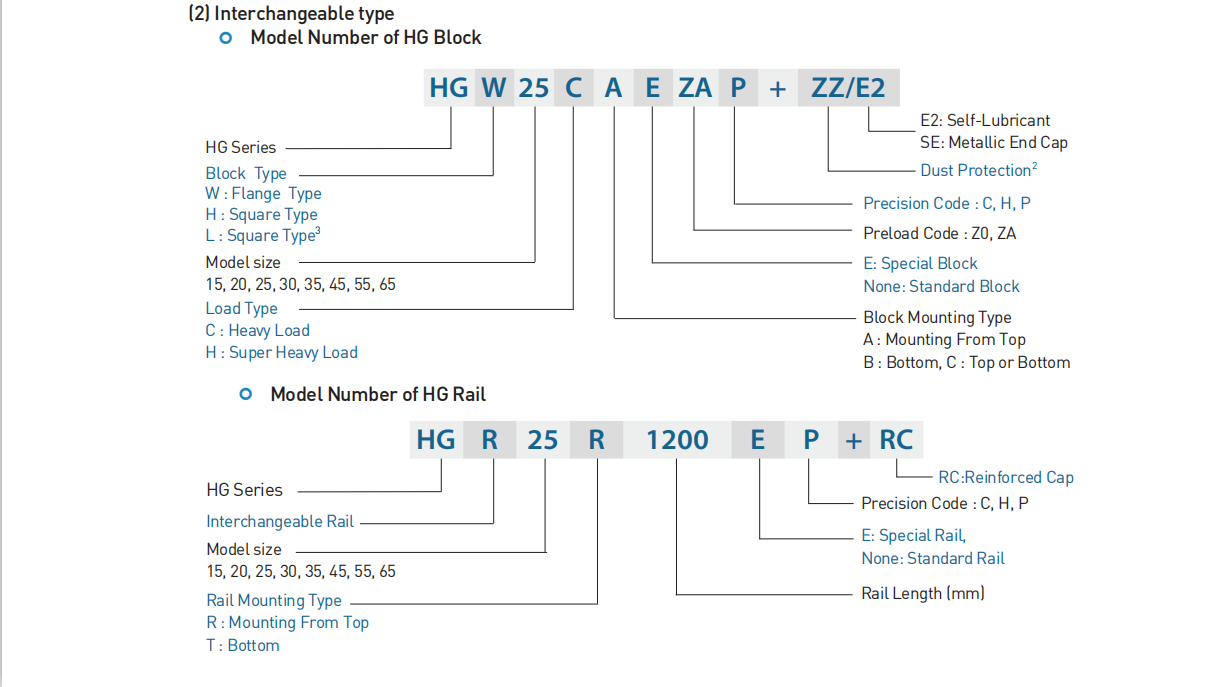

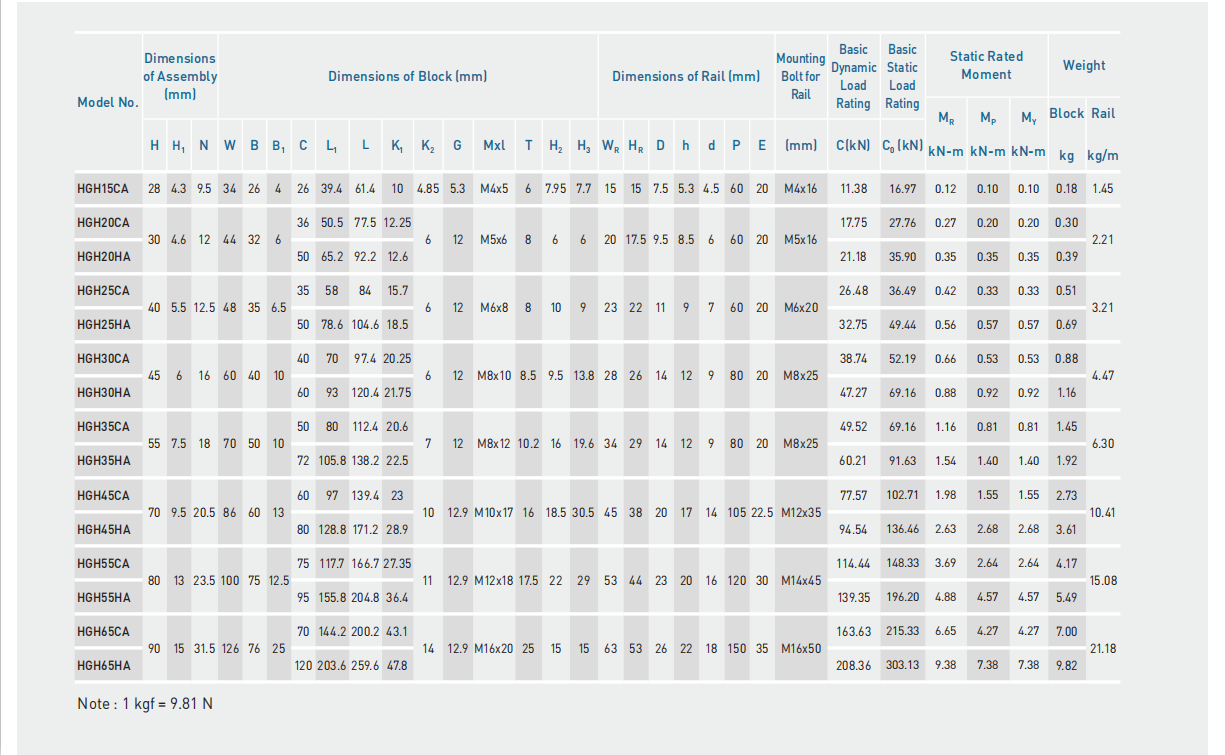

model
