Single Layer Rotary Die Plastic Blown Film Machine Price

Supplier: Wenzhou Ruixin Plastic Machinery Trading Co., Ltd.
Region: Zhejiang, China
Contact: Ms Rita Yuan
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

raw material:	PE/HDPE/LDPE/LLDPE	strength:	15 kW
payment terms:	D/P, T/T, Western Union	After-sales service provided:	Free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
automatic:	Yes	Voltage:	380V or customized
Screw aspect ratio:	28:1	Model:	RSJ-55-900
Warranty:	1 year	capacity:	22KW
Film Thickness (mm):	High-density polyethylene: 0.008-0.08	brand:	Ruixin
Packaging Details:	film stretch or wooden box	Supply capacity:	50 sets per month
weight:	1500 kg	application:	Movie
usage:	Bag and glove making	Plastic processing:	polyethylene
Dimensions (LWH):	500018003900	Blow molding type:	extrusion blow molding
suitable:	Plastic film, vest bag making	Film Width:	50-800mm
output:	40-50kg/hour	port:	Ningbo, Shanghai Port, Guangdong
Origin:	Zhejiang, China	Certification:	International Organization for Standardization
Health status:	new	Tighten:	55mm

Machine Type: Single Layer Rotary Die Plastic Blown Film Machine Price

This plastic film blowing machine is used for blowing PE, HEPE, LDPE films, widely used in composite films, packaging films, agricultural films, textile films, plastic bags, etc. The main motor is controlled by a frequency converter, which not only increases the stability of speed regulation, but also saves 30% of energy. Both the screw and the barrel are nitrided with 38CRMOAI. The traction frame adopts lifting type, which can achieve the best cooling effect regardless of the amount of film.

The main parameters:

Model	RSJ-50-700	RSJ-55-900	RSJ-60-1100	RSJ-65-1350
Maximum flattened width(mm)	600	800	1100	1200
Film thickness (mm)	High-density polyethylene: 0.008-0.08 Low-density polyethylene: 0.05-0.15	High-density polyethylene: 0.008-0.08 Low-density polyethylene: 0.05-0.15	High-density polyethylene: 0.008-0.08 Low-density polyethylene: 0.05-0.15	High-density polyethylene: 0.008-0.08 Low-density polyethylene: 0.05-0.15
Maximum output (kg/h)	50	60	70	100
raw material	HDPE/LLDPE/LDPE/EVA
Screw diameter(mm)	Φ45 or 50	Φ55	Φ60	Φ80
Screw aspect ratio L/d	28:1	28:1	28:1	28:1
Extruder driving power (kw)	11	15 or 18.5	twenty two	30
takeoff speed	10-60m/min	10-60m/min	10-60m/min	10-60m/min
Total power(kw)	≈40	≈50	≈75	≈85
Dimensions (L×W×H)M	_{3.2×1.7×4.5}	4.2×1.9×5	4.8×2.1×6	5.8×2.4×6

Plastic film blowing machine optional equipment:

1.Auto loader 300/500KG per hour 2.Rotary die head

3. Quick screen change 4. Double winding 5. Corona treatment

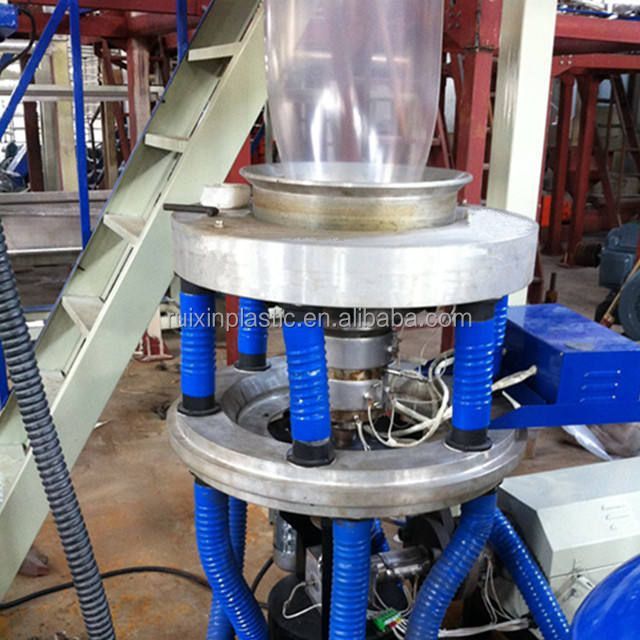

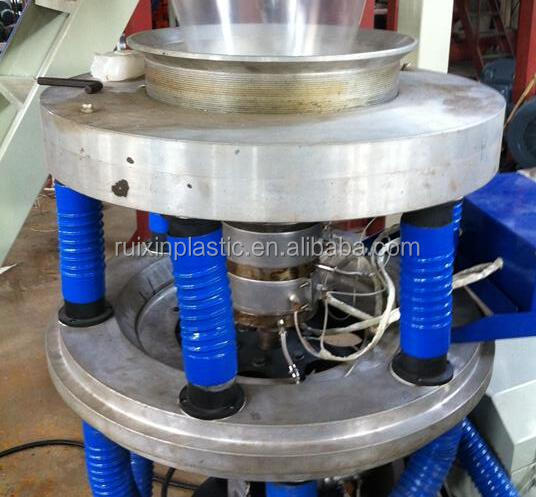

Rotary die:

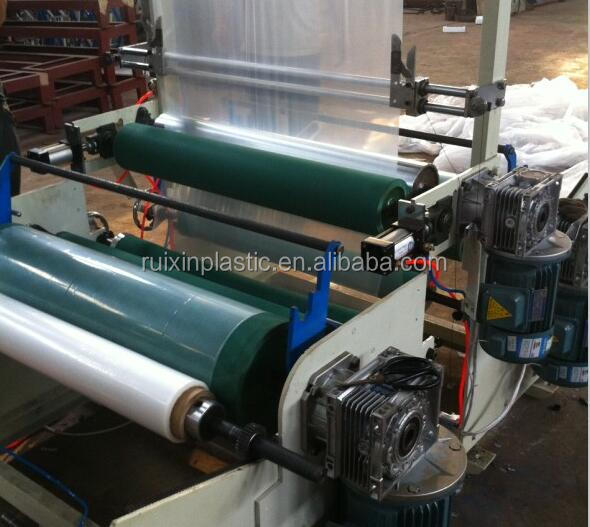

double winding machine

This plastic film blowing machine can produce roll HDPE LDPE film. It can be used in plastic vest bags, continuous roll garbage bags, packaging films, table films and other film fields. If you need other related machines, you can tell us for free.

product sample
