single layer double layer water cooling pp film blowing machine pp film extruder

Supplier: Ruian Huana Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Winnie Tsai
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	Morocco	Output (kg/hour):	50 - 60
Packaging Preview:		After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Applicable industries:	Restaurants, Machinery Repair Shops, Manufacturing Plants, Building Materials Stores, Food and Beverage Plants, Food Stores, Advertising Agencies, Food and Beverage Stores, Home	Supply capacity:	10 sets or more per month
Packaging Details:	Film packaging or wooden case	application:	Movie
Key words:	Blown Film Extruder	Layers:	two floors
brand:	Hydride	Dimensions (LWH):	Different kinds
Material:	PE PP ABS PS	Plastic Processing:	polypropylene
Mechanical test report:	if	model:	SJ65
Showroom location:	Mexico	Health status:	new
Main selling point:	easy to operate	Marketing Type:	normal product
Video external inspection:	if	Name:	Blowing Machine
Die size (mm):	220 - 250 mm	Warranty:	one year
payment terms:	letter of credit, wire transfer	port:	Ningbo/Shanghai
Core components:	motor	Core Components Warranty:	1.5 years
Voltage:	380V, 50HZ	place of origin; place of origin:	Zhejiang, China
Certification:	Chief Executive

feature:

1. This screw barrel is made of 38CRMOALA alloy steel and refined by nitriding, which has the best rigidity and corrosion resistance.

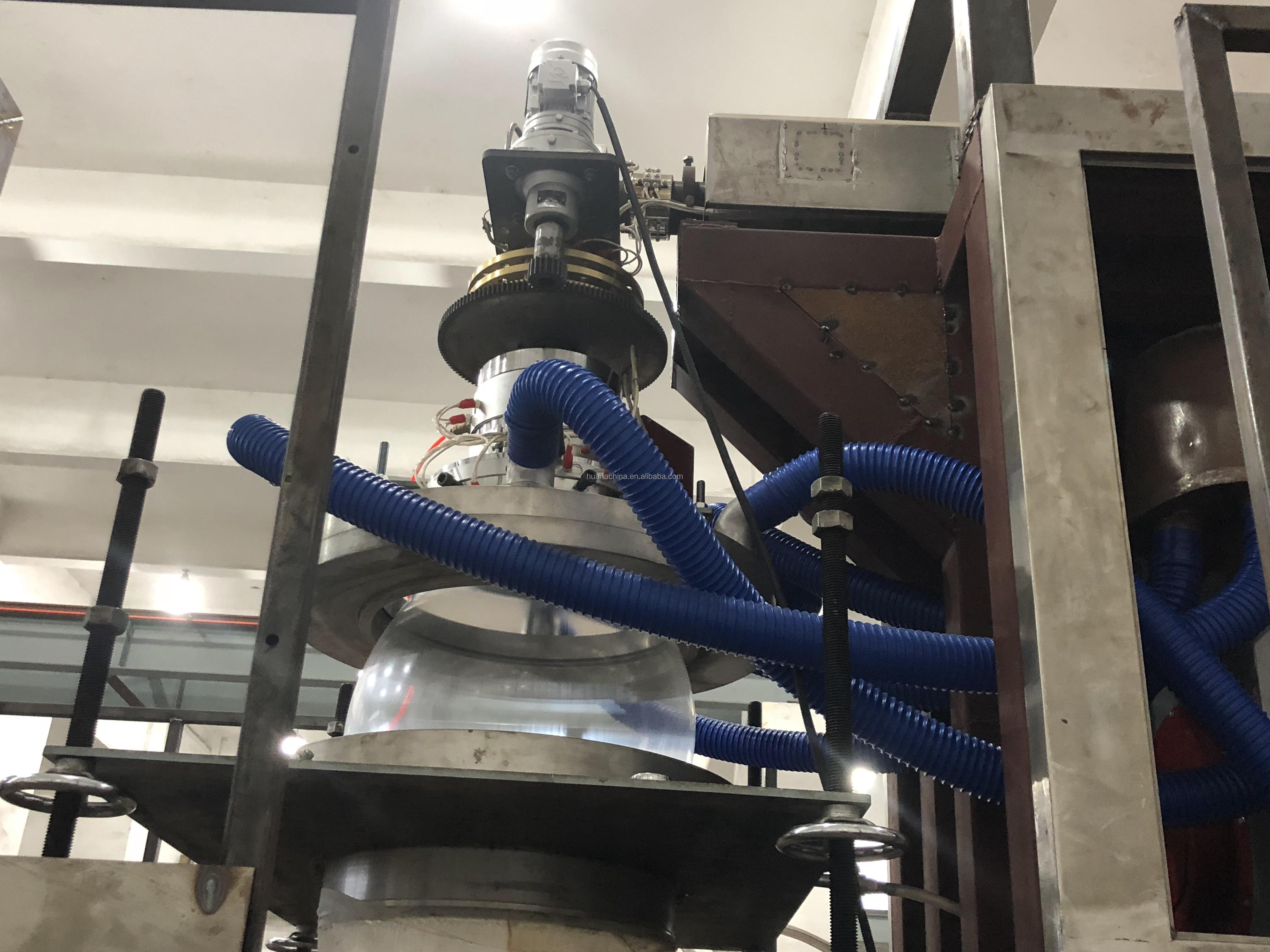

2. The die head is plated with hard chrome, and the screw mandrel structure ensures uniform and smooth discharge. The air-cooling device is a labyrinth structure, which has the characteristics of uniform air volume, automatic temperature control, and automatic heating.

Main technical variables

Model	SJ-PP50	SJ-PP55	SJ-PP65
Applicable materials	polypropylene
Film width	100-500mm	150-600mm	200-800mm
Film thickness	0.01-0.10mm	0.01-0.10mm	0.03-0.11mm
Maximum extrusion volume	35 kg/h	45 kg/h	60 kg/h
Screw diameter	Φ50	Φ55	Φ60
Screw L/D Length	30:1	30:1	30:1
Barrel cooling	120w×1	120w×2	370w×3
main motor	15kW	18.5kW	22kW
Die size	Φ200	Φ220	Φ250
hair dryer	1.5kW	1.5kW	2.2kW
Roller width	600mm	700mm	800mm
Take-up speed	5-60m/min	5-60m/min	5-60m/min
take-up motor	0.75kw	0.75kw	1.5kW
winding motor	10N.m×2 5N.m×1	10N.m×2 5N.m×1	16N.m×2 10N.m×1
Winding speed	5-60m/min	5-60m/min	5-60m/min
Voltage	380V, 50HZ, 3-phase
Dimensions (L×W×H)	3.2m×2m×3.5m	4.2m×2.5m×4m	4.6m×2.8m×4.5m
