2018 New Factory Direct Selling Low Price Fully Automatic Plastic PE Mini Film Blowing Machine

Product details
suitable:plastic film, vest bag makingMachine name:Mini film blowing machine
Plastic Processing:physical educationCertification:EU standard
Warranty:1 yearScrew diameter:50mm
Screw Length/Depth:28:1place of origin; place of origin:Zhejiang, China
Film Thickness (mm):0.008 - 0.12weight:1500kg
Dimensions (L*W*H):2300X1500X2550mmApplicable industries:Hotels, restaurants, machinery repair shops, manufacturing plants, building materials stores, food and beverage factories, food stores, advertising agencies, clothing stores, food and beverage stores, construction works, farms, printing shops, home use
Screw diameter (mm):50port:Ningbo, Shanghai Port, Guangdong
Layers:single layerOutput (kg/hour):30 - 40
automatic:YesRaw materials:PE/HDPE/LDPE/LLDPE
Power (W):11kWmodel:RSJ
Film width (mm):50 - 600payment terms:D/P,T/T,Western Union
Supply capacity:50 sets per monthPackaging Details:Film stretch or wooden box
brand:Ruixinyear:2019-8-1
Health status:newMain selling point:energy saving
application:MovieTighten:50mm
Voltage:380V or customizedMain motor:11KW
After-sales service provided:On-site installation and commissioning training, free spare parts, video technical support, online support

2018 New Factory Direct Selling Low Price Fully Automatic Plastic PE Mini Film Blowing Machine

The barrel and screw of the micro film blowing machine are made of high-quality alloy steel, which has been nitrided and precisely machined to have the best hardness and strong corrosion resistance. The specially designed screw is beneficial to productivity and plasticization. Suitable for blowing LDPE and other plastic films. LLDPE. Widely used in the production of food, cloth, garbage, vest and other packaging bags.





Main parameters of the machine:



Model

RSJ-45

RSJ-55

Screw diameter

45mm

55mm

screw ratio

L/D 28:1

L/D 28:1

Screw speed

10-100r/min

10-100r/min

main motor power

7.5-11kw

11-15kW

maximum. extrude output

35 kg/h

50kg/hour

maximum. Film Folding Width

600mm

800mm

one-sided

membrane thickness

0.006-0.10mm

0.006-0.10mm

total power

22kW

25kW

machine weight

1400kg

1600kg

Dimensions (L*W*H)

2300X1500X2550mm

2710X1500X2650mm





PE mini blow molding machine optional equipment:

1. Automatic loader 300/500KG per hour 2. Corona treatment

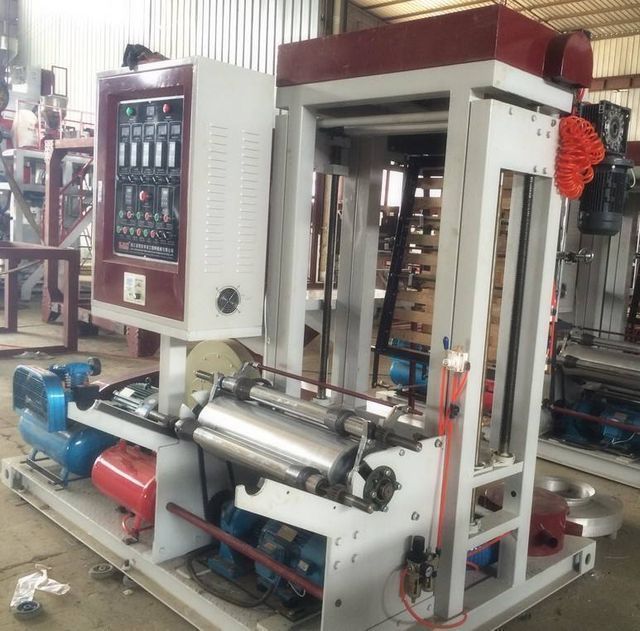

Machine picture:

Extruder unit:











PE plastic film blowing machine can be used in plastic vest bags, rolling garbage bags, packaging films, table films and other film fields. If you need other related machines, you can tell us for free.



product sample



workshop
