High-speed (400-600 pcs/min) automatic four-row plastic shopping bag vest bag making machine
- 5000.00 set
| Supply capacity: | 50 sets per month | Computerized: | Yes |
| Type of machine: | Making Machine | Bag width (max): | 100-600mm |
| Core components: | Motor, PLC | product name: | Making Machine |
| Showroom location: | Saudi Arabia, Nigeria | Maximum speed: | 250/min |
| Bag Type: | T-shirt bag | servo motor: | Yes |
| Mechanical test report: | if | Main selling point: | competitive price |
| Core Components Warranty: | 1 year | application: | T-shirt bag / vest bag / shopping bag |
| Packaging Details: | Film packaging or wooden case | Health status: | new |
| payment terms: | Western Union, D/A, T/T | Dimensions (L*W*H): | 3.2X1.1X1.6M |
| Processing type: | Heat sealing and cold cutting | Video external inspection: | if |
| usage: | T-shirt bag making | programmable logic controller: | Yes |
| port: | Ningbo, Shanghai, Guangdong | Packaging Preview: | |
| Voltage: | 220V | line: | four lines |
| model: | GBDE-700 | weight: | 1500kg |
| Material: | plastic | speed: | 400-600 pieces/min |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants, Food Stores, Printing Stores, Food and Beverage Stores | Warranty: | 1 year |
| Marketing Type: | Hot Products 2022 | place of origin; place of origin: | Zhejiang, China |
| Bag length: | 400-1000mm | brand: | Ruixin |
High Speed (400-600 pcs/min) Automatic Four Lines Plastic Shopping Bag T-Shirt Bag Making Machine:
This plastic T-shirt shopping bag making machine is suitable for producing HDPE and LDPE plastic bags. Stepper motor (servo motor) is used for high-speed discharging, photocell tracking and cutting, and "U"-shaped bag is punched at one time. And has the characteristics of simple operation, high efficiency and high yield.
Siemens Motor
Delta inverter
touch screen changer
Yaskawa Servo Motor
Panasonic Photocell
omron electrical parts
technical parameter:
|
type |
GBDE-700 |
GBDE-900 |
|
Sealing and cutting width |
150-600mm |
180-800mm |
|
Sealing and cutting length |
300-650mm |
300-650mm |
|
Sealing thickness |
0.001-0.04mm |
0.015-0.04mm |
|
bag making speed |
(5-150)×4pcs/min |
(5-150)×4pcs/min |
|
Motor Power |
1.5kW |
2kW |
|
machine weight |
≈1500kg |
≈2000kg |
|
Dimensions (L×W×H) mm |
3200×1100×1600mm |
5200×1300×1800mm |
|
air compression |
5kg/cm2 |
5kg/cm2 |
1) It adopts computer control and frequency conversion motor speed regulation, which has the advantages of upper stop, stable function and accurate positioning.
2) 1 automatic photoelectric feeding system and 1 tracking photoelectric cell. Automatic temperature control system, static elimination system, automatic counting system and alarm system.
3) With automatic conveying system, conveying sealed and cut bags.
4) Heat sealing and cold cutting. The heat seal has too many sides. One for flat bag closures and one for T-shirt bag closures.
Picture of plastic vest bag making machine:
Bag sealing knife:
Cutter:

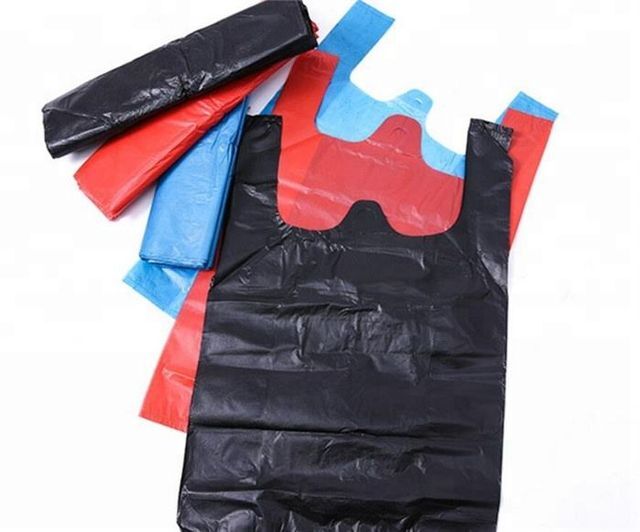

Product sample:
Our factory:
Our customers:
Packaging and Shipping:
our service:
Welcome to contact us:
