Mini film blowing machine (CE)

Supplier: Zhejiang Bangtai Machine Co., Ltd.
Region: Zhejiang, China
Contact: Ms Joanne Huang
Price: $5800.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

brand:	three to one	Packaging Preview:
Blow molding type:	Extrusion blow molding	strength:	20-30kW
Voltage:	380v	After-sales service provided:	Provide overseas service center
Film thickness:	0.01-0.10mm	Warranty:	one year, 1 year
Screw size:	50/55 mm	place of origin; place of origin:	Zhejiang, China
Dimensions (LWH):	285019003200	Plastic Processing:	physical education
Health status:	new	Sales unit:	single product
Raw materials:	LDPE/HDPE/LLDPE	Max output:	35/50 kg/h
Certification:	CE, ISO9001; 2000, SGS	Name:	Mini film blowing machine
Packaging Details:	Small Film Blowing Machine: Stretch Film Packaging	Maximum film width:	600/800mm
Gross weight per piece:	1500.000 kg	automatic:	Do not
Single package size:	45X20X20 cm	application:	Shopping bag film, film
Main motor:	11KW /15KW	weight:	1.5-2T
Model:	SJ-D50/55

Product Description

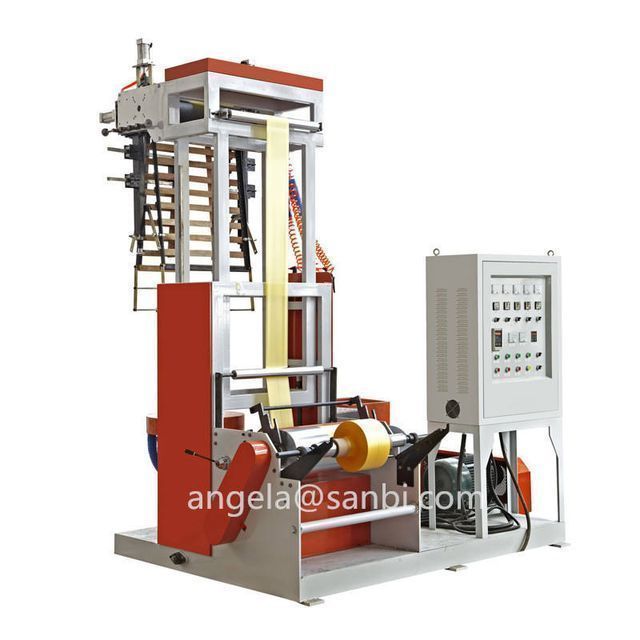

Mini film blowing machine:

The extruder screw and barrel are made of high-quality alloy steel, nitrided and precision machined for optimum hardness and corrosion resistance. The unit is scientifically designed, with one machine and two heads, and has the advantages of improving production capacity, saving energy, saving labor, and saving plant area.

application:

This unit is used for blowing LDPE, HDPE, LLDPE plastic films into various vest bags and flat bags, which are widely used in the packaging of food, clothing, textile and other industries.

Specification:

Model	SJ-D50	SJ-D55
Screw diameter (mm)	φ50	φ55
maximum. Flat lay width of film(mm)	100-600	200-800
Film thickness (mm)	0.01-0.10	0.01-0.10
maximum. Output (kg/hour)	35	50
Screw aspect ratio	28:1	28:1
Main motor power (kw)	11	15
Traction motor power (kw)	1.5	1.5
Heating power (kw)	11	13
Dimensions (LWH) (mm)	285019003200	310021503200
Weight (T)	1.5T	2T

Certification

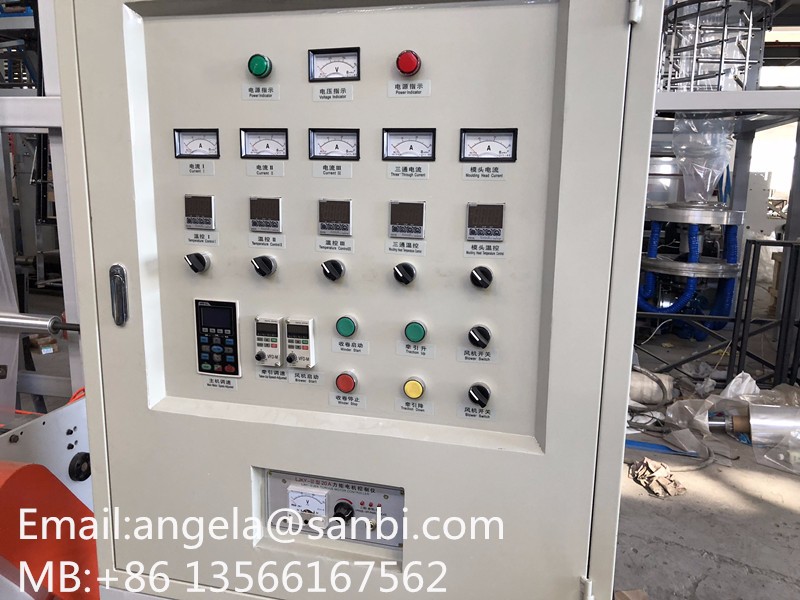

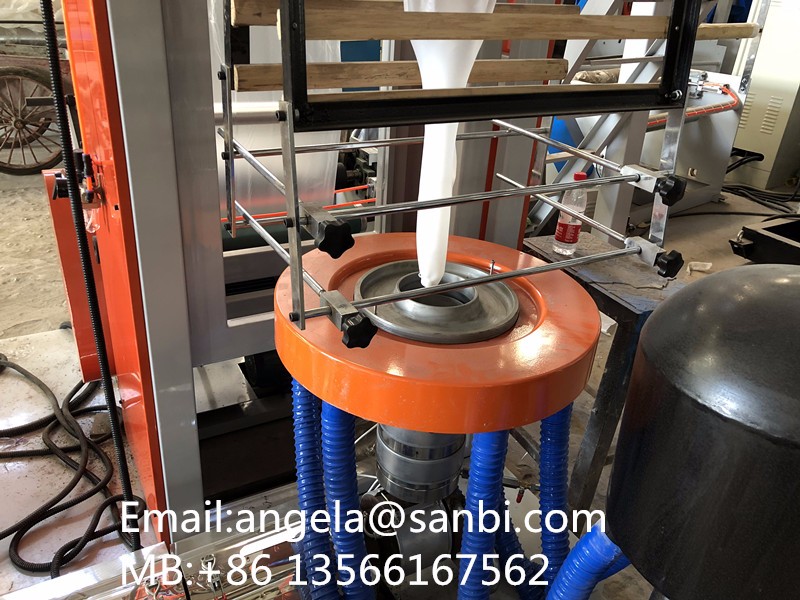

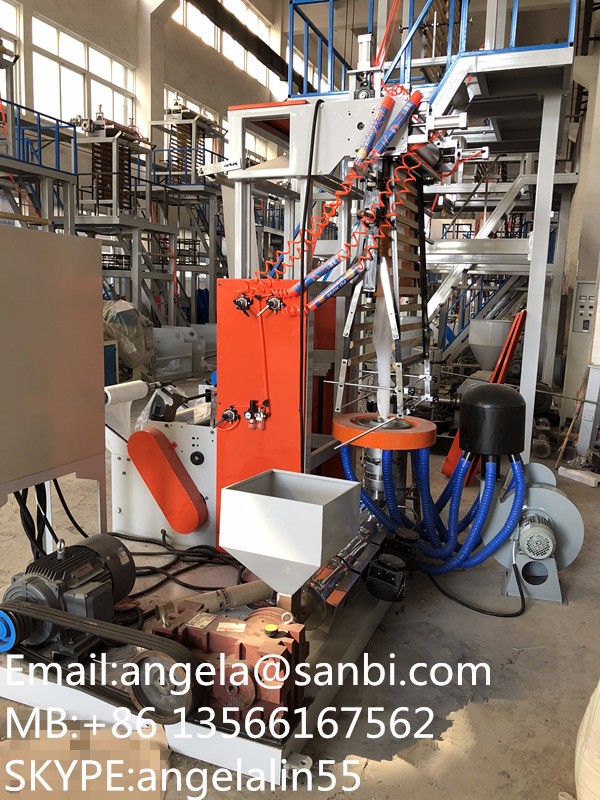

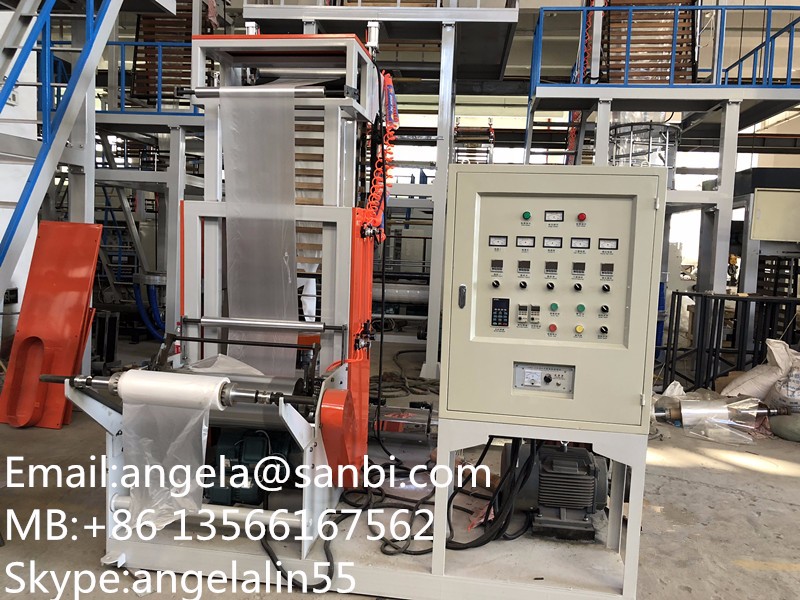

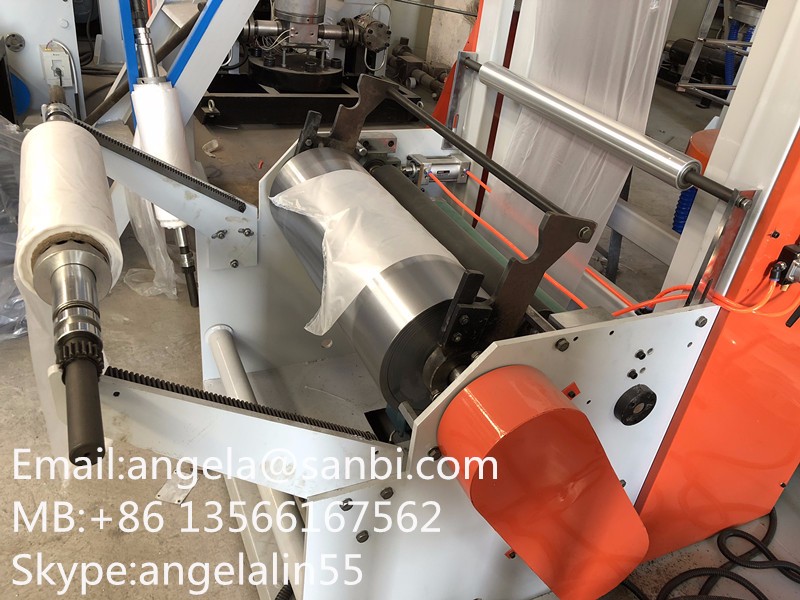

detailed image

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

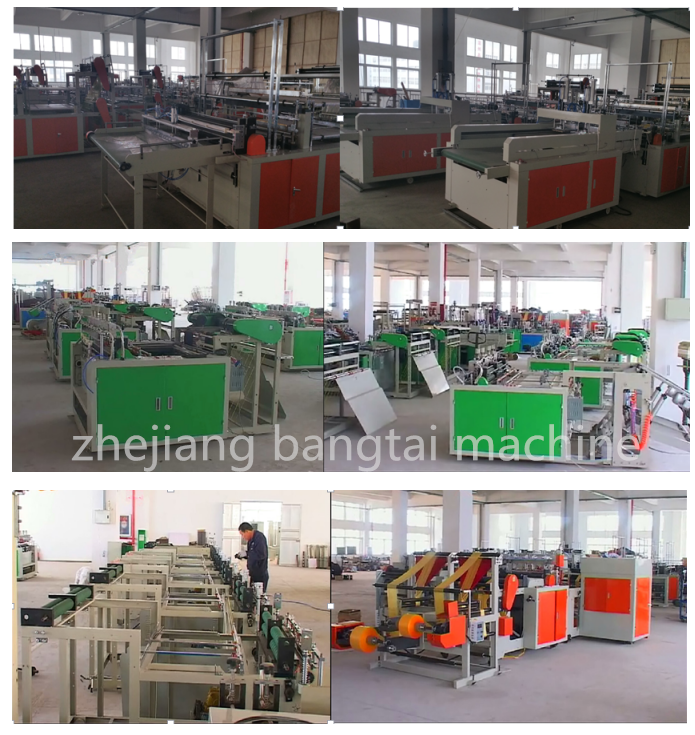

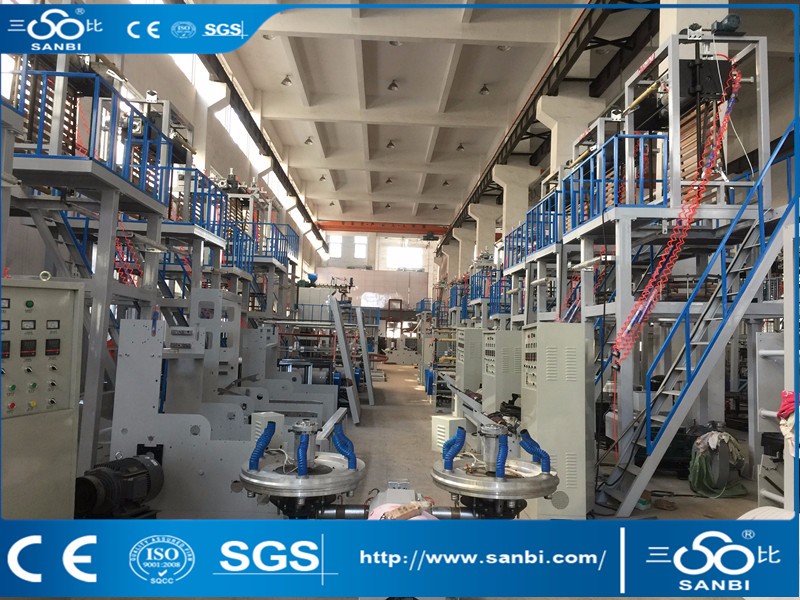

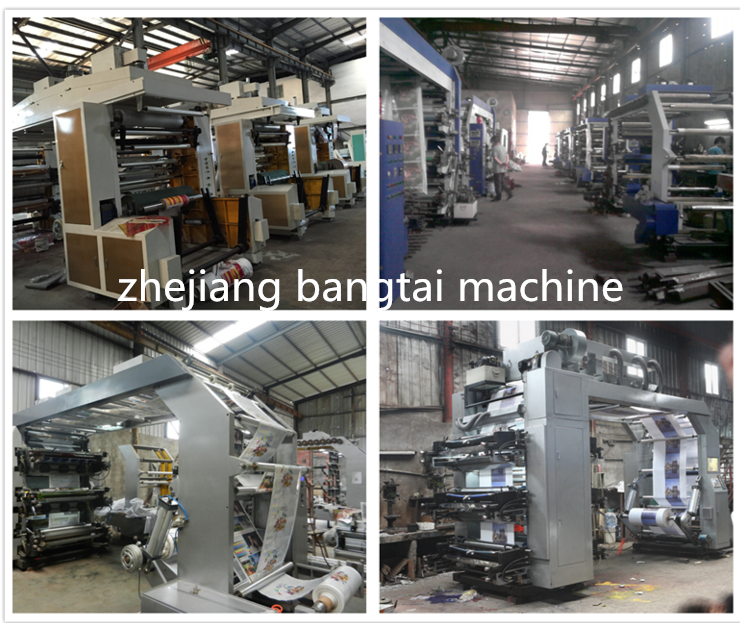

* View our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.

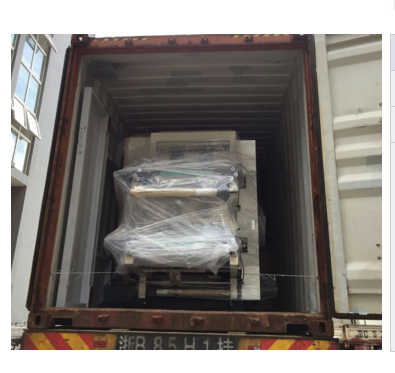

Packaging and Delivery

Bale
size	123(L)456(W)789(D)
weight	1.2 tons

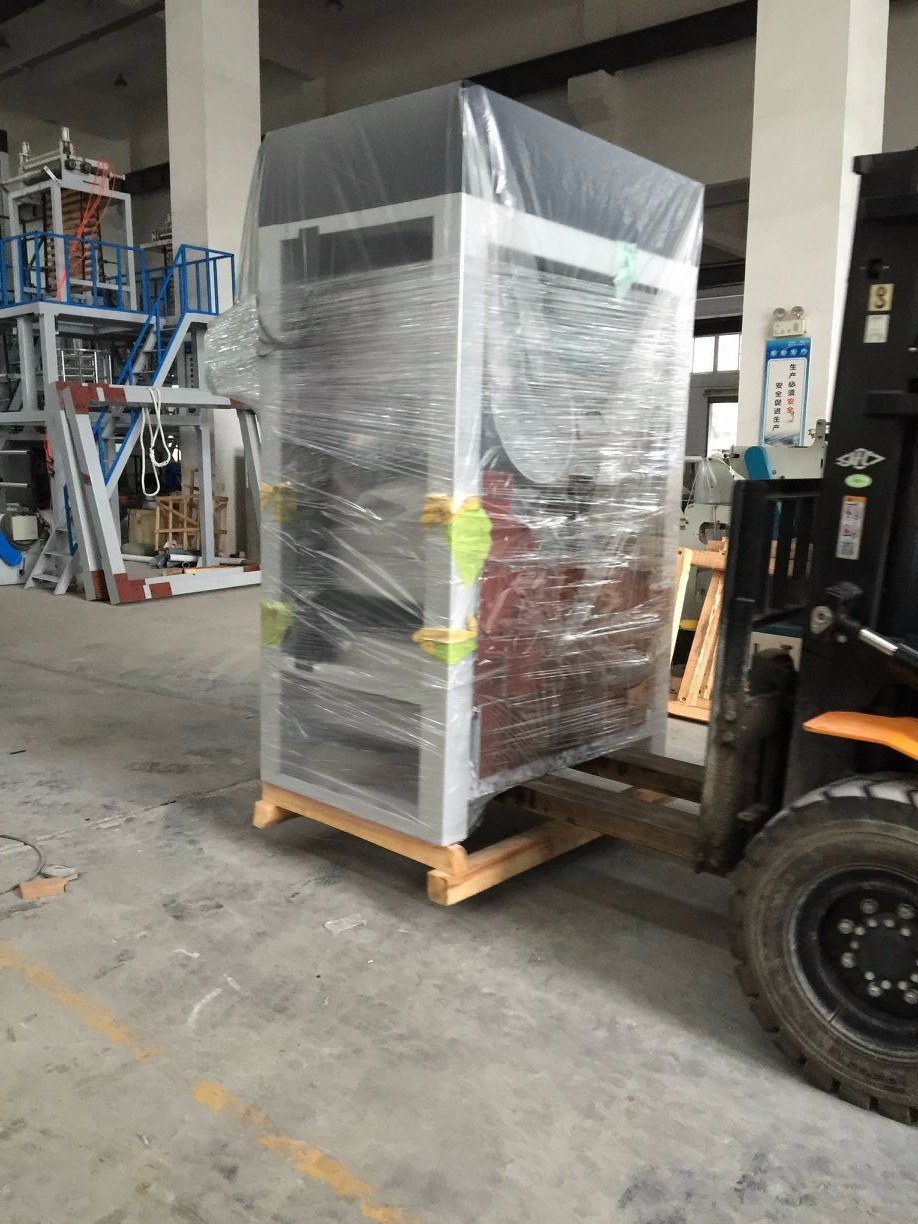

Packaging Details	The normal packing is wooden pallet (size: LWH). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer's special requirements.

Bale
size	123(L)456(W)789(D)
weight	1.2 tons
Packaging Details	The normal packing is wooden box (size: LWH). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer's special requirements.
