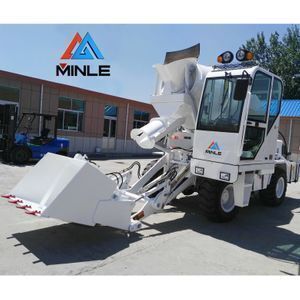

JBC2.6R small self loading Concrete Mixer Truck

Supplier: Tai'an Minle Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms. Minle Machine
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single gross weight:	6,000 KG;	Package Type:	in nude package;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	12 Months;
Production capacity:	Concrete output:2.6 m3/ can, 7.8-10.4m3/ h;	Brand Name:	MINLE;
Mixing System:	Drum capacity 4.65 m3,height of 1.6 meters discharge;	Application:	Road Construction;
Walking speed:	Low speed 2 km/h; high-speed 10-20 km/h;	Name:	self loading concrete mixer truck;
Brand:	minle;	Single package size:	560X250X340 cm;
Model:	JBC2.6R;	Place of Origin:	Shandong China (Mainland);
Product name:	Concrete Mixer Truck;	Selling Units:	Single item;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Applicable Industries:	Construction works ;
Weight:	7100kg;	Keywords:	Concrete Mixer Truck;
Condition:	New;	Dimension(LWH):	5.6m2.5m3.4m;
UNIQUE SELLING POINT:	High operating efficiency;	Certification:	ISO CE;
Power(W):	48KW;

March sales promotion JBC2.6R small seld loading Concrete Mixer Truck

small self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

Specification of small self loading concrete mixer truck

Mixing System	Drum capacity 4.65 m³, height of 1.6 meters discharge.
Production capacity	Concrete output:2.6 m³/ can, 7.8-10.4m³ / h
Engine	Wuxi SD4102G,4 Cylinders/4.836L; 48KW/2400rpm
Transmission	Torque converter, 4-wheel drive, two steering, Axle made in China
Walking speed	Low speed 2 km/h; high-speed 10-20 km/h
Cab	Left-Seat drive, anti-tilt, FOPS cab, front loading shovel
Hydraulic system	Domestic hydraulic systems, open loop for hydraulic transmission and drum rotation
Operating lever	Electronically controlled four-speed joystick
Bucket	700 liters, hydraulic valve
Chute	Hydraulic adjustable angle, for increasing the discharge length
Water supply system	Hydraulically driven Auto-priming pump, washing vehicle with high pressure water pump, 24V electronically controlled Auto-priming pump, with 2*300L water tank
Brakes	Air brake brakes, dual independent circuits
Tire	15.5 inch/65-18 construction machinery tires
Power System	24V
Fuel Tank	Fuel tank: 50L, hydraulic oil tank: 50L
Weight	7100kg
Dimensions	Length: 5.6m; Width: 2.5m; Height: 3.4m
Measure	Electronic weighting, water measuring control, Formula controlled

More pics welcome enquiry

Features of small self loading concrete mixer truck:

Italy technology, Self Propelled Concrete Mixing System
Easy operating control
High efficiency
Mixer and Loader joint together perfectly
Half year warranty
Two directions discharge materials

Parameters of small self loading concrete mixer truck:

DIESEL ENGINE

Model: YCD4T22T-105

Total displacement, no Cylinders: 3850cc-4 in line

Injection: direct with mechanical control

Cooling: water, dry air filter

Max. power: 78Kw(106Hp)

Max. torque: 330Nm@2400rpm

ELECTRIC SYSTEM

Alternator:28V--1500Wa (53.5A)

Battery: 2×12V--60AH (272A)

Road light system, rear working lights.

STEERING

2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.

4X4 FOUR-WHEEL DRIVE

hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.

Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed".

Speed:3 forward gears 3 reverse gears

Ist 0-7 Km/h 0 - 7 Km/h

IInd 7-25 Km/h 7 - 25 Km/h

IIIrd 25-35 Km/h 25-35 Km/h

AXLES AND WHEELS

Front wheel is steering with planetary reduction gears on the Isuzu Axle with flanged gearbox.

Rear axle is oscillating(± 28°)with planetary reduction gears.

Tires:... 16-70-20,Max. L: 5150kg , 450kPa

BRAKES

Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.

Negative type parking brake, with internal wheel hub discs on the front axle.

WATER SYSTEM

24V “Self-priming” volumetric water pump with quick-suction.

Max. capacity: ............................90 liters/min.

Two tank with a total capacity of ......................2×300 liters.

Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver’s seat.

Washing vehicles outside by water blast gun via high pressure water pump.

MIXING AND UNLOADING

Double-cone drum with double-spiral mixing screws and convex bottom.

Geometrical drum volume: ............. 4650 liters

Drum rotation speed: .........................15 rpm.

Concrete produced as : ........2.6 m³

Counter frame mounted on “heavy-duty” ball fifth wheel, with 180° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.

Drum raising up to the horizontal position by means of 2 double-acting jacks.

Unloading chute with mechanical tilting by means of one handle controlled and 180° rotation, independent from the mixing drum inclination.

Removable chute if unloading from hopper.

2 unloading chute extensions provided as standard equipment.

EQUIPMENT HYDRAULIC SYSTEM

Gear pump: (brand) Parker

Max. flow rate: ............................. 63/50 liters/min.

Maximum pressure: ........................16MPa

3-Handles controlled with multi-function joystick.

Aluminum heat exchanger for hydraulic oil cooling.

Pressurized open-circuit intake with oil filter replaceable from the outside.

LOADER

Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.

Volumetric capacity: ...........................700 liters

Number of loading times: .......... around 5

CAB

Closed cab with heating system, Tilting front window,

Anatomic seat with flexible suspension and height adjustment,

SERVICE REFILL CAPACITIES

Fuel tank: .............................................80 liters

Total hydraulic system capacity: ........ 160 liters

Engine oil: .............................................16 liters

WEIGHTS

Operating weight ................................7100 kg

Max gross weight:..............................13340 kg

load-carrying capacity: ...................... 6240 kg

Loading pics of small self loading concrete mixer truck
