1 2 3 4 5 6 Inch Semi Automatic Serpentine Aluminum Copper Steel Hydraulic Bender Used Tube Bending Machine Square

Supplier: Nanjing Blma Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jenny Yao
Price: $4290.00 /set
Min. Order: 1 set

Click here to contact

Product details

Hydraulic valves:	Japen Yuken;	Condition:	New;
Port:	Shanghai Port;	Raw Material:	PIPE;
Power:	Hydraulic;	Warranty:	12 Months;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Bending Accuracy:	±0.15°;
power:	Hydraulic;	Supply Ability:	600 Set/Sets per Month;
Certification:	ce;	Max bending dgree:	190°;
Product name:	tube bending machine;	Color:	Customized;
Max bending capabi;ity:	130mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Machine Type:	Beading Machine;	Material / Metal Processed:	ALLOY, ALUMINUM,COPPER,CARBON STEEL,STAINLESS STEEL;
Extra Services:	Machining;	Packaging Detail:	Hydraulic square tube bender bending machine is usually packed with professional exported case.;
Control system:	NC control;	Brand Name:	BLMA;
Place of Origin:	Jiangsu China (Mainland);	Automation:	Automatic;

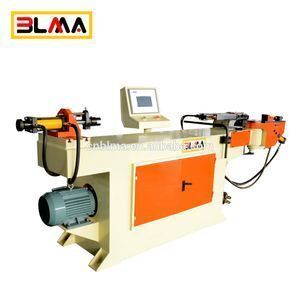

1 2 3 4 5 6 Inch Semi Automatic Serpentine Aluminum Copper Steel Hydraulic Bender Used Tube Bending Machine Square

Product Description

Specifications for DW50NC semi automatic pipe bending machine:

1,Bending part automatic

2,Equipped with hydraulic system--economical way

3,Stable performance

4,Easy operation

5,Cost-effictive machine

Machine video link in youtube:https://youtu.be/SiixYwScBRI

Machine main features:

1,Operate by NC control unit, imported electric and hydraulic elements.

2,English showing and conversational operation.

3,It can adjust speed in each bend and the bending precision is high.

4,16 groups of bending information can be stored. Multiple angles can be finished once.

5,The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.

6,Delicate design of the bending head makes the bending space large.

7,Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

Technical data:

Main specification	DW50NC
Max bending capability	Ø50mmx3mm
Max bending radius	R350mm
Max bending degree	190°
Max effective distance of mandrel	2200mm
Control system	NC control
Max elbow bend pipe	16
Max storable sections	16x16
Motor power	5.5Kw
Max hydraulic pressure	12Mpa
Oil tank capability	150L
Measurement	3000x700x1030mm
Weight of machine	1220Kg

We also have other models of pipe bending machine,such as DW38NC, DW63NC, DW75NC, DW89NC, DW100NC...PLEASE send us your requirement,we will quote accordingly.

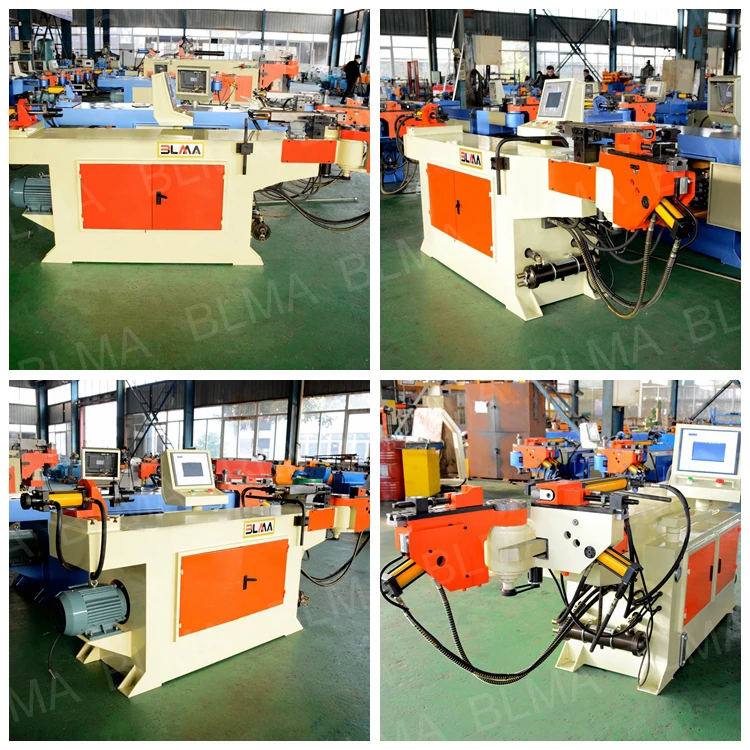

Machine detailed pictures:

Bending samples:

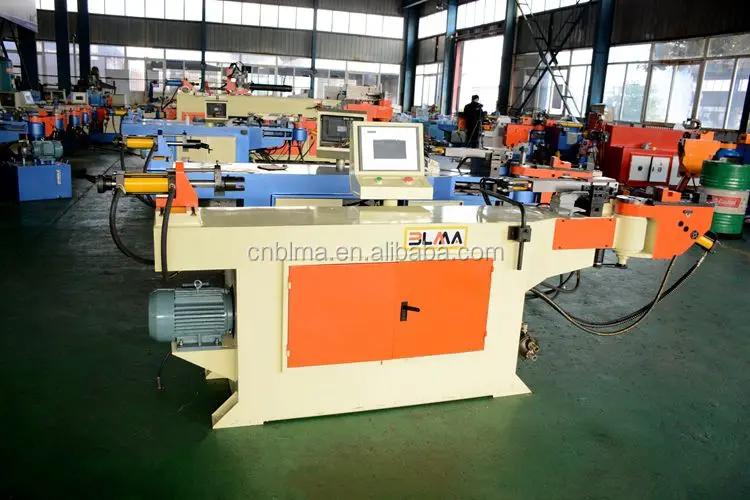

Our workshop:

Exhibition&Client visit:

Packaging & Shipping

BLMA nc semi automatic pipe bending machine is delivered within 15 days after the deposit confirmed.

The machine is usually packed in a professional exported case by shipping way.

Our Services

Pre-service:

1.We will help you confirm the model of our machine according to your offered pipe information.

2.You are very welcome to see our machine how to work in the factory before you place an order with us.

Aftersales-service

1.Free installation, trial start and adjustment, training.

2.We guarantee machine quality for one year. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL,TNT freely.

3.Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.

FAQ

1.Are you a manufacturer or trading company?
Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery.

2. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible

3.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

4.What about your machine warranty?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!

5.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can designing the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period,you can also learn how to use this machine well!

6.What certificate do you have?
We have both ISO and CE certificate.

7.Where is your factory located?
Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to Shanghai Hongqiao or PVG airport directly.

Contact Way

If you have an interest to know more about our machine,please contact us at any time.
Our company website:www.chinablma.com
Jenny Yao
Mobile:0086-15366037270

Welcome to inquire our machine!
Your satisfaction is our greatest movitation.
