Automatic Industrial Guillotine Paper Cutting Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380v;	Payment Terms:	L/C,T/T;
Power(W):	4kw;	Max cutting width:	130cm;
Computerized:	Yes;	Certification:	CE;
Usage:	For cutting paper or PVC;	Max cutting height:	14cm;
Port:	Shanghai or Ningbo;	Dimension(LWH):	280282166cm;
Packaging Detail:	Wooden case;	Condition:	New;
Max cutting length:	135cm;	Place of Origin:	Zhejiang China (Mainland);
Type:	Paper Cutting Machine;	Color:	WHITE AND Gray (or customized);
After-sales Service Provided:	Engineers available to service machinery overseas;	Brand Name:	PRINTYOUNG;
Delivery Detail:	30 days;	Warranty:	One Year;
Speed:	45cycles/min;	Supply Ability:	10 Set/Sets per Week;
Weight:	4300kg;	Sending paper motor power:	4kw;
Cutting motor power:	0.55kw;

Product Description

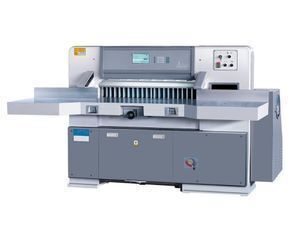

Automatic Industrial Guillotine Paper Cutting Machine

PAPER CUTTING MACHINE OF Model	QZYK1300DH	Unit
Max cutting width	130	cm
Max cutting length	135	cm
Max cutting height	14	cm
Max clamping pressure	40000	N
Cutting speed	45	cycles/min
Sending paper motor power	4	kw
Cutting motor power	0.55	kw
Wind pump motor power	0.75	kw
PAPER CUTTING MACHINE of Net weight	4300	kg
PAPER CUTTING MACHINE of External dimension	280×282×166	cm
PAPER CUTTING MACHINE of Packing dimension	287×157×200	cm

PAPER CUTTING MACHINE of Characteristic:

1. Usage: QZYK-DH Touch Screen Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2. Touch Screen: it adopts 10.4 inch color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while there is malfunction, and do self-protection while wrong operation.

3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

4. Double Guide Device: the paper pusher adopts double linear guide and roller ball screw. Our high rigidity linear guides design has its patent no: ZL 2005 2 0074357.0

5. Photo cell: it is equipped with a photo cell safety protection device which is imported from Switzerland.

6. Over load protection device; convenient knife changing device.

7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8. Air ball: air balls are installed in the worktable.The paper sending work will be easy and accurate.

9. Cutting controller: both of the hands of the user operate the machine. It can cut paper one time.

10. Safety notice & Glass covers: all the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.

11. Main electric device are imported from Germany, French, Japan, etc.

Packaging & Shipping
