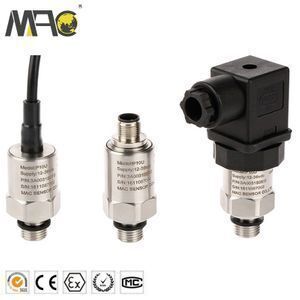

Mac transmitter Ceramic Hydraulic oil Water Pressure Sensor

Click here to contact

Product details

Packaging Detail:	Carton box Mac transmitter Ceramic Hydraulic oil Water Pressure Sensor;	Product Name:	Ceramic Hydraulic oil Water Pressure Sensor;
Pressure Range:	-1-0-1 Bar.....600 Bar Optional;	Place of Origin:	Henan China (Mainland);
Application:	Water Oil Air Pressure measurement sensor;	Port:	Shenzhen/Guangzhou;
Model Number:	P10C;	Pressure type:	Gauge Pressure Absolute Pressure Sealed Pressure;
Supply Ability:	20000 Piece/Pieces per Week Mac transmitter Ceramic Hydraulic oil Water Pressure Sensor;	Temperature compensation:	0℃~50℃;
Certificate:	CE RoSH;	Accuracy:	0.5%FS Air pressure sensor;
Output signal:	4~20mA/0-10V/0-5V/1-5V;	Brand Name:	MAC pressure sensor;
Process connection:	M20X1.5 Male;1/8''NPT male customized;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Power supply:	24VDC 12VDC 5VDC 8-30VDC;

Product Description

Characters:

Accuracy: ≤±1.0%F.S.

Wide working temperature scope

Automation temperature compensation.

Excellent overload, Shock and erosion.

Anticorrosive diaphragm and port.

OEM economic selection

Mini dimension types

2 times range standard overload.

3 times range burst pressure

CE approved

Applications:

Engine Fuel Pressure measurement

Refrigeration and Air Compressor

Hydraulic pressure controller

Petrochemical industry

HAVC System Application

Pressure meter

Laboratory equipment

Water pressure measurement

Saving water to irrigate

Liquid and Gas pressure measurement

Specification of Thin Film Pressure Sensor

Model:	P10 Series
Pressure Range:	-1-0-1 Bar.....600 Bar Optional
Pressure Type:	Gauge pressure; Negative pressure; Absolute pressure optional
Accuracy: (Linearity Hysteresis Repeatability)	≤ ±1.0%F.S (Standard) ≤ ±0.5%F.S (Customized) Optional.
Medium Temp:	-30℃~85℃
Ambient Temp:	-30℃~80℃
Storage Temp:	-40℃~85℃
Temperature Compensation:	0℃~50℃
Overload:	150% F.S.
Housing material:	304 Stainless Steel
Diaphragm material:	Ceramic
Process material:	SUS304 Stainless Steel or by customized
Medium compatible:	Compatible with 304/316 Stainless Steel
Electronic Wire:	2 or 3 wires	3 Wires
Output:	4~20mA	0~5V/1~5V	0~10 V	0.5~4.5 V Ratiometric	Special customized
Power Supply:	12~36 V DC	8~36 V DC	15~36Vdc	5 V DC	Special customized
Insulate resistance:	>100M Ω @50V
Electronic connection:	Terminal Box (DIN43650 Hirschman Connector, IP65); Directly sealed cable IP67; M12 4 Pins connector IP65; Packard 3 Pins Connector IP67 are optional.
Pressure connect port:	1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female, 7/16’’-20 UNF male/female are optional. (by Customized)
Certificate approving:	CE Certificate.
Water Proof:	IP65 to IP67
Weight:	Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)
Remarks:	Special applications request by Customized
