Factory directly sales hydraulic metal baler machineY81-250t,hydraulic scrap metal baling press machine

Click here to contact

Product details

Port:	shanghai;	Place of Origin:	Anhui China (Mainland);
Product name:	Metal Hydraulic Baler;	Power (kW):	15;
Brand Name:	DAMA;	Model Number:	Y81-125T;
Material / Metal Processed:	Brass / Copper,ALLOY,Aluminum,Carbon Steel,Stainless Steel;	Supply Ability:	100 Set/Sets per Month;
Warranty:	2 Years;	Bale Density:	over1800;
Baie size:	(150~400)240240or(Octagon);	After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Key Selling Points:	Automatic;	Warranty:	1 Year;
Packaging Detail:	export standard;	Type:	Y81-125;
Weight (KG):	5000;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	color:	green;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Advertising Company,metal packing;	Single cycle time (sec):	120;
Compression:	1200700600;	Application:	Steel;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Factory directly sales hydraulic metal baler machineY81-250t,hydraulic scrap metal baling press machine

Specifications :

1.Hydraulic metal baler

2.Hydraulic drive ,manual valve operation or PLC control

3.Bale-discharging :turn-out ,push-out, forward-out

4.Waste metal baler machine

5.Metal press baler machine

Descriptions :

Y81 series hydraulic metal balers press the leftover of all kinds of metal material,including steel shavings,scrap tel,

scrap aluminum,scrap copper,scrap stainless steel to be qualified in the shape of cuboid,octagon,cylinder and so on,

which not only decreases the speed of casting.

This machine is mainly applicable to steel mills,recycling industries and ferrous metallurgical works.

Compression box size,bale size,bale shape can be customized according to clients requirement.

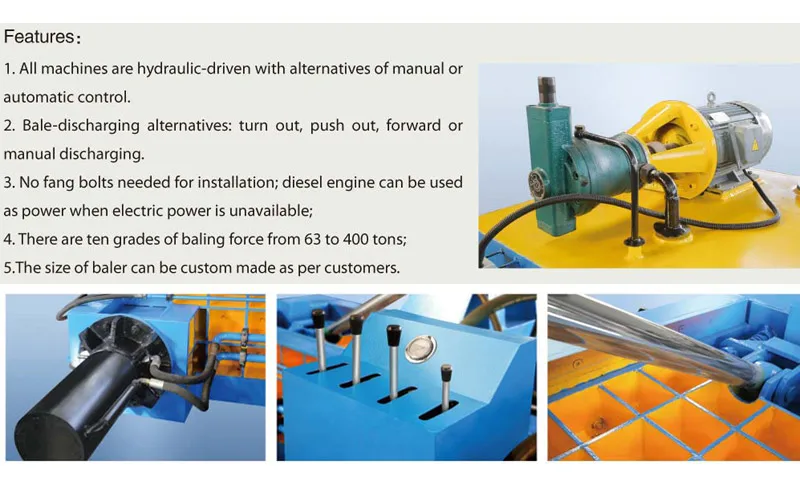

Features :

1.All machines are hydraulic-driven with alternatives of manual or automatic control .

2.Bale-discharging alternative : turn-out , push-out , forward or manual discharging .

3.No fang bolts needed for installation ; diesel engine can be used as power when electric power is unavailable .

4.There are ten grades of baling force from 63 to 400 tons .

The size of baler can be custom made as per customers .

Production brief introduction :

This hydraulic press machine can cold compresses waste automatic shells ,waste buckets ,waste copper and

aluminum into rectangle lumps .The package is discharged from the front and secondary compression is applied.

The operation efficiency is high and lump lengths are identical and uniform .The hydraulic system applies an integrate

valve block and the product is stable and reliable in technical performance .

The technical parameters :

TYPE	Norminal Force(KN)	Compression (LWH) (mm)	Baie size(W*H) (MM)	Bale Density	(mm)	Single cycle time(sec)	Power (kw)	Bale Discharging /Operation
Y81-63	630	1000600500	(180~250)190190	over1800	500-1000	90	7.5	Tum-out.hand valve control
Y81-100	1000	1000600500	(200~300)200200or (Octagon)	over1800	1000-1200	120	11
Y81-125	1250	1200700600 1150700600	(150~400)240240or (Octagon)	over1800	1000-1500	120	11or15
Y81/T-100	1000	1200600600	(250~400)240240or (Octagon)	over1800	1200-1500	120	15	Push-out.hand Valve control
Y81/T-125 Y81/T-125Z	1250	1200700600 1400700700	(250~450)240240 (250~450)300300	over1800	1500-2000	80	18.5	Push-out.hand valve control. PLC semi-automatic
Y81Q-135	1350	1050600600 1300600600	(500~300)600240	over1800	1800-2500	150	18.5 22	Forward-out hand valve control
