New technology 135T scrap metal baler recycling hydraulic shears for sale

Supplier: Shandong Yuanxing Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Henry Cai
Price: $5897.00 / 1 - 2 sets
$5797.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	Western Union, T/T, MoneyGram	Material/Metal Finishing:	Brass/Copper, Alloy, Aluminum, Carbon Steel, Stainless Steel
Name:	hydraulic baler	port:	Qingdao
Certification:	CE.ISO	place of origin; place of origin:	Shandong China
product name:	Metal hydraulic baler	Showroom location:	not any
Applicable industries:	other	Operation:	Manual operation
Function:	Scrap metal packaging	Core components:	motor, pump
Packing Size:	600*600mm	brand:	Yuanxing
Core Components Warranty:	1 year	model:	YX-MSB135
application:	By scrap metal	Mechanical test report:	if
Supply capacity:	200 sets per month	Health status:	new
Material:	steel	Packaging Details:	wooden box
Marketing Type:	Hot Products 2022	Main selling point:	long lasting
Drive Type:	hydraulic	Power (kW):	185
Warranty:	1 year	Video external inspection:	if
Weight (kg):	3800	Key words:	Horizontal Metal Baler
Packaging Preview:

Product Description

product description:

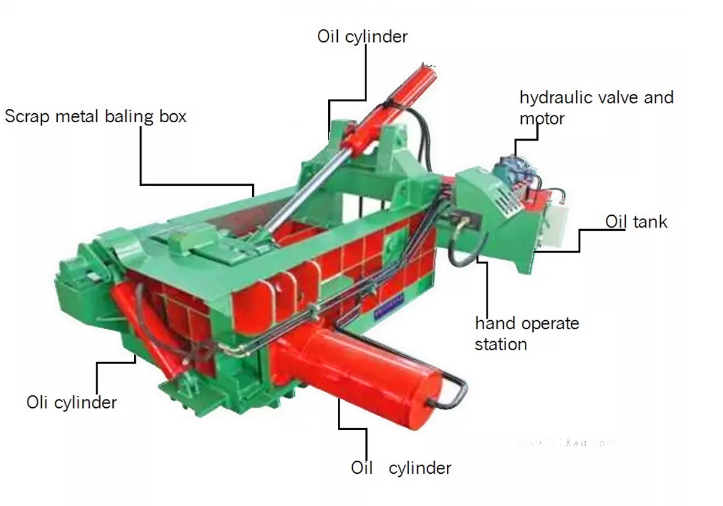

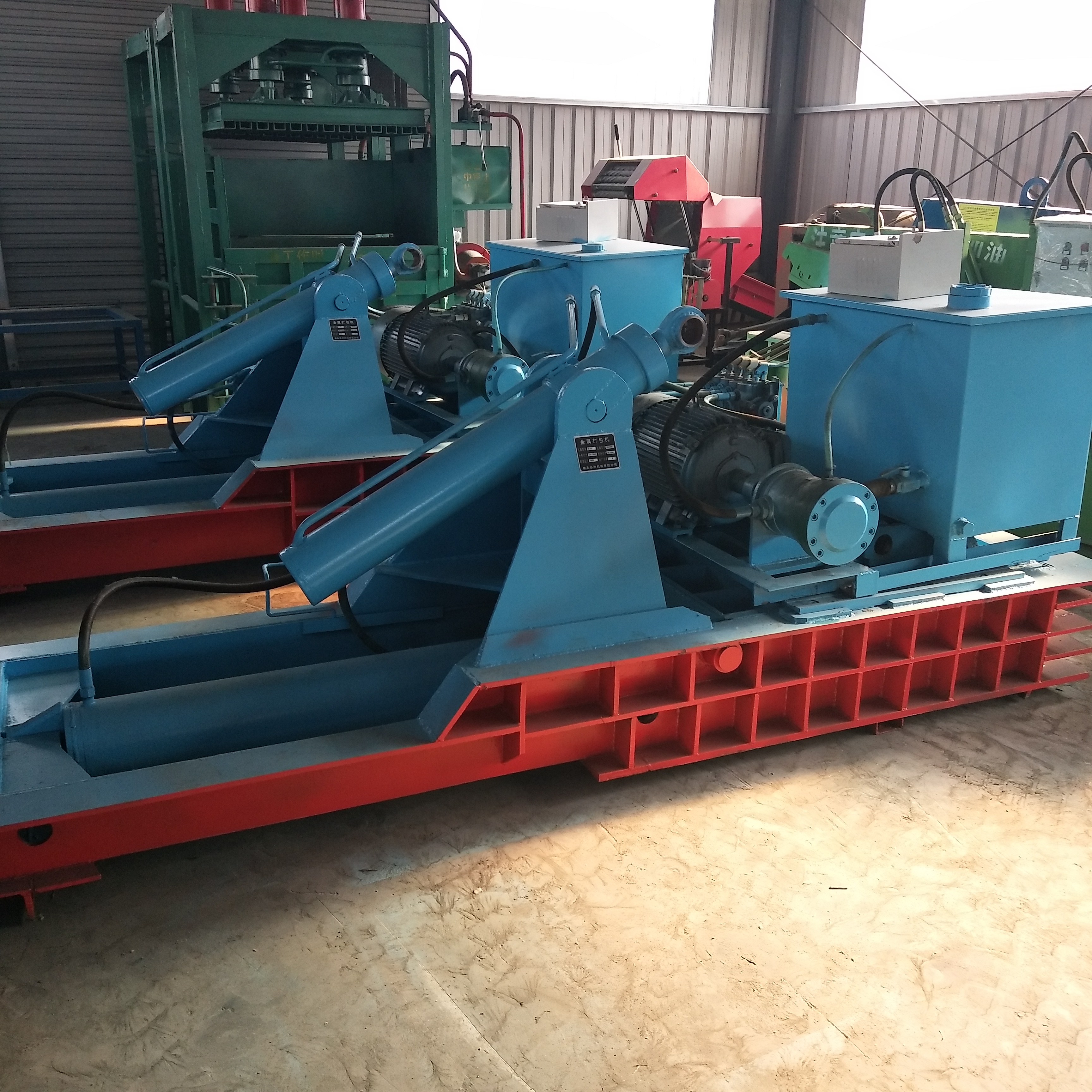

The hydraulic press can cold-press waste automatic casings, waste barrels, and waste copper and aluminum into rectangular blocks. The package is discharged from the front and subjected to a secondary compression.

The work efficiency is high, and the block length is consistent and uniform. The hydraulic system adopts an integrated valve block, and the technical performance of the product is stable and reliable.

scope

thing	Metal Shear Baler
preset pressure	1 35 tons / carbon steel / high strength manganese plate
rated power	1 8.5kw
oil pump type	Linxi high pressure gear pump type 80
Oil pump displacement	80ml
trash can size	1200mm/800mm/400mm
Steel plate structure material specification	25mm1 6mm12mm*4mm
Dimensions	340022001700mm
Type of hydraulic oil/filling amount	No. 46 hydraulic oil / 230 kg
Maximum package length	600mm
cross-sectional area of the block	250/250/400-600mm
manipulate	Manual four-way reversing valve
Thrust cylinder origin/thrust	1350kn (single side cylinder)
Bottom push cylinder origin/thrust	1350kn
Single packing time	1 70 seconds
export form	Open the front bag
weight	3800kg
Fuel tank capacity	350L
hydraulic system working pressure	20MPa extreme pressure 31.5Mpa
power supply	380v 50hz
Equipment cooling method	Circulating forced air cooling
master pressure cylinder	230mm*1100mm
Side pressure cylinder	230mm*400mm
door cover cylinder	160mm*1100mm
Flip the cylinder	80mm*500mm
