NSK NTN NACHI NU311 cylindrical roller bearing

Product details
Package:Cartons;Seals Type:Open;
Material:Chrome Steel;Cage:Brass Cage;
Thickness:29mm;Supply Ability:1000000 Set/Sets per Month;
Sample:Avaliable;CERTIFICATE:ISO9001:2008;
Service:OEM Customized Services;Precision Rating:P0 P6 P5 P4 P2;
Number of Row:Single Row;Packaging Detail:A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle;
Port:Shanghai,Ningbo,Guangzhou,Shengzhen,Hongkong;Brand Name:ZYSL;
Vibration:V1V2V3V4;Lubricate:Oil Grease Dry;
Place of Origin:Shandong China (Mainland);Type:Roller;
Structure:Cylindrical;Feature:Stable Performance:low Voice;
Model Number:NU 311;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;
Payment Terms:T/T,Western Union,Offical Bank Account/Paypal;

NSK NTN NACHI NU311 cylindrical roller bearing



Why Choose us?



1.FREE SAMPLES:

   contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to

    its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the

   100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance

   as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with

   excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.



Cylinder Roller bearing Related models and specifications



Item

d

D

w
(mm)

(mm)

(mm)

NU202

15

35

11

NU203

17

40

12

NU303

17

47

14

NU1004

20

42

12

NU204E

20

47

14

NU2204E

20

47

18

NU3O4E

20

52

15

NU2304E

20

52

21

NU1005

25

47

12

NU205E

25

52

15

NU2205E

25

52

18

NU305E

25

62

17

NU2305E

25

62

24

NU1006

30

55

13

NU206E

30

62

16

NU2206E

30

62

20

NU306E

30

72

19



N type:

The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.



NU type:

The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.



NJ type:

The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.



NF type:

The outer ring has one integral flange and the inner ring two integral flanges.



NUP type:

The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.



RN type:

No outer ring and the inner ring two integral flanges.



NN type:

NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft relative bearing between the axial displacement generated in both directions.

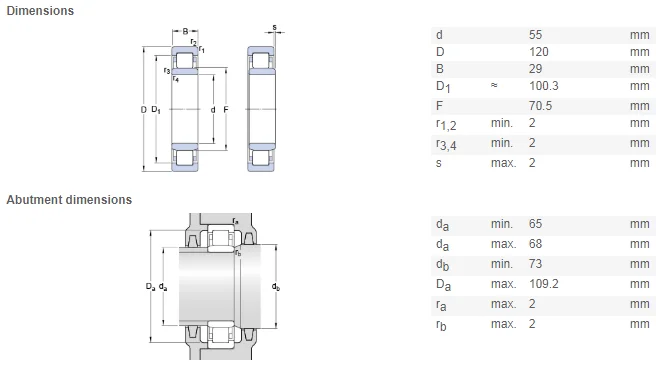

Drawing:

Product nameNSK NTN NACHI cylindrical roller bearing NU 311
materialChrome steel rings and rollers,plastic or steel or copper cage.
 Quality Certificate ISO9001:2008
 Feature Low noise, less vibration, high precision and long life
ID*OD*W(mm) 55*120*29mm
Limiting Speed:  4800rpm (Grease lubricated);6000rpm (Oil lubricated);
Net weight(kg) 1.53KG
 Brand name NSK JAPAN original
Tolerance level ABEC-7
 Seals type open
 Precision rating P0, P6
Antirust periodBearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years.
Application Mining operations, paper mills, oil fields, marine industry, steel, electrical,  construction machinery, various kinds of professional machinery and heavy industry of all types.
