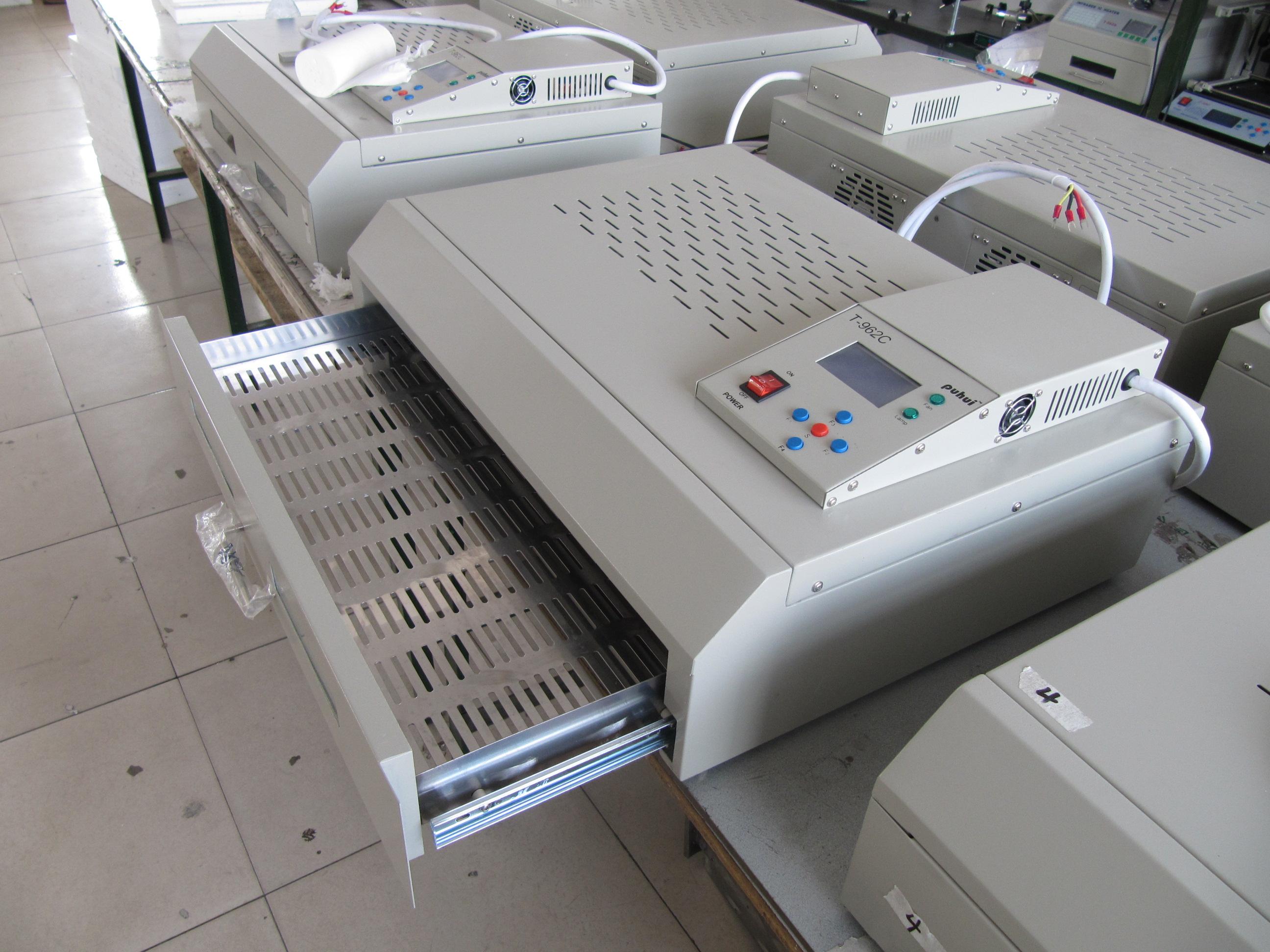

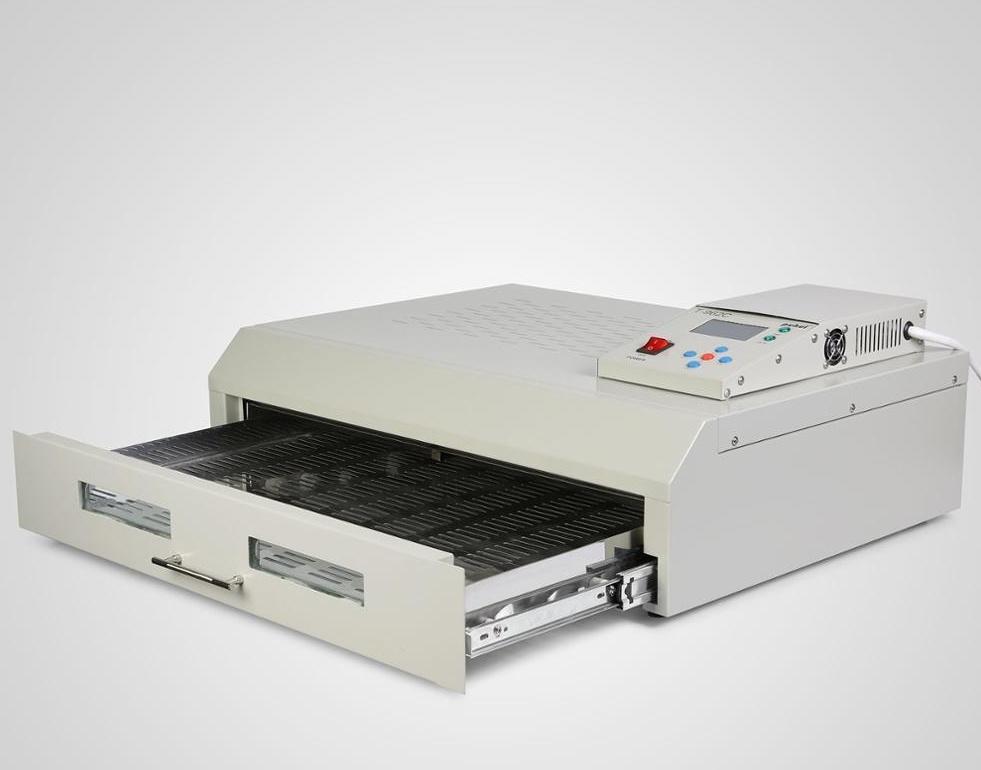

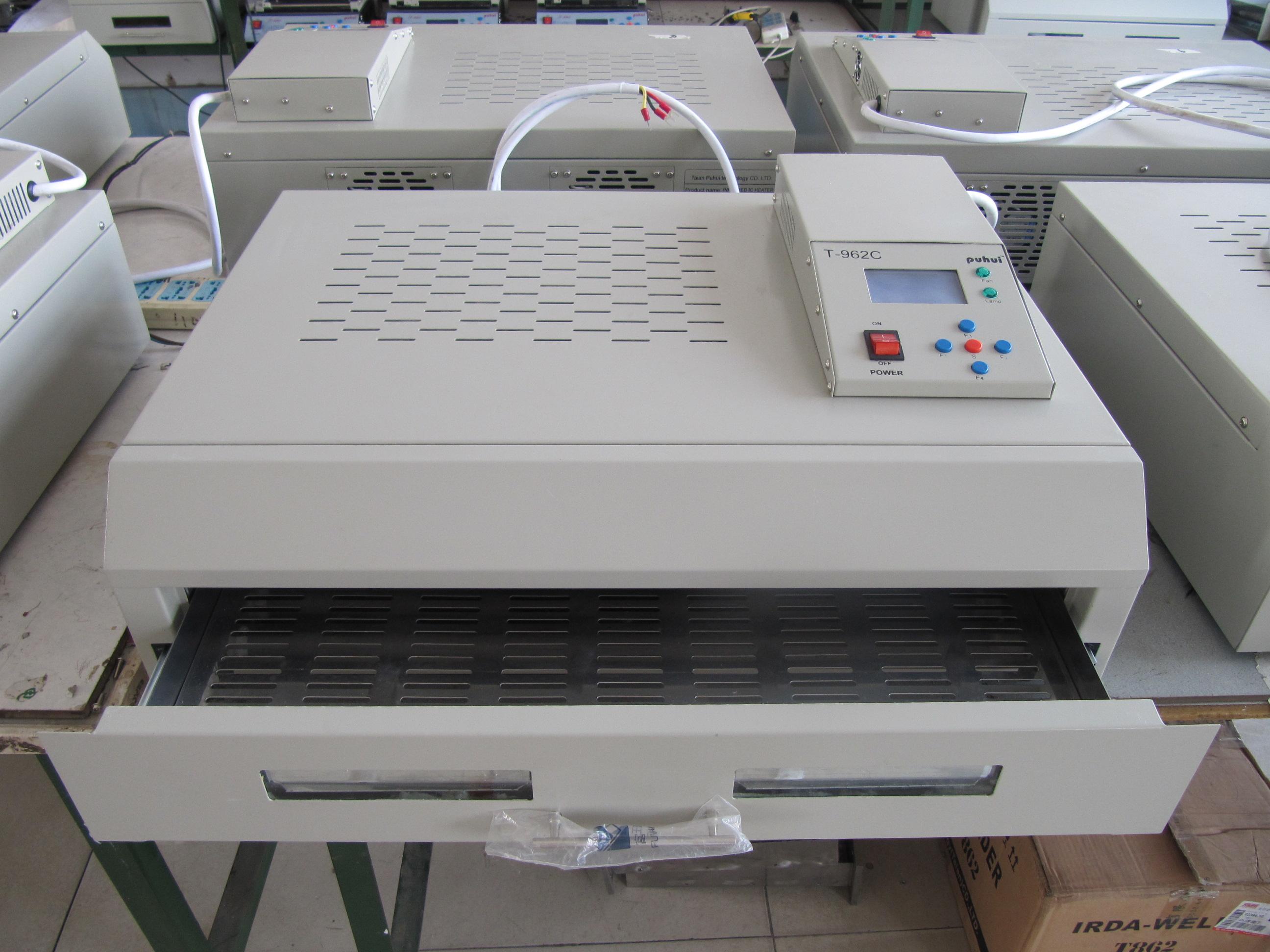

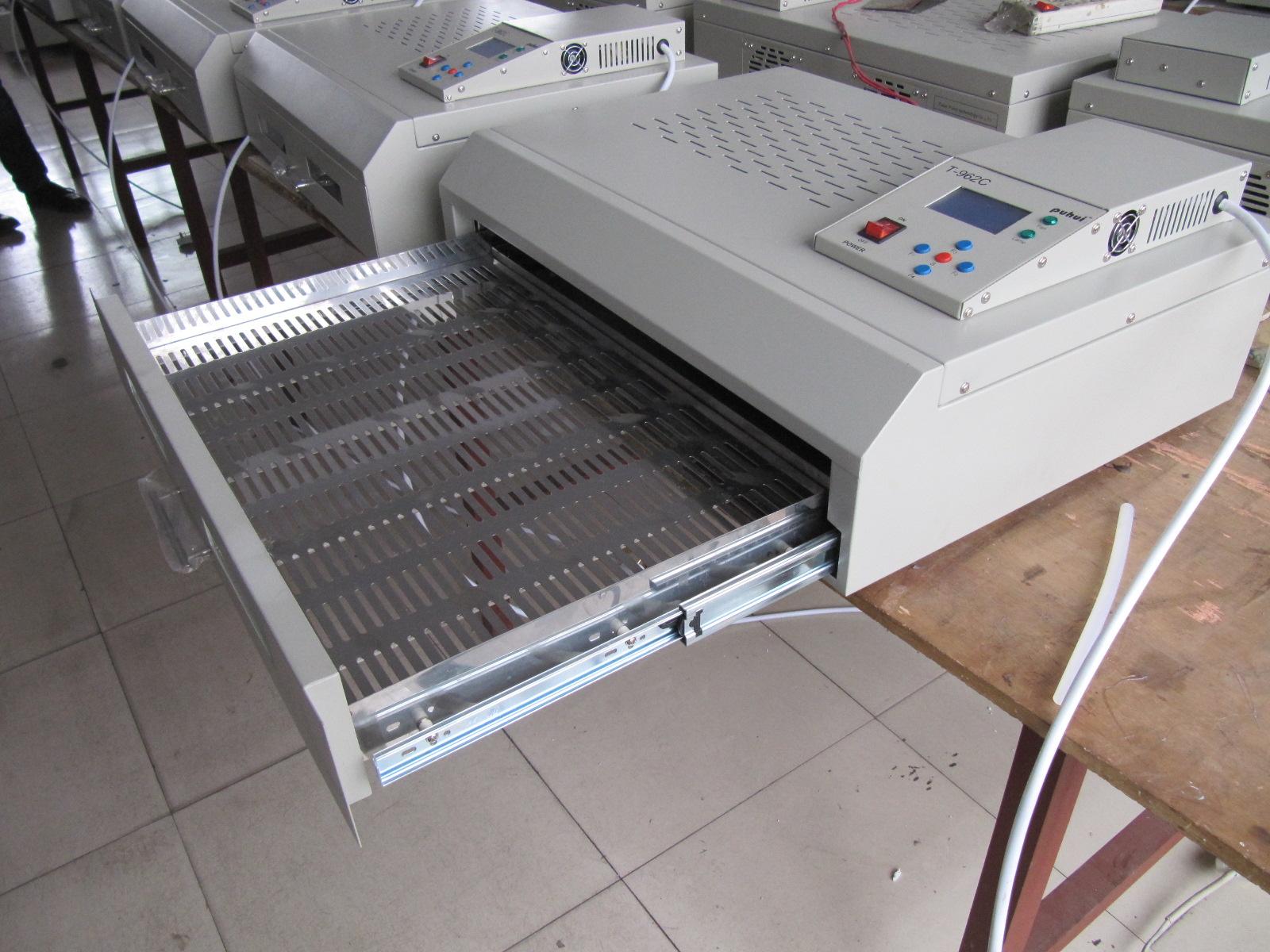

Wave soldering infrared, desktop PCB reflow oven, T-962C

Supplier: Jugetek Co., Ltd.
Region: Shanghai, China
Price: $458.00 / 1 - 4 sets
$440.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Reread power:	2500W	Packaging Details:	export carton
current:	10A	Types of:	reflow soldering
aspect:	78X60X33cm	After-sales service provided:	Video Technical Support
temperature range:	0-280 degrees Celsius	Sales unit:	single product
Gross weight per piece:	35.000 kg	cycle:	1-8 minutes
Applicable industries:	manufacturing plant	Certification:	CE certification
Voltage:	220V/110V	Warranty:	1 year
weight:	35 kg	usage:	Circuit board soldering
place of origin; place of origin:	China Shanghai	Single package size:	78X60X33 cm

Product Description

Features:

(1). Larger maximum area for infrared welding:

Solder area:400x600mm, greatly increasing the scope of use of the machine.

(2) A variety of temperature waves for your choice.

Eight kinds of temperature parameter waveforms can be memorized for selection, and the function of forced mobile heating and cooling can be set; the whole welding process is automatically completed and easy to use.

(3) The output power reaches2500 watts, using fast infrared radiation and circulating wind heating, so the temperature is very accurate and uniform, the whole welding process is automatically completed for you to choose the temperature parameter wave.

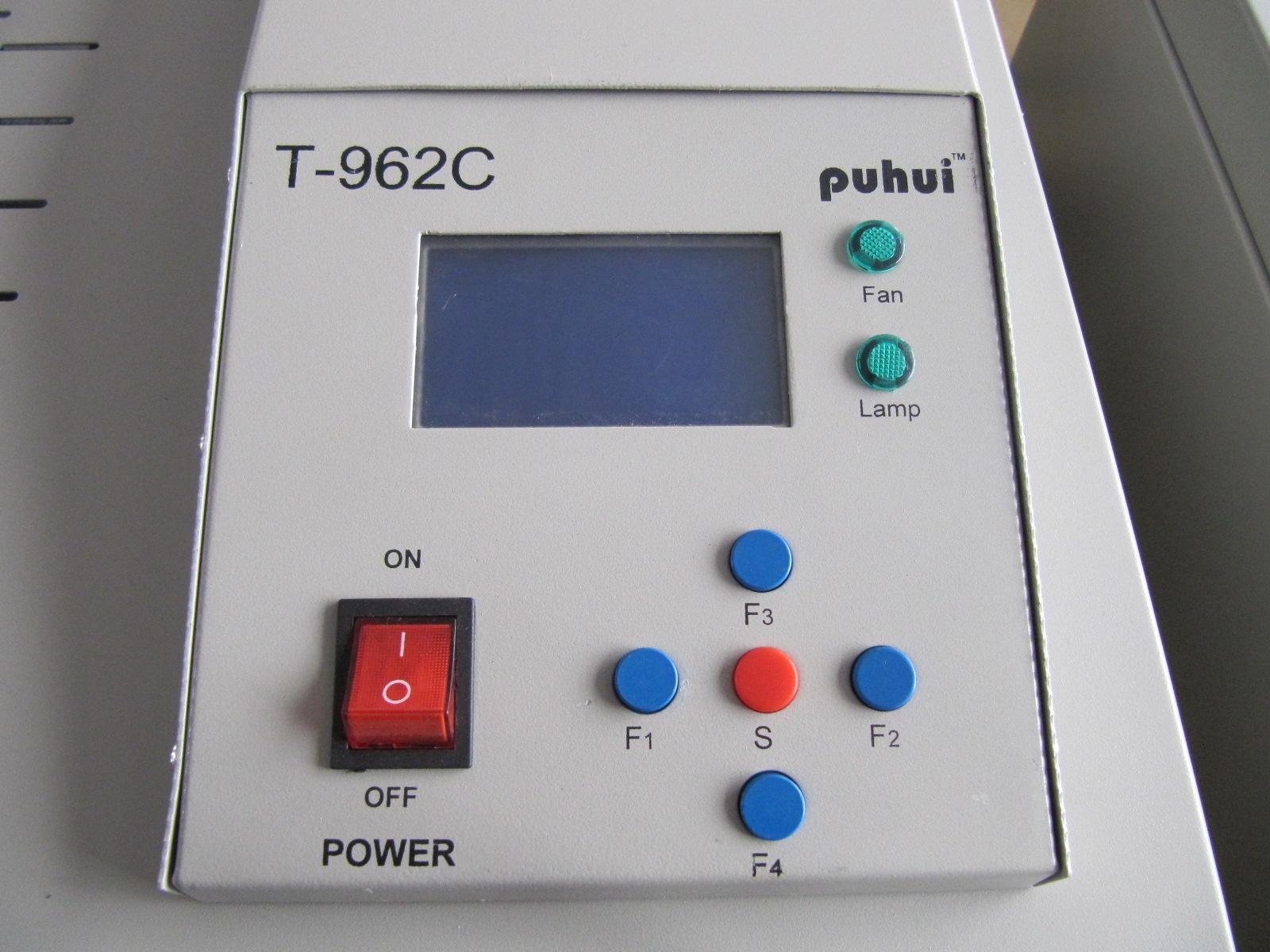

(4) Sturdy appearance, operable visualization, friendly man-machine interface, perfect temperature wave engineering, embody technology performance-oriented from beginning to end;

The compact size and weight can save you a lot of money. Setting the surface display mode can allow you to have more space; the simple operation instructions allow you to use it at a glance.

(5) Perfect production options.

It is suitable for extensive development and small batch production needs of various enterprises and companies.
