electric battery stacker 2000kg 5.5m

Supplier: Shanghai Rum Lift Co., Ltd.
Region: Shanghai, China
Contact: Mr Rum lift
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimension(LWH):	2000x860x2080mm;	Warranty:	1 Year;
Delivery Detail:	0 days after payment;	Load capacity:	1000kg-2000kg;
Place of Origin:	Shanghai China (Mainland);	Package Preview:	https://sc01.alicdn.com/kf/HTB1kKWAbzDuK1Rjy1zjq6zraFXaN.jpg_640x640.jpg;
After-sales Service Provided:	Video technical support;	Single gross weight:	680 KG;
lifting height:	1600-5500mm;	Brand Name:	RUM;
Single package size:	200X86X208 cm;	Condition:	New;
Operator Type:	Battery Operated;	Certification:	ISO CE SGS GS;
Package Type:	Waterproof foam plastic bags;	Selling Units:	Single item;
Color:	Optional;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:	No overseas service provided;

Product Description

Main Features

1.Durable and rigid frame construction ensure the stackers to handle heavy loads.
2.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3.Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
5.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
6.Robust and rigid mast configuration optimize stackers lifting stability and safety.

Spec

model	TB210-16/20/25/30/35	TB215-16/20/25/30/35/35/40/45/50/55/60	TB220-16/20/30/35/40/45/50/55/60
load capacity KG	1000	1500	2000
Electric controller	USA CURTIS	USA CURTIS	USA CURTIS
lifting height mm	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500	1600/2000/3000/3500
overall dimensions (LWH)	20008602080/2330 mm	20008602080/2330 mm	20008602080/2330 mm
fork length mm	1150*160 mm	1150*160 mm	1150*160 mm
Turning radius (outside) mm	1620	1620	1620
self weight (KG)	570/650/665/680/695	600/680/695/710/725	620/690

relate product

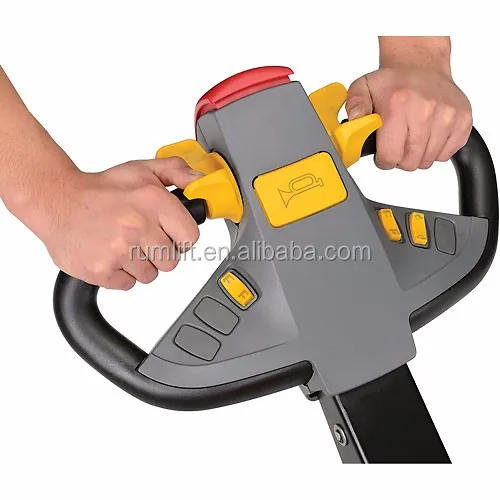

HANDLE

Germany REMA handle with automatic system

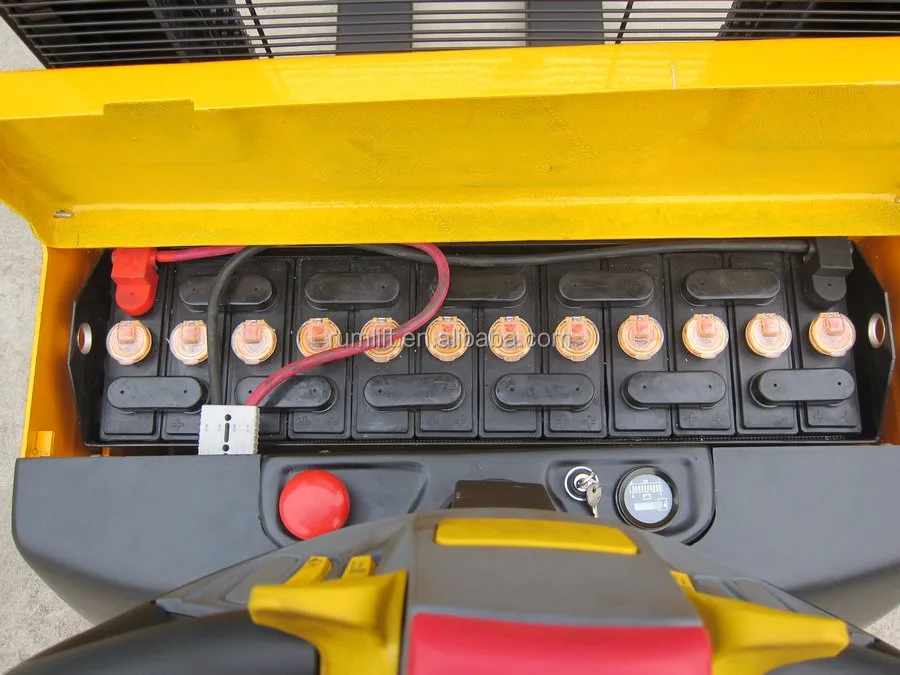

Battery

lead acid battery , can be working long hours and long life , including emergency stop/hour meter/battery level indicator

mast

import Germany " H" Type mast , strong structure body and strength forks .

other details

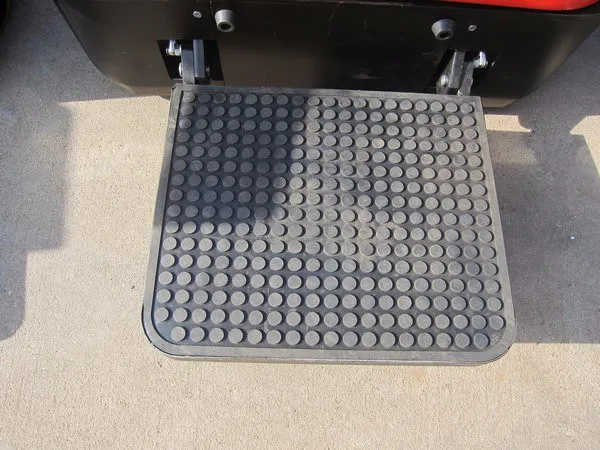

AC power , USA CURTIS elecincluding feet pedal and protect arms

relate product

feedback

Packing & Delivery

Our Service

FAQ

Q1: How long is the Warranty for RUMLIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3: How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?
A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT’S charge is intelligent,once the battery is full , will stop to charging .

Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.

Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.

Q6: What’s the specification of the chargers?
A6: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q7: Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.
