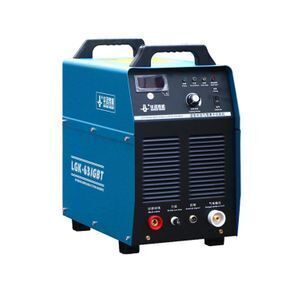

63A 100A 120A huayuan plasma power supply for cnc cutting machine
- 940.00 set
| Rated Input Voltage: | 380V; | Air pressure: | 0.4-0.6MPa; |
| Certification: | ISO; | Selling Units: | Single item; |
| Brand Name: | Huayuan; | Delivery Detail: | 0 days after payment; |
| Quality Cutting Thickness: | Depend; | Dimension(L*W*H): | 675*320*605mm; |
| Open Circuit Voltage (OCV): | 300VDC 315VDC; | Warranty: | 1 Year; |
| Rated Cutting Current: | 100A/120A/160A/200A; | Max. Output Voltage: | 160V; |
| Condition: | New; | Package Type: | Wooden case for 63A 100A 120A huayuan plasma power supply for cnc cutting machine.; |
| Weight: | 45-82kg; | Single package size: | 69X32X58 cm; |
| Rated Duty Cycle @40°C: | 100%; | Year: | 2019; |
| Applicable Industries: | Manufacturing Plant; | Single gross weight: | 68 KG; |
| Place of Origin: | Shandong China (Mainland); | After-sales Service Provided: | Online support,Video technical support; |
| Rated Power: | 17.8KVA; | Product name: | 63A 100A 120A huayuan plasma power supply for cnc plasma cutter; |
| Application: | Industrial Metal Cutting; | Voltage: | 380v; |
| Max. Output Current: | 200A; |
63A 100A 120A huayuan plasma power supply for cnc cutting machine
Main Features
1, Adopting inverter soft switch technology, the cutting current is stable;
2, High duty cycle design suitable for heavy duty cycle;
3, Automatic compensation for grid fluctuation, cutting current is stable;
4, Cutting current up slope technology to reduce the wearing parts loss;
5, With fast cutting speed and high efficiency, the machine speed is 2~5 times faster than the traditional machine;
6, Good arc rigidity and cutting groove;
7, Cutting gas use the compressed air to reduce the cutting cost.
Parameter

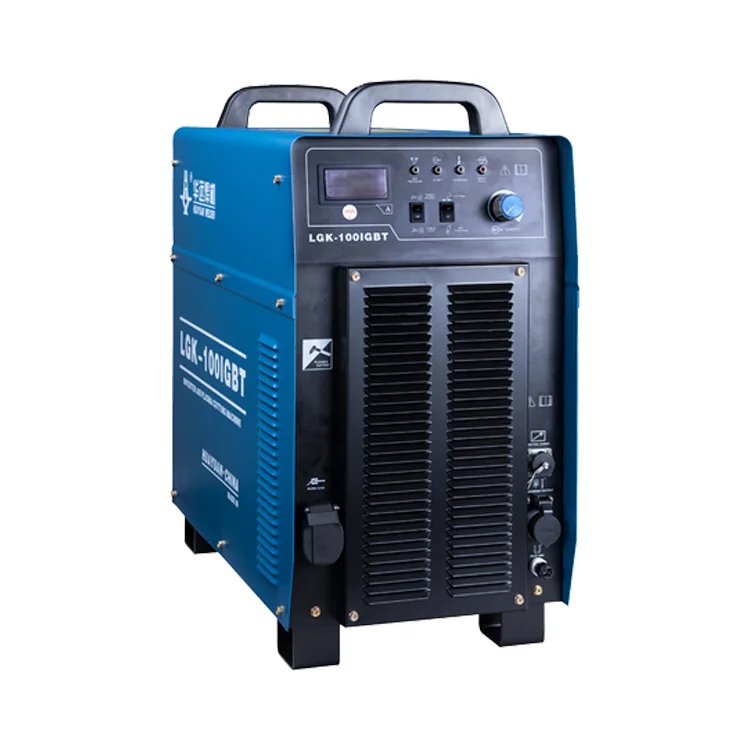

Model | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT |
Rated input voltage | 3~380V/50Hz | |||
Rated input capacity | 17.8KVA | 22.4KVA | 32.2KVA | 46.7KVA |
Rated Output current | 100A | 120A | 160A | 200A |
Rated output voltage | 120V | 128V | 144V | 160V |
Rated load sustainability | 100% | 100% | 100% | 100% |
No-load voltage | 300VDC | 300VDC | 315VDC | 315VDC |
Regulating range of current | 30~100A | 30~120A | 40~160A | 40~200A |
High quality cutting thickness | 0.3~22mm | 0.3~25mm | 1~35mm | 1~45mm |
Maximum cutting thickness | 40mm | 45mm | 55mm | 65mm |
Use of plasma gas | compressed air | compressed air | compressed air | compressed air |
Working gas pressure | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.45~0.6Mpa |
The cooling method of cutting torch | air-cooled | air-cooled | air-cooled/ water-cooling | air-cooled/ water-cooling |
Arc ignition mode | Non contact mode | |||
Insulation grade | F | |||
Shell protection grade | IP21S | |||
Dimensions (length*width*height) | 675*320*605 | 675*320*605 | 800*380*650 | 800*380*810 |
Weight | 45kg | 46kg | 65kg | 82kg |

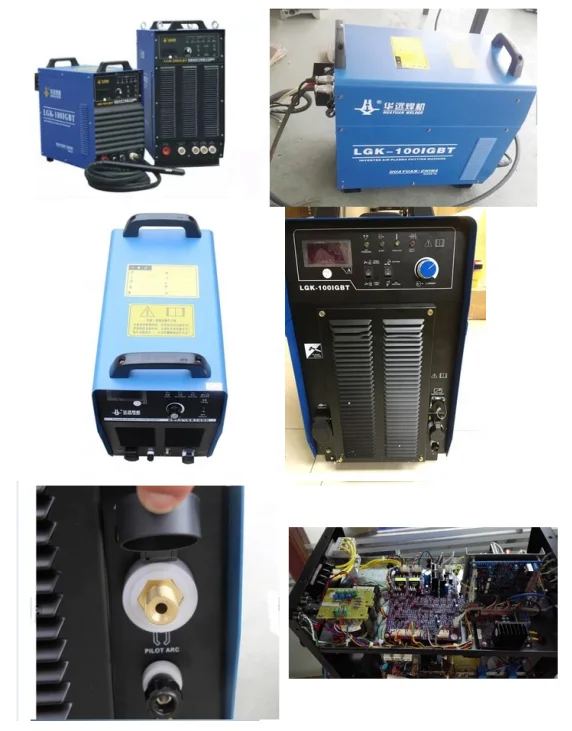

Product Details
