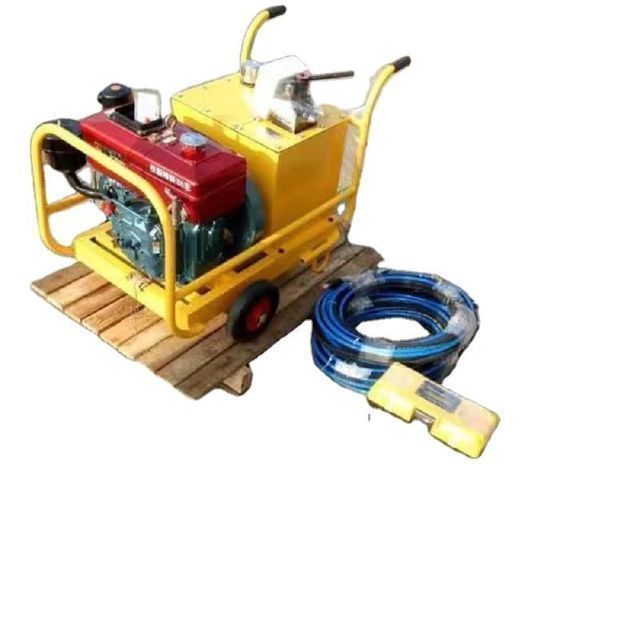

Piston rock breaker for breaking concrete

Supplier: Beijing Pro Drill Equipment Co., Ltd.
Region: Beijing, China
Contact: Mr Simon Hu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001	Packaging Details:	wooden box
Drilling depth:	800mm	After-sales service provided:	No overseas service, free spare parts, online support, video technical support
type:	stone crusher	brand:	Drilling
strength:	3.7KW	port:	Xiamen
Warranty:	1 year	Marketing Type:	normal product
Core component warranty:	1 year	Mechanical test report:	Not available
Health status:	new	Video shipment inspection:	Not available
payment terms:	L/C, Western Union, T/T	thing:	hydraulic splitter
Local service location:	not any	Dimensions (LWH):	450410700MM
place of origin; place of origin:	Fujian China	Showroom location:	not any
Core components:	Engines, Motors, Pumps	Supply capacity:	1000 sets per month
Applicable industries:	Construction Engineering, Energy and Mining

Product Description

For more products, please click our homepage

General introduction:

The hydraulic piston power rock splitter is a new type of hole piston hydraulic rock splitter, hydraulic silent blasting, an improvement of the handheld rock splitter, a substitute for the expansion blasting agent, first you need to use a down-the-hole hammer to drill 90mm 105mm, insert The splitting rod piston cylinder button with multiple heads presses rock through ultra-high pressure of 1,500 kgf/cm2 (150 MPA), separating large pieces from the rock mass in seconds, which cannot be achieved by other rock demolition power packs .

type	CRD90	CRD105
work pressure	120MPa	120MPa
Drilling diameter	90mm	105mm
Drilling depth	800mm	300mm
splitting force	260 tons	81T
strength	3.7KW	3.7KW
Voltage	380V	380V
weight	30 kg	13 kg

The cylinder rock splitter can break rocks at an extremely fast speed, its work needs to be drilled with a DHT hammer drill first, and then the splitting rod can be inserted into the pro hole, and the cracking time is within 1 minute.
