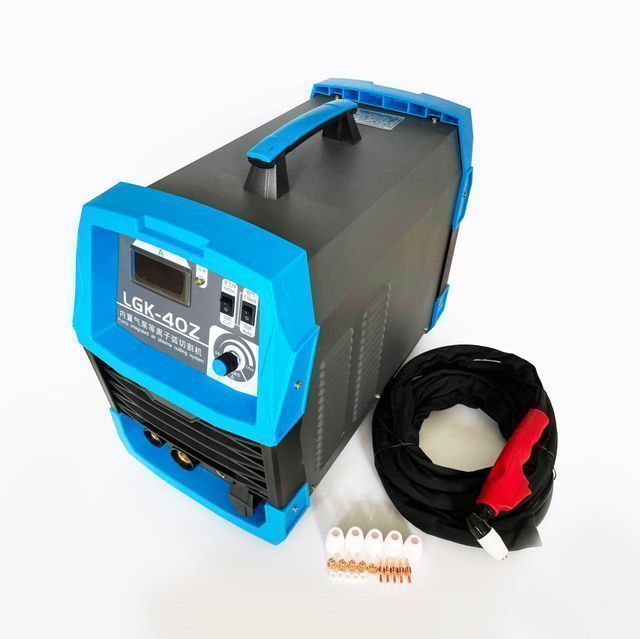

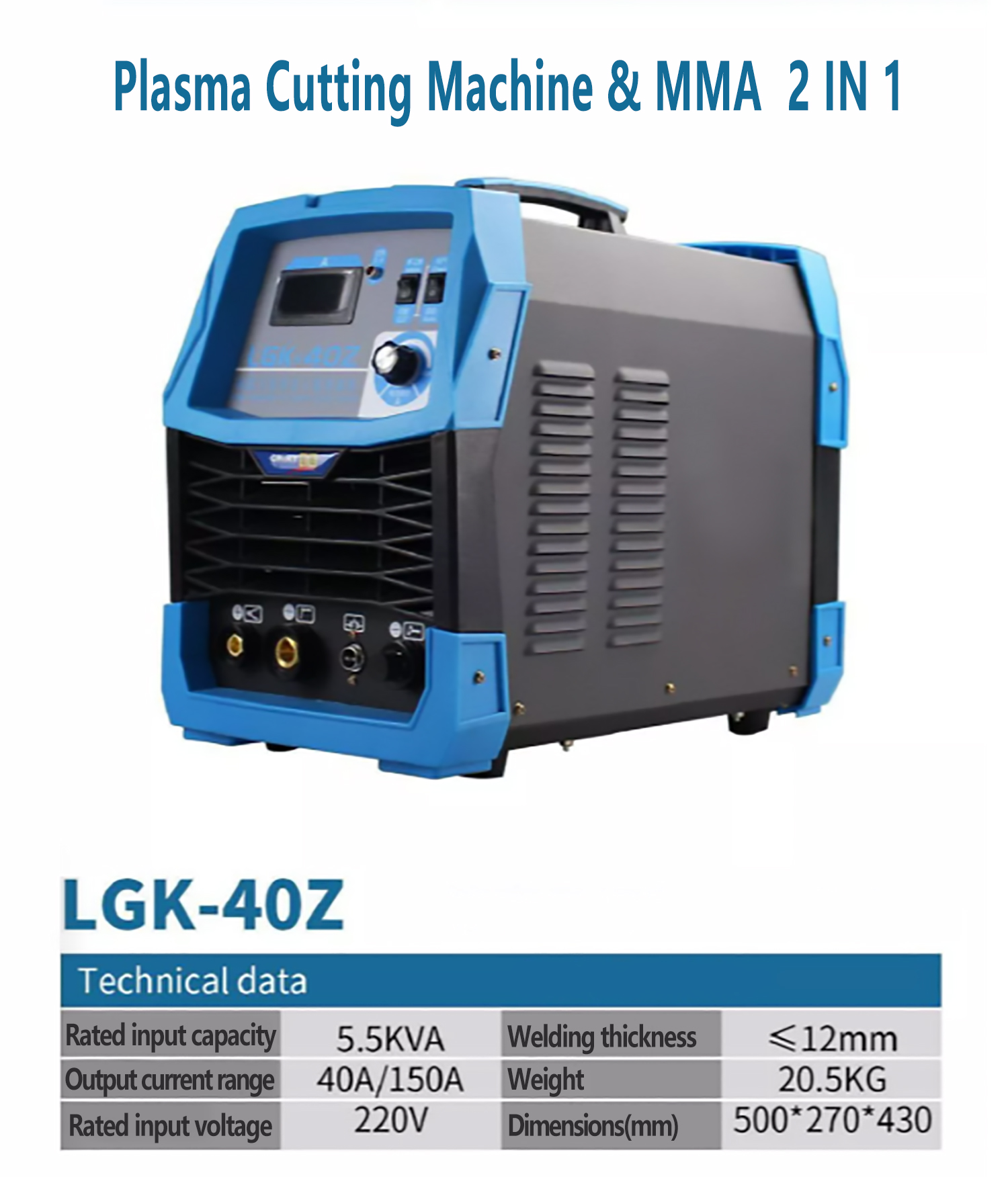

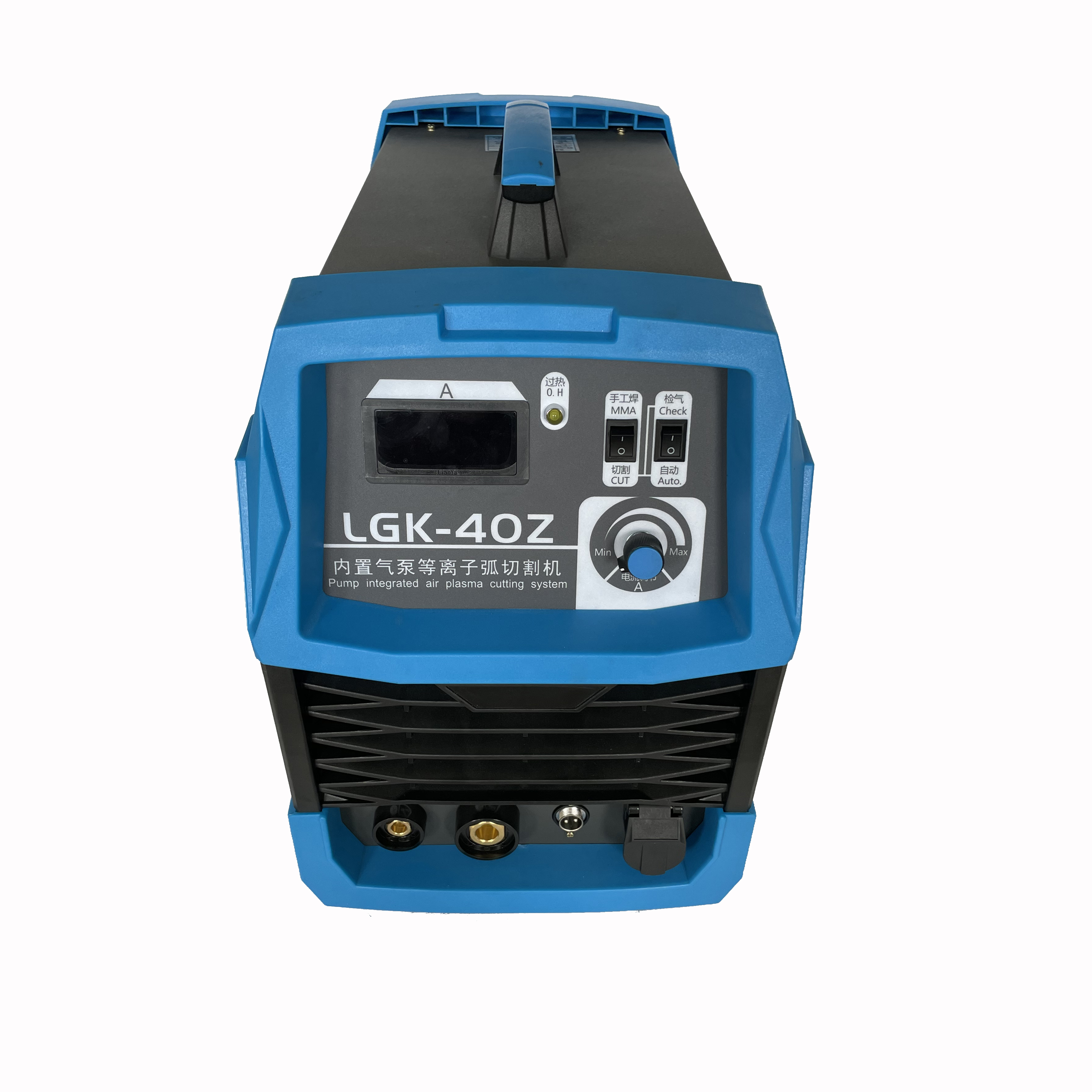

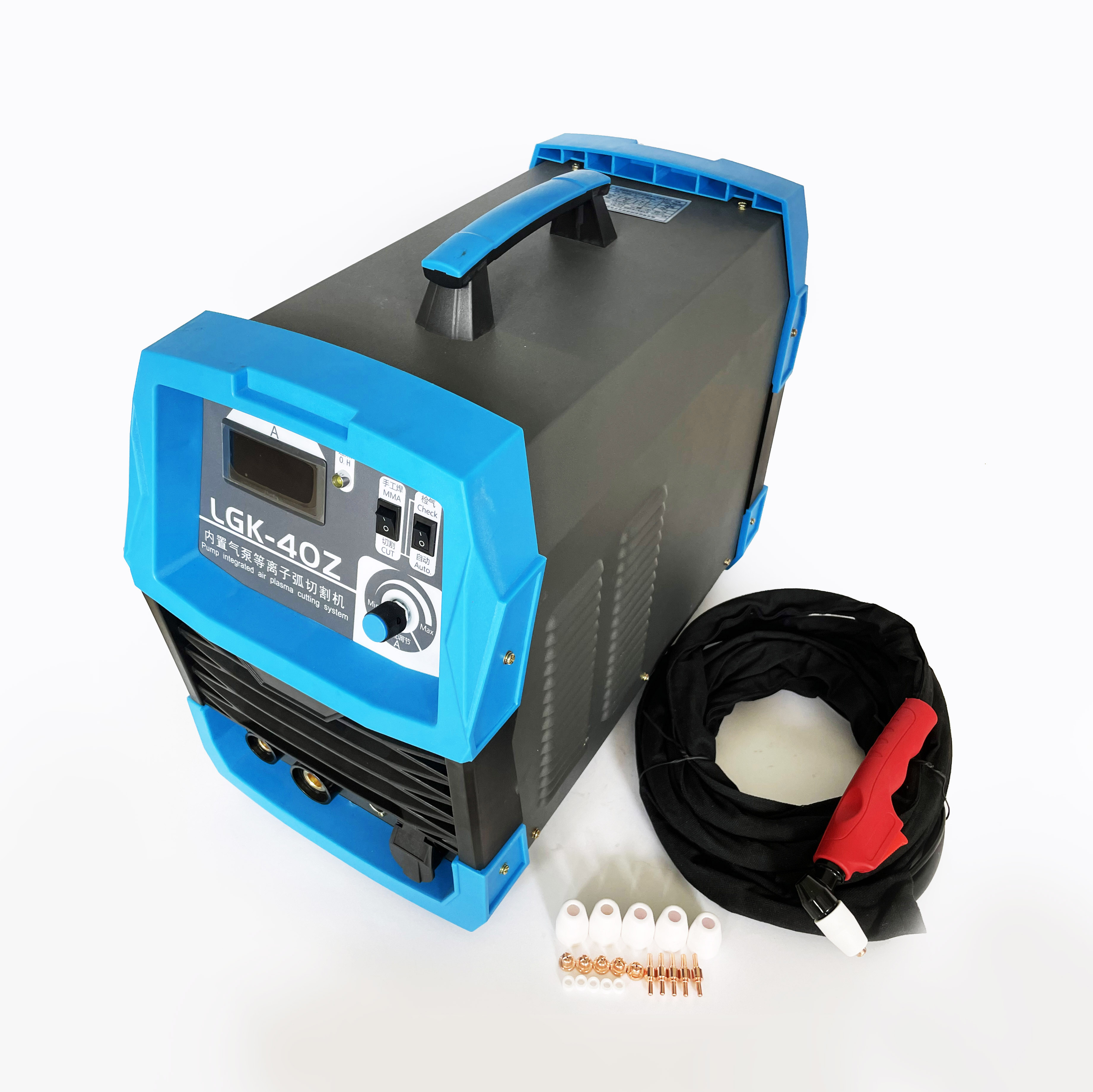

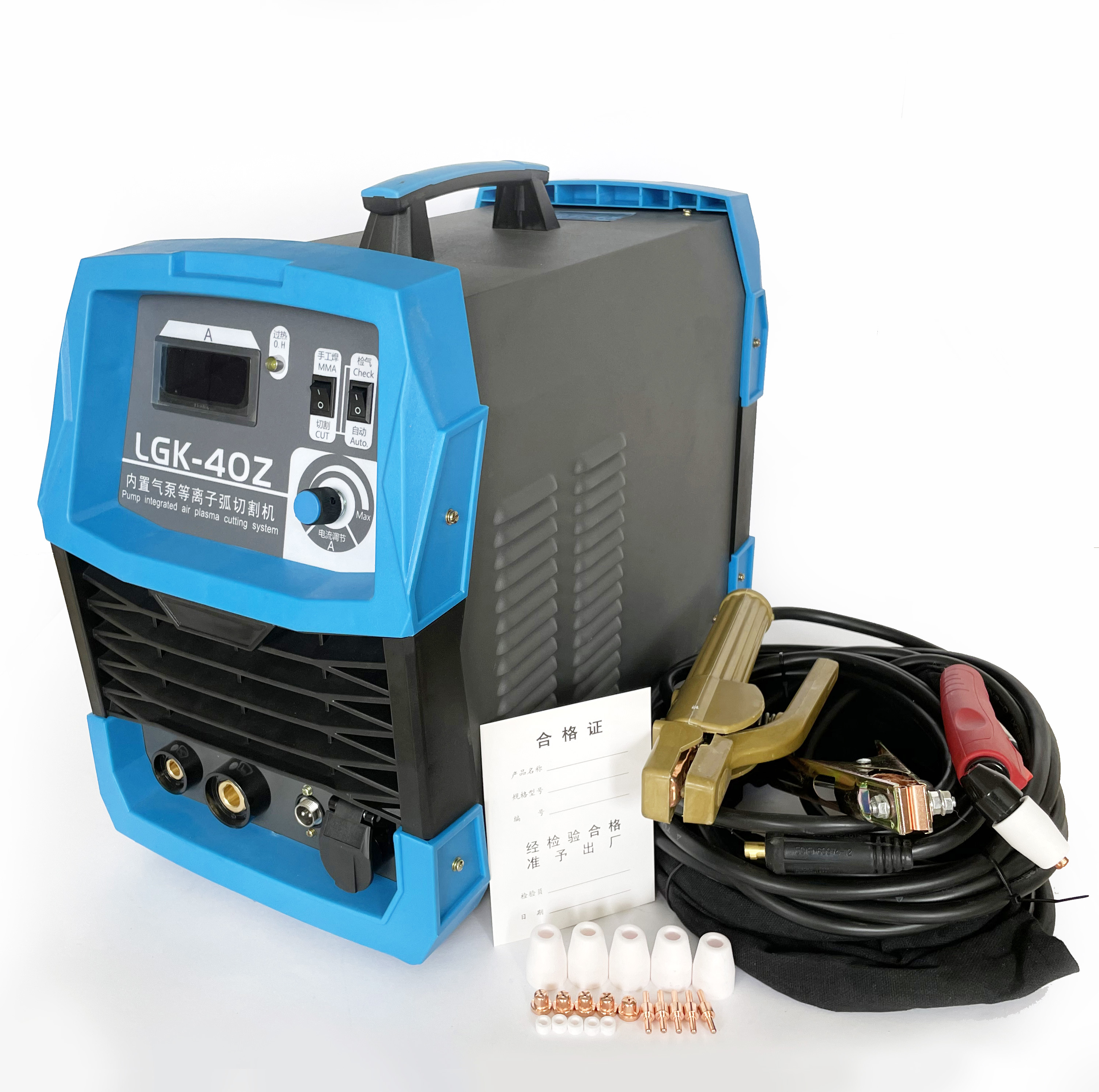

China portable plasma cutting machine cut-40 built-in air compressor and welding function mma welding function

Supplier: Wincoo Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jacky Nie
Price: $280.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	custom color	brand:	WINCOO
Dimensions (LxWxH):	492837	Cutting method:	plasma cutting
Supply capacity:	3000 sets per month	Rated output current:	50
Warranty:	1 year	Cutting material:	Metal Stainless Steel Carbon Steel
stage:	Simplex	type:	IGBT
weight:	30	Custom Support:	OEM, ODM, OBM
product name:	Plasma cutting machine	Packaging Details:	carton
port:	Shanghai	application:	Industrial Metal Cutting
payment terms:	letter of credit, wire transfer	model:	LGK-40
place of origin; place of origin:	Jiangsu, China	Packaging Preview:
Cutting thickness:	0-30mm

product description

LGK series frequency conversion air plasma cutting machine

-Small size, light weight, simple installation and convenient operation;
- Good cutting performance and high cutting efficiency;
- The output current is continuously adjustable, and the working performance is excellent;

-Welding stainless steel, carbon steel, cast iron, steel and other alloy materials
- Products are widely used in petrochemical, pharmaceutical, electric power, cement, metallurgy, mining and other industries

Function list

Model	LGK40	LGK60	LGK100	LGK120
Input voltage (V)	AC220+10%	AC380+10%	AC380+10%	AC380+10%
Frequency (HZ)	50/60	50/60	50/60	50/60
Rated input current (A)	25	15	25	29.5
No-load voltage (A)	240	270	300	308
Rated output current (A)	15-40	20-60	5-100	5-120
Rated output voltage (V)	96	104	120	128
Load Sustainability	60%	60%	60%	60%
No-load loss (W)	40	40	80	80
efficiency(%)	85	85	85	85
power factor	0.93	0.93	0.93	0.93
Insulation class	Second	Second	Second	Second
IP level	twenty one	twenty one	twenty one	twenty one
Air pressure (Kg)	4.5	5	6	6.5

Product Specifications

Product configuration

1. Who are we?We have 3 joint venture factories in China with a total area of about 10,000 square meters and more than 150 employees. we provide
MMA/ARC welding machine, MIG/MAG welding machine, TIG welding machine, and air compressor have built-in plasma cutting power supply.

2. What do we produce?We mainly manufacture MMA Welder Inverter Welders from 100 amps to 500 amps (DIY or industrial use). TIG welders from 150Amp to 300Amp, (DC or AC/DC). MIG/MAG welders (gas or no gas) from 120A to 500A. Air Plasma Cutter from 40Amp to 120Amp, (Ignition or HF Ignition).

3. How do we guarantee the quality?We can provide 12-month warranty for the whole machine, 18-month warranty for the motherboard, f. At the same time, we provide lifetime online technical support for operation guidance and troubleshooting.

4. How to place an order? I haven't done business with you before, how can I trust your company?We can provide you with online demonstrations before purchasing to show performance, online video demonstrations during production and packaging, and after-sales online technical support.

You can place your order online through Alibaba, which is safe for your funds.

5. How to check?

Welcome your third party or SGS or your friend to check before delivery.5. Why choose us?OEM/ODM available. Small orders are acceptable, even 1 piece. Fast delivery within 15 days

12-month machine warranty, 18-month motherboard warranty, lifetime technical support and after-sales service

Strong willingness to develop a local agent or distributor of own brand

Provide pre-order online demonstration, online video during production and packaging, and after-sales video support.

Offers free cover design services (your own branding)
