Magnetic Orbital Welding Machine and MIG 500A Power Supply

Supplier: Wincoo Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jacky Nie
Price: $6150.00 / 1 - 99 sets
$1800.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Carton and Wooden Box	Mechanical test report:	if
aspect:	243331 cm	Welding method:	mig
strength:	4000W	Diameter:	150mm
payment terms:	L/C, D/P, T/T	Weight (kg):	16 kg
weight:	16	Video shipment inspection:	if
Core components:	engine	Health status:	new
Marketing Type:	2020 Hot Products	Main selling points:	high accuracy
Core component warranty:	1 year	Voltage:	220V
Applicable industries:	Mechanical repair shops, manufacturing plants, construction, energy and mining	port:	Shanghai
Supply capacity:	3000 sets per month	Power (kW):	4
Origin:	Jiangsu, China	Warranty:	1 year
usage:	pipe welding	brand:	win cool
Showroom location:	not any

Yingke Engineering Co., Ltd.

Wincoo Engineering Co., Ltd (WINCOO) is committed to providing the most suitable solution/equipment for customers, manufacturers, EPC/C companies in pipeline manufacturing, storage tank construction, pipeline construction, industrial production lines, clean energy projects and other industrial fields .

electric

Manual

product description

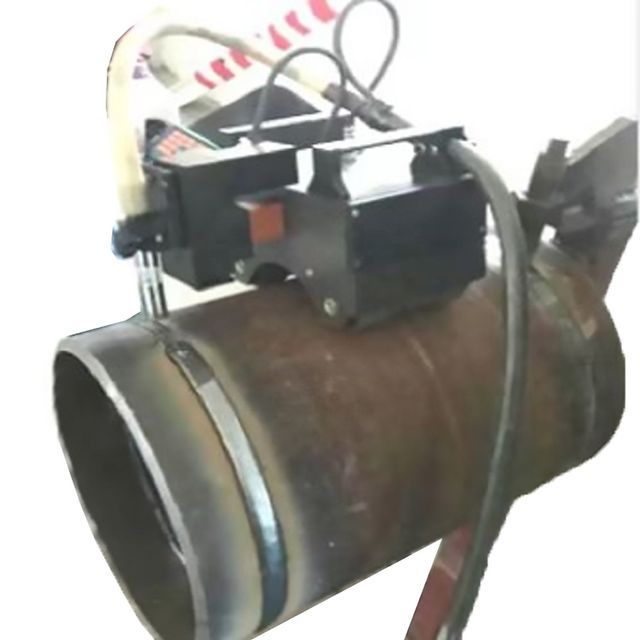

WQ-Ⅲ is suitable for welding the inner and outer walls of pipes. No guide rail is needed, and welding can be carried out along the arc surface of the workpiece.

The CO2 automatic welding trolley is widely used in ships, bridges, locomotives, steel structures, petrochemical industries, etc. It is suitable for various welding structures, such as welding of stiffeners, ribs, cross pieces, box girders, etc. Its main advantages are:

1. Reduce labor intensity and improve working environment;

2. Improve work efficiency, which is 1.5 times that of manual welding;

3. Avoid the poor quality of welds caused by human factors. The defect rate of manual welding is about 20%, and the automatic welding trolley will not cause welding defect rate due to manual welding. Therefore, its comprehensive benefit is nearly 200% higher than that of manual welding;

4. High degree of automation ensures the stability of welding quality;

5. The operation is simple and convenient, and does not require very skilled technical workers.

Features

1. WQ-III is a swing-type automatic welding device, and a wider weld can be obtained in one welding.

2. The swing speed, swing amplitude, center position and left and right dwell time can be adjusted, which is suitable for welding seams of various specifications.

3. Small size, light weight, easy installation and movement, unskilled workers can also weld.

4. Install a permanent magnet to avoid disconnection of the welding wire during welding.

Application Environment

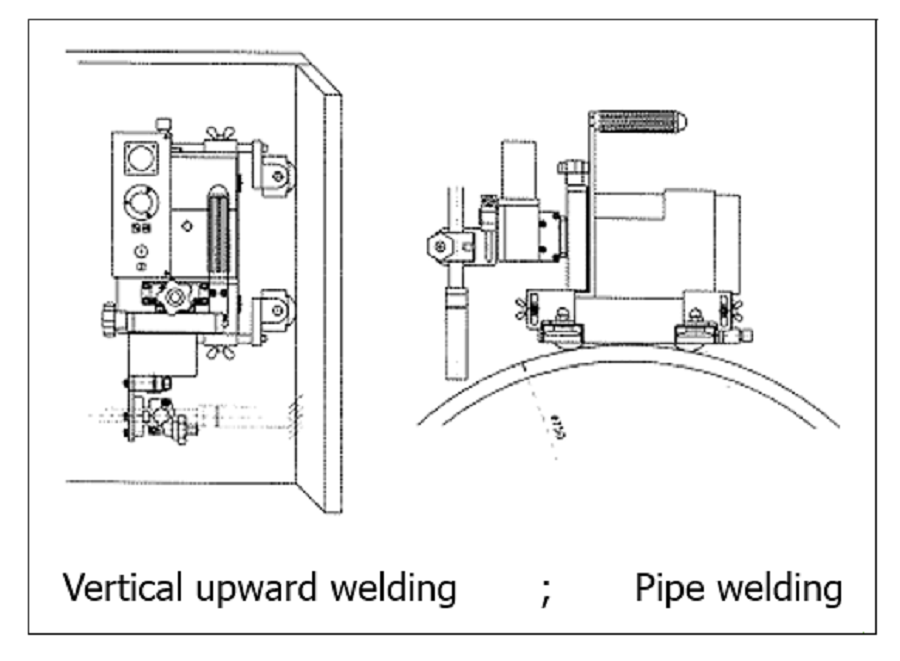

It is suitable for pipe welding of various steel structures.

main ingredient

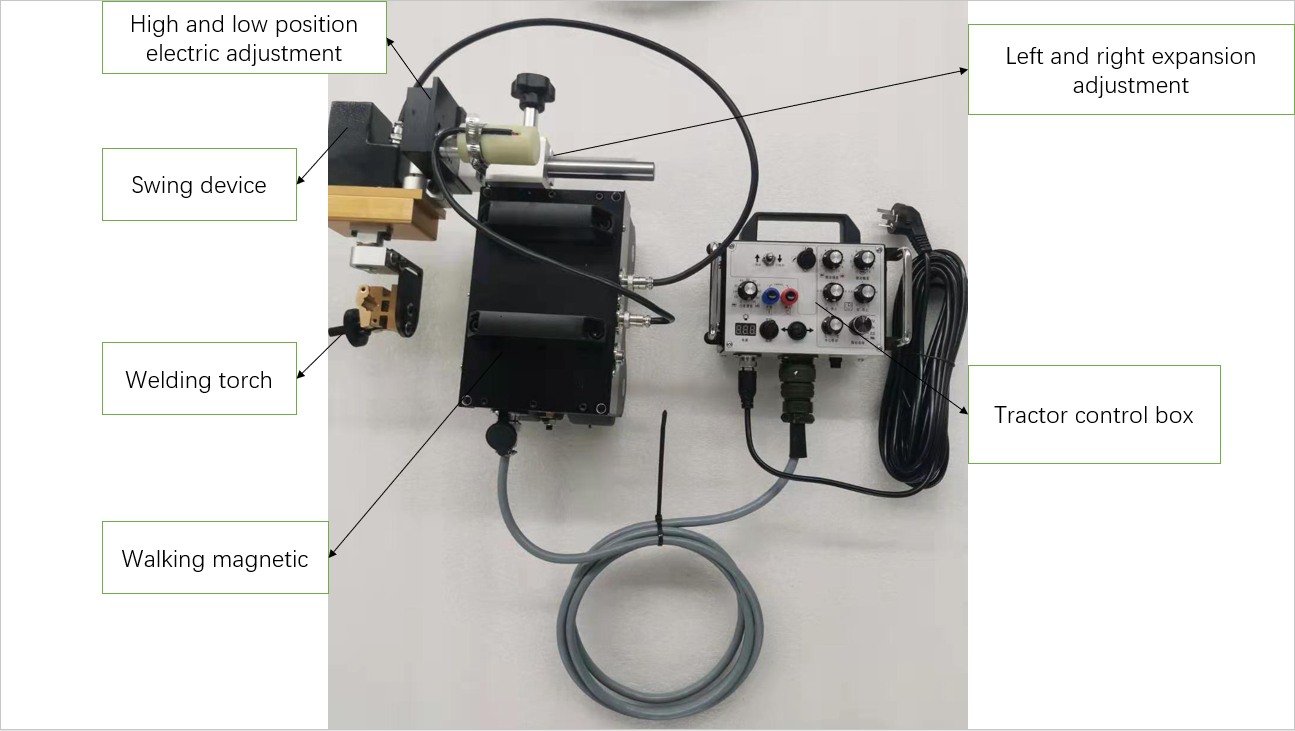

Composition: Welding torch swing device, slider, torch handle, control box, control panel, etc. Accessories:

1. Swing device: used to drive the welding torch for swing welding

2. Driving part: the driving device of the trolley is composed of four magnetic wheels, helical gears, chains and sprockets

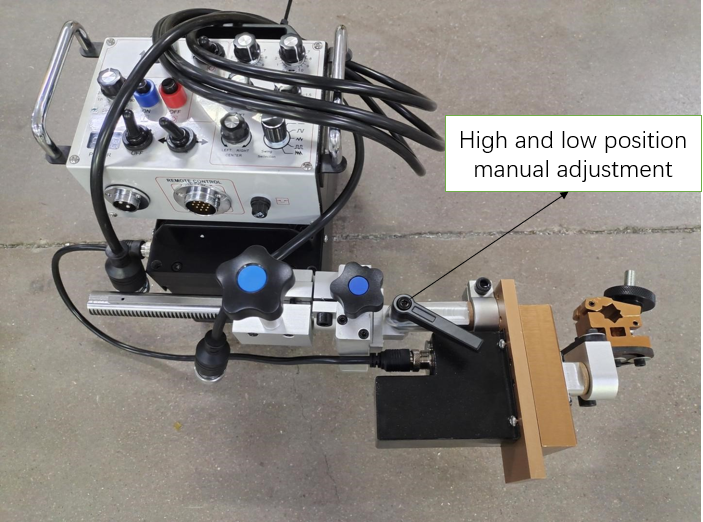

3. Slider part: It is used to adjust the position of the welding torch, and the front and rear positions can be fine-tuned during welding.

4. Welding gun fixture: Welding torch clamping device can adjust the angle of welding torch.

5. Control box: all actions of the tractor can be adjusted. For details, see the operation method of the control panel

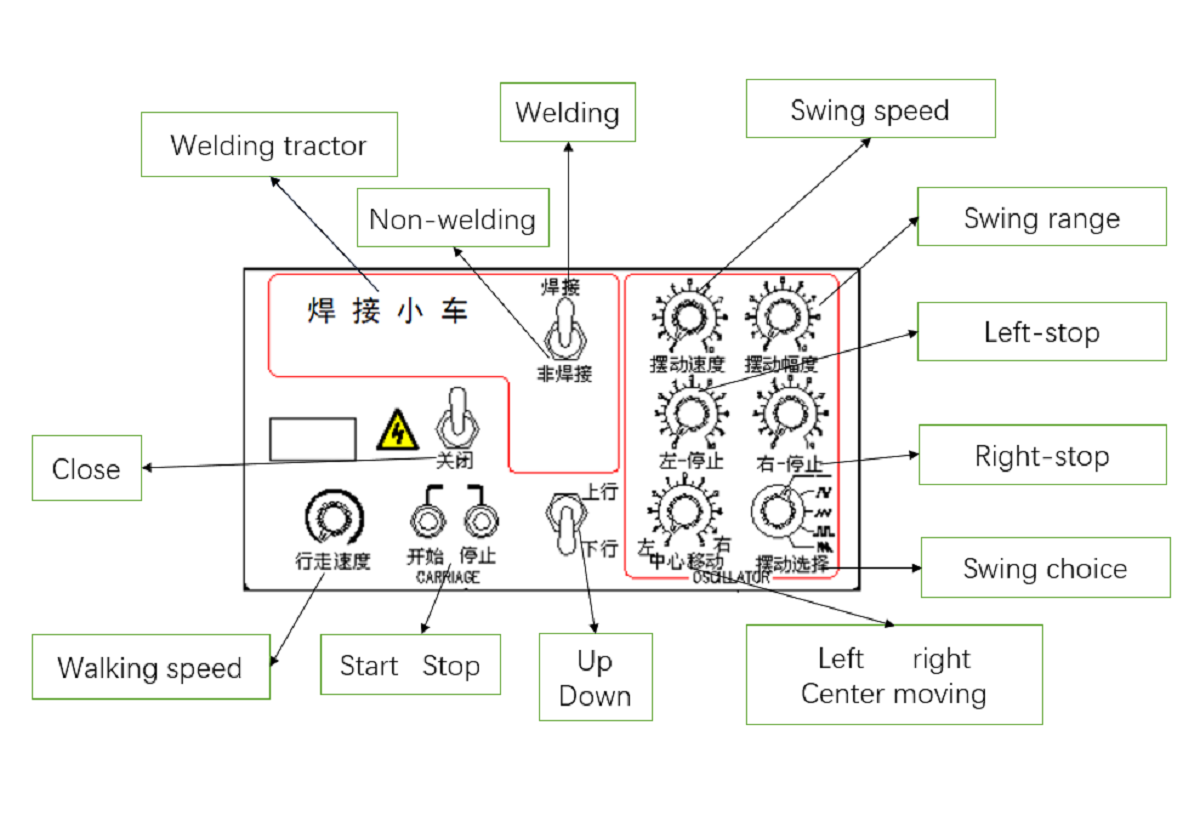

Control Panel Introduction

1. Current and voltage adjustment knob: Turn the knob clockwise to increase the value (the tractor has 3P and 8P power plugs, when using 3P plugs, the current and voltage adjustment knob is invalid, and the wire feeder must be adjusted to adjust the current and voltage; current and voltage The control knob is valid when using the 8P plug);

2. Welding/non-welding selection knob: the knob must be in the welding position to weld;

3. Point feeding: manual wire feeding device;

4. Walking switch: Control the trolley to walk and stop. If the "welding/non-welding" switch is set to the "non-welding" position, turn on the walking switch, and the tractor will only walk without welding;

5. Walking speed adjustment: tractor walking speed adjustment knob. It is recommended to adjust the tractor's walking speed after turning on the walking switch;

6. Choice of walking direction: choose to walk left or right;

7. Power switch and indicator light: the indicator light is on after the power is turned on;

8. Swing control part: adjustable swing speed, swing amplitude, left and right dwell time, center position and swing mode;

Product parameters

project			scope	notes
tractor	power supply	AC 220V
		size	240×330×310 mm	width x length x height
		weight	16 kg	including swingers
		way of moving	four-wheel drive	magnetic wheel
		walking speed	0∼700mm/min
control	swing motor	DC24V 18RPM
		Adjustable range of welding torch	up and down
				before and after	85mm
				Working Angle Adjustment Range	360°
				Angle adjustment range	0°
		Operation function	swing pattern
				swing speed	0-10RPM (displayed by scale)
				swing range	0-±10°(with scale display)
				left and right dwell time adjustment	0-2S (with scale display)
				center range of motion	0-±8°
				Jog wire feeding
				walk start/stop
				Welding current/voltage control
				Choice of walking direction
				walking speed adjustment	0∼1000mm/min (with scale display)
				Welded/non-soldered options
