20-63mm Socket Welder for Ppr Pipe Socket Welder

Supplier: Chengdu Chuangrong Trading Co., Ltd.
Region: Sichuan, China
Contact: Ms Chuang Rong
Price: $1550.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

product name:	Sleeve joint machine TSC-125	Weight (kg):	100kg
The scope of work:	25~125mm	Packaging Details:	wooden box
aspect:	1080840580,1080840580	Warranty:	one year
Video external inspection:	if	Power (kW):	1400
After-sales service provided:	Provide overseas service center	Voltage:	110V/230V
Certification:	CE and ISO	brand:	chromium
Applicable industries:	Building Materials Stores, Manufacturing Plants, Farms, Construction Works, Energy & Mining, Others	Pressure working range:	0~150 bar
strength:	1400W/1400W	Health status:	new
weight:	100	port:	Shanghai Port or as needed
Core Components Warranty:	1 year	Weight (body):	100KG
Showroom location:	not any	Main selling point:	easy to operate
Marketing Type:	Hot Products of 2019	Supply capacity:	1000 pieces per year
payment terms:	L/C,Western Union,T/T,Paypal	Mechanical test report:	if
power supply:	50-60Hz	Total absorbed power:	1400W/1400W
Core components:	pressure vessel	Pipe diameter:	25~125mm
usage:	Pipe welding	place of origin; place of origin:	Sichuan, China

Product Description

Prism 125

Prism 125This workshop/construction site welding machine is suitable forSocket fusion of pipes and fittingsAccording to current standards, the outer diameter is up to 125 mm (¾” to 4”).

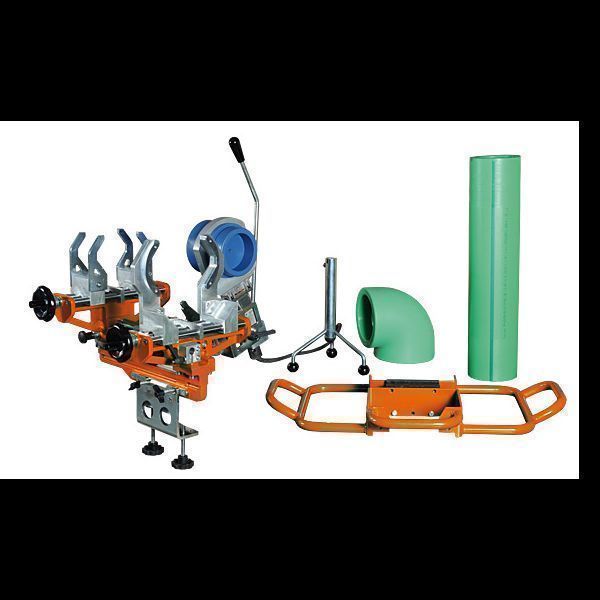

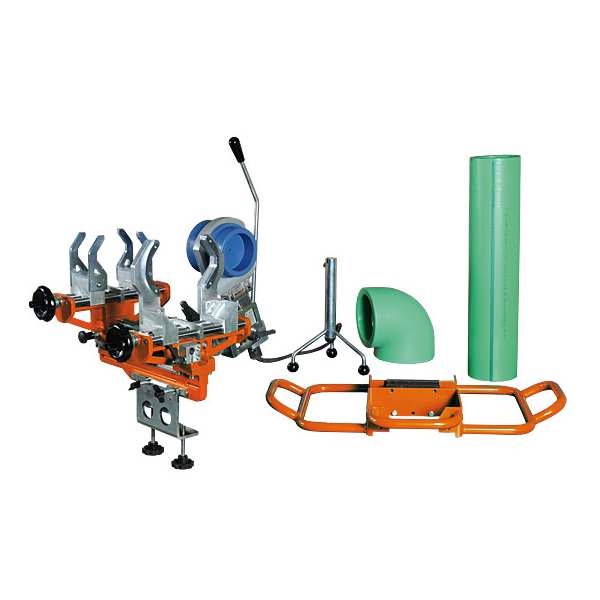

PRISMA 125 consists of a body with weld depth selectors for different diameters, four self-centering steel clamps for locking pipes and fittings (different brands), a self-centering socket welder with electronic temperature control, a device composition. For maximum heating depth, a sliding trolley, a tripod to support the pipes, a set of sockets and taps for fusion of sockets from Ø 25 to Ø 125 mm with a steel casing.

The welding machine is available in two versions, depending on the type of sockets and bushings provided:
PRISMA 125 Type A and PRISMA 125 Type B.

Standard ingredients

- The body is equipped with an electronic socket welder
- Steel housing with sockets and sockets from Ø 25 to Ø 125 mm and tool set
- Pipe support tripod
- sliding trolley

On request (attachment)

- Shipping wooden box

Technical features:
The scope of work	Ø 25 ÷ 125 mm (¾” to 4”)
power supply	110 V or 230 V single phase 50/60 Hz
total absorbed power	1400 watts
Operating temperature	180° ÷ 280° C
Ambient temperature range	-5° ÷ 40° C
Material	HDPE, PP, PP-R, PVDF, PB
aspect	1080 x 840 x 580 mm
wooden box	1500 x 800 x 1300 mm
weight	100kg
