HDPE Plastic Pipe Electrofusion Welding Machine
- 1467.30 set
| Power supply: | 110V-230V; | Certification: | ISO9001:2008,CE; |
| Max.output current: | 100A; | Usage: | Pipe electrofusion welding; |
| Packaging Detail: | Wooden Cases; | Welding output voltage: | 8-48V; |
| Certification: | ISO9001:2008; | Payment Terms: | L/C,T/T,Western Union; |
| Warranty: | 1 Year; | Protenction degree: | IP54; |
| Supply Ability: | 1000 Set/Sets per Year; | Weight: | 16kg; |
| Dimensions: | 405*285*340mm; | Port: | Shanghai or as required; |
| Max.absorbed power: | 4000W; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; |
| Power(W): | 4000W; | Place of Origin: | China (Mainland); |
| Single phase: | 50/60Hz; | Weight: | 16kg; |
| Dimensions: | 405*285*340mm; | Tube Diameter: | 20/315mm; |
| Condition: | New; | Voltage: | 110V-230V; |
| Brand Name: | CR; |

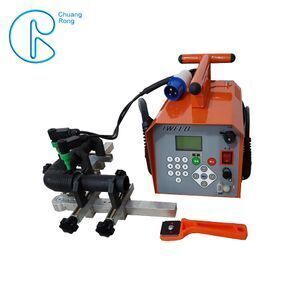

HDPE Plastic Pipe Electrofusion Welding Machine
l Universal fully automatic electrofusion machine
l Versatile machine body
l Optical scanner with bar code reading system
l In built memory with 4000 welding cycles
l Data transfer software to USB device, to laptop or printer
Technical Features
Working Range | 20-315mm |
Welding output voltage | 8-48V |
Single phase | 110V-230V |
Power supply | 50-60Hz |
Max.absorbed power | 4000W |
Max.output current | 100A |
60%Duty cycle output | 60A |
Memory Capacity | 500 report |
Protection degree | IP 54 |
Dimensions machine (WxDxH) | 263X240X300mm |
Dimensions carrying case(WxDxH) | 405x285x340 |
Weight | 16Kg |

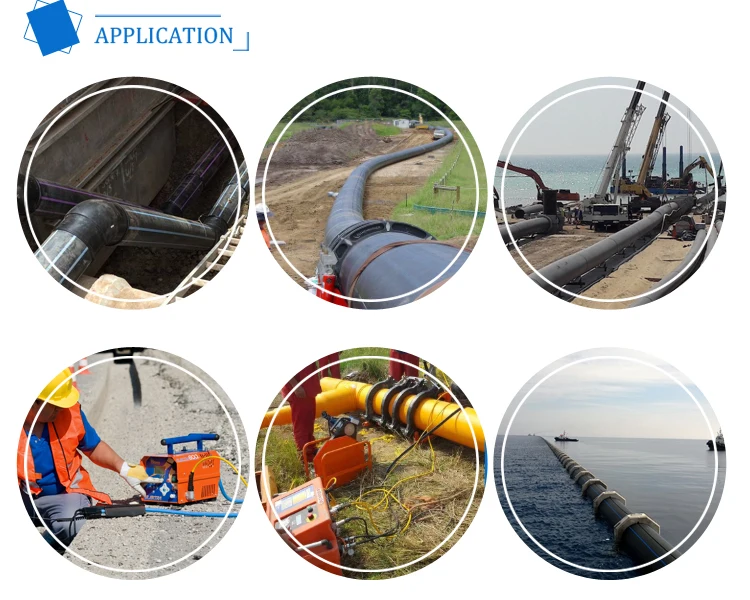

Suitable for welding pipe/fittings for the transport of gas, water and for weling fire sprinkler systenm( HDPE, PP, PP-R couplings from 8 to 48 V)
Certification: We can supply ISO9001-2008, BV ,SGS, CE etc certification.
Packing:by wooden case, by carton& plastic bag
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
Send your Inquiry Details in the Belbow, Click " Send" Now!
