Y50EX-1418TK2 Heavy Duty Military Circular Connector
- 12.00 piece
| gender: | female male | Socket Type: | T-plug, Z-socket |
| place of origin; place of origin: | China | Contact Type: | J pin, K socket |
| Relative temperature: | -55°C ~ +125°C | type: | Adapter, DIN |
| Supply capacity: | 50,000 pieces per month | Pin: | 18P |
| application: | strength | Gaskets and Seals: | polyneoprene |
| port: | Shanghai | Unit number: | 08,10,12,14,16,18,20,22,24 |
| Packaging Details: | Carton, 270*360*260cm | Connector type: | circular connector |
| structure: | X-Solder, P-Shield | payment terms: | Wire transfer, MoneyGram |
| Material: | aluminum | model: | Y50EX-1418TK2 |
| brand: | Hangjie |

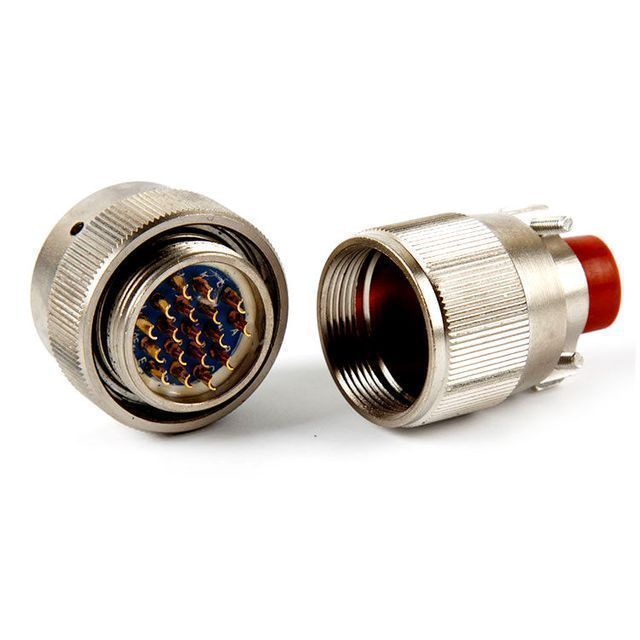

Y50EX-1418TK2 Military Circular Connector
Y50EX series circular connectors conform to GJB598A standard, refer to USMIL-C-26482. This series is compatible with JY series, MS series and YB series. Responsive plugs and sockets of the same type are interchangeable. The series of connectors with bayonet connection mechanism have the characteristics of small size, light weight, high density, convenient use, strong plug-in durability, etc., and are widely used in circuit connection in aviation, navigation, telecommunications and other fields. , Railway locomotive command system, etc.
How to order
Model name introduction
| Do not. | type name | type | design |
| 1 | Identifier | circular connector | Y50 |
| 2 | type | English | E |
| 3 | structure type | Welding plastic bottle caps | X |
| Welded plastic closures | phosphorus | ||
| Crimp casting | Meter | ||
| Glass frit seal (socket) | number | ||
| 4 | Shell size | 08,10,12,14,16,18,20,22,24 | number |
| 5 | Arrange the number of contacts | to "Number and arrangement of contacts" | number |
| 6 | plug or socket | plug | Ton |
| container | Z | ||
| 7 | contact details | pin | J |
| socket | K | ||
| 8 | Type of plug or socket | Compression grounding plug | 1 |
| cable plug | 2 | ||
| Simple style plug | 3 | ||
| Anti-wave protection plug | 4 | ||
| Elboe Fuard Plug | 5 | ||
| Method flange socket | 10 | ||
| Flange cable socket | 10-2 | ||
| Round flanged cable socket | 11 | ||
| screw socket | 14 | ||
| 9 | Insert position | N,W,X,Y,Z, is perfect for N. | letter |
Anti-misinsertion (insulation mounting plate transposition instructions):
There are key grooves with different angles on the periphery of the insulating mounting plate, which are deployed by the manufacturer according to the needs of use, to ensure that the plug specifications are the same, and the socket will not be inserted by mistake. In order to make the plugs of the same specification correspond to the same assembly serial number, they can be inserted into the socket, while the plugs corresponding to different assembly serial numbers cannot be inserted into the socket.
Use environmental conditions
| ambient temperature | -55°C ~ +125°C |
| Relative humidity | At +40°C, 90% ~ 95% |
| air pressure | 101KPa ~ 0.8kpa |
| sinusoidal vibration | 10 ~ 2000HZ, 196m/s2 |
| collision | 392 m/s2 |
| Shock | 980 m/s2 |
| Rated voltage | 600V |
| Insulation resistance | ≥3000MΩ |
| Insulation withstand voltage | 1500V |
| water proof | ≥0.2MPa |
| Durability | 500 |
