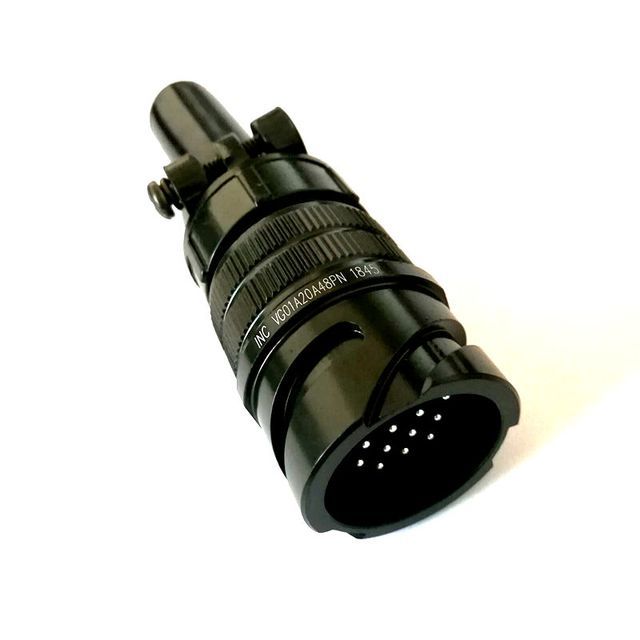

Circular Connector VG01A20A48PN Male Cable Connector Plug VG95234
- 10.00 pair
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Package preview: | gender: | male | |
| direction: | straight | Origin: | Guangdong, China |
| Connection Type: | Bayonet coupling | brand: | link signal electronics |
| shell material: | Aluminum Alloy/Copper Alloy/Stainless Steel | Shell Plating: | olive brown chromate |
| insulator: | synthetic rubber | Shell Dimensions: | 20 |
| Package: | Carton | model: | VG01A20A48PN |
| Supply capacity: | 10000 pieces per month | payment terms: | Western Union, T/T, PayPal/Alibaba Trade Assurance |
| type: | cable connection plug | Packaging Details: | 1. Our standard packaging: individual components in transparent PE bags with labels; OEM packaging is available. 2. MIL 24682 connector at buyer's choice |
| describe: | VG95234 | Contact Plating: | gold-plated/silver-plated |
| Contact materials: | copper alloy | termination: | welding |
Product Description
VG95234 reverse bayonet connector
Circular connector with bayonet locking for crimp and PCB contacts, approved to VG95234.
* Temperature deployment range is -55° to +125°C
* Nominal current up to 245 A
* Up to 3000V
* Protection type IP67 (with separate load seal and full load)
* Temperature deployment range is -55° to +125°C
* Nominal current up to 245 A
* Up to 3000V
* Protection type IP67 (with separate load seal and full load)
Shell style:
Wall Mounted Socket, Cable Connected Socket, Shielded Socket, Boxed Socket, Straight Plug Shielded,
Locknut receptacles, 90° angle plugs, bulkhead receptacles
Locknut receptacles, 90° angle plugs, bulkhead receptacles
