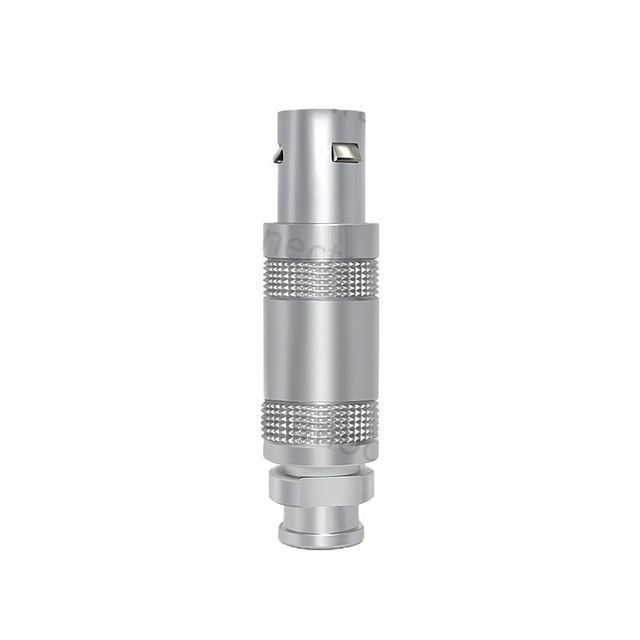

FFA 3 pin circular connector half moon connector
- 3.50 5 - 199 pieces
- 3.10 >=200 pieces
| Protection class: | IP50 | place of origin; place of origin: | Shenzhen |
| insulator: | Polyphenylene sulfide | Package preview: | |
| Supply capacity: | 5000 pieces per week | Packaging Details: | Plastic bags and cartons |
| Building materials: | Chrome-plated brass | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal |
| port: | Shenzhen | model: | FFA.1S.306.CLAC52Z |
| Keying: | Hermaphroditic keying ("half moon" insertion), plug has male pins 2 | application: | audio video |
| Housing Style/Model: | Straight plug with cord clip | Types of: | Plug - male pin |
| maximum. mating: | 5000 | Certificate: | ISO9001/CE/ROHS/SGS |
| Insert configuration: | 2 needles 3 needles 4 needles 5 needles 6 needles |
technical features | ||||||
Stamina (Shell) | 5000 mating cycles | humidity | Up to 95% at 60° C/140F | |||
temperature range | - 55°C, +250°C | Vibration resistance | 15 grams [10 Hz - 2000 Hz] | |||
Impact resistance | 100 grams [6 milliseconds] | Salt spray corrosion test | >96 hours | |||
climate category | 50/175/21 | Shield (minutes) | > 75 dB [at 10 MHz], > 40 dB [at 1 GHz] | |||
degree of protection | Protection class 50 | certified | ISO9001/CE/ROSH/SGS | |||
Housing Model/Size | DIP/1S | gender | male | |||
MOQ | 5 | deliver goods | 3-5 working days | |||
HIGH QUALITY CONNECTORS FROM RAYMO CONNECTORS
main feature
1. The safety of the push-pull self-locking system;
2. Unipolar and multipolar with 2 to 6-pin contacts for transmission current up to 250 A;
3. Solder or PCB contacts (straight or angled);
4. Polarization via stepped inserts (half-moon) with male and female contacts
5. 360°shielded full EMC shielding;
6. High-density installation, saving space;
7. Multi-key selection to avoid cross-matching of similar connectors;
8. Beryllium bronze material, surface gold-plated;
9. Brass housing with chrome-nickel plating on the surface.
application
Automotive, audio and video, aviation, communications, industrial control, information systems and machines, medical, military, test and measurement, data acquisition, data transmission equipment. Module power supplies, sensors, sensor system instrumentation, analytical applications.
