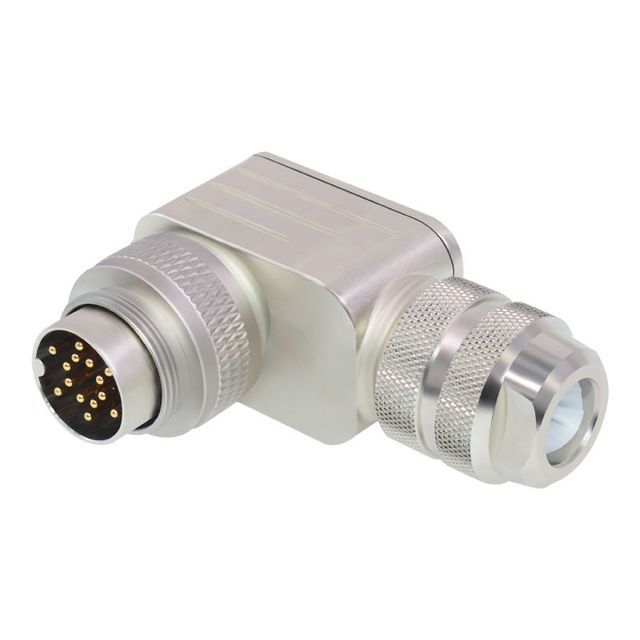

423 Series M16 IP67 Male Connector 12 Contacts
- 12.00 1 - 99 pieces
- 11.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Place of origin: | Guangdong, China | Certificate: | ISO9001/CE/ROHS/REACH |
| Packaging details: | Plastic bags and cartons | Package: | polyethylene bag |
| application: | car | describe: | remo |
| Supply capacity: | 5000 pieces per week | product name: | M16 connector 12 pin |
| Connector type: | right angle | Protection level: | IP67 rating |
| Warranty: | 500 push and pull times | type: | Plug - Male pin |
| Package preview: | port: | Shenzhen | |
| brand: | remo | model: | 99 5629 75 12 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PAYPAL |
Product Description

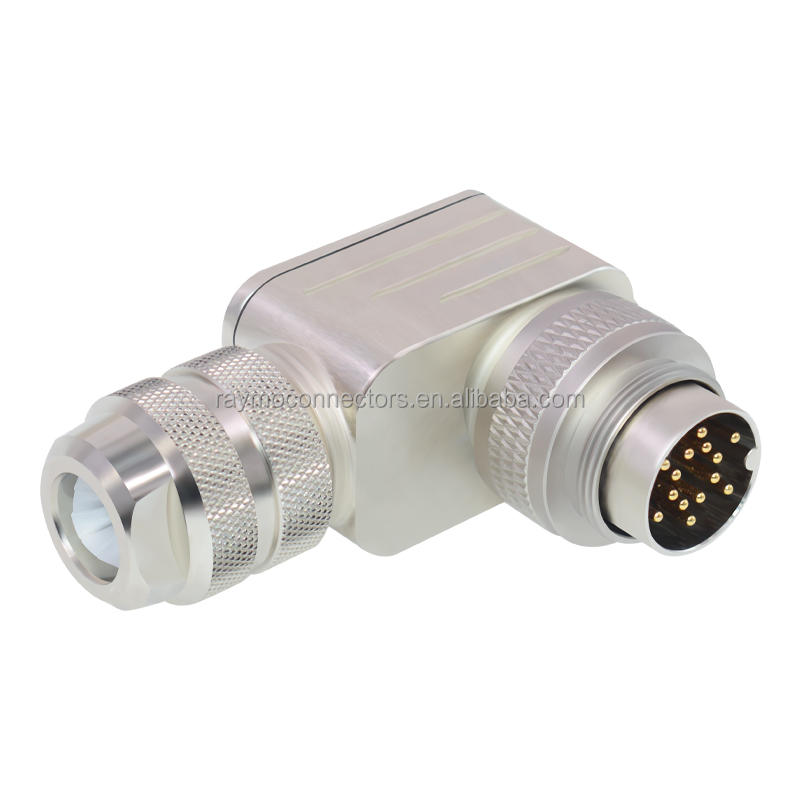

medium size16 423 Connector Series M16 Series
Waterproof IP67 molded cable 12 pin right angle shielded
basic product info | ||
Connector series | M16 cable connector | |
gender | male and female | |
Locking type | Fixing screws | |
Installation type | right angle | |
Contact information. | 2 needles, 3 needles, 4 needles, 5 needles, 6 needles, 8 needles, 12 needles, 14 needles | |
M16 423 Series Cable and Sensor Connectors
Connectors specially developed for plant engineering, control and electrical equipment applications
put up. It is the user's responsibility to check whether the connector can also be used in other application areas. Plug connectors with housing protection class IP67 and IP68 are not suitable for use underwater. When used outdoors, plug connectors must be individually protected against corrosion.
cable connector• Screw termination M16 • 2 – 24 contacts • Protection class IP67 1) • Solder/crimp/screw clamp termination • Molded version • Diameter 18 – 24 mm • Shieldable • Complies with standards. Conforms to DIN EN 61076-2-106 • AISG/BINDER compatible
M16 423 Series Connectors General Information | ||||||
standard | IEC 61076-2-104 | Insulation resistance | ≥100MΩ | |||
ambient temperature | -25℃~+80℃ | Contact resistance | ≤5mΩ | |||
Connector plug-in | Thermoplastic polyurethane/PA | shield | usable | |||
Connector contacts | gold plated brass | Seals/O-rings | Epoxy resin/fluorine rubber | |||
Connecting nuts/screws | brass nickel plated | Mating endurance | >500 cycles | |||
Protection level | IP67 when paired | Certificate | CE/ROHS/IP67/REACH/IP68 | |||
