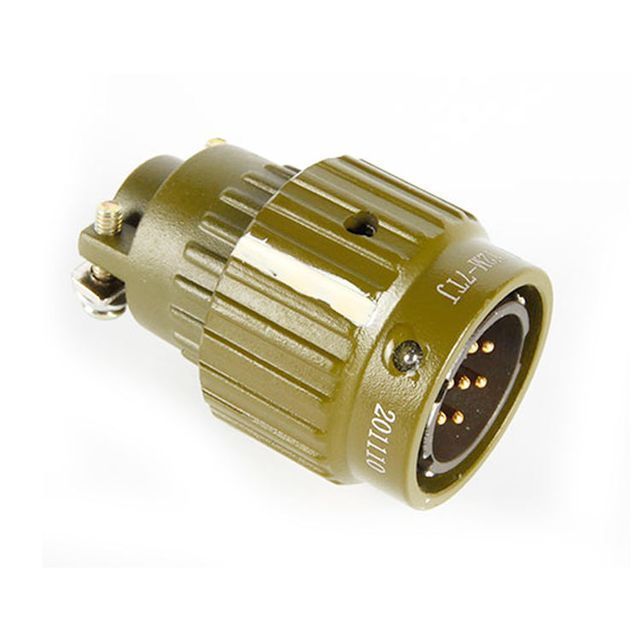

Y2M-7TJ 7 pin military circular connector
- 10.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Material: | aluminum | Contact Type: | J pin, K socket |
| port: | Shanghai | brand: | hang street |
| place of origin; place of origin: | Jiangsu, China | payment terms: | Wire transfer, MoneyGram |
| Supply capacity: | 50,000 pieces per month | Relative temperature: | -55°C ~ +125°C |
| application: | aviation, military | Connector type: | circular connector |
| Packaging Details: | Carton, 270*360*260cm | Delivery Details: | Ships within 10 days of payment |
| type: | DIN | product name: | Y2M-7TJ 7-pin military circular connector |
| Installation method: | L-cable, B-flange | gender: | male |
| model: | Y2M-7TJ | Contact material: | copper alloy |
| Socket Type: | T-plug, Z-socket |
Product Description
Y2M-7TJ 7-pin military circular connector
Y2M series circular connectors with bayonet connection mechanism have the characteristics of convenient use and fast connection. The socket is waterproof. Widely used for circuit connection between electrical equipment and various electronic equipment.
How to order
Model name introduction
| Do not. | type name | type | design |
| 1 | Identifier | circular connector | Y2M |
| 2 | Installation method | cable | large |
| flange | Second | ||
| 4 | Arrange the number of contacts | To "Contact Arrangement" | number |
| 5 | plug or socket | plug | Ton |
| container | Z | ||
| 6 | contact details | pin | J |
| socket | K |
Use environmental conditions
| ambient temperature | -55°C ~ +125°C |
| Relative humidity | At +40°C, 92% ~ 98% |
| atmospheric pressure | 101.33KPa ~ 6.67kpa |
| sinusoidal vibration | 10～2000HZ, acceleration 196m/s2 |
| vibration | 245 m/s2 |
| Shock | 980 m/s2 |
| Dielectric withstand voltage | 1500V |
| Insulation resistance | 5000MΩ |
| life expectancy | Plug 500 |
| water proof | ≥0.3MPa |
