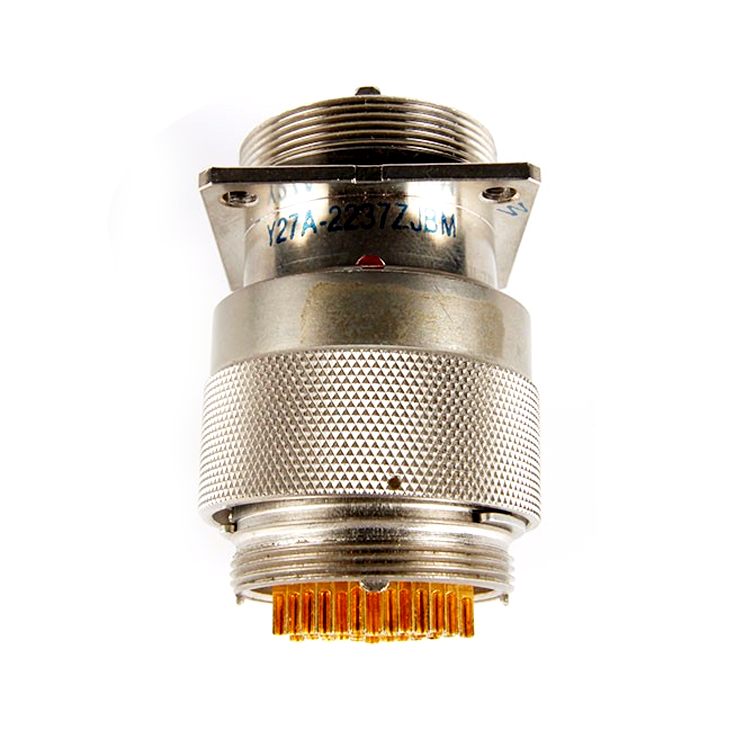

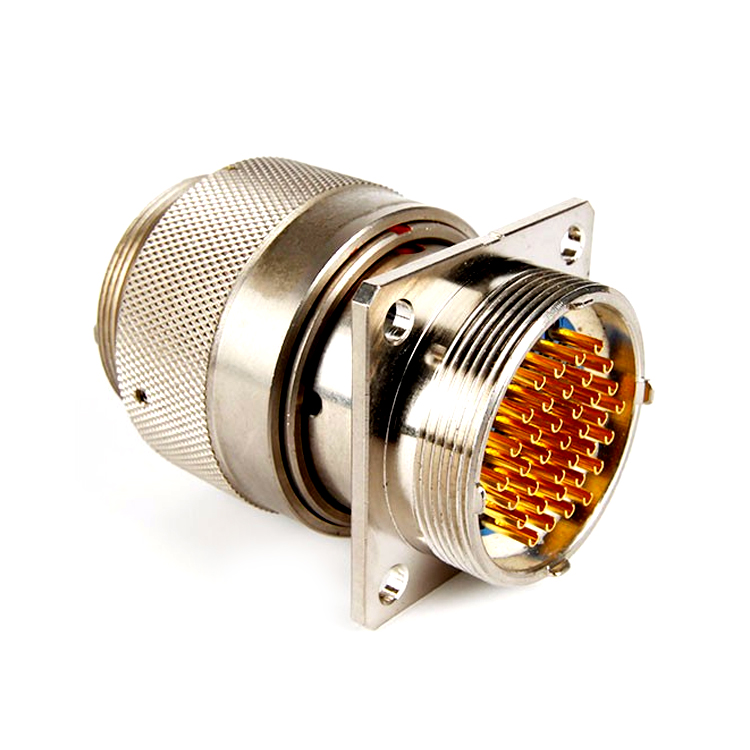

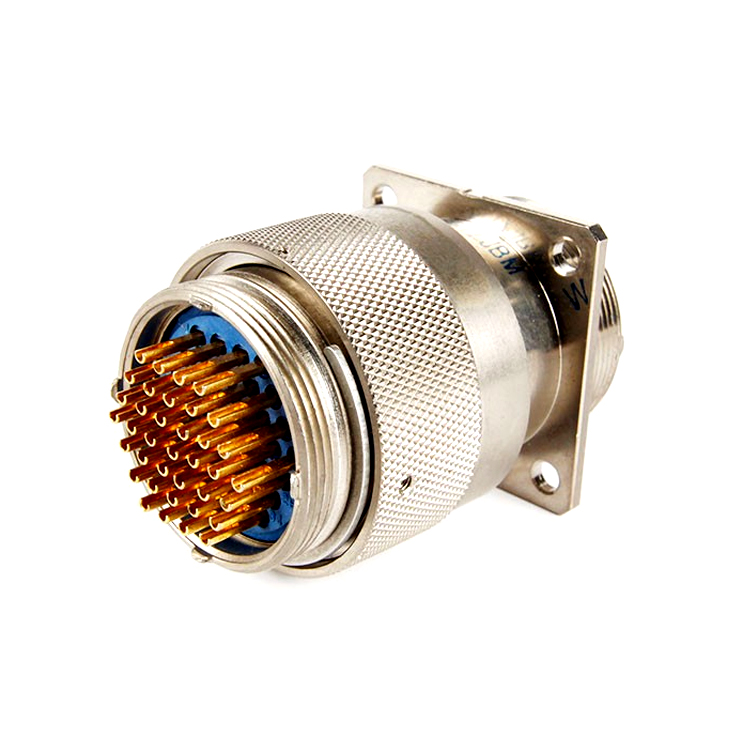

Y27 Environmental Resistant Push-pull Circular Electric Waterproof Connector
- 1.00 >=10 pieces
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Contact Type: | Z pin, K socket |
| port: | Shanghai | gender: | female |
| application: | A printed circuit board | pin: | 37 pins |
| place of origin; place of origin: | Jiangsu, China | Material: | Aluminum, Stainless Steel, Brass |
| Packaging Details: | Karon | brand: | hang street |
| Supply capacity: | 40,000 pieces per month | type: | DIN |
| Delivery Details: | According to customer requirements | model: | Y27A-2237ZJBM |
| Socket Type: | T-plug, Z-socket |
Y27 Environmental Resistant Push-Pull Circular Electrical Connector
Product introduction
* meets theGJB2905A-2004
* Push-pull circular electrical connector, reliable connection, convenient and quick connection and separation;
Suitable for blind mating or other mating;
* Protected against vibration, salt spray and electromagnetic interference
* Dustproof, rainproof, airtight and other options;
* There are flange type and cable type sockets to choose from;
* widely used inAerospace and Aviation, Ships and Ships, and Communications, ETC;
* follow the standardQ/321283LSB12
Main technical features
[Mechanical behavior]
- Housing: Aluminum alloy, Stainless steel, Admiralty Brass
- Container air tightness: rubber seal: leakage rate ≤ 1Pa·cm3/s
- Sinusoidal vibration: 10 Hz to 2000 Hz, acceleration 196m/s2
Random vibration: power spectral density 0.4G2/Hz, acceleration root mean square value is 23.1G
- Shock: 980m/s2
- Acceleration: 980m/s2
- Durability: 500 times
[environment properties]
- Operating temperature: -55℃ to +125℃
- Working air pressure: 1.33 Pa to 101.3 kPa
- Relative humidity 92%~98% at 40±2℃
- Salt spray resistance: Y27, Y27A, B and C series: 48h
Y27F, G, H series: aluminum alloy shell 96h;
Stainless steel case, Admiralty brass case 1000h
- Shielded against electromagnetic interference: 45dB minimum attenuation at interference frequencies from 100 MHz to 1 GHz
- Immersion in water: immersion depth of 2m (only for Y27F, G and H series)
【Electrical Characteristics】
- Rated current of contact element (A)
Insertion diameter of the contact element (mm) | 0.8 | 1.0 | 1.5 | 2.5 | 3.5 | 5.0 | 7.0 | 9.0 | 10.0 | 12.0 | |
Contract element rated current | Y27 | 3 | - | - | - | - | - | - | - | - | - |
Y27A | - | 5 | - | - | - | - | - | - | - | - | |
Y27B | - | 5 | 10 | 25 | 50 | 75 | 100 | 150 | 200 | - | |
Y27C | - | 5 | 10 | 25 | 50 | 75 | 100 | 150 | 200 | - | |
Y27F | - | 7.5 | - | - | - | - | - | - | - | - | |
Y27G | - | 7.5 | 13 | 25 | 50 | 75 | 100 | 150 | 200 | 250 | |
Y27H | 3 | 5 | - | - | - | - | - | - | - | - | |
- Contact resistance of the contact element (mΩ)
Interpolated diameter distribution mm | 0.8 | 1.0 | 1.5 | 2.5 | 3.5 | 5.0 | 7.0 | 9.0 | 10.0 | 12.0 |
Material | copper | copper | copper | copper | copper | copper | copper | copper | copper | copper |
life test | 12 | 10 | 7 | 1.5 | 1 | 0.7 | 0.5 | 0.4 | 0.4 | 0.3 |
After life test | 15 | 12 | 10 | 3 | 1.5 | 1 | 0.8 | 0.7 | 0.6 | 0.5 |
- Withstand voltage (V)
series | Test voltage (50Hz AC RMS) | ||||||
Y27 | Y27A | Y27B | Y27C | Y27F | Y27G | Y27H | |
Standard conditions | 750 | 1300 | 1500 | 2500 | 2300 | 2300 | 1300 |
low pressure | 100 | 200 | 200 | 300 | 200 | 200 | 200 |
- Insulation resistance (MΩ)
series | Y27 | Y27A | Y27B | Y27C | Y27F | Y27G | Y27H |
Standard conditions | 1000 | 4000 | 5000 | 5000 | 5000 | 5000 | 4000 |
high temperature | 500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
wet | 50 | 100 | 100 | 100 | 100 | 100 | 100 |
soaked | 20 | 20 | 20 | 20 | - | - | - |
soak | - | - | - | - | 20 | 20 | 20 |
