New LCR UC2877 2MHZ High Frequency Digital Bridge Meter UCE
-
Supplier: Changzhou Youce Electronic Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr William Wang -
Price: $3500.00 /unit -
Min. Order: 1 unit
| speed: | 200 measurements/sec | Signal level: | 5mV-2V, resolution: 1mV |
| place of origin; place of origin: | China | brand: | University of California |
| Supply capacity: | 3000 units per month | exhibit: | 7-inch 16:9 TFT LCD screen, resolution: 800*480 RGB |
| Comparators: | 10 steps, BIN1-BIN9, PASS/FAIL display | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Basic Accuracy: | 0.05% | frequency: | 20HZ-2MHZ, resolution: 10mHZ |
| interface: | RS232C/USB HOST/GPIB/HANDLER/Headphone/LAN | port: | Shanghai, Hangzhou, Ningbo, Shenzhen |
| model: | UC2877 |
brief introduction

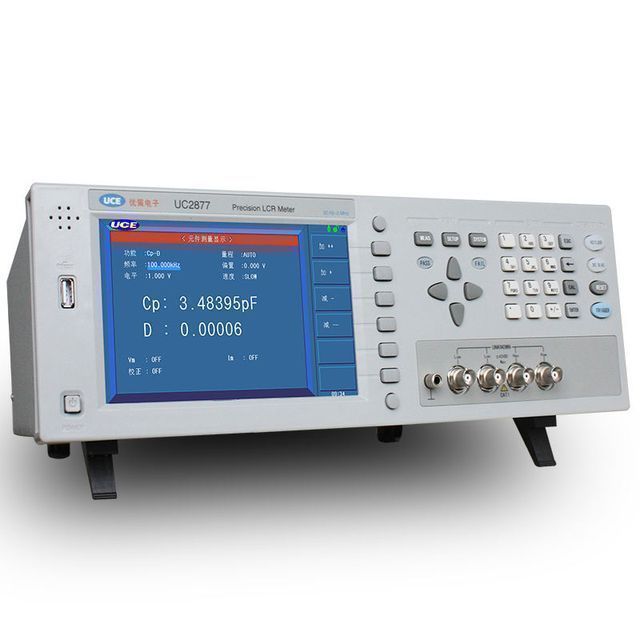

High-frequency precision electric bridge is a multi-functional component tester used to test various electronic components. Using the most popular 7-inch 800x480 color TFT LCD screen, users can read the test results more intuitively and more comfortably. It is an impedance meter with high speed, wide test range and 6-bit test resolution.
The instrument meets the requirements of production line quality assurance, purchasing inspection and laboratory measurements. The main test products include microphones, resonators, inductors, ceramic capacitors, liquid crystal displays, varactors, transformers, etc.
The Handler, RS232C, USB, GPIB and other interfaces provided by the instrument, as well as a complete command system, can help users easily build a test system.
Performance characteristics
Ø Four-parameter display, any parameter combination, up to 12 measurement parameters.
Ø 7 inch 16:9 TFT LCD display, resolution: 800×480 RGB.
Ø The basic measurement accuracy is 0.05%, and the maximum test speed can reach 200 times/second.
Ø Test frequency range: 20Hz-5MHz, the resolution is 10mHz.
Ø Automatic level control ALC function for testing voltage or current.
Ø 30Ω, 100Ω, 50Ω, 10/CC and other four different signal source output impedance
Ø Built-in comparator, 10-level sorting and counting function
Ø Graphical sweep analysis function supports frequency/level/offset sweeps, helping you easily analyze device performance.
Ø 10-point list scanning function.
Ø Internal 0V, 1.5V, 2V DC bias voltage source.
Ø 2m/4m test cable extension (optional accessory)
Ø Optional ±10V (±100mA) 1A internal DC bias source.
Ø Store or recall 100 internal setting files, and 500 sets of test files in U disk
Ø Disk expansion save or recall.
Ø The instrument software version can be upgraded through USB HOST.
Ø U disk can support FAT16, FAT32 format file system.
Ø Standard RS232C, HANDLER, USB HOST, headphone jack, optional GPIB, LAN interface.
Technical Specifications
Measurement function | |||
Test frequency | UC2877 20 Hz-2MHz, 10mHz resolution | ||
UC2876 20Hz - 5MHz, 10mHz resolution | |||
Test parameters | |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR | ||
Basic measurement accuracy | 0.05% | ||
Equivalent Circuit | Series Parallel | ||
math function | absolute deviation, percent deviation | ||
scope method | Auto, Hold, Manual selection | ||
Trigger method | Internal, Manual, External, Bus | ||
Measurement speed (≥1kHz) | Fast: 200 times/sec, Medium: 12 times/sec, Slow: 3 times/sec | ||
Average time | 1—255 | ||
delay | 0—60s, 1ms is the step | ||
Correction function | Open/Short/Load | ||
Test end configuration | five ends | ||
list scan | 10-point list scan function | ||
display mode | Direct reading, Δ, Δ%, V/I (measurement voltage/current monitoring) | ||
exhibit | 800×480 RGB7 inch 16:9 TFT LCD display | ||
test signal | |||
output resistance | 30Ω, 100Ω, 50Ω, 10/CC optional | ||
Test signal level | Normal: 5mV-2V, 1mV step Constant level: 10mV-1V, 1mV step | ||
Bias source | Internal | 0V, 1.5V, 2V | |
optional | UC6802A: ±10V (±100mA) DC bias current | ||
UC6802B: 0-1A DC bias current | |||
Display range | |||
|Z|, R, X | 0.01mΩ — 99.9999MΩ | ||
DCR | 0.01 mΩ — 99.9999 MΩ | ||
|Y|, G, B | 0.00001µS — 99.9999S | ||
C | 0.00001 pF — 9.9999 F | ||
large | 0.00001µH — 9999.99H | ||
D | 0.00001 — 9.9999 | ||
ask | 0.00001 — 9999.9 | ||
θ (degrees) | -179.999º — 179.999º | ||
θ (RAD) | -3.14159 — 3.14159 | ||
other | |||
Comparator function | 10 steps, BIN1-BIN9, PASS/FAIL display, NG, AUX | ||
memory | 10 groups of internal setting file storage/recall | ||
interface | Standard RS232C, HANDLER, USB HOST, headphone jack, optional GPIB, LAN interface | ||
-
