Bench top LCR meter UC2831A+ Products from Changzhou Youce Electronic Technology Co., Ltd.

Product Details

Basic Accuracy:	0.1%;	Single gross weight:	7.000 KG;
Model Number:	UC2831A+;	Interface:	RS232C/USB HOST/USBCDC/USBTMC/earphone interface/GPIB/HANDLER;
Selling Units:	Single item;	Place of Origin:	China;
Speed:	30 meas/sec;	Signal Level:	0.1V, 0.3V, 1V;
Brand Name:	UCE;	Single package size:	47X21X32 cm;
Display:	4.3- inch color TFT LCD, 480 * 272;	Frequency:	100HZ,120HZ,1kHZ,10kHZ;

Product Description

Brief Introduction

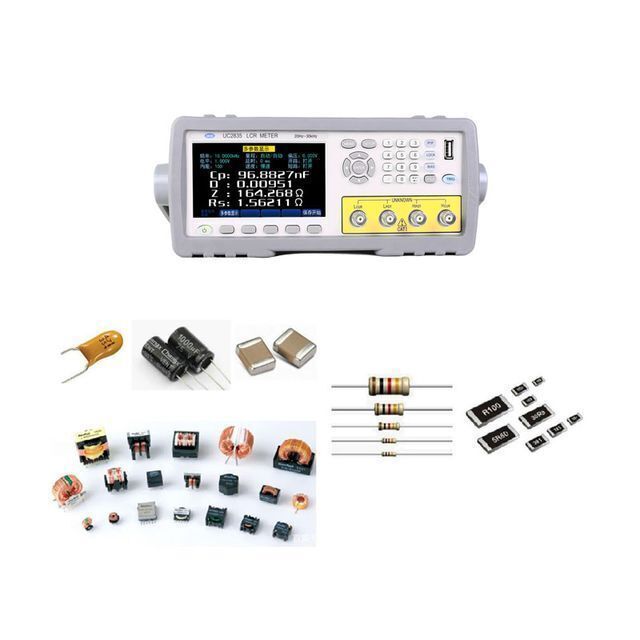

UC2831A+ is a component tester with high performance and low price.It adopts the most popular 4.3-inch true color TFT display, which enables users to read test results more intuitively and comfortably.With powerful functions and simple operation, 100Hz-10kHz multi-frequency points and 0.1% accuracy can meet the requirements of production line quality assurance, incoming inspection and laboratory measurement.

Performance Characteristics

4.3 inch color TFT LCD, resolution of 480 * 272
30 ohm, 100 ohm, two different signal source output impedance
Built in multi file comparator
Automatically save the test conditions
Simplified Chinese, English optional
The instrument software can be updated by the USB HOST.
U disk can copy screen and save data, support the format of FAT16 aFAT32 filesystem.
RS232C, USB HOST, USBCDC, USBTMC, optional GPIB and HANDLER.

Technical Specification

Type		UC2831A+
Measurement parameter		L,C, R, \| Z\|, D, Q,X,ESR,θ(Deg), θ(Rad)
Measurement frequency		100Hz,120Hz,1kHz, 10kHz
Basic measurement accuracy		0.1%
Test signal level		0.1V, 0.25V,0.3V,0.5V, 1V
Equivalent circuit		Series, Parallel
Math function		Percentage deviation
Range method		Automatic, hold, manual selection
Trigger method		Internal, manual, external, bus
Measurement Speed (≥1kHz)		Fast speed: the fastest 30 times/sec, medium speed: 10 times/Sec, slow speed: 3 times/Sec
Average times		1-255
Delay time		0 - 60s, 1ms step
Calibration function		Open circuit / short circuit/ load
Test end configuration		Five ends
Display method		Direct reading,Δ%,V/I(Measured voltage / current monitoring)
Display		Main and secondary parameter display 5 bits,4.3 inch true color LCD display
Output resistance		Optional 30 Ω& 100 Ω
Display range
\|Z\|, R,X,ESR	0.1m Ω — 99.999MΩ
C	0.01 pF — 99999uF
L	0.01 µH — 99999 H
D	0.0001 — 9.9999
Q	0.0001 — 9999.9
θ(Deg)	-179.99° — 179.99°
θ(Rad)	-3.1416 — 3.1416
Δ%	-999.99% — 999.99%
Others
Comparator function	5files sorting function(only UC2852)
Memory	More than 100 groups of internal setting files for storage/call, more than 500 groups of test files are expanded by U disk
Interface	Standard RS232C, HANDLER, USB HOST, USBCDC, USBTMC, headphone interface, optional GPIB
