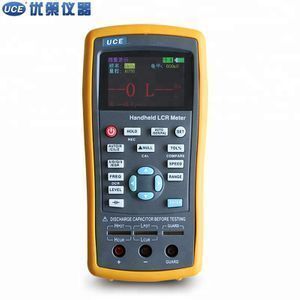

New Portable Digital Handheld LCR Meter UC2822

Supplier: Changzhou Youce Electronic Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr William Wang
Price: $110.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Port:	Shanghai, Hangzhou, Ningbo, Shenzhen;	Basic Accuracy:	0.3%;
Signal Level:	0.6Vrms;	Brand Name:	UCE;
Frequency:	100Hz,20Hz,1KHz,10KHz;	Model Number:	UC2822;
Supply Ability:	3000 Unit/Units per Month;	Place of Origin:	Jiangsu China (Mainland);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Display:	2.8- inch TFT display;
Speed:	4 meas/sec;

Product Description

Brief Introduction

UC28XX handheld digital bridge series are integrated by 2.8 inch TFT display, flexible and convenient button operation and USB full speed communication. Large capacity lithium battery can guarantee long hours’ work. Function not only has a comprehensive measurement parameters, but also has deviation measurement and filtering. The output frequency can be continuously adjustable. In performance, the basic accuracy is 0.2%.

Performance Characteristics

? The highest frequency of measurement is 100kHz, which can be continuously adjustable with 1Hz step.

? Support DC resistance, electrolytic capacitor measurement.

? Internal bias voltage output(10mV-500mV)

? Automatic identification of component measurements.

? Support filtering and deviation measurements.

? 2.8 inch TFT display,4 and a half bits display.

? USB communication interface.

? Powered by large capacity lithium battery.

? Support SCPI protocol.

? Provide system settings, configure the language, buzzer, screen brightness and so on according to your requirements.

? Basic measurement accuracy is 0.2%,

? measurement speed is adjustable.

? Manual and automatic range.

? Open circuit & short circuit correction.

? Provide multiple kinds of test ports.

Technical Specification

Model number	UC2822A	UC2822	UC2833		UC2833A
Display screen	2.8 inch TFT LCD display screen
Display the number of bits	Main parameter:5 bits Secondary parameter :5 bits
Measurement parameter	Main parameter :L/C/R/Z Secondary parameter :X/D/Q/θ/ESR
Electrolytic capacitor mode	×	×	√		√
DCR mode	×	×	√		√
Measurement range (L)	0~2000H
Measurement range (C)	0~20mF
Measurement range (R)	0~20MΩ
Basic accuracy	0.3%	0.3%	0.2%		0.2%
Test frequency	100Hz,120H, 1KHz,10KHz,40kHz,100KHz	100Hz,20Hz,1KHz,10KHz	100Hz,120Hz,1KHz,10KHz		100Hz,120Hz,1KHz,10KHz,40kHz,100KHz
Measurement speed	1times/sec(slow speed), 2 times/Sec(medium speed), 4 times/Sec(fast speed)
Internal bias	×		0-500mV adjustable,1mV step
Test level	0.6Vrms		0.1Vrms, 0.3Vrms, 0.6Vrms
Correction function	open circuit & short circuit correction
Filtering function	the filter limit range can be set 1%-50%, Where the fixed point is 1%,5%,10%,20%.
Deviation measurement	Used to compare the percentage of deviation between the component and the nominal value and display it
Others	adjust the backlight brightness, USB device, and automatic shutdown time can be set
Accessories
standard	Mini-USB data line, Power Adapter, Short circuit chip, Red and black rubber plug, Large capacity lithium batter.
optional	SMD test pliers(used in UC2822/UC2822A)			SMD test pliers(used in UC2833/UC2833A)
