Efficient Demolition Tool Handheld Rock Hydraulic Rock Splitter

Supplier: Xiamen Bestlink Factory Co., Ltd.
Region: Fujian, China
Contact: Mr Richard Chen
Price: $1850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	250	Core components:	Bearings, Gears
port:	Xiamen	place of origin; place of origin:	Fujian China
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Warranty:	1 year
Showroom location:	not any	usage:	for stone quarrying
brand:	Bailian	Video external inspection:	if
Health status:	new, new	Supply capacity:	300 sets per month
Marketing Type:	Hot Products of 2019	Packaging Details:	Wooden case or according to your specific requirements
Applicable industries:	Construction Engineering, Energy and Mining	Local service location:	not any
Mechanical test report:	if	type:	stone crusher
Core Components Warranty:	1 year

Efficient Demolition Tool Handheld Rock Hydraulic Rock Splitter

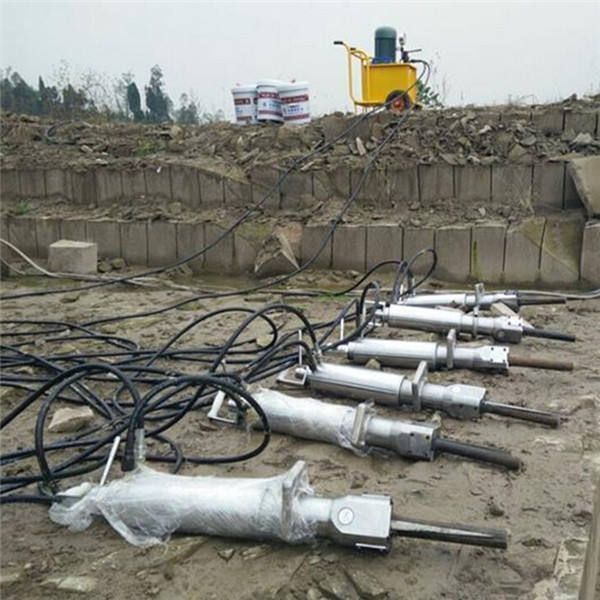

Rock and Concrete Separator

It is a newly developed quarry and civil engineering product of our company, which is mainly suitable for the secondary crushing of large stones and the prescribing and prescribing of large stones. Drive motor: electric/diesel/gasoline/pneumatic.

BS36/38/40 use iron cylinder, BS42/45 have iron cylinder and aluminum alloy cylinder. Aluminum alloy cylinder is lighter and stronger. In addition, we have successfully copied the same cylinder, model from Dada, Germany. It's the C12(N), which has the same shape, the same parts, and the same performance as the original.

feature:

1) Huge splitting force up to 410 tons

2) Dust-free and near silent operation

3) No vibration

4) Light weight

5) Precision work

6) Always controllable

7) For close range and hard to access places.

8) Easy to handle

Specification:

1. Hydraulic pump set

A) Motor drive model
Power supply model	Overall size (mm)	Weight (kg)	Oil pump station reserves (L)	engine power	Working pressure (MPa)	Flux (L/m)	Number of traction separators (pc)
electric motor		twenty three	5	0.75KW(220V/380V)	55-60	0.7	1
	384280620	75	30	3KW(380V)	55-60	2	1-3
				7.5KW(380V)	55-60	13	1-10

B) Gasoline engine driven model
Power supply model	Overall size (mm)	Weight (kg)	Oil pump station reserve (L)	engine power	Working pressure (MPa)	Flux (L/m)	Number of traction separators (pc)
gasoline model	12001170800	100	40	7.5HP	55-60	2-13	1-10

C) Diesel Engine Drive Model
Power supply model	Overall size (mm)	Weight (kg)	Oil pump station reserve (L)	engine power	Working pressure (MPa)	Flux (L/m)	Number of traction separators (pc)
Diesel engines	11501180940	260	40	5.15KW	55-60	2-13	1-10

D) Pneumatic drive model
Power supply model	Overall size (mm)	Weight (kg)	Oil pump station reserves (L)	Rated power (kw)	Working pressure (MPa)	Oil Flux (L/m)	Number of traction separators (pc)
Air Motor	384280620	70	30	4.10	55-60	2-13	1-10

2. Hydraulic cylinder:

Required Aperture	minute. Required drilling depth	split distance	split time	Theoretical Splitting Force	actual split power	Cylinder weight
Φ32-35mm	≥300mm	10-30mm	5-12 seconds	380T	220T	20kg
Φ35-38mm	≥400mm	10-35mm	5-12 seconds	560T	310-320T	25kg
Φ38-42mm	≥500mm	10-40mm	5-12 seconds	680T	410-120T	32 kg
