NEW Darda Hydraulic Rock Splitter C12 with Hydraulic Pump

Supplier: Xiamen Bestlink Factory Co., Ltd.
Region: Fujian, China
Contact: Mr Richard Chen
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Rock Splitter;	Packaging Detail:	Wooden cases or according to your specific requirements;
After-sales Service Provided:	Online support,Video technical support,Engineers available to service machinery overseas;	Warranty:	1 Year;
Brand Name:	BESTLINK;	Place of Origin:	Fujian China;
Supply Ability:	300 Set/Sets per Month;	Usage:	For stone/rock/block quarrying;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Condition:	New,New;
Applicable Industries:	Construction works ,Energy & Mining;	Port:	Xiamen;

NEW Darda Hydraulic Rock Splitter C12 with Hydraulic Pump

Rock and concrete splitter

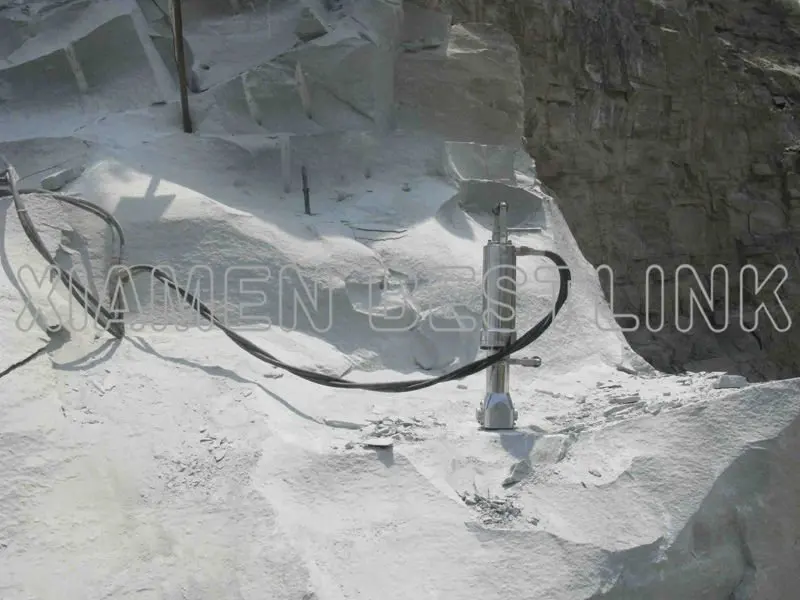

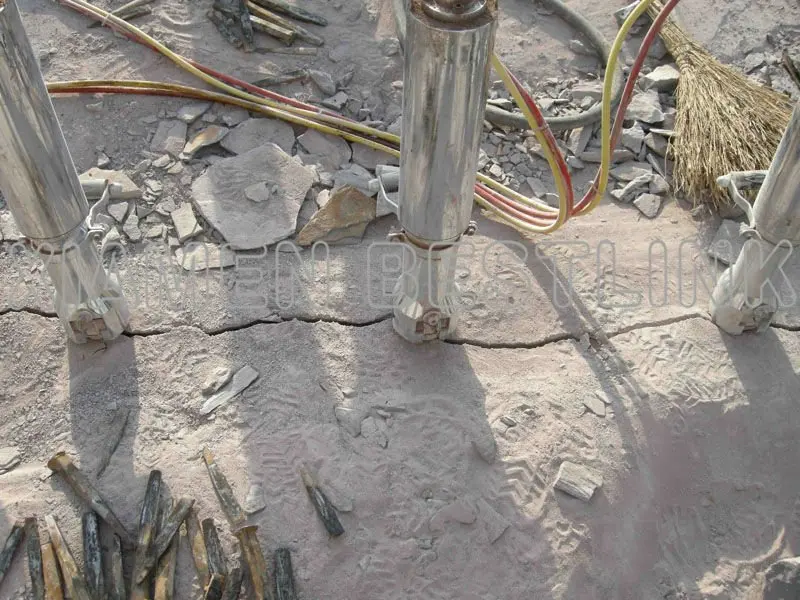

It is our newly developed products for quarrying and civil construction, which is mainly applicable to the secondary breaking of large boulders, squaring breaking of large boulders ,squaring blocks. Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.

BS36/38/40 uses Iron Cylinders, BS42/45 have both Iron and Aluminium Alloy cylinders. Aluminium Alloy cylinder is ighter and stronger. Besides, we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it is with the same shape,same parts and same performance as the original one.

Features:

1)Enormous splitting force up to 410 tons

2)Dust free and near silent operation

3)Vibration free

4)Light weight

5)Precision work

6)Always controllable

7)For use in close quarters and hard to access places.

8)Easy handling

Specifications:

1.Hydraulic Pump pack

A) Electric motor driven model
Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves (L)	Engine power	Working pressure(MPa)	Flux (l/m)	Towable of splitter quantity(pc)
Electric motor		23	5	0.75KW(220V/380V)	55-60	0.7	1
	384280620	75	30	3KW(380V)	55-60	2	1-3
				7.5KW(380V)	55-60	13	1-10

B) Gasoline engine driven model
Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves(L)	Engine power	Working pressure(MPa)	Flux(L/m)	Towable of splitter quantity(pc)
Gasoline model	12001170800	100	40	7.5HP	55-60	2-13	1-10

C) Diesel engine driven model
Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves(L)	Engine Power	Working pressure(MPa)	flux(L/m)	Towable of splitter quantity(pc)
Diesel engine	11501180940	260	40	5.15KW	55-60	2-13	1-10

D) Pneumatic driven model
Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves (L)	Rated power(kw)	Working pressure(MPa)	Oil flux(L/m)	Towable of splitter quantity(pc)
Air motor	384280620	70	30	4.10	55-60	2-13	1-10

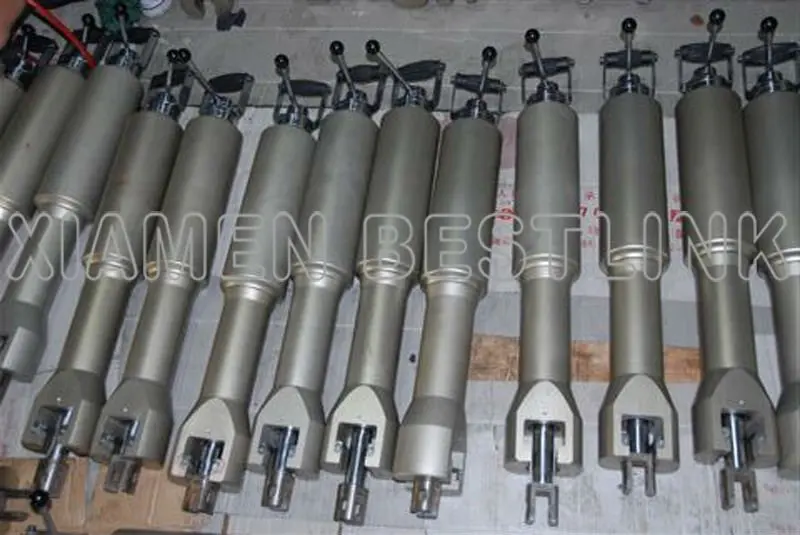

2.Hydraulic cylinder:

bore diameter required	Min. bore depth required	Splitting distance	Splitting time	Theoretic spliting power	Actual split power	Cylinder weight
Φ32-35mm	≥300mm	10-30mm	5-12s	380T	220T	20kg
Φ35-38mm	≥400mm	10-35mm	5-12s	560T	310-320T	25kg
Φ38-42mm	≥500mm	10-40mm	5-12s	680T	410-120T	32kg
