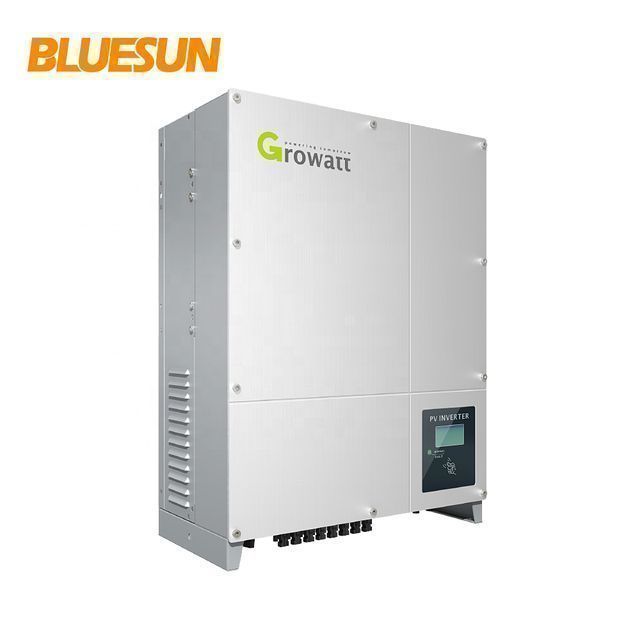

Growatt wind turbine inverter grid connection inverter 3 phase 10kw 20kw 30kw 40kw 50kw solar inverter
- 1108.00 10 - 49 sets
- 1085.00 50 - 99 sets
- 1056.00 >=100 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| place of origin; place of origin: | Jiangsu, China | Inverter efficiency: | 10 to 50KW |
| output type: | three times | Noise emission: | <50dB(A) |
| Protection class: | IP65 | model: | Growatt MOD 10000TL3-X |
| Packaging Details: | Cartons and pallets, standard international packaging | Output current: | 16-64.5A |
| size: | 470*754*270mm | The output voltage: | 230/400V AC or 277/480V AC |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal,Escrow AlibabaTrade Assurance | Cooling concept: | Intelligent cooling |
| type: | DC/AC inverter | Original Equipment Manufacturer: | accepted |
| self-consumption: | <1W | brand: | Growatt |
| Operating temperature: | 25℃~+60℃ | application: | Solar System Home |
| weight: | 48kg | Warranty: | 5 years/10 years optional, 5 years |
| Input voltage: | 200-1000V DC | Topology: | Transformerless |
| Supply capacity: | 10000 sets per week | Packaging Preview: | |
| Output frequency: | 50Hz/60Hz | port: | Shanghai/Shenzhen |
| Certificate: | ISO 9001/CE/IEC/TUV,ETL TUV CE |

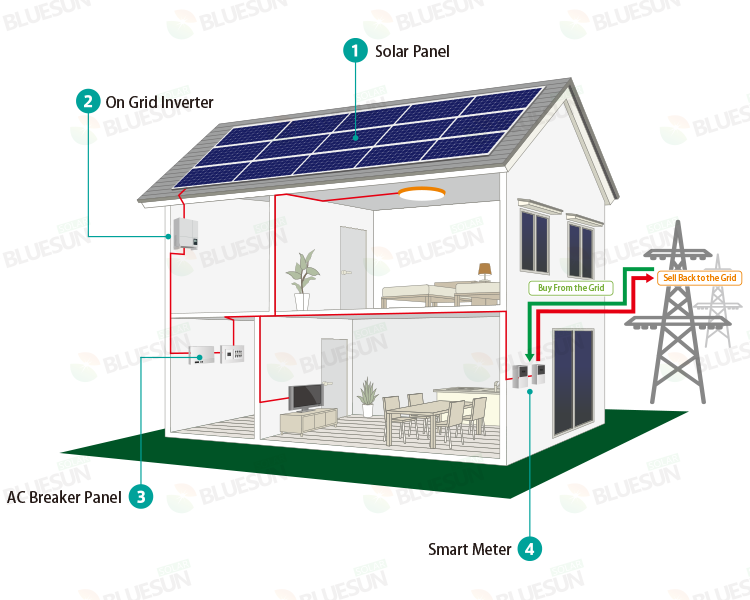

Grid inverter

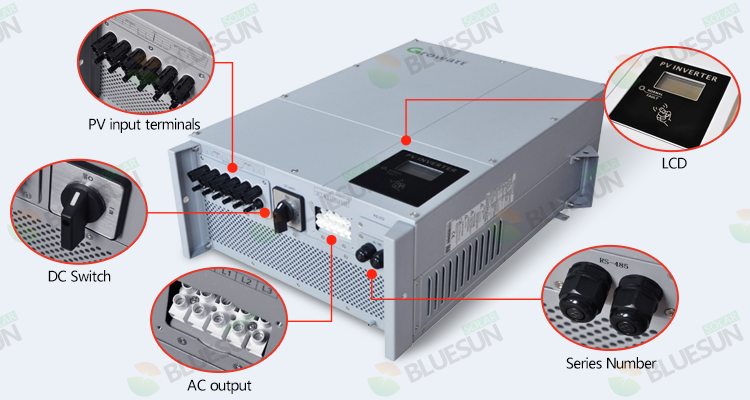

Equipment and Details
data sheet | Growatt 10000UE | Growatt 12000UE | Growatt 18000UE | Growatt 20000UE | ||||
Input data | ||||||||
Maximum DC power | 11000W | 13200W | 19800W | 22000W | ||||
Maximum DC voltage | 1000V | |||||||
Starting voltage | 350V | |||||||
PV voltage range | 180-1000V | |||||||
MPP voltage range | 300V-1000V/600V | |||||||
Full load DC voltage range | 400-800V | |||||||
| Number of MPP trackers/ String per MPP tracker | 2/2 | |||||||
Maximum input current | 15A/15A | 17A/17A | 23A/23A | 26A/26A | ||||
Maximum input current per string | 20A | |||||||
Output (AC) | ||||||||
Rated AC output power | 10KW | 12KW | 18KW | 20KW | ||||
maximum. AC output power | 10KVA | 12KVA | 18KVA | 20KVA | ||||
maximum. inspecting power | 16A | 19A | 28.6A | 32A | ||||
| maximum. Output current scope | 230V/400V184-275V | |||||||
Power factor at rated power | 1 | |||||||
Displacement power factor configurable | 0~0.8 lead 0~0.8 lag | |||||||
THDI | <3% | |||||||
AC connection | 3/N/PE, 3W+PE(optional) | |||||||
efficiency | ||||||||
maximum efficiency | 98.0% | |||||||
European Union | 97.5% | |||||||
MPPT efficiency | 99.5% | |||||||
protective device | ||||||||
DC reverse polarity protection | Yes | |||||||
DC switch per MPPT | Yes | |||||||
Output AC overcurrent protection | Yes | |||||||
Output AC Overvoltage Protection - Varistor | Yes | |||||||
Ground fault monitoring | Yes | |||||||
grid monitoring | Yes | |||||||
Integrated omnipolar sensitive leakage current monitoring unit | Yes | |||||||
General data | ||||||||
Dimensions (W/H/D) mm | 490/740/235 | 490/740/235 | 570/740/235 | 570/740/235 | ||||
range of working temperature | -25℃ ~ +60℃ Derating above 45℃ | |||||||
noise emission | <55dB(A) | |||||||
Own use (night) | <0.5W | |||||||
Standby consumption | 12W | |||||||
topology | Transformerless | |||||||
cooling concept | Intelligent cooling | |||||||
Environmental grade | IP65 | |||||||
high | 2000 meters | |||||||
Relative humidity | 0-100% | |||||||
feature | ||||||||
DC connection | H4/PV connector (optional) | |||||||
AC connection | screw terminal | |||||||
exhibit | LCD Monitor | |||||||
interface | RS232/RS485/Ethernet/RF/WIFI | |||||||
Warranty | 5 years/10 years | |||||||
