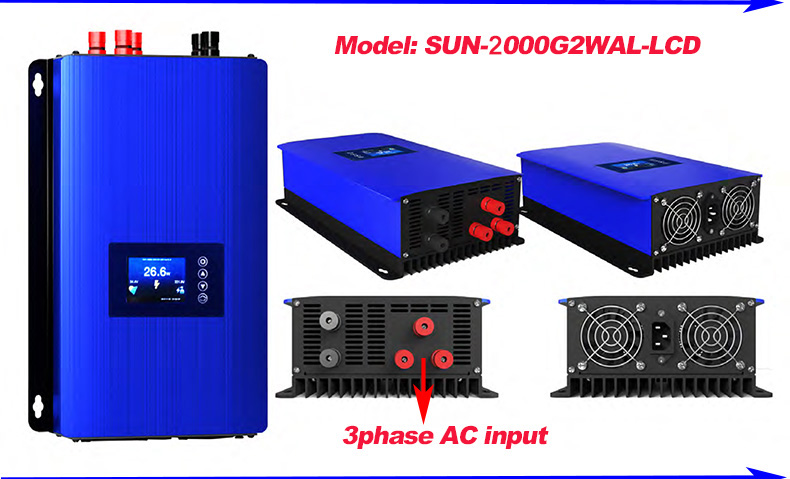

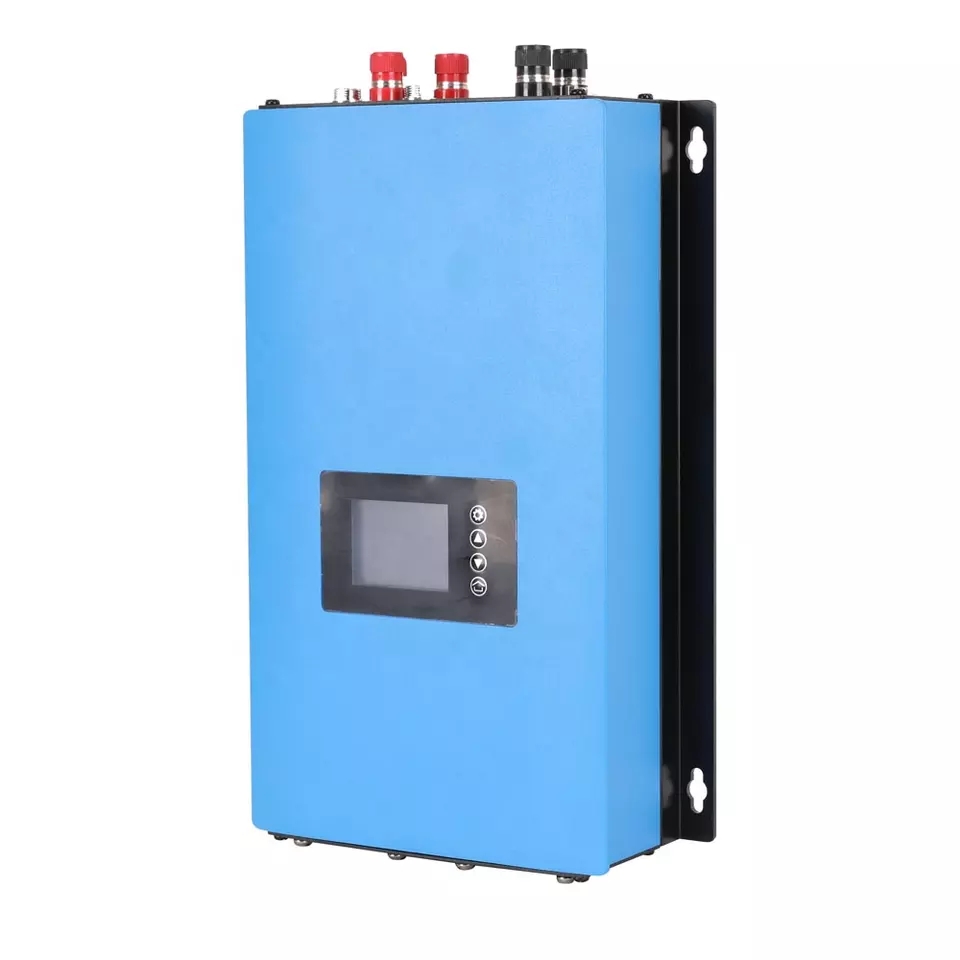

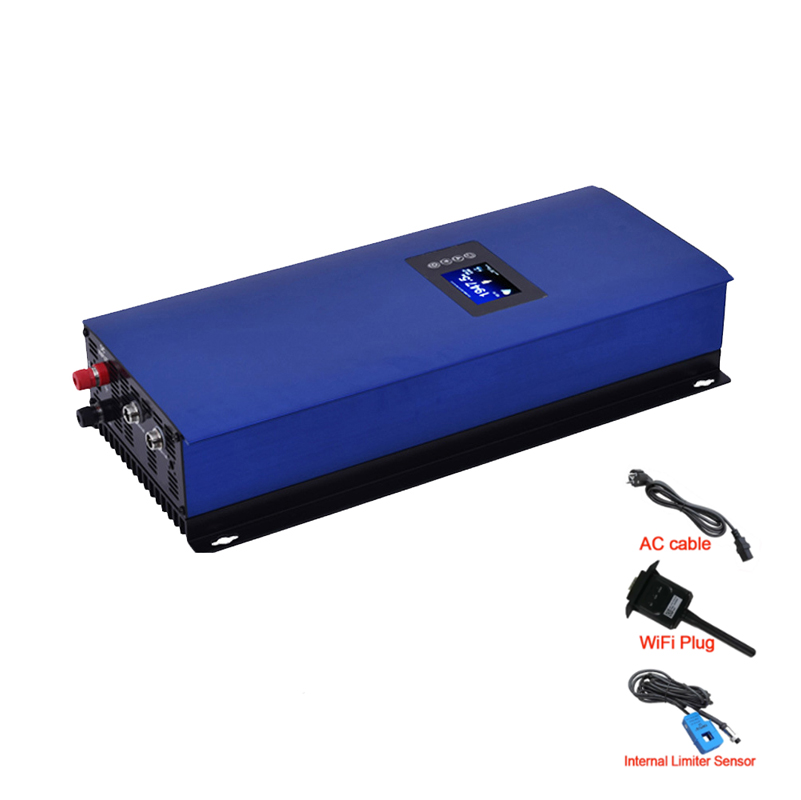

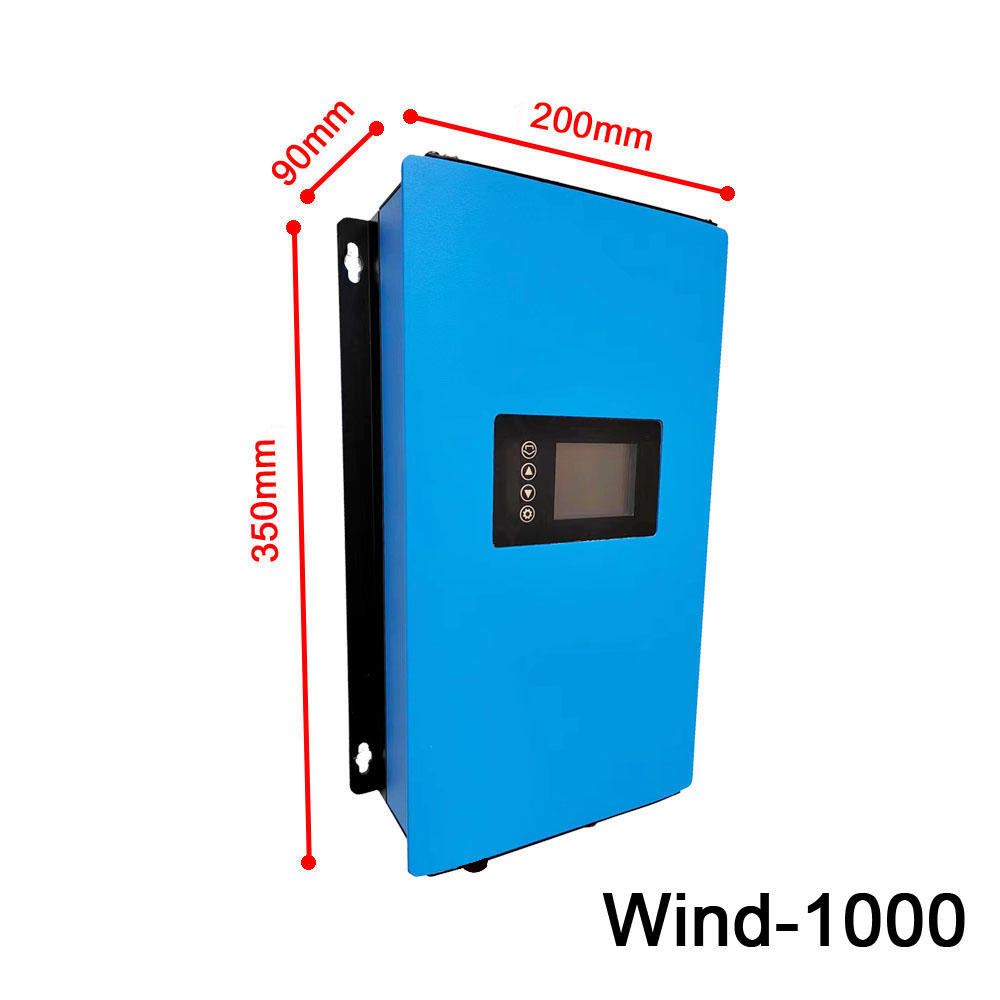

1000W/2000W Wind Power Grid-connected Inverter Wind Power Grid-connected Inverter Wind Turbine Generator

Supplier: Dongguan Snat Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rita Wong
Price: $235.00 / 1 - 5 pieces
$229.00 / 6 - 19 pieces
$220.00 / >=20 pieces
Min. Order: 1 piece

Click here to contact

Product details

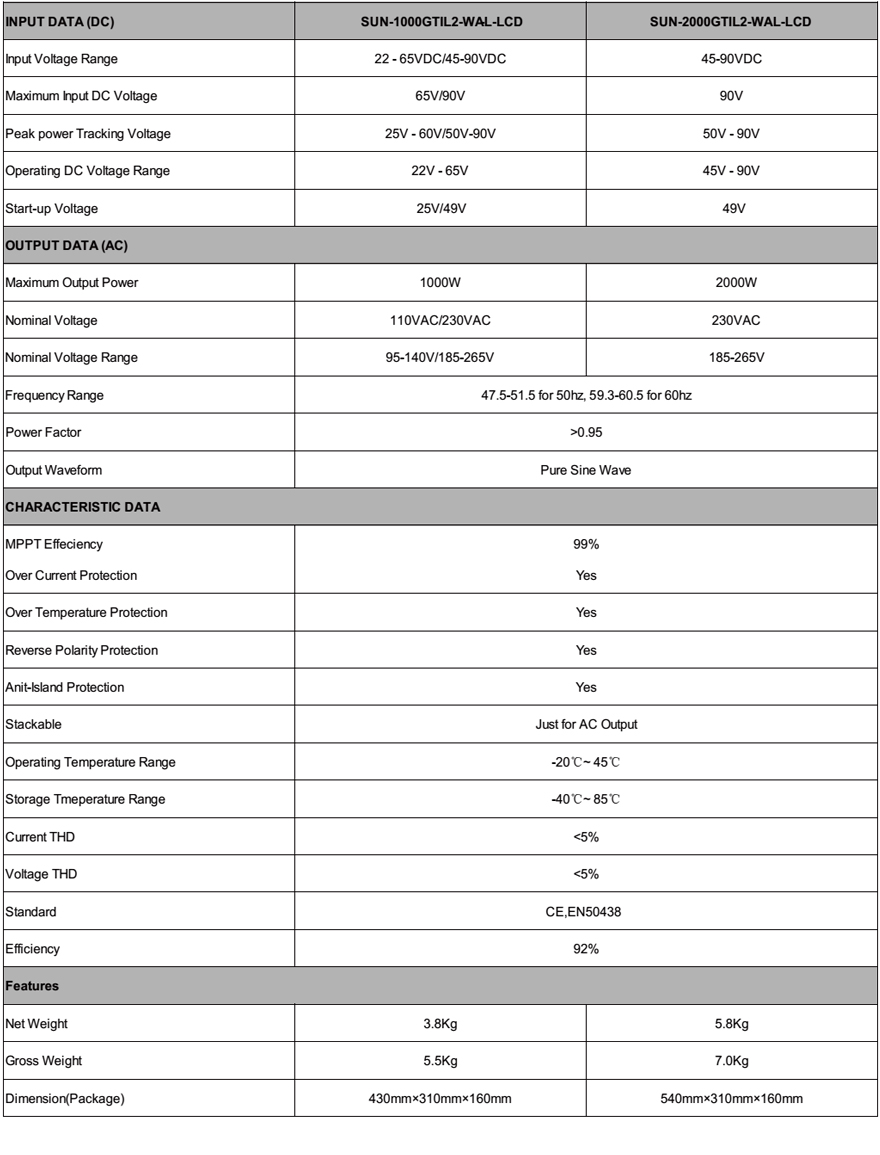

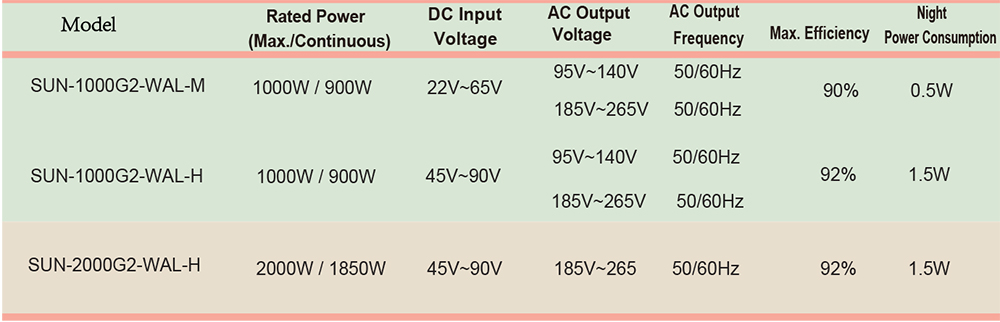

Output frequency:	50Hz/60Hz	MPPT efficiency:	99%
feature:	2000W inverter	Input voltage:	22-65VDC/45-90VDC
Origin:	Guangdong, China	Output waveform:	sine wave
weight:	8 kg	brand:	Snatum

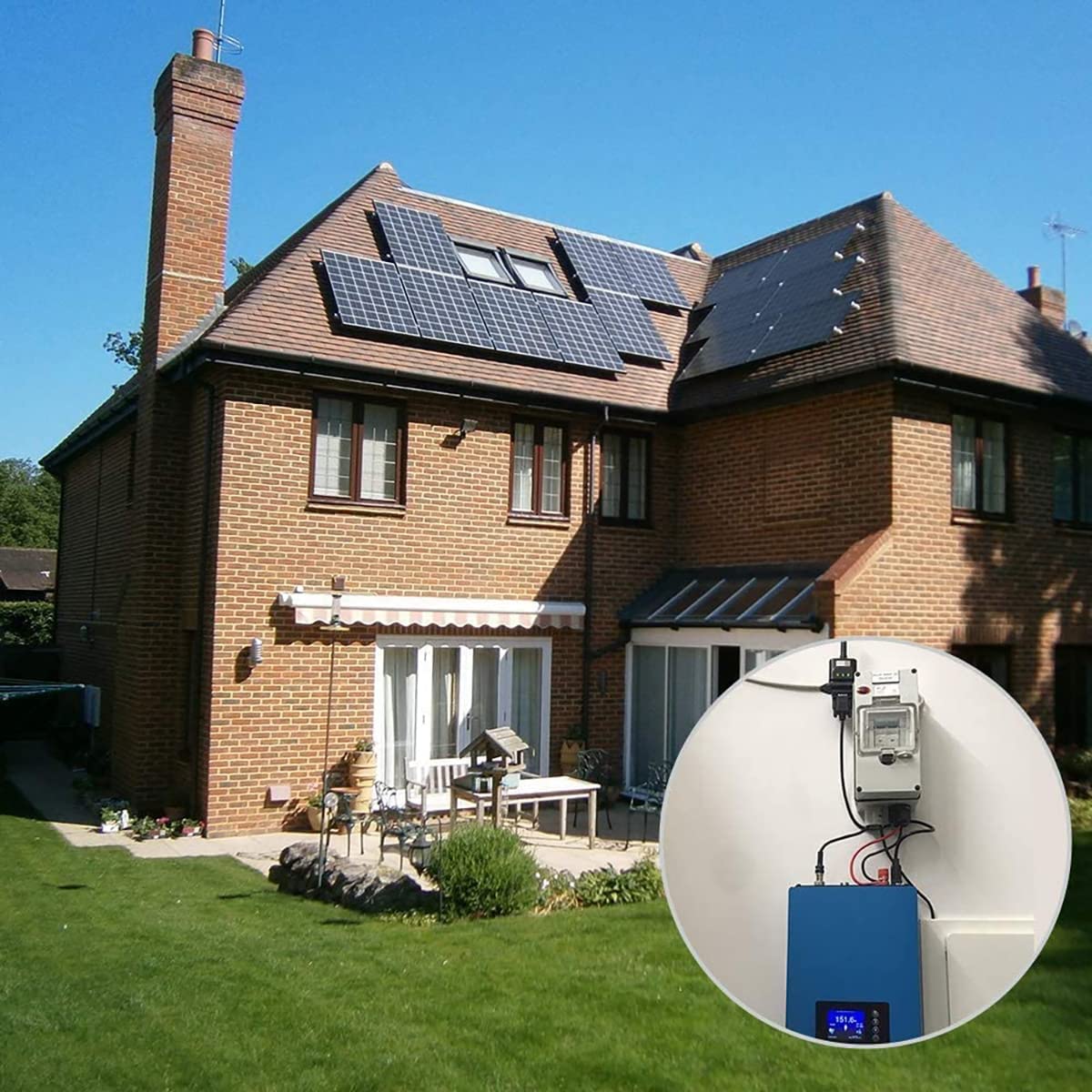

application:	Grid-connected solar system	color:	blue
model:	1kW/2kW	The output voltage:	110VAC/230VAC
output type:	single	Input voltage:	45-90V
Key words:	Solar inverters	Certificate:	CE
Protect:	Overcurrent	Supply capacity:	1000 pieces per week
Inverter Efficiency:	92%	port:	Shenzhen/Guangzhou
Output Power:	2000W	Starting voltage:	25V/49V
payment terms:	Western Union, L/C, D/P, D/A, T/T, MoneyGram

Product Description

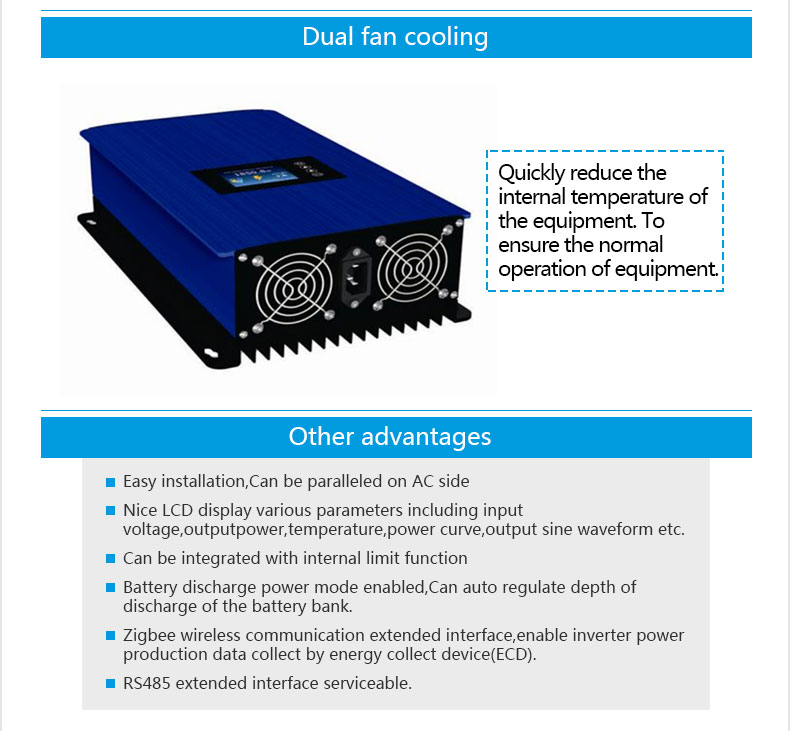

Features of solar grid-connected inverter:

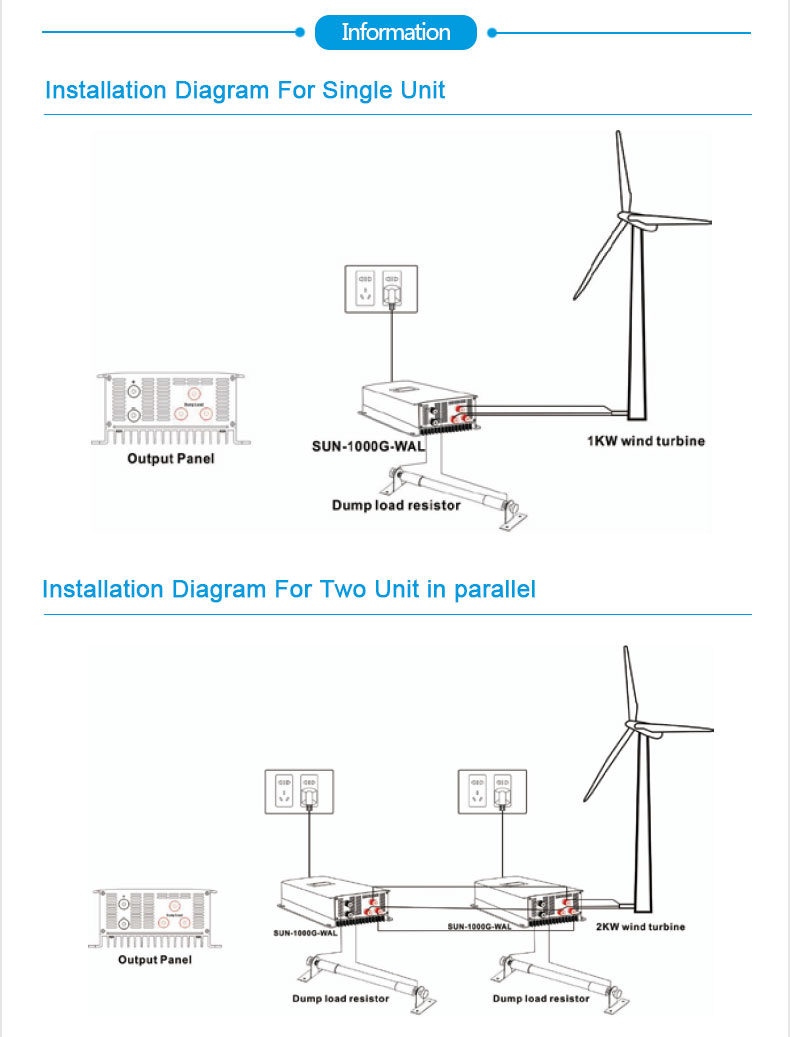

It is easy to install and can be connected in parallel on the AC side.

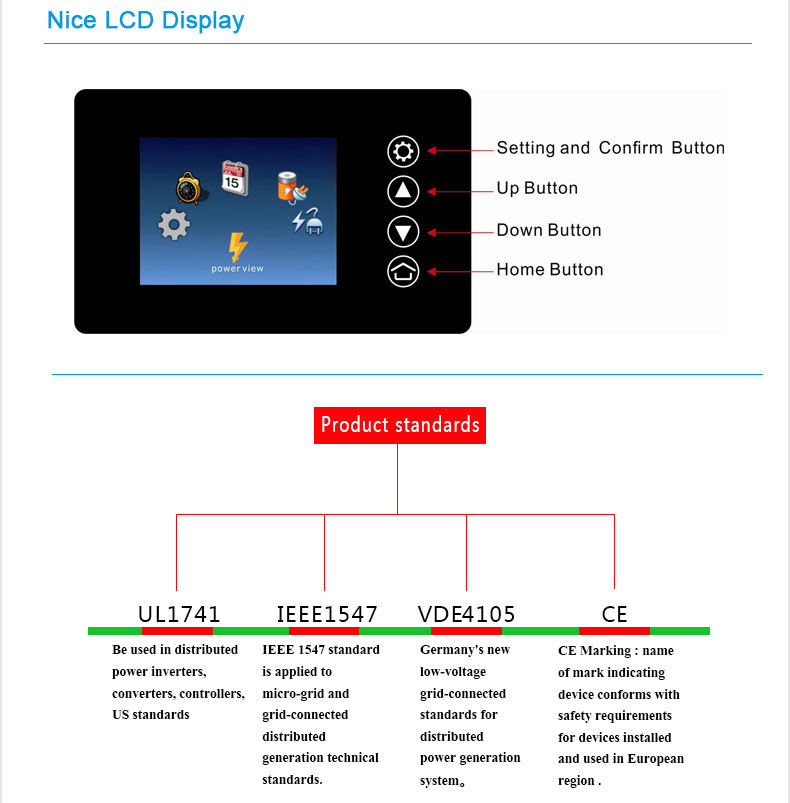

The beautiful LCD display shows various parameters, including input voltage, output power, temperature, form, etc.
Internal limit function can be integrated.
The Wifi wireless communication expansion interface can realize the power generation data of the inverter on the PC or mobile APP.

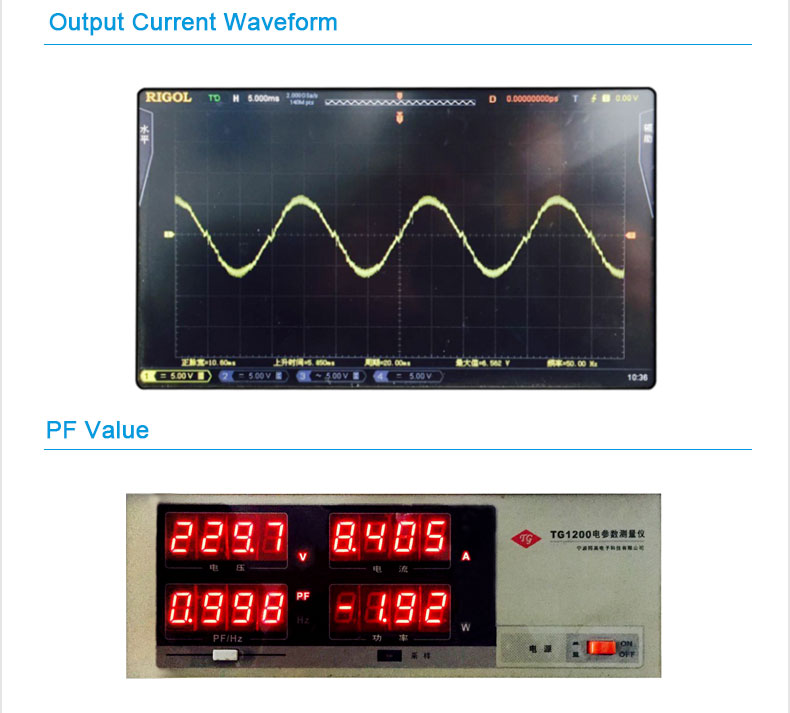

RS485 expansion interface is available. The power curve and output sine wave are collected and monitored through the wifi plug.

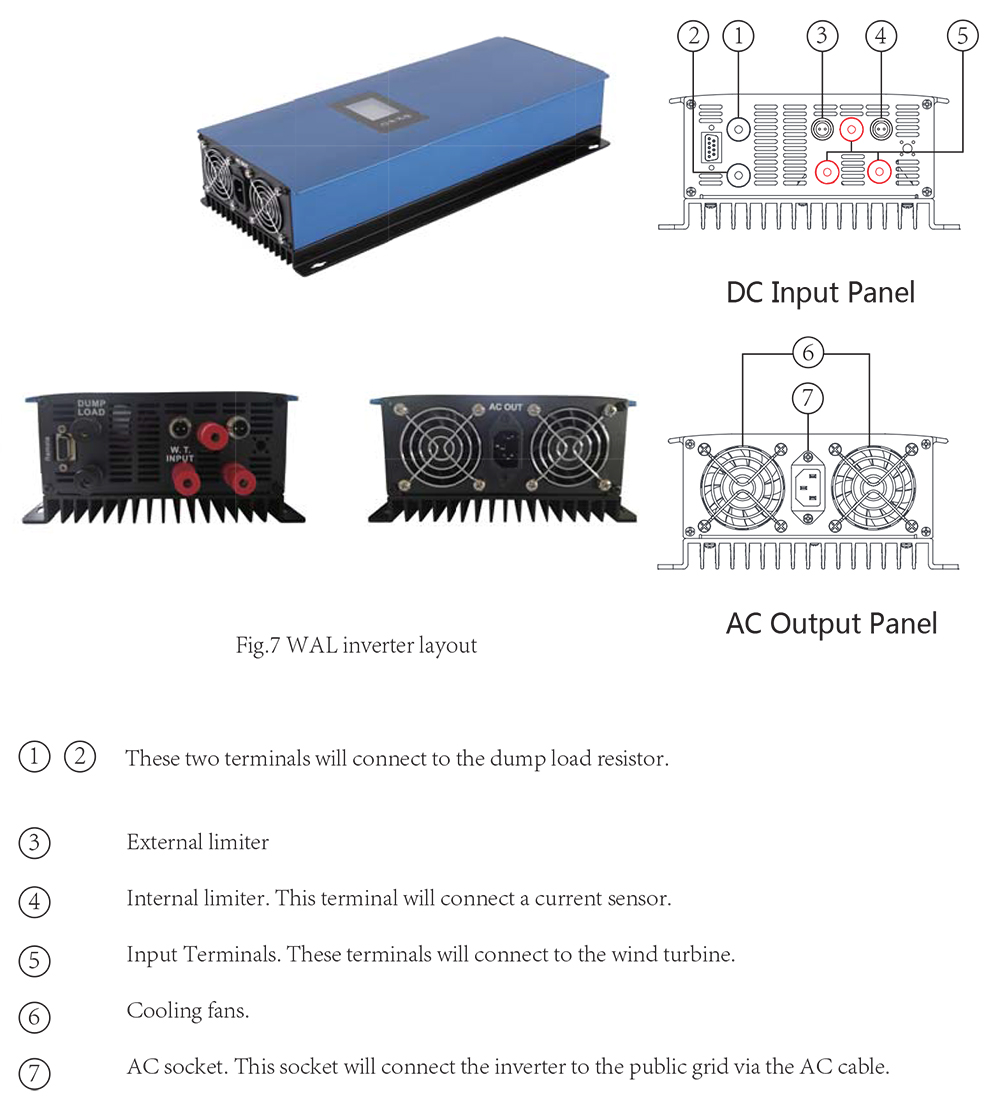

Has a built-in dump loading function.

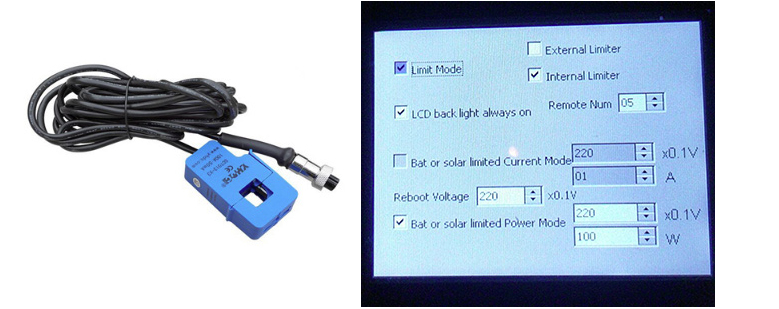

The inverter display screen can display a lot of information, the main interface of the display screen and the description of the icons are shown above. Setting menu: Select the setting menu icon on the main screen interface, click the confirmation button to enter the interface shown in the figure below, in this interface, you can set the LCD backlight to be always on or automatically turn off the backlight after 3 minutes of no operation.

The inverter also integrates internal limiter and external limiter functions to prevent excess power from entering the public grid. Select the internal limiter mode, the inverter will work in the limiter mode, and the output power of the inverter will be determined by the load power. Select the external limiter mode (please select the "with sensor" mode), the inverter needs the external limiter module to work together.

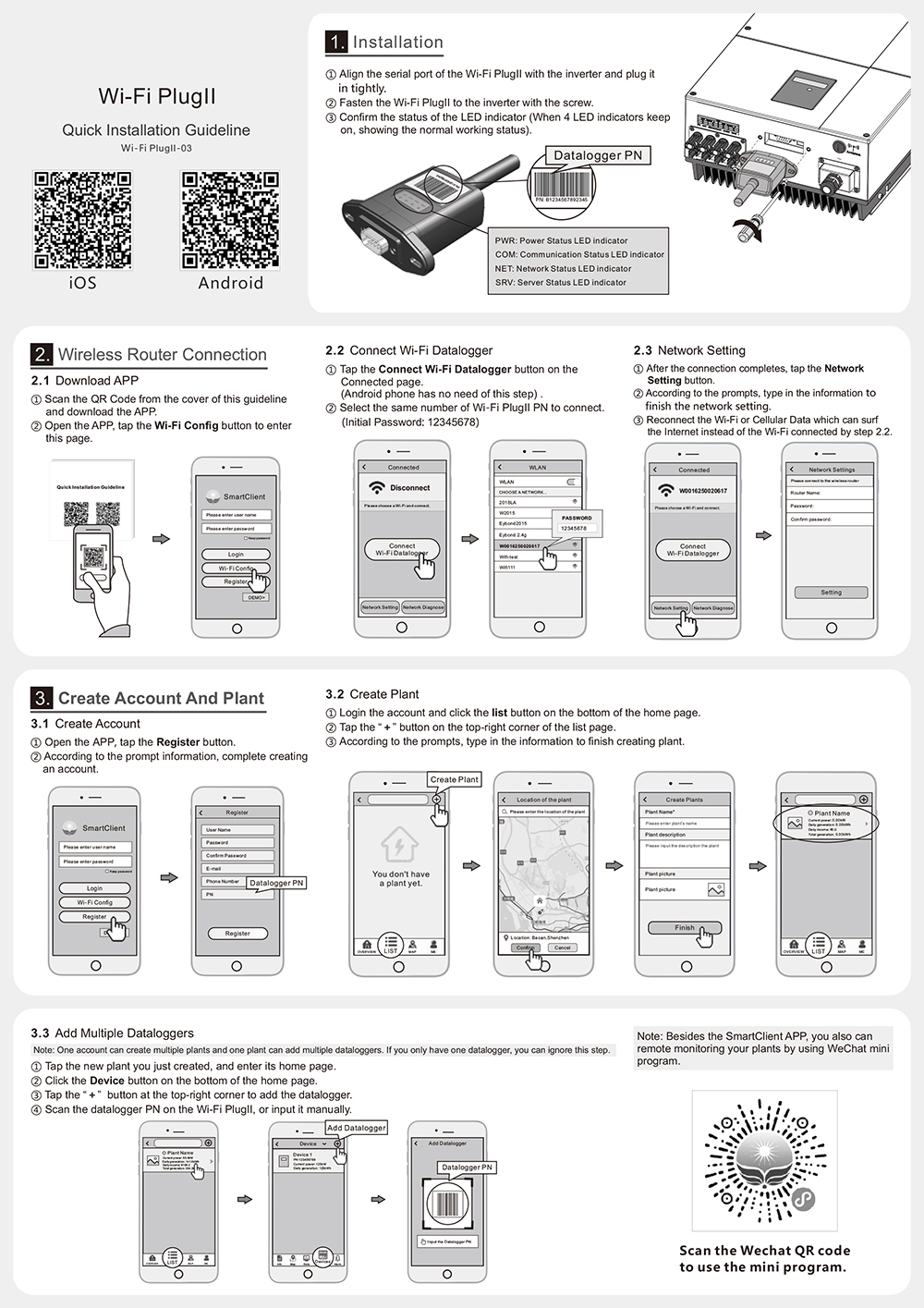

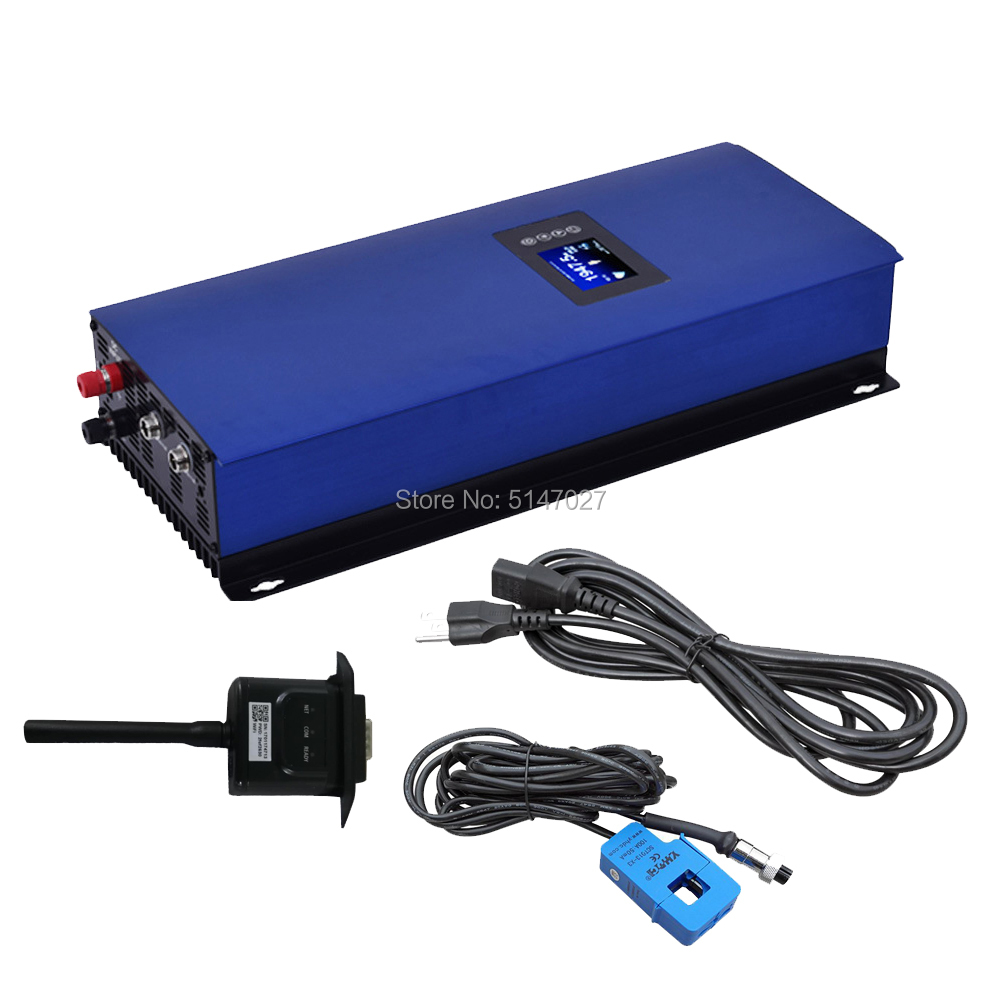

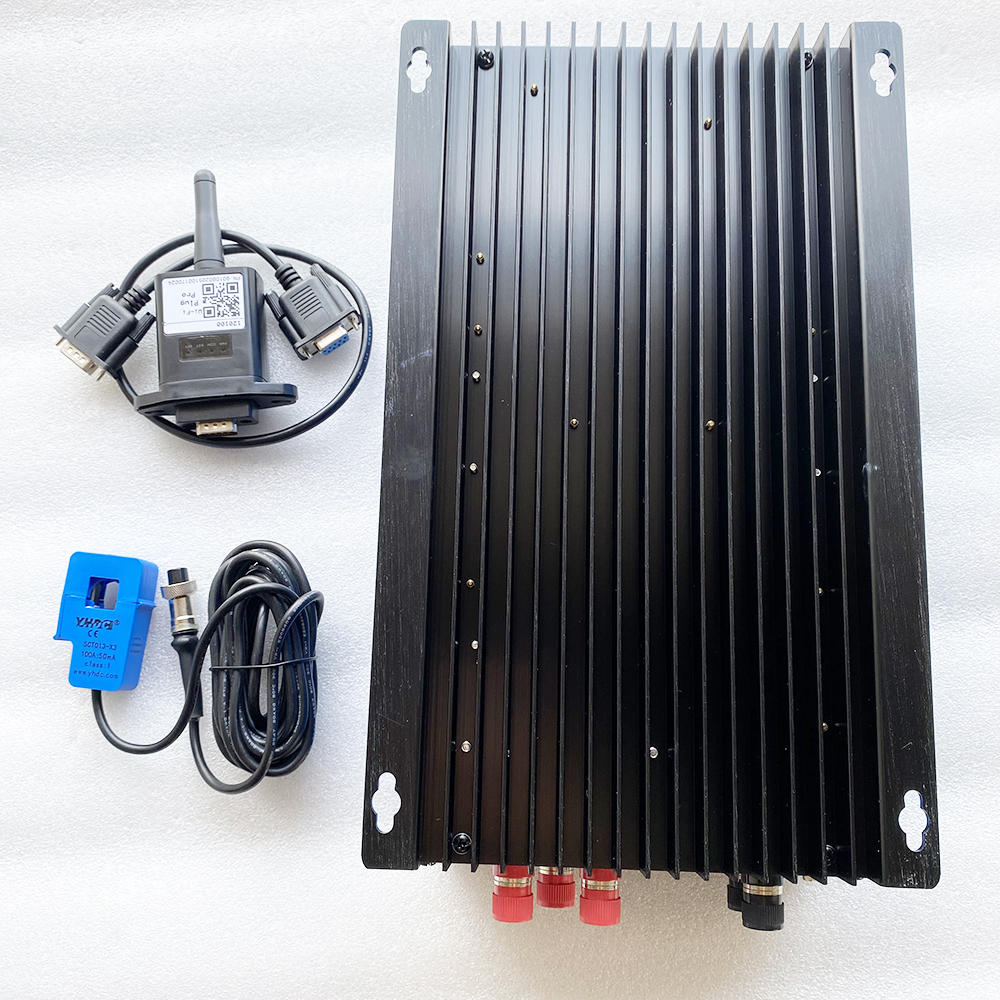

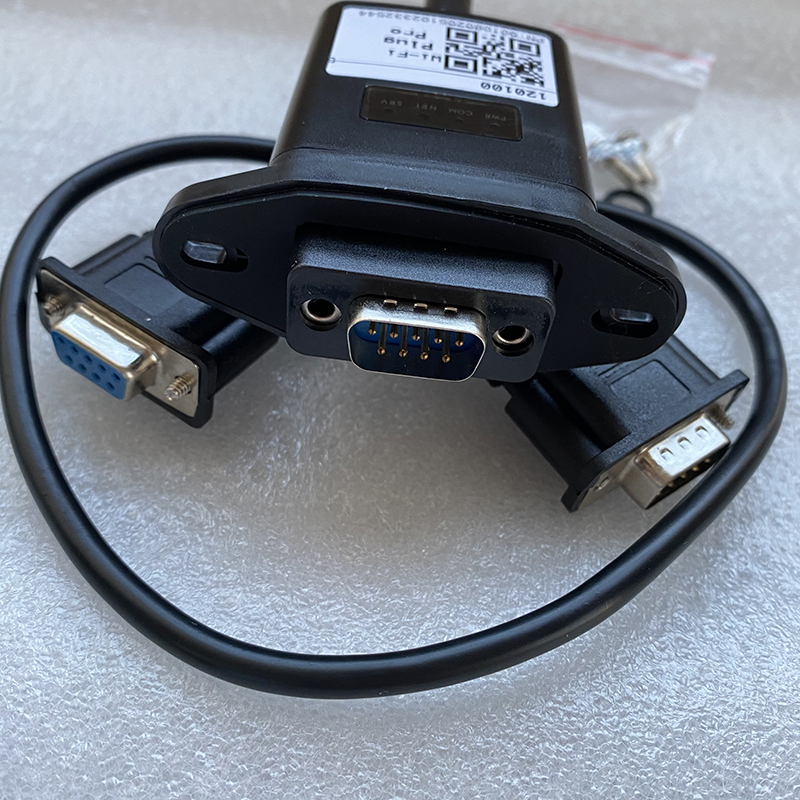

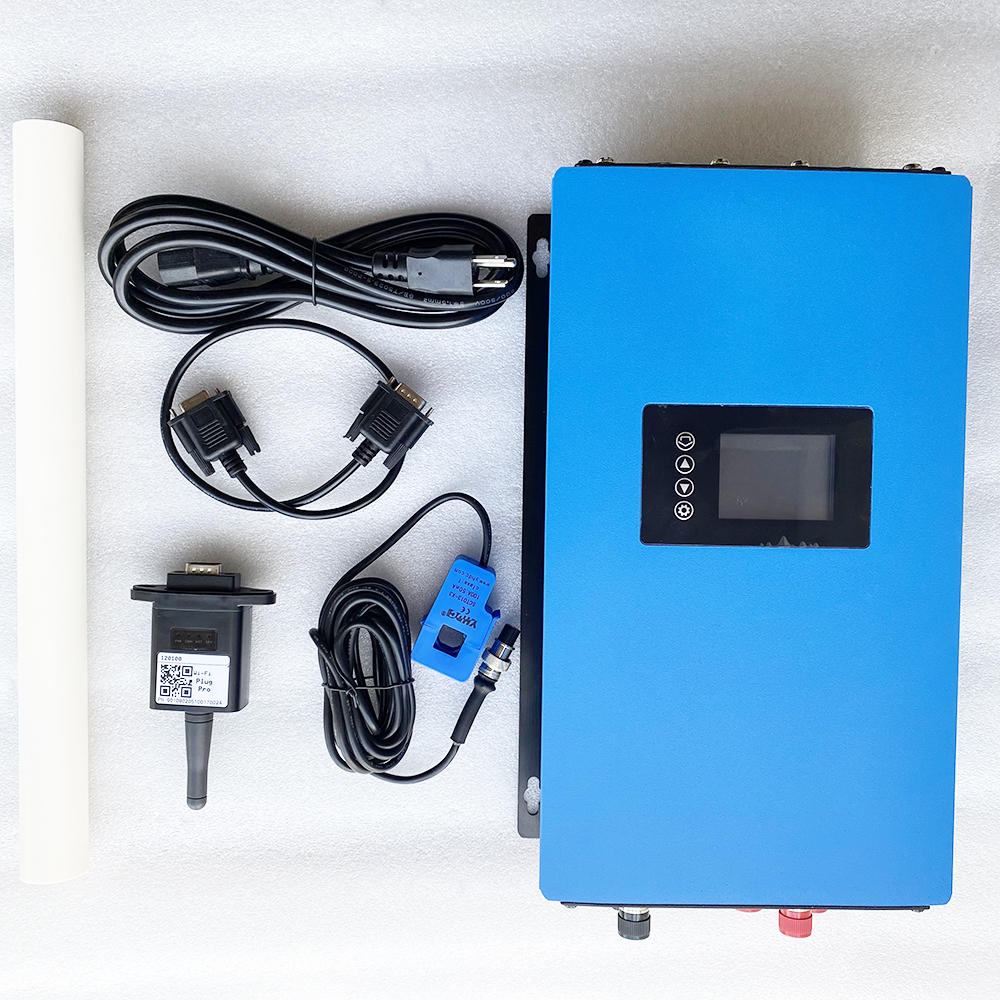

Wifi Port for MPPT 1000W/2000W NEW SUN Grid-connected Inverter
RS485 connected
Network/Mobile App Online Monitoring
Note: This WIFI port must be ordered together with the second generation grid-connected inverter.
NOTE: It will be built into the inverter side.
