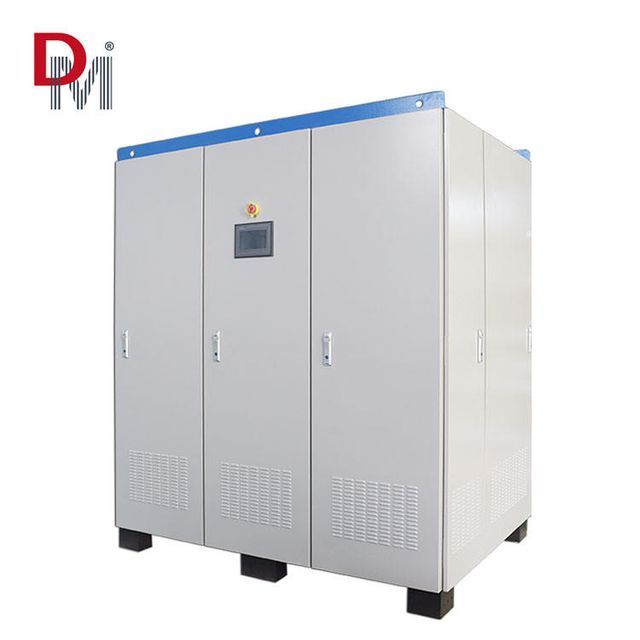

Years of technology accumulation mppt wind-solar hybrid charging inverter 500kw wind-solar hybrid inverter

Supplier: Jinan Deming Power Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms. linfeng jing
Price: $22700.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

model:	DMWG-250KSTL	Origin:	Shandong Province, China
Protect:	Overvoltage and overcurrent	The output voltage:	AC380V400V480V
Inverter Efficiency:	95%	frequency:	50Hz/60Hz
Package preview:		exhibit:	touch screen
Warranty:	2 years	payment terms:	L/C, Western Union, T/T, to be determined
efficiency:	up to 94%	Output current:	380A
port:	Qingdao	Packaging Details:	Wind turbine grid-connected inverter 250KW wooden packaging
Supply capacity:	10 wind turbines grid-connected inverter 250KW per month	Output frequency:	50Hz/60Hz
output type:	three phase	Certificate:	CE ISO9001
Output waveform:	Pure sine wave output	application:	Grid-connected wind power generation system, grid-connected solar energy system
Peak power:	275 kW	Input voltage:	DC 350-700V
rated power:	250 kW	Output Power:	250 kW
brand:	Deming

product description

Performance characteristics of grid-connected wind turbine inverter

The main circuit adopts the DSP chip produced by American TI company, the German Infineon IGBT module, and the drive protection isJapan's Mitsubishi movement, the grid-connected output part uses an isolation transformer, which is safe and reliable.

Using SPWM pulsesWidth adjustment technology, pure sine wave output, automatic synchronous tracking with the grid, power factor close to 1, lowHigh current harmonic content, no pollution and no impact on the power grid.

Wind turbine input maximum power tracking technology (MPPT).

timeheThe fan power curve can be set, the default is 20 points, and the internal extension is 50 points.

7 inch color touch screenDisplay, the system operating data and fault information are clear at a glance, and the parameter setting is convenient.

Grid-connected inverter currentClosed-loop control, controllable and adjustable.

Wide input DC voltage range to meet different needsoccasion.

Frequency disturbance detection technology realizes anti-islanding control.

comprehensive power protection scheme andPerfect self-detection and protection functions, when the system fails, it will stop the grid-connected inverter.

The circuit structure isCompact structure, the highest efficiency is 98%.

Support RS485, WiFi, GPRS, Ethernet and other communication methods. you can monitor

Know the working status of the grid-connected wind power system in real time through PC or mobile phone, and you can also queryHistorical work status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internetthing.

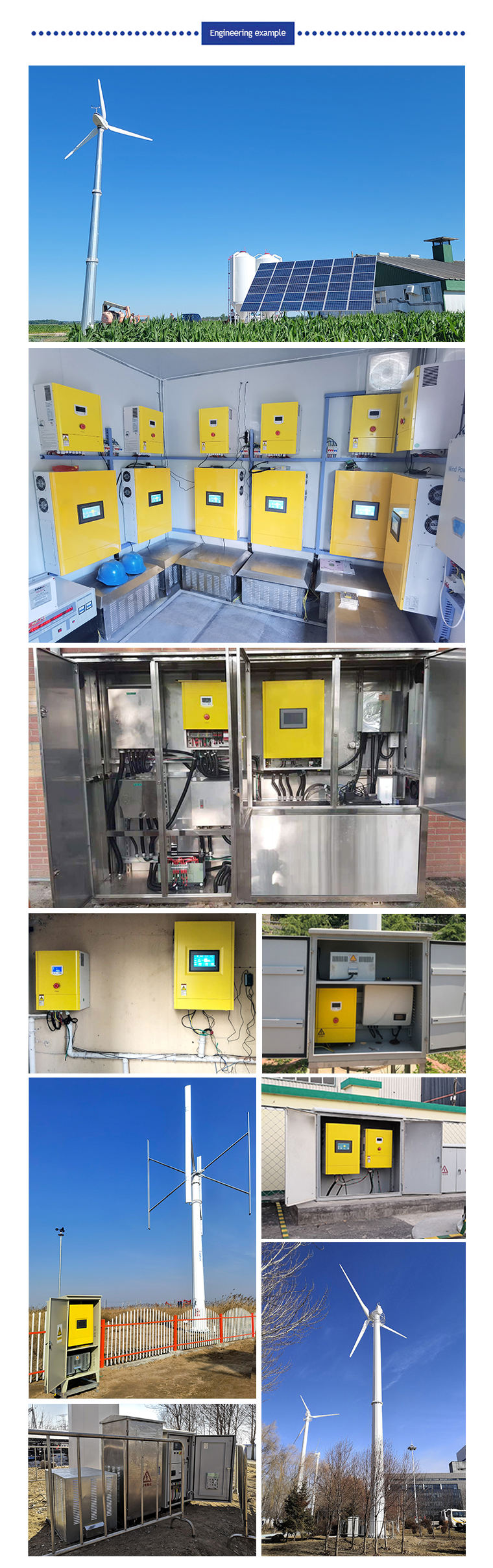

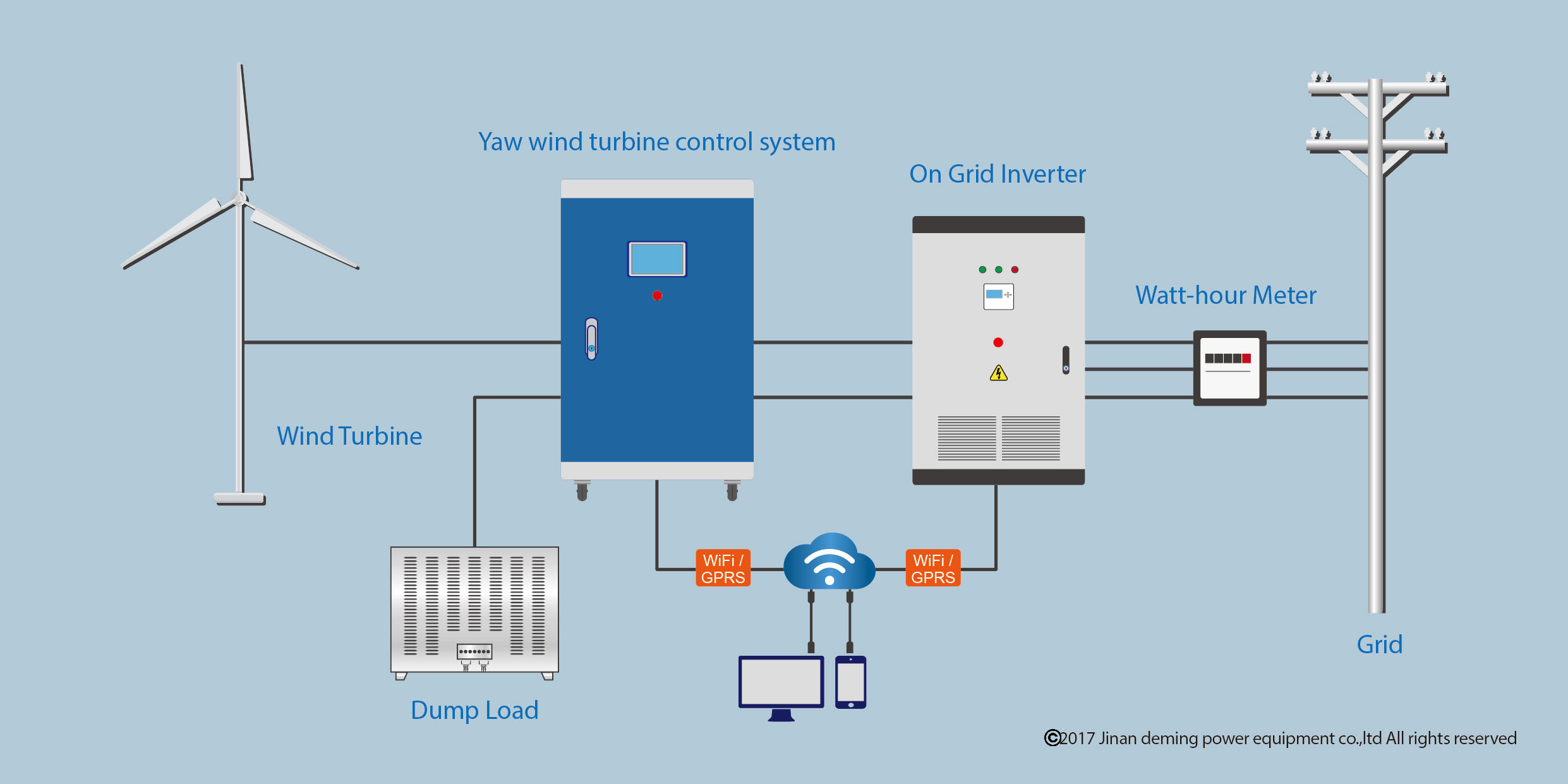

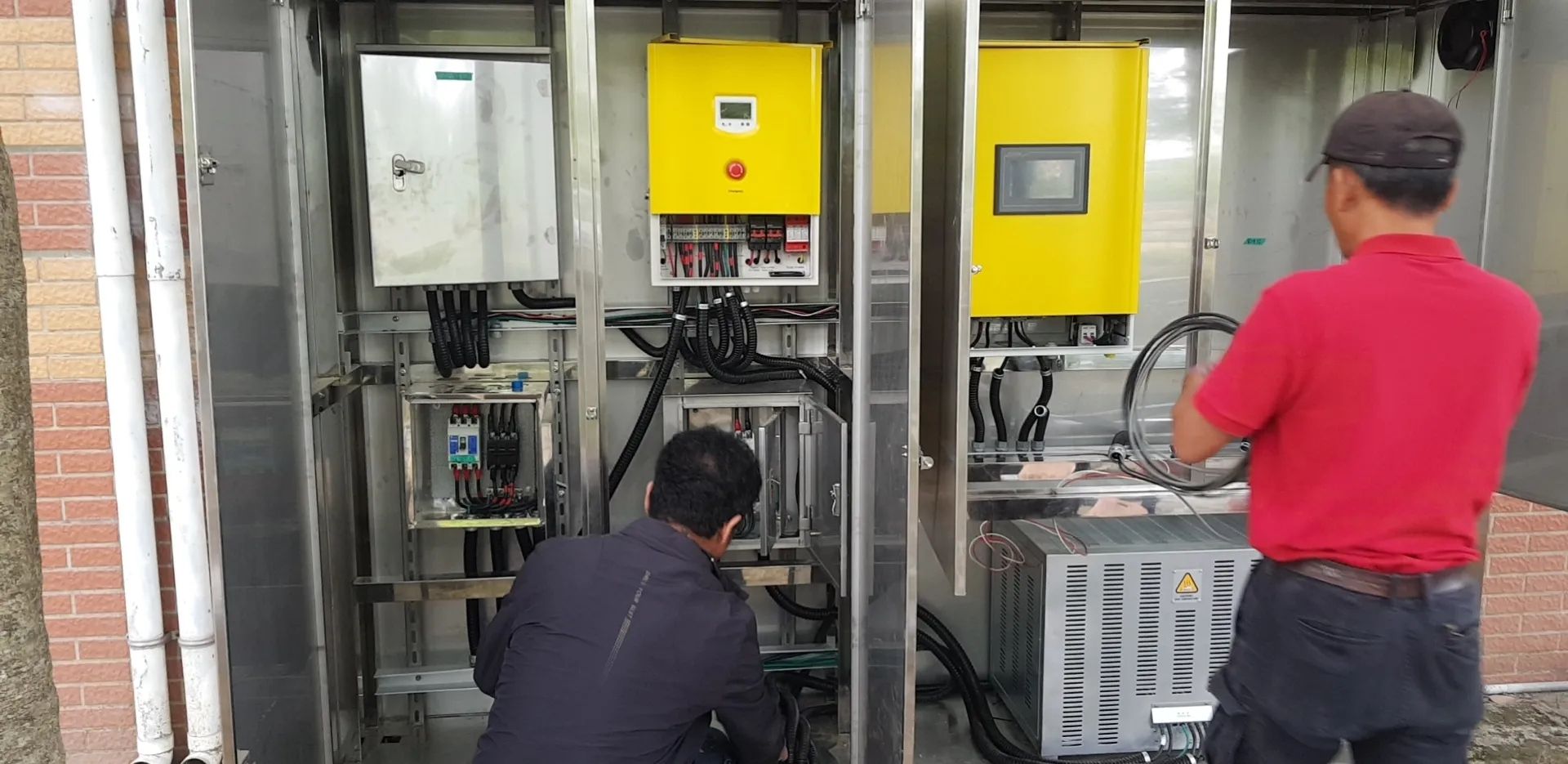

Grid-connected wind turbine system

The grid-connected system of wind turbines is composed of wind turbines, grid-connected controllers, grid-connected inverters, metering devices, power supplies, etc.distribution system. Wind energy is converted to AC power by wind turbines and then converted to DC powerThe grid-connected controller converts electric energy into AC electric energy of the same frequencyThe grid-connected inverter is connected to the grid, and part of the electric energy is supplied to the local load. The remaining power is fed into thegrid.

Product Description

500KW grid-connected wind turbine inverter technical parameters

Grid-connected wind turbine controller

WGMC300K440

WGMC500K440

wind turbine input

strength

300 kW

500 kW

maximum. Control power/current

450kW/750A

750kW/1250A

Fan rated voltage (AC)

380V/440V

Input voltage range

alternating current

0-700V

0-1000V

Brake voltage (DC)

default

650V±1%

Predetermined area

630-660V

Braking current (DC)

default

750A

1250A

Predetermined area

0-750A

0-1250A

braking time

default

10-20 minutes

Predetermined area

0-5000 minutes

* Generator overspeed control

default

>300 rpm

Predetermined area

0-1000 rpm

* Over wind speed control

default

14 m/s

Predetermined area

0-45m/s

manual

Manual brake, *remote control brake (with communication function)

Automatic control function

Unloaded load control, *yaw, *pitch, *mechanical brake, *hydraulic brake,
* Electromagnetic brake

DC output parameter

Output Voltage Range (DC)

0-650V

Constant voltage (DC)

default

620V±1%

Predetermined area

610-640V

Constant current (DC)

default

600A

1000A

Predetermined area

0-600A

0-1000A

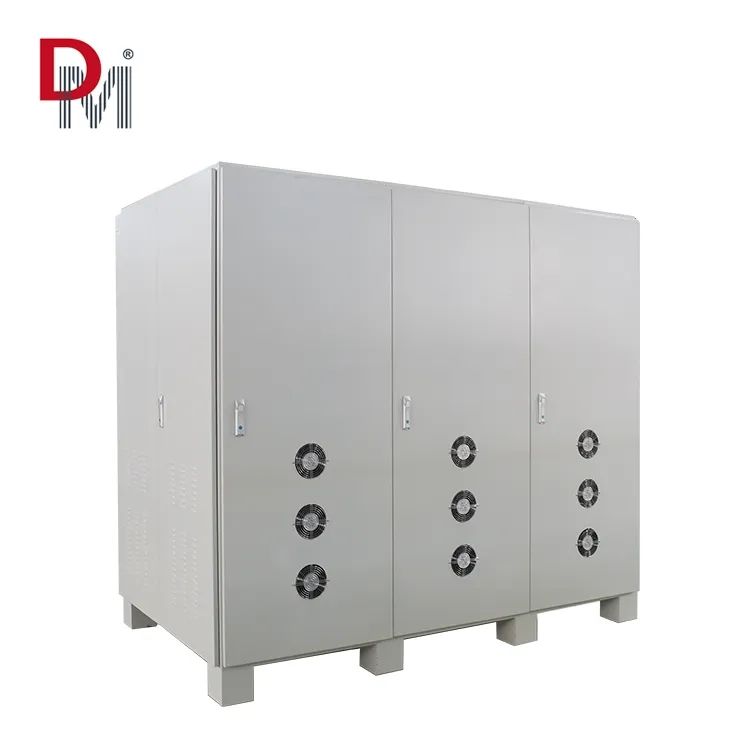

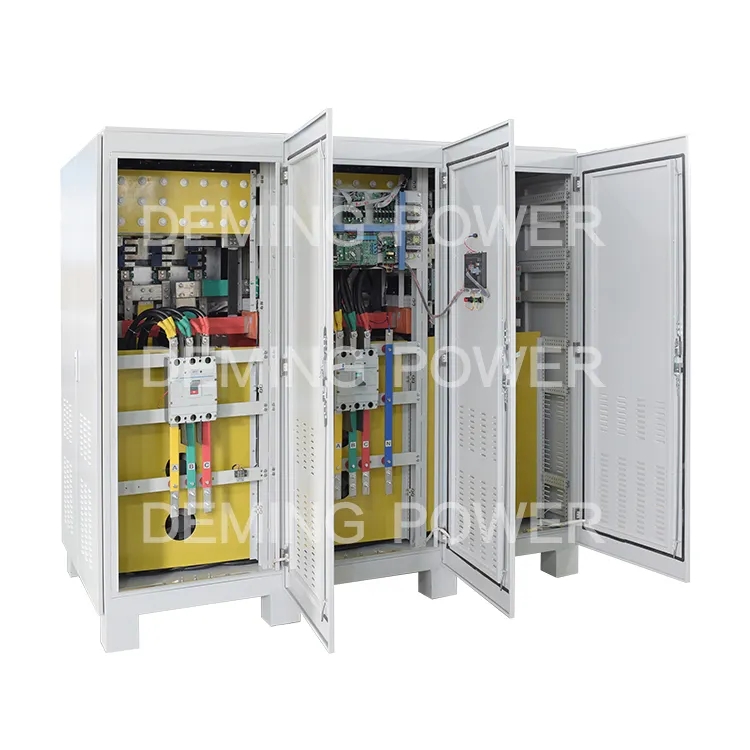

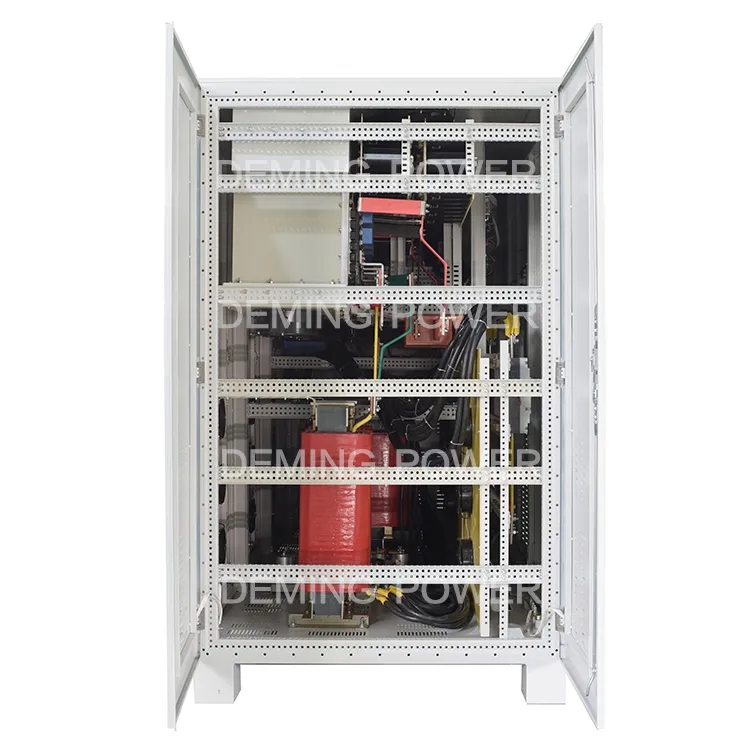

Grid-connected wind turbine inverter

DMWG300K

DMWG500K

Rated output power (AC)

300 kW

500 kW

maximum. Output power (AC)

330 kW

550 kW

Input Voltage Range (DC)

0-800V

MPPT Voltage Range(DC)(DC)

150V-700V

maximum. Input current (DC)

573A

955A

rated current

520.8A

868A

THD Current Harmonics

<3% (at rated power)

power factor

>0.99

maximum. efficiency

96%

Allowable grid voltage range (AC)

220V/380V/440V/480V (three-phase) ±20%

Allowable grid frequency range

50Hz/60Hz±10%

Automatic operating conditions

The DC input and grid meet the requirements, and the inverter runs automatically

Restart time after power failure

2 minutes (adjustable)

General parameters

Function

Rectification, DC output, output voltage control, output current control, unloading control, control parameter setting, wind
Turbo Curve Settings

automatic protection

Control part: overvoltage protection, overcurrent protection, reverse connection protection, lightning arrester
Inverter part: reverse polarity protection, short circuit protection, island effect protection, low voltage ride through, overheating
protection, overload protection, ground fault protection, etc.

exhibit

Touch screen, LCD screen

monitoring content

Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output
Power, * cumulative power generation, * power generation at any time, * speed, * wind speed

degree of protection

IP20 (indoor) IP65 (outdoor)

Telematics

RS485/USB/GPRS/WIFI/Ethernet (optional)

environment

Operate amb. temperature. & Hum-30-60°C, <90% non-condensing

Noise (1m)

<40dB

Refrigeration

Forced air cooling

Inverter size/weight

2010*1060*2100mm 1.8t
