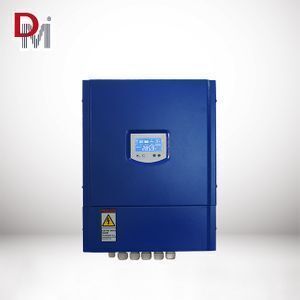

5KW 240V Wind Solar Hybrid Controller With LCD/RS485

For 5000W Wind Generator

Product Overviews

Off-Grid PWM Wind Turbine (Wind generator) Controller

FKJ-B model off grid PWM wind turbine controller Product Characteristics

1. The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T19115.1-2003 national standard also with users’ technical requirements.

2. Big LCD display.The images tell working state visually.Various data show: real-time wind turbine voltage,current,power;solar panel voltage,current,power;battery group voltage, charge current.

3. Two sets of control systems:PWM constant voltage system and three-phase dump load system.

4. When the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.

5. When the battery disconnect or damage, the three-phase dump load will start automatically to avoid the wind turbine idling and runaway accident.

6. The protection function of battery: polarity reverse protection, disconnection and damage protection.

7. Over-charging protection of the battery: When the battery is full, the three-phase dump load will work, the wind turbine will brake and stop charge the battery.

8. Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage,it stops three-phase dump load to recharge battery automatically.

9. The controller is equipped with manual brake switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.

10. The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.

* Solar panel control system is optional.Based on customers' requirement.

* Disel generator port is optional.Control the generator start and stop automatically

* Adopt Modbus Communication protocol. Convenient to carry out the secondary development.

* Adjusting the technical specification via RS485 is available.Convenient to adjust the different wind turbines for professional customers.

* Support WIFI and GPRS.Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate.Both Android and OS are compatible in Mobile.

* For the different wind turbine, the controller can be equipped with mechanical yawing, Rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions.

5kw wind solar hybrid controller

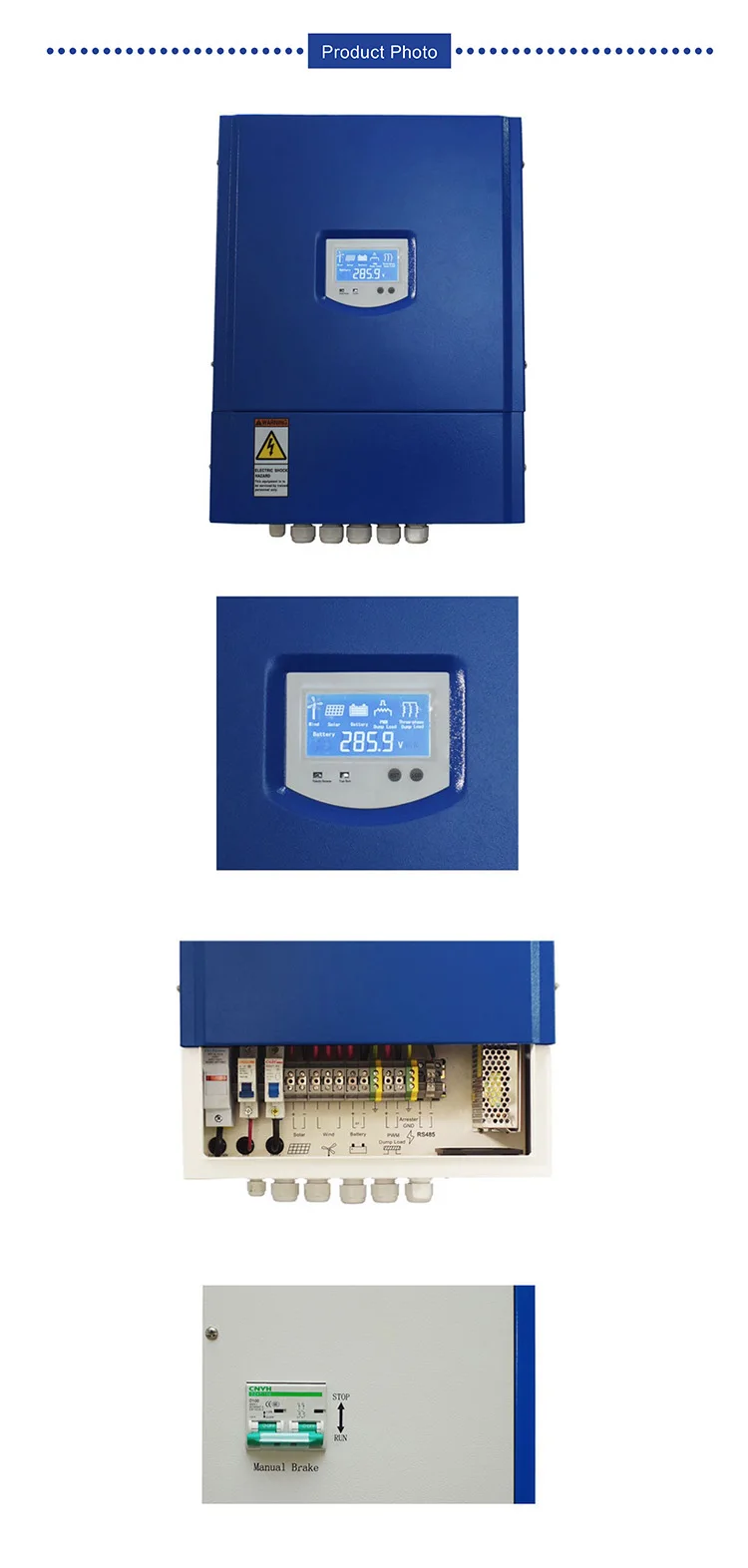

Detailed Images

Schematic diagram

5KW 48Vdc/120Vdc/240Vdc wind solar hybrid charge controller Technical data sheet

Type	5KW-48Vdc	5KW-120Vdc	5KW-240Vdc
Wind turbine rated power	5KW	5KW	5KW
Wind turbine max. power	10KW	10KW	10KW
Solar panel power	1.5KW	1.5KW	1.5KW
Battery	48Vdc	120Vdc	240Vdc
Function	Rectifier,charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current
PWM constant pressure voltage	>56Vdc	>135Vdc	>280 Vdc
3-phase load voltage of the wind turbine	58±1Vdc	145±2Vdc	290±5Vdc
Wind turbine recovery charging voltage	54±1Vdc	135±2Vdc	280±5Vdc
Solar controller stop charging voltage	58±1Vdc	145±2Vdc	290±5Vdc
Solar restore charge voltage	54±1Vdc	135±2Vdc	280±5Vdc
Low-voltage of the battery	40±1Vdc	100±2Vdc	200±5Vdc
Self-provided connecting wire of the battery	>20mm²	>10mm²	>6mm²
PWM fuse	125A	63A	40A
Solar fuse	32A	16A	10A
Charging fuse	160A	63A	50A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation(optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller	500440290 mm
Weight of the controller	21 Kg
Size of the load	660510450 mm
Weight of the load	31 Kg

*Above parameter only for reference

1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
