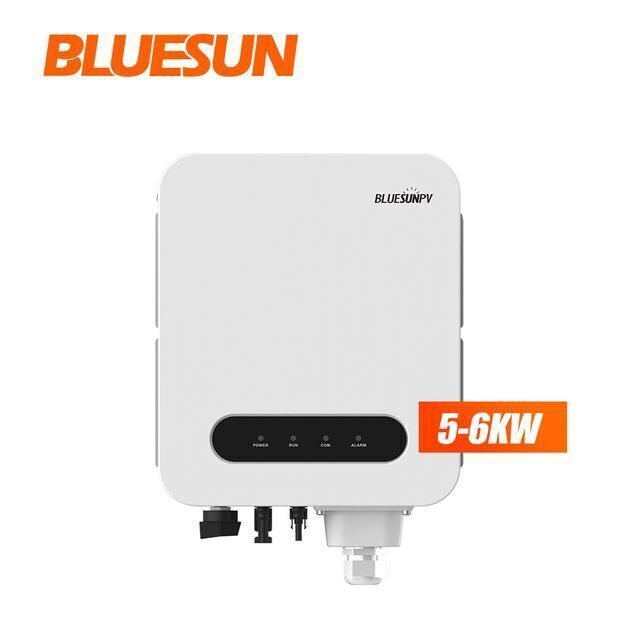

BLUESUN 5KW On Grid MPPT Solar Inverter MPPT Power 3KW 5KW 10KW Grid Tie Solar Power Inverters With TUV Certificate

Supplier: Bluesun Solar Co., Ltd.
Region: Anhui, China
Contact: Ms Bonnie Bluesun Solar
Price: $423.00 / 1 - 9 sets
$363.00 / 10 - 49 sets
$348.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Noise Emission:	50dB(A);	Type:	DC/AC Inverters;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Packaging Detail:	Carton and pallet, International standard packing.;
Model Number:	BSM5000-B2;	Cooling Concepet:	Smart Cooling;
Supply Ability:	10000 Set/Sets per Week;	Application:	Grid Tie Solar Inverter;
Safety Class:	Pure Sine Wave Solar System;	Output Current:	16-64.5A;
Inverter Efficiency:	96.9%;	Size:	470754270mm;
Topology:	Transformerless;	Brand Name:	Bluesun;
Output Type:	Single,Triple;	Min.Space Needed:	On Grid Solar Power Plant;
Weight:	48Kg;	Output Voltage:	230/400V AC or 277/480V AC;
Protection Level:	IP65;	Place of Origin:	Anhui China;
Input Voltage:	200-1000V DC;	Operating temperature range:	25 -+60;
Warranty:	5 years;	Output Frequency:	50Hz/60Hz;
Certificate:	ce/tuv;	Self-Consumption:	<1W;
Port:	Ningbo/shanghai;	Product name:	solar power inverters;

Product Description

High Power

Max DC voltage 550v, max power 5.5/6.6/8kw

High Efficiency

Max efficiency 98.47%/98.55%/98.59%

High Reliability

Double channels MPPT

Lightning protection

Provide full range of lightning protection , reliable under/over voltage protection

Compact Structure

Easy for installation and maintenance

Friendly to environment

Provide clear and green energy ,

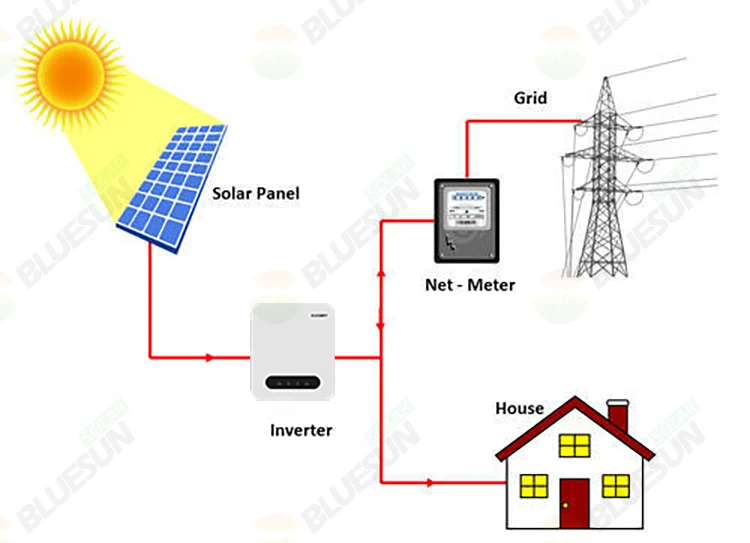

Photovoltaic power generation, save electricity costs

Model			BSM5000-B2	BSM6000-B2	BSM8000-B2
DC Input	Max. DC Voltage	550V
		MPPTVoltage Range	90 V-500V
		Max. Input Current of Each MPPT	13A			26A /13A
		Number of DC Inputs	2			3
		MPPT Number	2
AC Output	Rated Output Power	5kW	6kW	8kw
		Max. Active Pcnver (cosB=1)	5.5kW	6.6kW	8kW
		Rated Output Voltage	220V / 230V (Single Phase)
		Operating Voltage Range	176V-276V
		Max. Output Current	25A	30A	34.8A
		Rated Grid Frequency	50Hz / 60Hz
		Powr Factor	0.8(Leading) *0.8(Lagging)
		THD		<3%
System Parameters	Max. Efficiency	98.47%	98.55%	98.59%
		European Efficiency	98.00%
		Protection Level	IP65
		Operating Temperature Range	-40°C-+60°C
		Cooling System	Natural Cooling
		Standby Powr Consumption	<1W
		Topology Structure	Transformerless
		Operating Altitude	4000m (Derating above 3000m)
		Display	LED Indicator +APP
		Communication	RS485/WiFi/GPRS
		Certification	IEC62109, IEC61000, IEC62116, IEC61727, EN50549, INMETRO
More details please send inquiry to us

Monitoring System

High precision& intelligent detection

1. Communication RS485/wifi/GPRS

2. Support mobile phone APP connection, monitoring and parameter settings

3. Cooperation with cloud platform and can check the inverter status

For small household

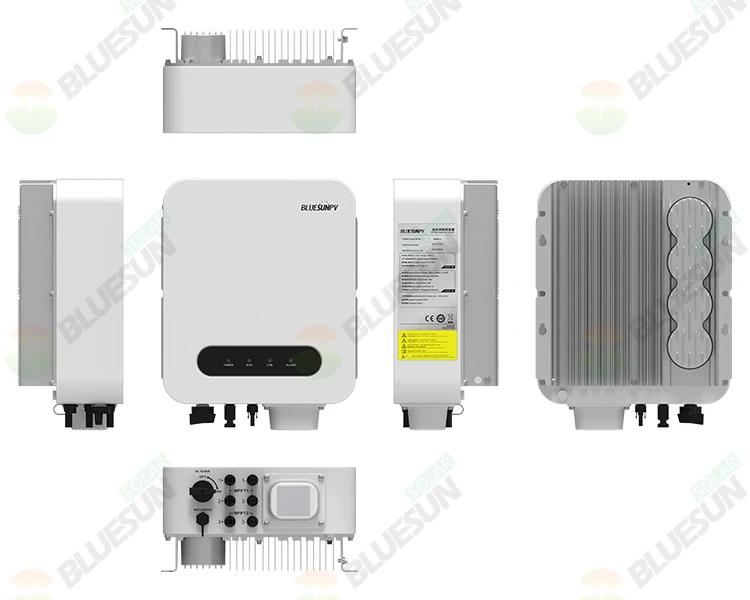

Detailed Images

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Certifications
