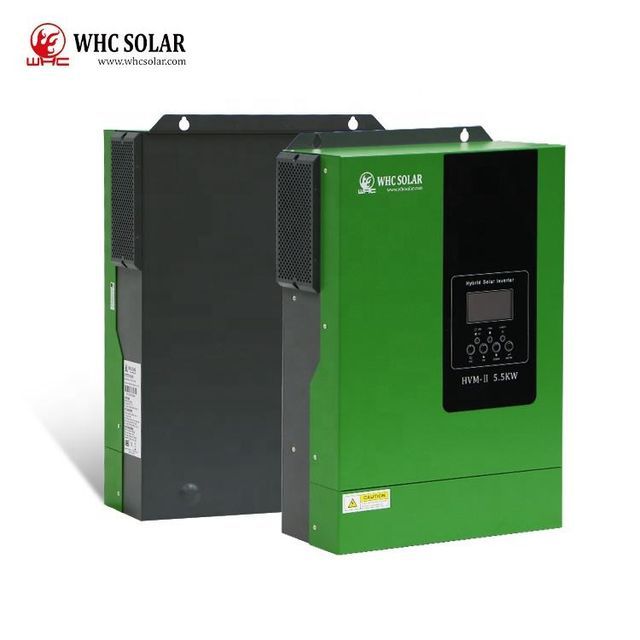

Whc high efficiency DC to AC 5.5kw pure sine solar inverter, hybrid solar inverter, hybrid inverter with mppt

Supplier: Guangzhou Whc Solar Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr CHAN
Price: $454.00 / 1 - 9 pieces
$413.00 / 10 - 99 pieces
$393.00 / 100 - 499 pieces
$375.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

weight:	11kg	size:	608390246mm
Solar input (VOC):	500V	feature:	Hybrid Solar Inverter Charger
Output waveform:	pure new wave	model:	5.5kW
Output current:	100A	efficiency:	90%-93%
product name:	Solar inverters	Input voltage:	230VAC
Warranty:	18 months	Certificate:	CE
brand:	Wanhua Solar	MPPT controller:	48V100A
Output frequency:	50Hz/60Hz	strength:	5500W
Protect:	Short circuit protection	Inverter efficiency:	90%-93%
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	The output voltage:	230VAC
Package preview:		Output type:	hybrid
Key words:	Solar inverters	type:	DC/DC converters, DC/AC inverters, hybrid inverters
application:	Solar power system homepage	Place of origin:	Guangdong, China

Specification

Features
.1. Pure sine wave solar inverter 2. High photovoltaic input voltage range 3. Built-in MPPT solar controller 4. Battery balancing
Functions to optimize battery performance and extend service life 5. The inverter can operate without batteries 6. Built-in anti-twilight kit

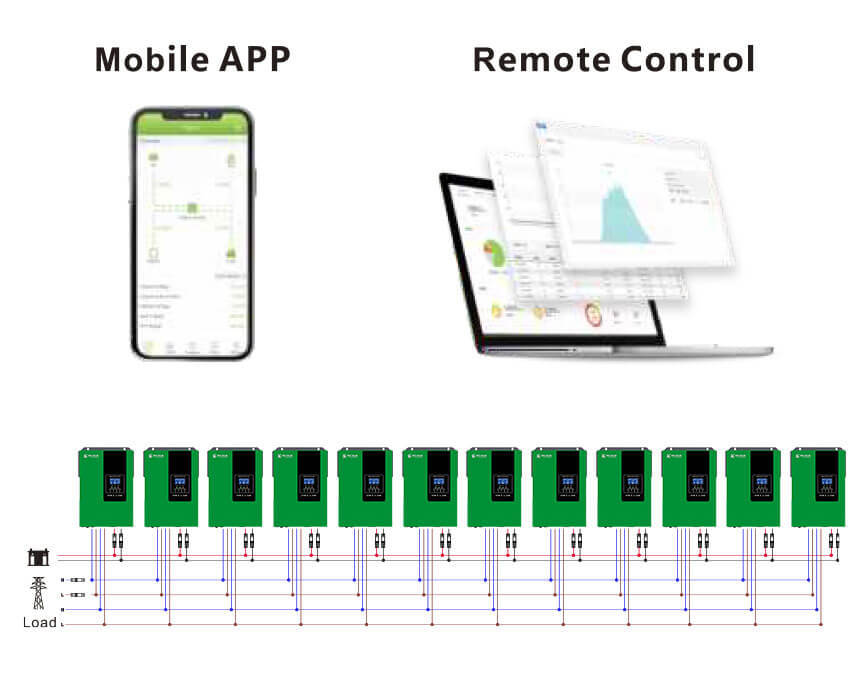

Up to 12 units can be operated in parallel in harsh environments 7. WiFi/GPRS remote monitoring 8. RS485 communication of BMS (optional)
9. Self-consumption and grid connection (optional) Detachable LCD screen (optional)

Model	HVM3.5KW	HVM5.5KW	HVM-IIP 5.5KW
rated power	3.5KW	5.5kW	5.5kW
Parallel capability	No	Yes, 12 units	Yes, 12 units
enter
Q	230VAC
Acceptable voltage range	170-280VAC/90-280VAC
frequency	50/60 Hz (auto sensing)
output
Q	220/230VAC±5%
surge power	6000VA 10000VA 10000A
frequency	50/60 Hz
waveform	pure sine wave
Transfer time	10ms (personal computer); 20ms (home appliances)
Peak efficiency (Pv to lNV)	97%
Peak efficiency (cell to INV)	93%
Overload protection	5s@>=150% load; 10s@110%~150% load
Battery
battery voltage	24VDC	48VDC	48VDC
float charge voltage	27V DC	54VDC	54VDC
Overcharge protection	33VDC	63VDC	63VDC
charging method	CC/CV
Solar charger and AC charger
Solar Charger Type	Maximum power point tracking
Maximum photovoltaic array power	4000W	5000W	5000W
Maximum photovoltaic array open circuit voltage	500VDC
Photovoltaic array MPPT voltage range	120VDC~450VDC
Maximum solar charging current	100A	100A	100A
physical

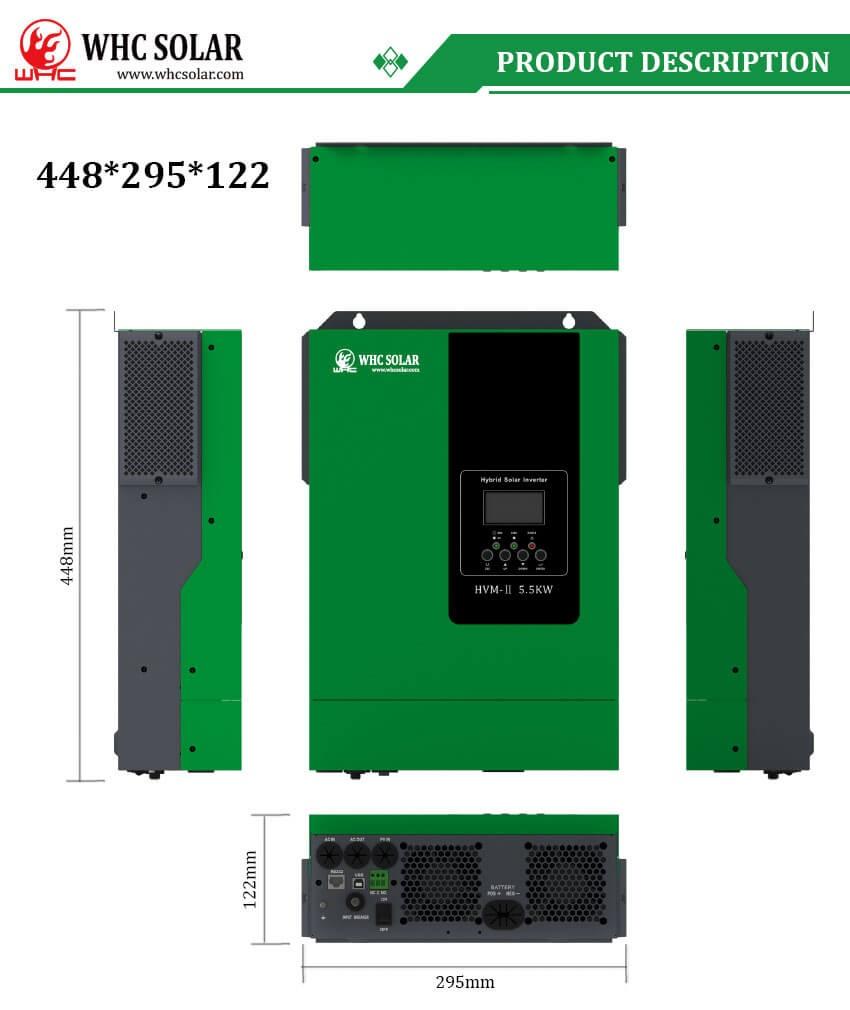

Dimensions (mm)	448295122
Packing size (mm)	540395217
Net weight/kg)	8	10
Gross weight (kg)	9	11

Product Description
