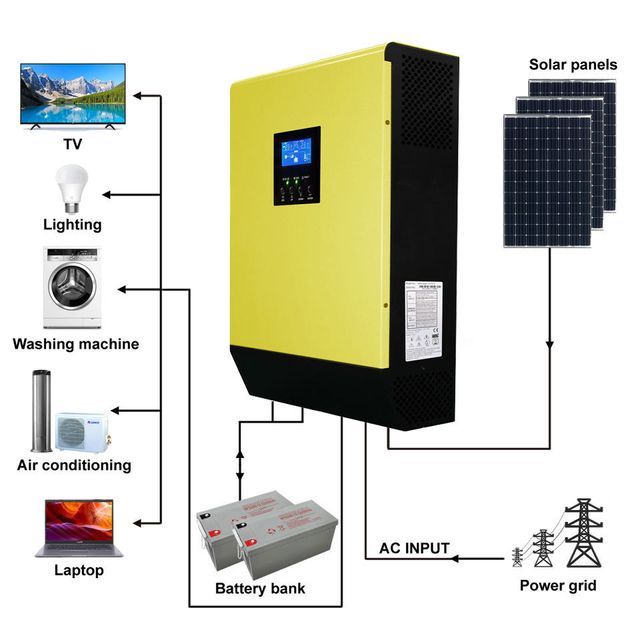

Hybrid Solar Inverter 3KVA 5KVA 24V/48V Pure Sine Wave Grid Power for MPPT Solar Inverter Solar System
-
Supplier: Shenzhen Longvision Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Jack Cao -
Price: $176.00 / 1 - 9 pieces
$155.00 / 10 - 49 pieces
$149.00 / 50 - 99 pieces
$139.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| model: | lvsi002 | brand: | vision |
| output type: | single | Package preview: | |
| Supply capacity: | 5000 pieces per day | Protect: | short circuit protection overload |
| color: | yellow, red, white, green | Packaging Details: | Packed in strong and stable cartons, and use plastic foam to reduce vibration and shock to ensure our products in good condition. |
| Warranty: | 1 year | application: | Solar Power System Home |
| Output current: | 60A | port: | Shenzhen/Guangzhou |
| MPPT efficiency: | 98-100% | Certificate: | ISO9001, ISO14001 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | weight: | 19KG |
| feature: | Energy Efficient Solar Inverters and Hybrid Inverters | Origin: | Guangdong, China |
| Waveform: | pure sine wave | Input voltage: | 24V/48V |
| Output frequency: | 50/60 Hz | exhibit: | LCD Monitor |
| Inverter Efficiency: | >98% | type: | DC/AC Inverter |
| size: | 512*320*136MM | The output voltage: | 220VAC |
| Processing: | Accept OEM and ODM | recharging current: | 60A |
Product Description
Specification
Model | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | ||||
Input voltage (DC) | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | ||||
Q | 220VAC (standard) | ||||||||
rated power | 800W | 1200W | 1600W | 2400W | 4000W | ||||
waveform | pure sine wave | ||||||||
Battery Type | VRLA / GEL /GEL Deep Cycle / Lithium | ||||||||
Maximum photovoltaic array power | 12V: 800W / 24V: 1600W / 48V: 3200W | ||||||||
PV Input Voltage Range (PWM Controller) | 12V: MPPT 15V-150VDC / PWM 15V-30VDC | ||||||||
24V: MPPT 30V-150VDC / PWM 30V-60VDC | |||||||||
48V: MPPT 60V-150VDC / PWM 60V-105VDC | |||||||||
Maximum Solar Charging Current | 60A | ||||||||
Maximum AC charging current | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A | ||||
connecting time | <10ms (UPS mode)/<20ms (INV mode) | ||||||||
peak load ratio | (Maximum value) 3:1 | ||||||||
Static power (W) | 5W | 11.5W | 13W | 15W | 20W | ||||
Safeguard | Power supply: input overcurrent protector | ||||||||
