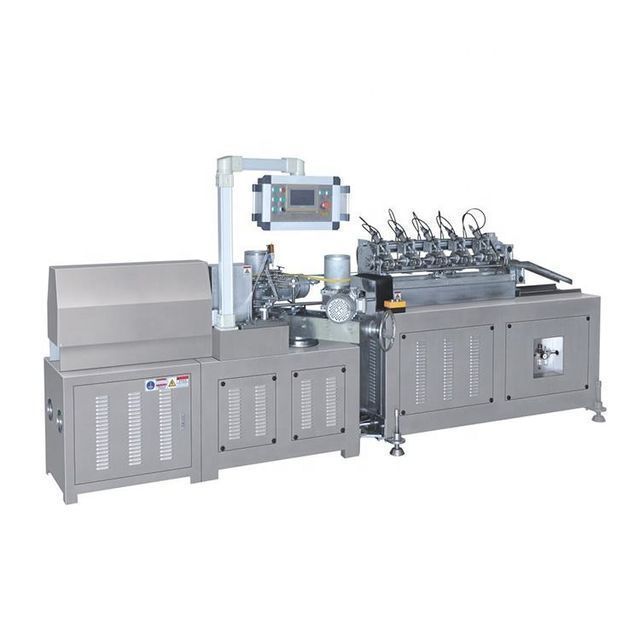

LTC50paper straw machine
- 14800.00 1 - 1 sets
- 14500.00 2 - 5 sets
- 12000.00 >=6 sets
| After Warranty Service: | Video technical support, online support, spare parts | Payment item: | 30% down payment and 70% balance before shipment |
| brand: | Lin Taike | Straw Diameter: | 4.5-12mm normal |
| Local service location: | not any | Packaging Details: | LTC50 Paper Straw Machine |
| strength: | 3.7KW | Number of knives: | 5 |
| Workspace: | 8000*5000mm | Showroom location: | not any |
| port: | Ningbo | place of origin; place of origin: | Zhejiang, China |
| After-sales service provided: | Video technical support, free spare parts, online support, on-site installation and commissioning training | product name: | LTC50paper straw machine |
| Health status: | new | Glue method: | single/double |
| Warranty: | 1 year | Certification: | Chief Executive |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants | Voltage: | 380V |
| capacity: | 35-50M/min | Application areas: | straw |
| Paper material: | Can be colorful type | Raw materials: | Paper |
| Supply capacity: | 30 sets of LTC50 paper straw machines per month | Dimensions (L*W*H): | 3500*1500*1200mm |
| payment terms: | L/C,T/T,LTC50paper straw machine | weight: | 1200KGS |
generalize LTC50paper straw machine | |
The paper straw machine is mainly used to produce various paper straws and micro paper tubes. | |
parameter | |
paper layer | 3 floors |
the inside diameter of | 4.5-12mm |
wall thickness | 0.3-1mm |
Winding speed | 30-45m/min |
cutting system | Servo motor synchronous tracking cutting |
Cutting function | Multi-blade (5) |
gluing method | single/double |
straw collector | L-shaped automatic collector |
operator | 1 person |
power supply | 380V/3phase/50Hz |
main motor | 3.0KW |
Measurement | 3500*1500*1200mm |
Workspace | 8000*5000mm |
weight | 1200kg |
Electrical components | |
Motion Controller | panel master |
touch screen | panel master |
Inverter | 3.7KW Schneider |
Pneumatic Components | latitude and longitude |
Electrical components | Schneider |
bearing | Harbin |
servo motor | Schneider |
Screw/Slider | business secret |
Paper roll holder and glue unit | 3 floors |
belt | 5 pieces |
Mandrel | 2 pieces |
useful tool | 1 set |
NOTE: As the equipment is constantly being updated or improved, the final machine should talk to us and confirm. | |

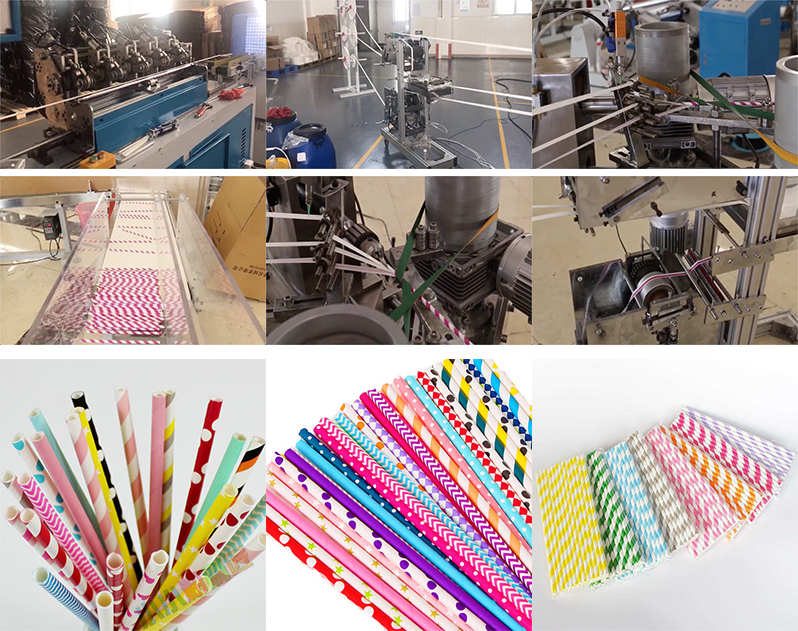

Apple ComputerDetails and straw samples
