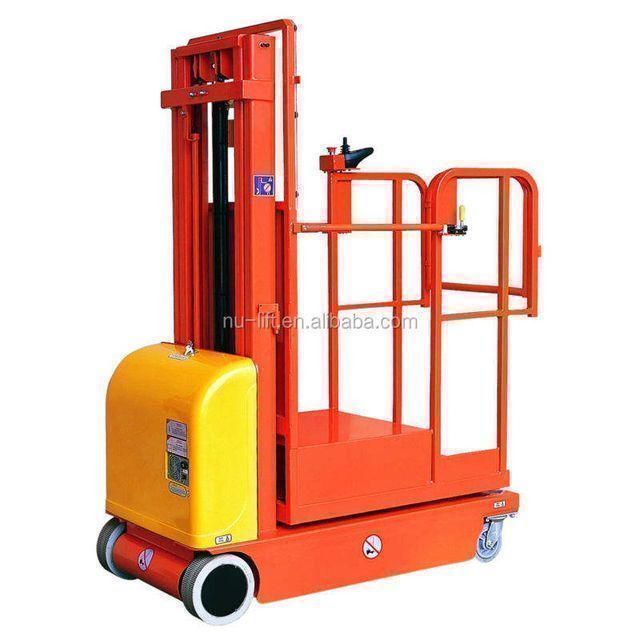

Self-propelled electric picker

Click here to contact

Product details

brand:	NU-LIFT	Dimensions (LWH):	1530x700x1830mm, 1530x700x2130mm
Certification:	Chief Executive	payment terms:	letter of credit, wire transfer
Warranty:	one year	port:	Shanghai
model:	FSEP3-2.7, FSEP3-3.3, FSEP3-4, FSEP3-4.5	Lifting:	electrical
place of origin; place of origin:	Jiangsu, China	drive:	self-propelled
Packaging Details:	1PC/tray	Delivery Details:	20 days
Health status:	new	Supply capacity:	200 pieces per month
After-sales service provided:	Provide overseas service center

Standard equipment
bus technology
Proportional control

Battery charge indicator

Forklift pocket

safety bracket

Low voltage alarm

emergency descent button

Charger Protection

Controller temperature protection

2WD

overload limit

Model			FSEP3-2.7	FSEP3-3.3	FSEP3-4	FSEP3-4.5
SWL		Kilogram	300
including the number of people			1
maximum. machine height		mm	4120	5000	5400	6000
Platform height			2700	3300	4000	4500
Overall length			1530		1620
overall width			700
total height			1830	2130	1840	2000
Platform size			600*640
Ground clearance			40
wheelbase			1240
Turning radius			1600
motor		DC/kW	2*24VDC/0.4kw
lifting motor		DC/kW	24VDC/1.6kw
Driving speed	put away	km/h	4
	improve		1.6
Battery		v/Ah	2*12V/150Ah
All-in-one charger			24V15A
Gradeability			15~20%
tire	motor	mm	Ø230*80
	front wheel	exist	6
net weight		Kilogram	430	450	660	680
