Railway shunting locomotives, AAR standard diesel locomotives for mine and ore

Supplier: Qingdao Ruilan Trading Co., Ltd.
Region: Shandong, China
Contact: Ms linda wang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

maximum. speed:	Shunting/Shunting 35/75km/h	Diesel engine working power:	1000kW
horsepower:	320	Gauge (mm):	1435
Type of gasoline:	diesel engine	Continuous speed:	Shunting/Shunting 10/14km/h
port:	Qingdao or other ports	minute. Radius of curvature (m):	70
Packaging Details:	as your demon	Sustained Traction:	Shunt/transfer 243/150kN
Axle load:	23 tons or 25 tons	Start Traction:	Shunt/transfer 297/230kN
Wheel diameter:	1050mm	place of origin; place of origin:	Shandong China
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram	Supply capacity:	240 sets per year

Product Description

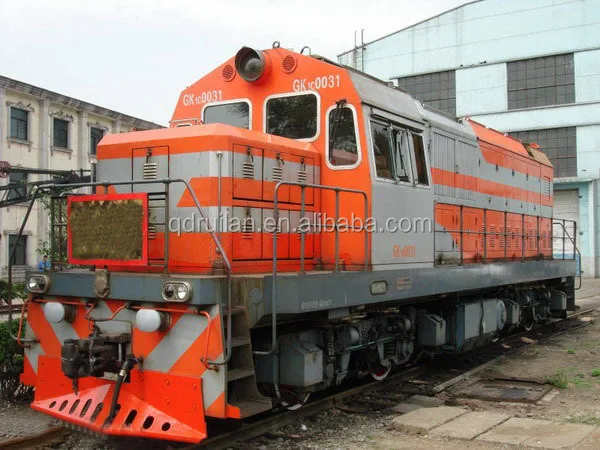

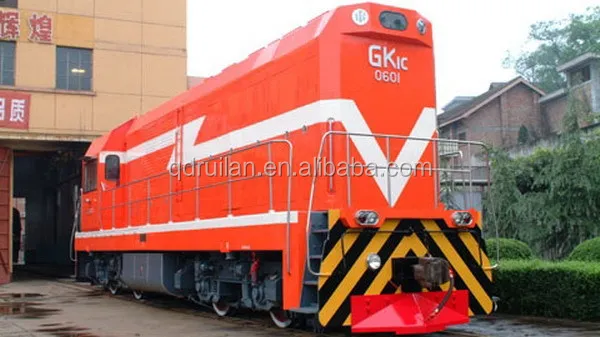

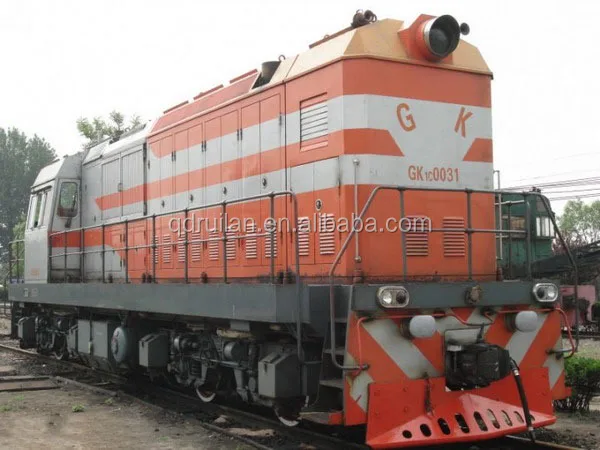

GK1C hydraulic diesel locomotive is designed for large industrial enterprises. The locomotive is equipped with a 6240ZJ medium-speed diesel engine with good economy and high reliability, and a ZJ4014G Y-type hydraulic transmission box with hydraulic reversing function. Therefore, the locomotive is suitable for shunting and transfer services for large industrial enterprises such as mining, metallurgy, petrochemical, and port enterprises.

Specification

gauge:	1435mm
Shaft Arrangement:	C0-C0
Wheel diameter:	1050mm
Axle load:	23 tons or 25 tons
Diesel engine working power:	1000kW
minute. Negotiable curve radius:	70m
maximum. speed:	Shunting/Shunting 35/75km/h
Continuous speed:	Shunting/Shunting 10/14km/h
Start Traction:	Shunt/transfer 297/230kN
Sustained Traction:	Shunt/transfer 243/150kN
