High quality Open Top Railway Wagon Car, C80B train carriage for sale

Supplier: Qingdao Ruilan Trading Co., Ltd.
Region: Shandong, China
Contact: Ms linda wang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Minimum curve radius (m):	145;
Standard:	AAR and so on;	Port:	Qingdao or other ports;
Commercial running speed (km/h):	100;	Type:	Open Top Wagon,wagon;
Material:	Steel;	Packaging Detail:	as your demonds;
Supply Ability:	2000 Set/Sets per Year;	Tare weight (T):	20;
Preload:	> 50T;	Delivery Detail:	within 90 days;
Loading capacity (T):	80;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	ISO9001:2008;	Volume (m3):	84.8;
Axle load (T):	25;

Product Description

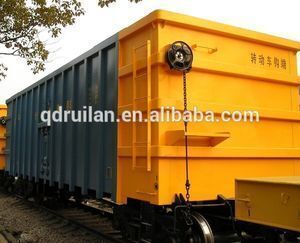

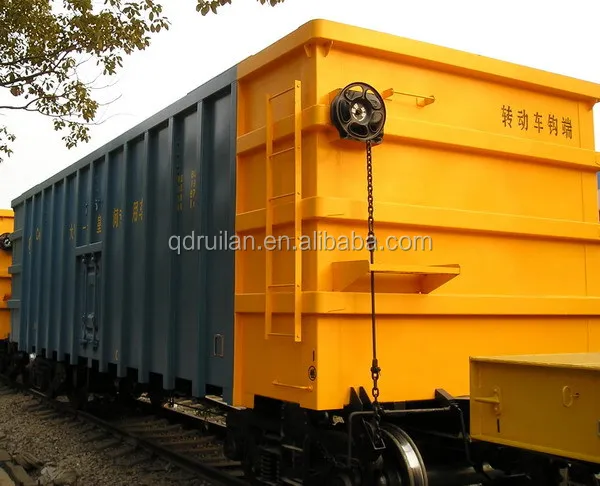

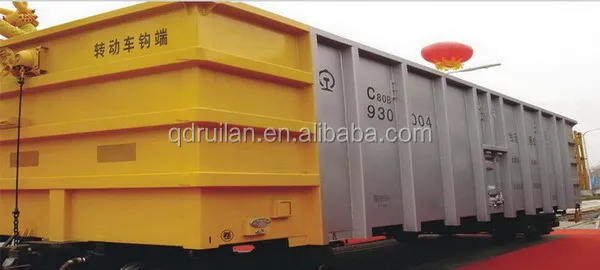

C80B Open Top Wagon Car

It's suitable to be organized into groups of 20,000 ton trains on railways which tare weight is light and load weight is very heavy.

Adopting traditional open-top wagon structure bearing through sidewall and flat floor, its structure is very simple and reliable. It can be maintained conveniently.

The main plates such as side wall, end wall and floor etc, and sills are made of TCS stainless steel, which is anti-corrosive and can lengthen life of wagons.

Specification

Loading capacity(t)	80
Tare weight(t)	<20
Axle load(t)	25
Volume(m3)	84.4
Coefficient of tare weight	0.25
Load per meter of track(t/m)	8.33
Commercial operation speed(km/h)	100
Minimum radius of curvature negotiable(m)	145
Urgent brake distance of heavy wagon(m)	<1400
Length of vehicle(mm)	12000
Length between bogie pivot centers(mm)	8200
Maximum height of vehicle(empth wagon)(mm)	3767
Maximum width of vehicle(mm)	3284
Wagon door and its dimension	950*756
Height of the coupler center line	880
Diameter of wheels	840

Factory

More Products

We can offer Railway Locomotive, Wagon Car, Bogie, Bolster, Side frame, Wheels, Axle, Axle box, Spare parts, Spring/Bearings and Casting products.

Pls feel free to contract with us.

Press Below Pic to get them directly

Certification

ISO 9001

ISO 14001

OHSAS 18001:1999

GB/T 28001-2001

Sout

Company Information

Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100,bogie1750,bogie578,bogie7020, bogie194,bogie9922 with certificate can make sure products enter into your market.

Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.

Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.

"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
