Disposable Cup Automatic Plastic Cup Thermoforming Machine

Supplier: Ruian Junda Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr wanfeng chen
Price: $19500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Air consumption (L/min):	2500L/min	Certification:	ce
place of origin; place of origin:	Zhejiang, China	port:	Ningbo or Shanghai
Voltage:	380V/50HZ	Maximum forming depth:	120mm
Forming length (mm):	300 mm	Product Category:	plastic cup
Forming width (mm):	630 mm	Packaging Details:	Wooden packing
Core components:	PLC, gear	Weight (tons):	3.5 tons
Heating power (kW):	55 kW	payment terms:	letter of credit, wire transfer
Video external inspection:	if	Supply capacity:	5 sets per month
Water consumption (L/min):	100L/min	Mechanical test report:	if
Health status:	new	Applicable industries:	Food and Beverage Factory, Restaurant, Food Store, Food and Beverage Store
Main selling point:	easy to operate	After-sales service provided:	Engineers can repair machinery overseas
Warranty:	1 year	brand:	Junda
application:	Food, Commodities, Beverages	Air pressure (MPa):	0.8 MPa
Material:	PS, PVC, PP, ABS, EPS	type:	plastic packaging machine
Plastic Type:	PVC, PS, PP	Dimensions (LWH):	380016502500MM
Core Components Warranty:	1 year	Local service location:	not any
Processing type:	Plastic Thermoforming Machine	Marketing Type:	New Products 2019
Showroom location:	not any	strength:	7.5KW
After Warranty Service:	Video technical support, online support	Packaging Preview:
Forming area:	RJD-660	Maximum forming height (mm):	180 mm
weight:	3.5 tons

Product Description

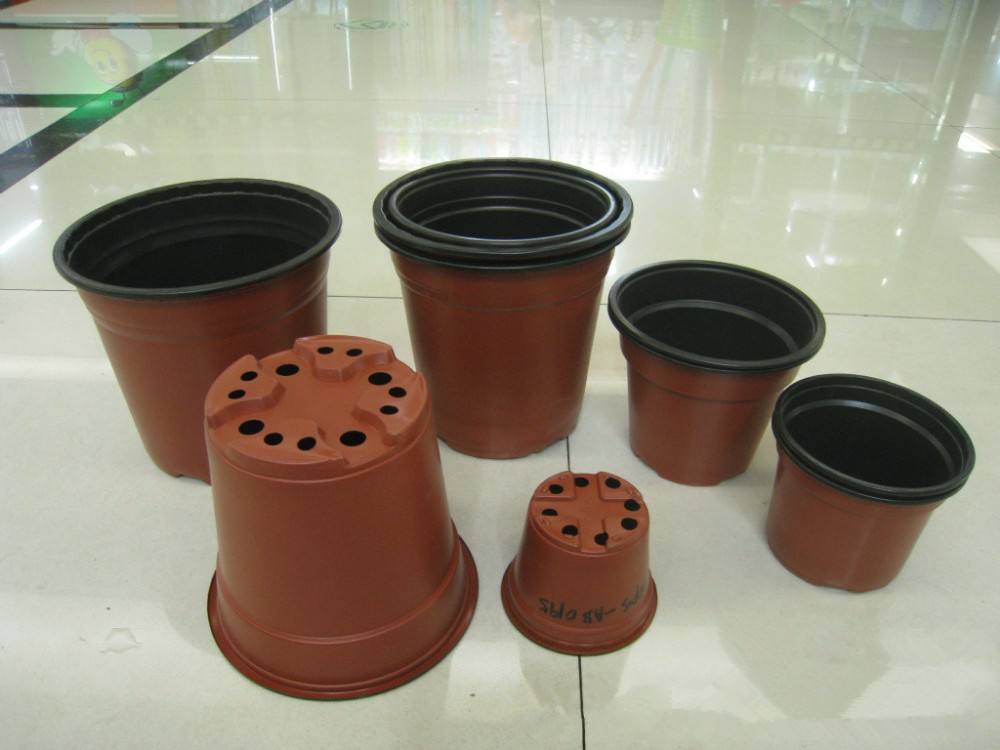

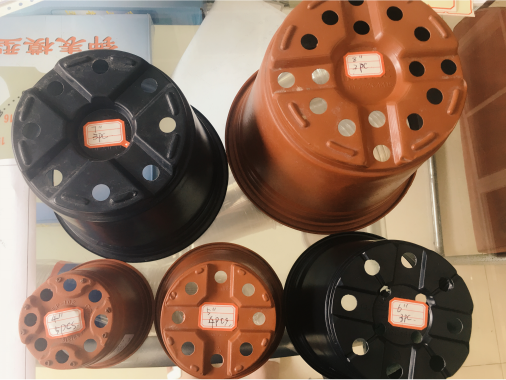

Automatic Plastic Flower Pot Making Machine

1. Main Features

1) This machine is suitable forPS, PVC, PP, ABS, EPSWait for the plastic sheet.

2) it's a combinationMechanical, Electric and PneumaticElement.

3) The whole system consists ofprogrammable logic controller, the machine hasHuman-machine interface operation.

4) Mainly suitable for continuous production of dDisposable cutlery with hard plate and EDS.

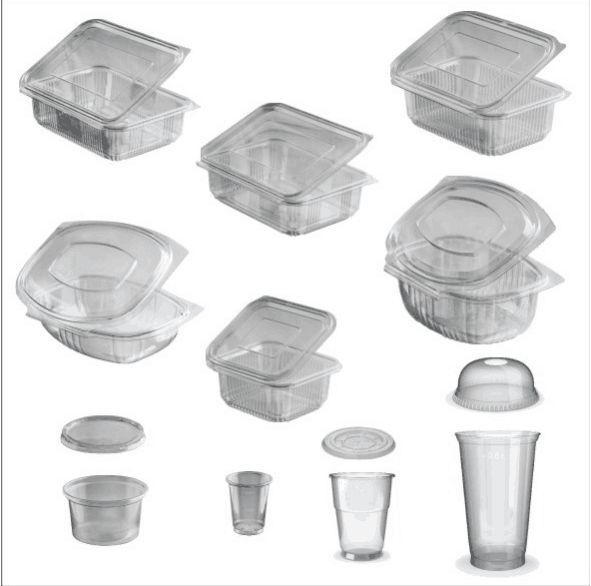

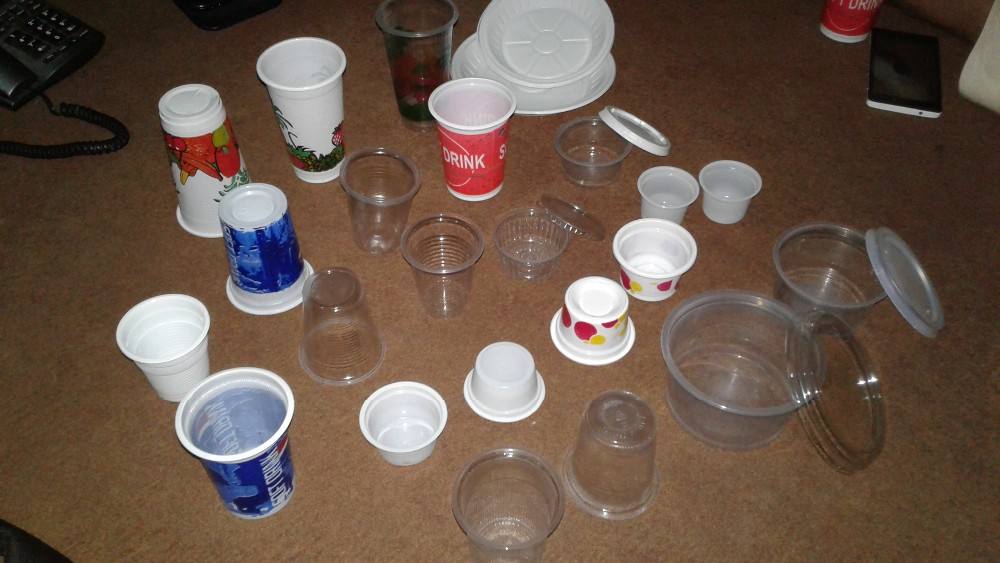

5)The specific goods areCold drink cup, yogurt cup, ice cream cup, fast food boxetc., can also produce packaging products for the industry, such asMedicine, light industry, tourism, toysand many more.

2. Machine parameters

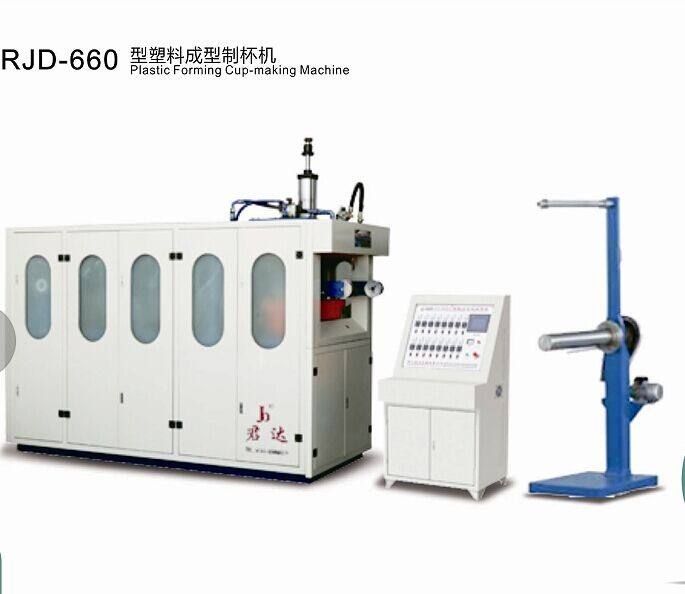

Model	RJD-660
Sheet	PP, PS, PVC, ABS, EPS
Sheet width	400-630mm
Sheet thickness	0.25-1.5mm
forming area	300*620mm
Maximum molding area	640*350mm
Maximum forming depth	120-180mm
Rated heating power	67-78KW
Regulator Pressure Die Heart	50A
Host motor power	7.5KW
using electric	3*380v+N+PE, 50HZ
Sending motor power	2.4-4.4KW
Air consumption	2600L/min
Water Consumption	100L/min
productivity efficiency	20-35 molds/min
